Description
DJI NAZA-M V2 Flight Controller with GPS Combo
The DJI NAZA-M V2 Multirotor Autopilot Controller Set with GPS is an advanced all-in-one flight control system designed to bring exceptional stability and intelligent flight capabilities to your multirotor aircraft. Supporting up to nine multi-rotor configurations, the Naza-M V2 acts as the brains of your drone, interpreting pilot inputs and sensor data to maintain precise and stable flight.

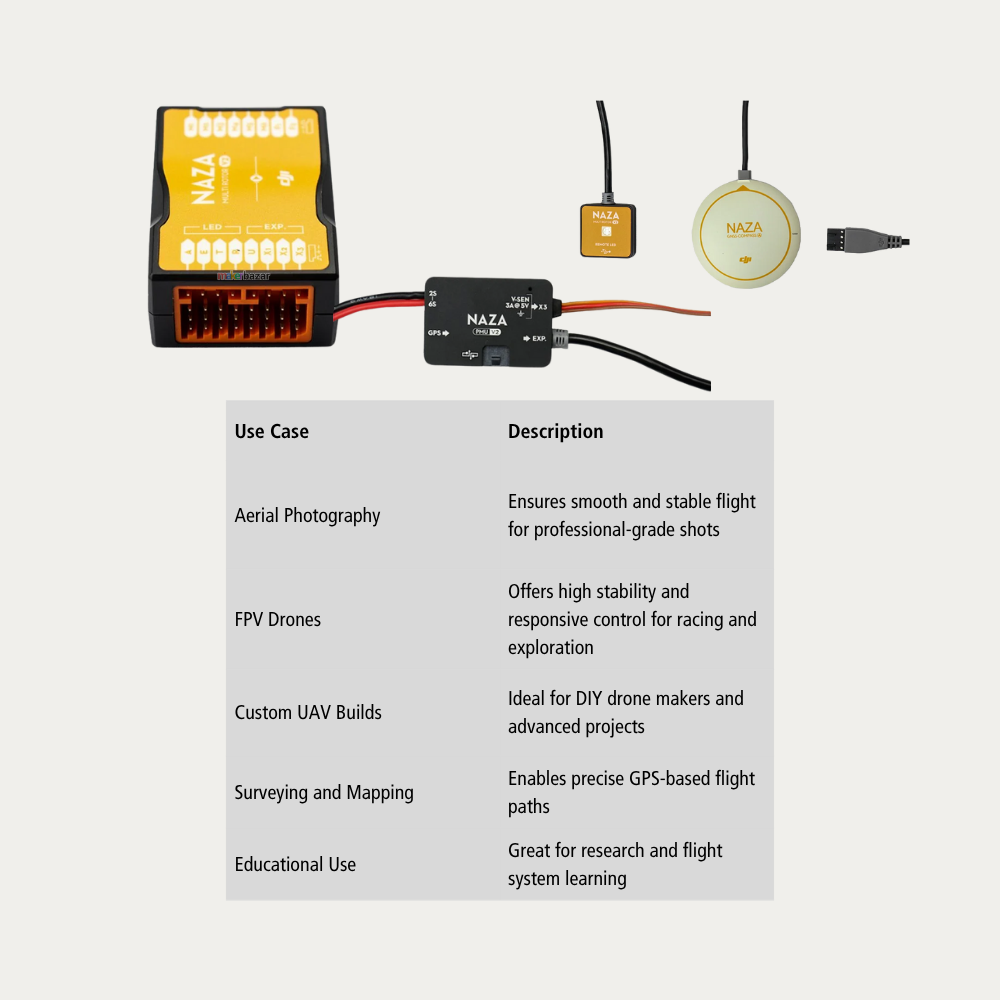

This system consists of four major components:
-
MC (Main Controller): The central flight computer that manages control and stability.
-
PMU (Power Management Unit): Regulates power distribution to each motor.
-
GPS & Compass Module: Provides accurate position hold, Intelligent Orientation Control (IOC), and Return-to-Home functionality.
-
LED Module: Offers clear visual indications for flight status.
Equipped with CAN-Bus ports, the Naza-M V2 seamlessly integrates with DJI accessories such as the iOSD Module, Ground Station System, and gimbal control units. Whether you're flying a quadcopter, hexacopter, or octocopter, the Naza-M V2 ensures smooth handling, reliable GPS positioning, and multiple safety features — ideal for both professional and hobbyist pilots.

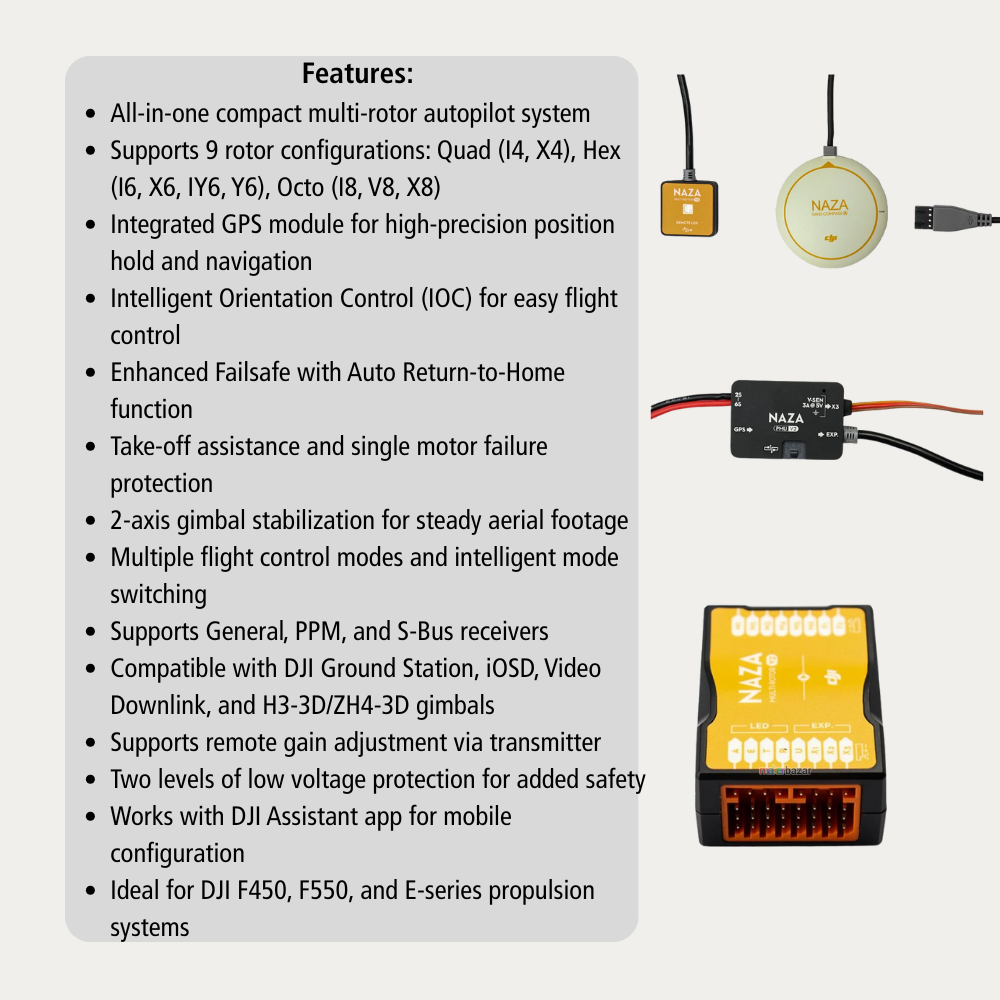

Key Features:
-
All-in-one compact multi-rotor autopilot system
-
Supports 9 multi-rotor configurations: Quad (I4, X4), Hex (I6, X6, IY6, Y6), Octo (I8, V8, X8)
-
New Assistant software for Windows, macOS, and iOS
-
GPS module for precise position hold and navigation
-
Multiple flight control modes with intelligent switching
-
Intelligent Orientation Control (IOC) for easy navigation
-
Take-off assistance for smooth lift-offs
-
Supports General, PPM, and S-Bus receivers
-
Arm/Disarm safety modes for secure motor starting
-
2-axis gimbal stabilization support
-
Dual-level low voltage protection
-
Single motor failure protection
-
400Hz ESC output refresh rate
-
Compatible with PCM or 2.4GHz transmitters (min. 4 channels)
-
Remote gain adjustment via transmitter
-
Enhanced failsafe with Auto Return-to-Home
-
Works with DJI iOSD, Ground Station, ZH4-3D/H3-3D gimbals, and more
-
Optimized for DJI F450/F550 and E Series tuned propulsion systems

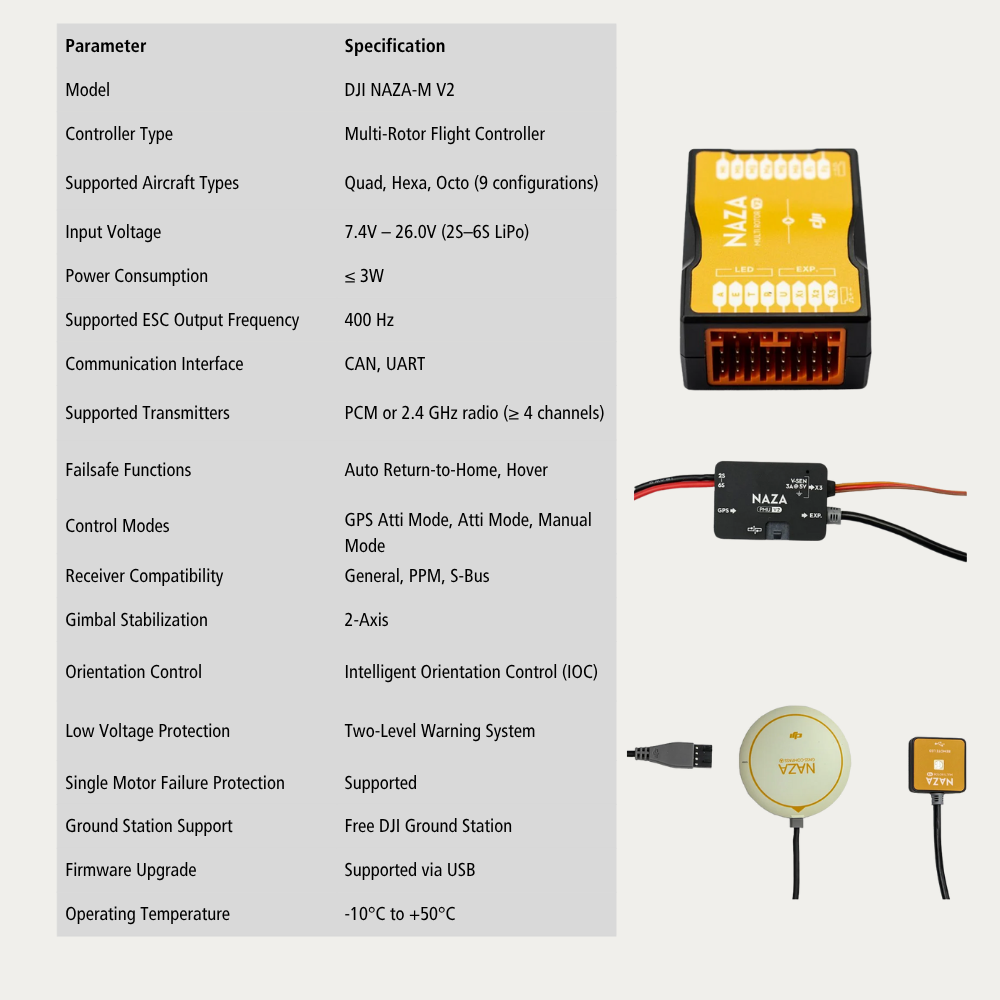

Product Specifications:
| Specification | Details |
|---|---|
| Item Type | Flight Controller |
| Model Name | DJI NAZA-M V2 |
| Input Voltage (V) | MC: 4.8–5.5V, VU: 7.4–26.0V (2S–6S LiPo) |
| Power Consumption (W) | 1.5 |
| Operating Temperature (°C) | -10 to +50 |
| Firmware | NAZAM V2 |
| Weight (g) | MC: 27g, PMU: 28g, GPS: 27g |
| Dimensions (L x W x H mm) | MC: 45.5 × 32.5 × 18.5, PMU: 39.5 × 27.5 × 10, GPS: 46 (Ø) × 10 |
| Micro SD Card Slot | No |
| Supported ESC Output | 400 Hz refresh frequency |
| Supported Transmitters | PCM or 2.4GHz (min. 4 channels) |
| Hover Accuracy (GPS Mode) | Vertical: ±0.8 m / Horizontal: ±2.5 m |
| Max Angular Speed | 200°/s |
| Max Tilt Angle | 35° |
| Max Ascent Speed | 6 m/s |
| Max Descent Speed | 4.5 m/s |
| System Requirements (Assistant Software) | Windows 8/7/XP SP3, macOS 10.6+, iOS (iPhone 4s+, iPad Mini/4) |
| Shipping Weight | 0.14 kg |
| Shipping Dimensions | 10 × 10 × 8 cm |

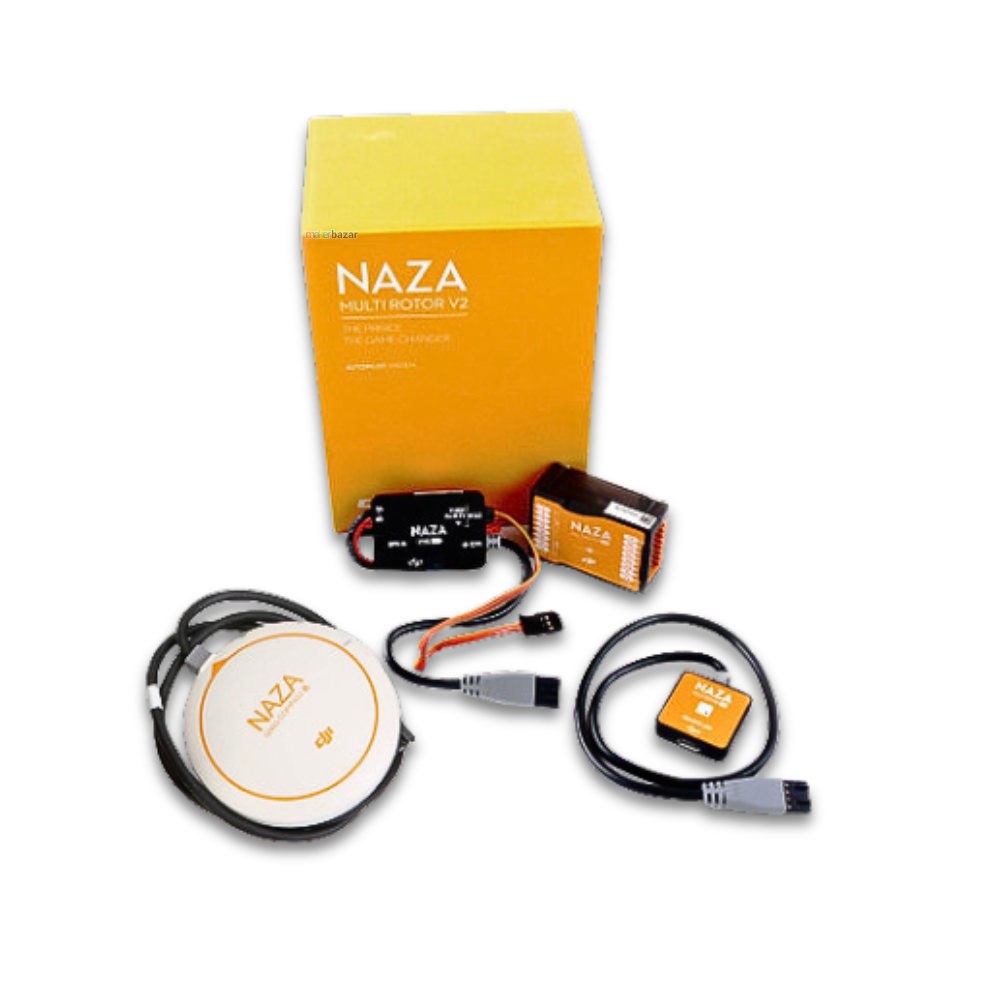

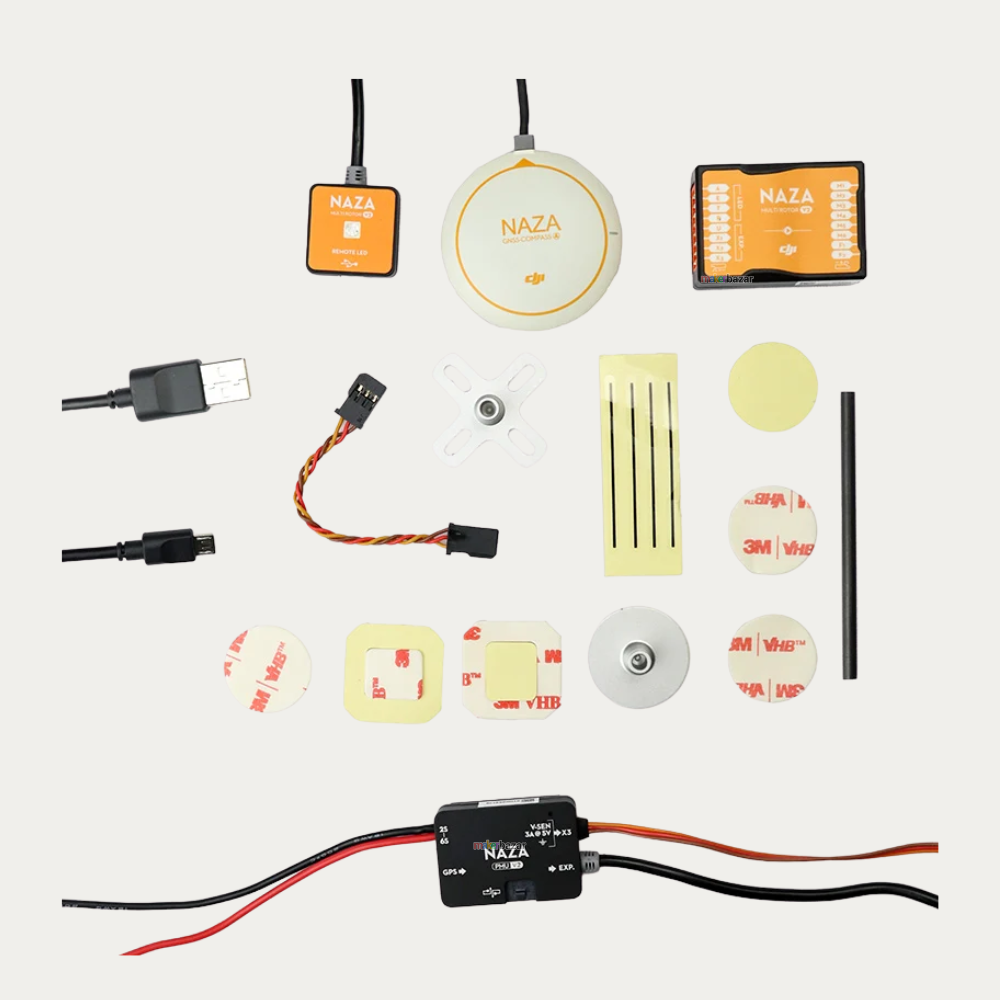

Package Includes:
-
1 × Main Controller Unit
-
1 × Power Management Unit
-
8 × Servo Cables
-
1 × LED Module
-
1 × Micro USB Cable
-
2 × Adhesive Tape
-
1 × GPS Module
What’s the difference of NAZA-M Lite/ NAZA-M V1/ NAZA-M V2 :
|
Product |
Target Customer |
Hardware |
Software |
Function Extension Ability |
Major Components |
| NAZA-M Lite | AP/RC entry level | Based on NAZA V1 platform; no extension ability | NAZA lite Independent assistant software and firmware; | 1.GPS (Optional) 2.No extended function (does not support NAZAV2-PMU, Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD) |
MC GPS（optional） BEC/LED（Will have independent BEC and LED in the future） |
| NAZA-M V1 | AP/RC hobbyist | Can be connected to the NAZA V2-PMU, and will have the NAZA-M V2 expansion function; | Share the same NAZAM V2 assistant software and firmware; |
1.GPS (Optional) 2.Function extension through NAZAV2-PMU: such as Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD/Ground Station |
MC GPS（optional） BEC/LED |
| NAZA-M V2+GPS Combo | AP/RC hobbyist | Optimized hardware structure; Independent PMU module with amazing function extension ability; Independent LED module; |
Amazing function extension：such as Zenmuse H3-2D/NAZA OSD/NAZA BT module/IOSD/Ground Station | MC GPS NAZAPMU V2 LED |
Note
Ensure all firmware updates are completed before first flight.
Always calibrate the compass before every new flight location for accurate GPS tracking.
