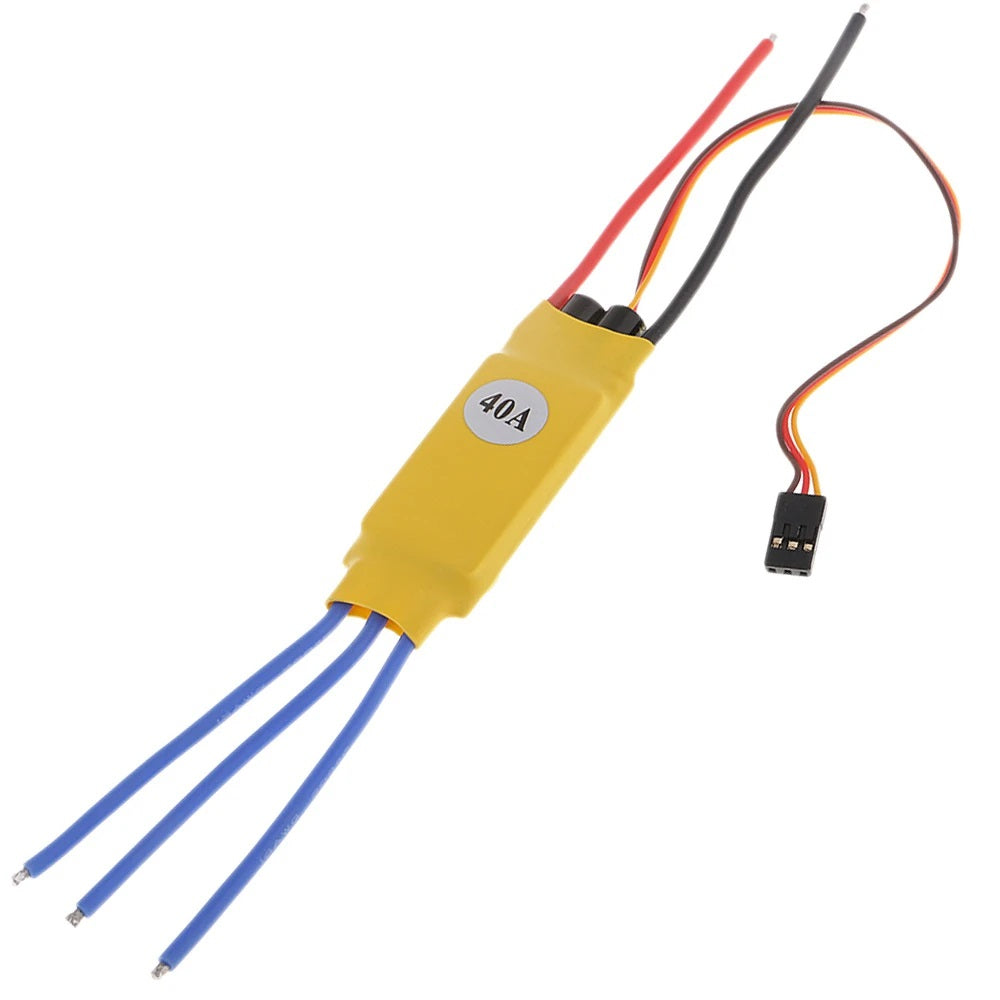

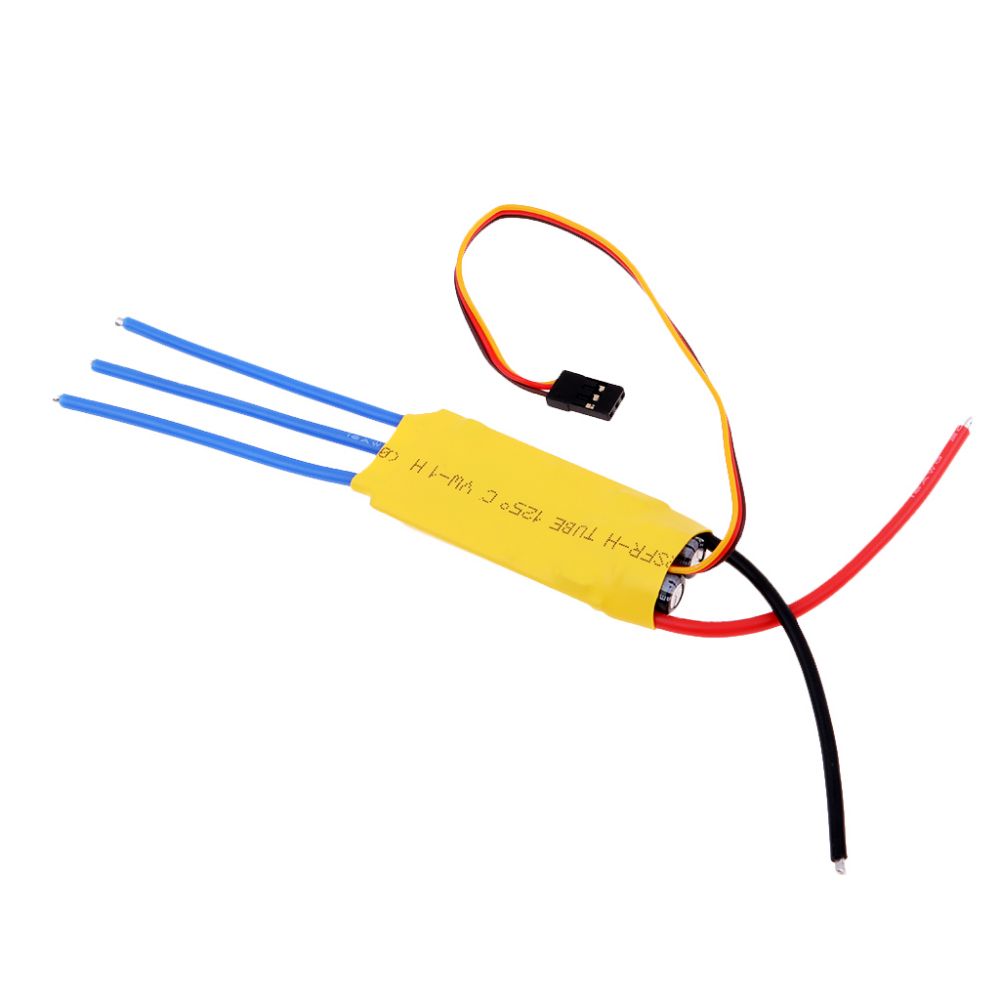

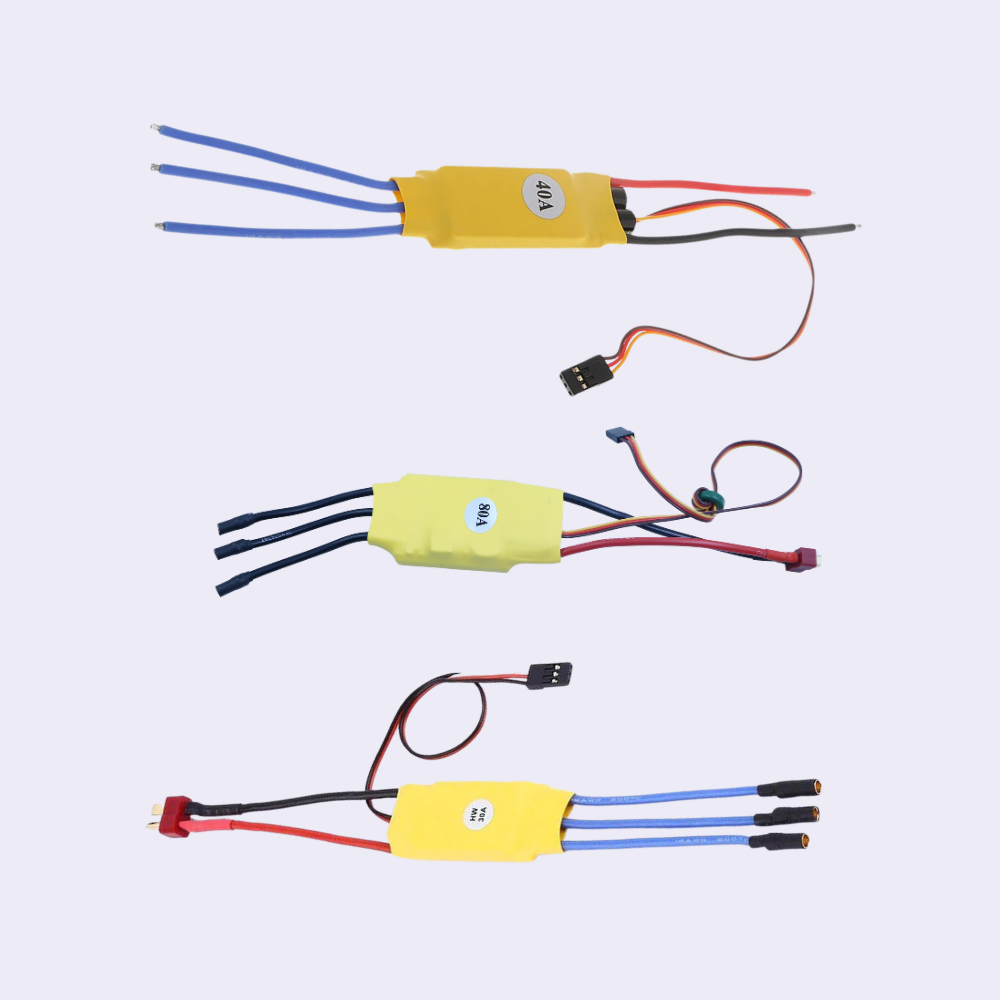

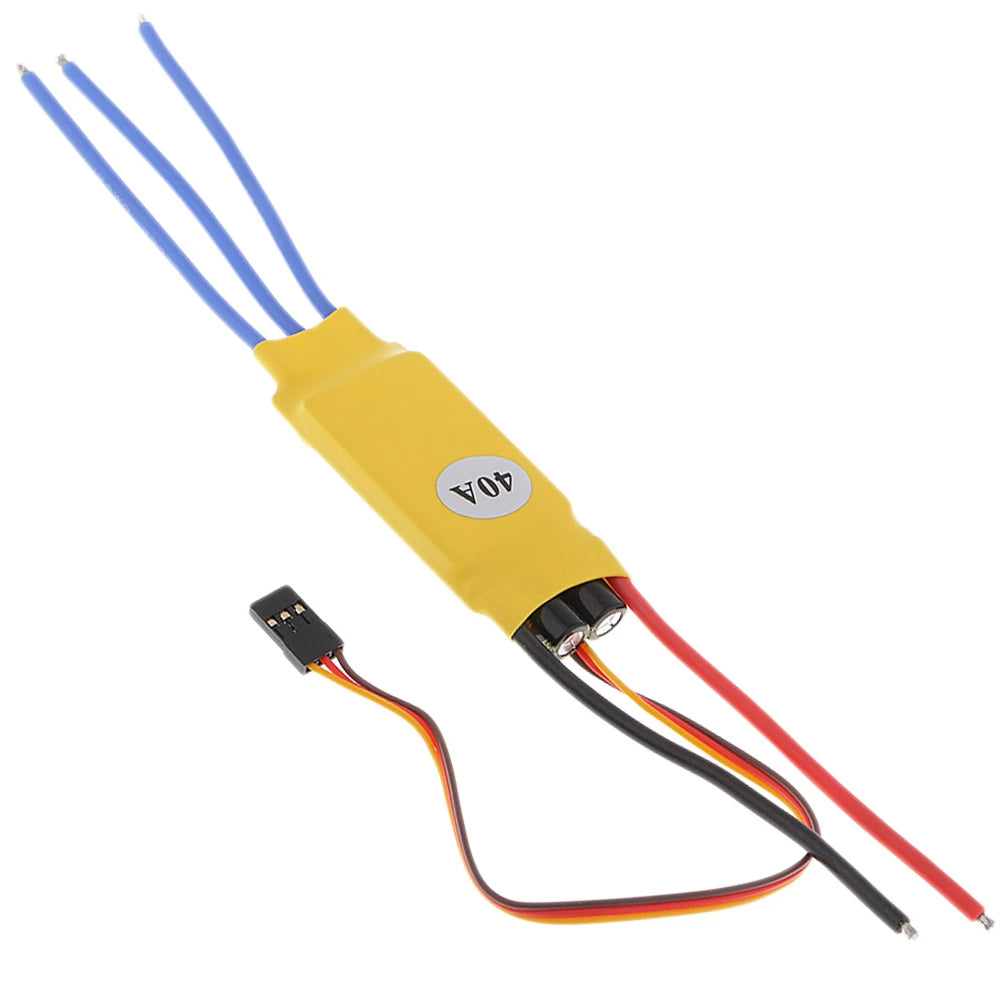

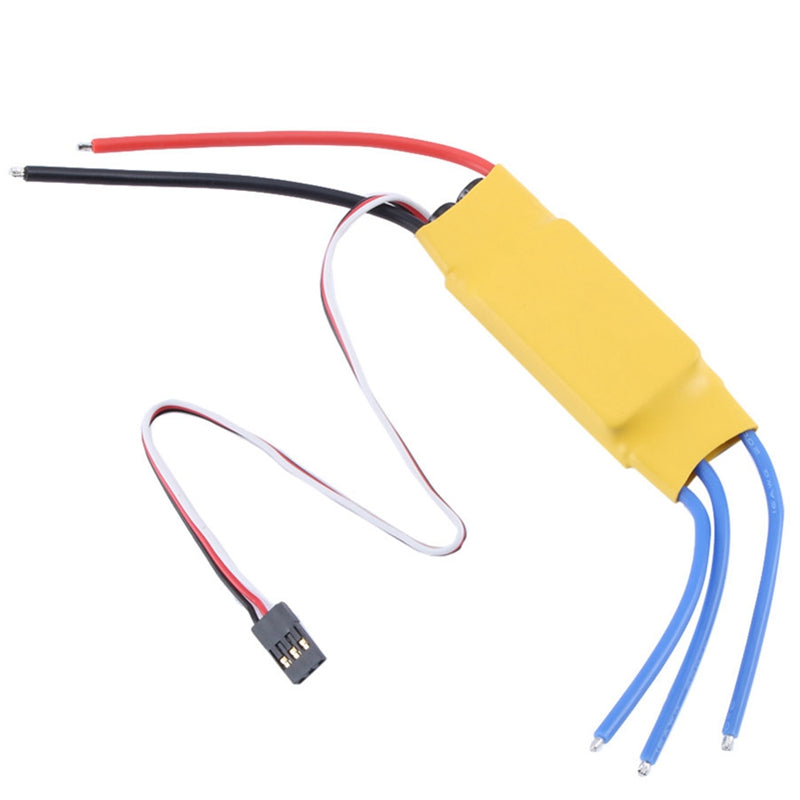

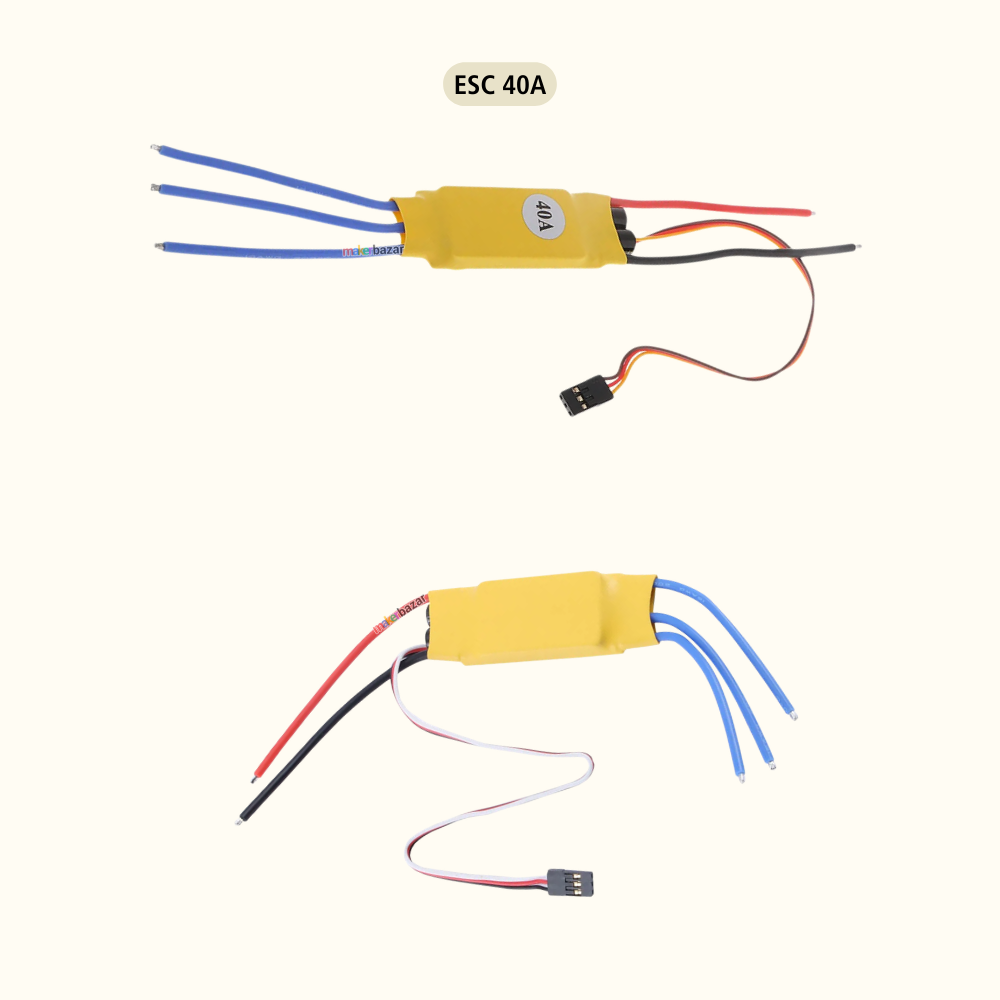

ESC 40A Brushless Motor Speed Controller
ESC 40A Brushless Motor Speed Controller
ESC 40A Brushless Motor Speed Controller
ESC 40A Brushless Motor Speed Controller
Roll over image to zoom in Click on image to zoom
ESC 40A Brushless Motor Speed ControllerESC 40A Brushless Motor Speed ControllerESC 40A Brushless Motor Speed ControllerESC 40A Brushless Motor Speed Controller

ESC 40A Brushless Motor Speed Controller

Save ₹ 141.00
SKU: 120440181
2 reviews
Price:
₹ 649.00 ₹ 790.00
( ₹ 550 without 18% GST.)

Tax included Shipping calculated at checkout

Description

40A Brushless Motor ESC Speed Controller for RC Airplane Quadcopter Drone

Standard 40A BLDC ESC Electronic Speed Controller is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs.

STANDARD 40A BLDC ESC ELECTRONIC SPEED CONTROLLER can drive motors which consume up to 40A current. It works on 2S-3S LiPo batteries. It has an onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. It can be used to control our brushless motors with a 2S-3S LiPo (make sure motor doesn’t draw more than 40A).

BLDC ESC40A ESC-40A ESC 40A Brushless DC Motor Speed Controller ESC Electronic Brushless 40A Motor Speed Controller Power Supply For RC Drone Airplane

The RC Electric Parts 40A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn’t run hot like other ESCs! The ESC comes pre-soldered with 3.5mm Bullet Plugs and an Plug, eliminating the need for you to solder your own plugs on! The ESC can be programmed via the transmitter, as explained in the instructions, or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it’ll properly program the ESC.

This speed controller is for aircraft use and is suitable only for brushed motors. It is compatible with LiPo and Ni-xx batteries. It features low-voltage cut-off protection, over-heat protection and throttle signal loss protection.

Feature:

  • High quality brushless BEC replacement parts
  • Excellent output ability of continues current of 40A
  • Premium material made, stable and reliable
  • Durable, Speed Controller, 40A, Universal
  • Ideal speed controller for RC/FPV/Quadcopter/RC Airplanes and others
  • Low resistance
  • Sixteen cells Max (with BEC disabled)
  • User programmable brake
  • Low voltage auto setting based on battery
  • Throttle range self-adjusting
  • Soft start ramp up
  • Auto motor cutoff with reset
  • Runs motor in forward or reverse
  • Safe power arming program ensures motor will not run accidentally after turn on
  • Low torque start
  • Auto shut down when signal is lost

Specifications:

  • Type: 40A Brushless Without BEC (short)
  • Material: Plastic
  • Continuous Output Current: 40A
  • Max Current: 50A (No Less than 10 Seconds)
  • DC:3.7V-12.8V
  • BEC:3A / 5V (Switch)
  • Size: 45mm x 26mm x 10mm
  • Ni-Mh/Ni-cd:c4-10Ni- MH
  • Color: Yellow
  • Net weight: 31g
  • Maximum Speed: 2-pole Motor 210000rpm, 6-role Motor 70000rpm, 12-pole Motor 35000rpm

Notes:

  • Due to the light and screen setting difference, the item’s color may be slightly different from the pictures.
  • Please allow slight dimension differences due to different manual measurements.

Package includes:

  • 1 x BLDC ESC40A ESC-40A ESC 40A Brushless DC Motor Speed Controller ESC Electronic Brushless 40A Motor Speed Controller Power Supply For RC Drone Airplane
