Description

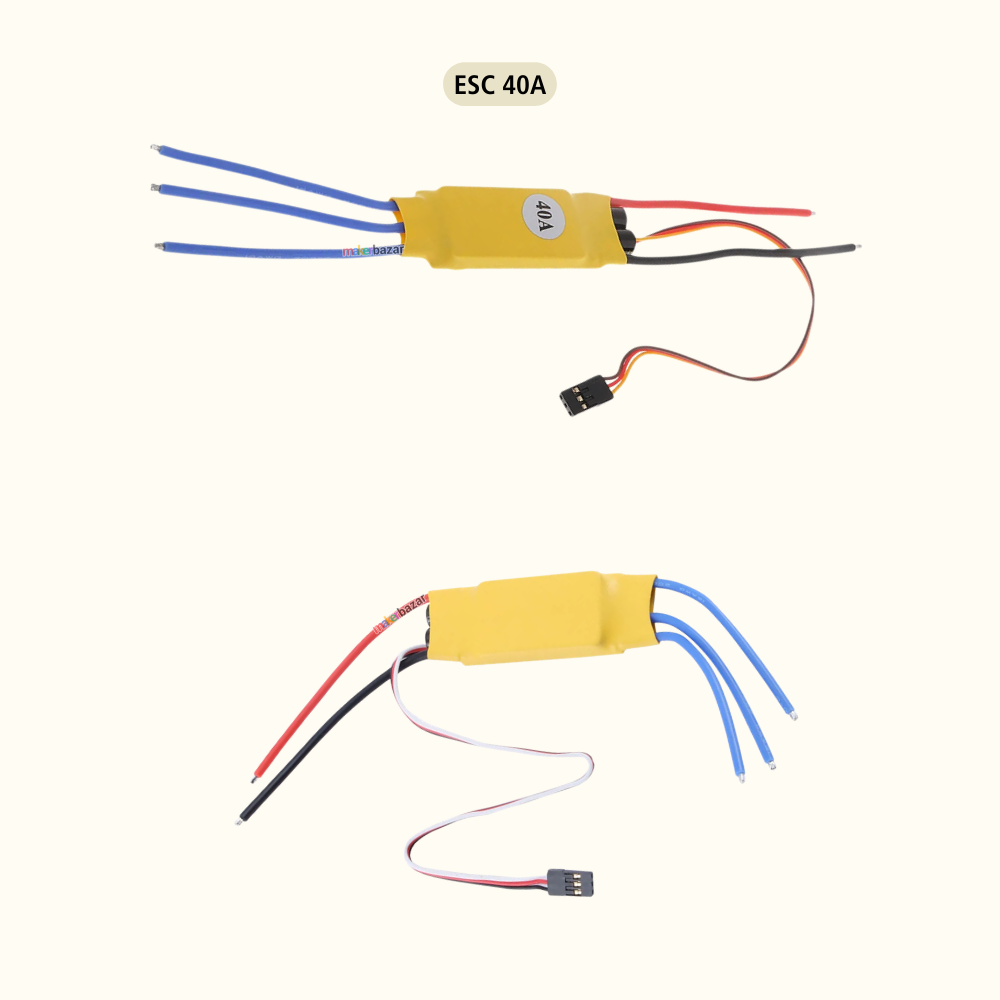

High Performance BLDC Electronic Speed Controller for RC Drones and Quadcopters
The Brushless Motor ESC Speed Controller is designed to deliver smooth, stable, and efficient motor control for RC drones, quadcopters, airplanes, and other brushless motor applications. this Electronic Speed Controller provides fast throttle response, reliable performance, and advanced protection features.
Compatible with 2S–3S LiPo batteries, the ESC includes onboard BEC output for powering flight controllers and modules. Its compact design, programmable features, and strong current handling make it ideal for RC hobbyists, drone builders, and robotics developers.
Key Features
- High efficiency brushless motor speed control.
- Compatible with quadcopters, drones, and RC airplanes.
- Works with 2S–3S LiPo batteries.
- Onboard BEC output for flight controller power.
- Low voltage protection with automatic cut off.
- Overheat protection and throttle signal loss protection.
- Programmable settings via transmitter.
- Soft start motor ramp up for smooth operation.
Pre soldered connectors for easy installation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Brushless Motor Electronic Speed Controller |
| Motor Type | Brushless DC Motor BLDC |
| Continuous Current | Depending on variant |
| Peak Current | Up to 50A short duration |
| Battery Support | 2S to 3S LiPo |
| Input Voltage | 3.7V to 12.8V |
| BEC Output | 5V up to 2A or 3A depending on version |
| Max Motor Speed | 2 Pole 210000 RPM |
| Max Motor Speed | 6 Pole 70000 RPM |
| Max Motor Speed | 12 Pole 35000 RPM |
Applications
- RC drones and quadcopters.
- RC airplanes and helicopters.
- Brushless motor control systems.
- FPV drone projects.
- Robotics motor control.
- DIY drone building projects.
- Educational robotics kits.
- Remote controlled vehicles.
Precautions
- Ensure motor current does not exceed ESC rating.
- Use compatible LiPo battery packs.
- Check correct polarity before powering.
- Do not operate ESC without proper cooling airflow.
- Keep away from moisture and dust.
- Disconnect battery before wiring changes.
- Use proper programming procedure before flight.
