Description

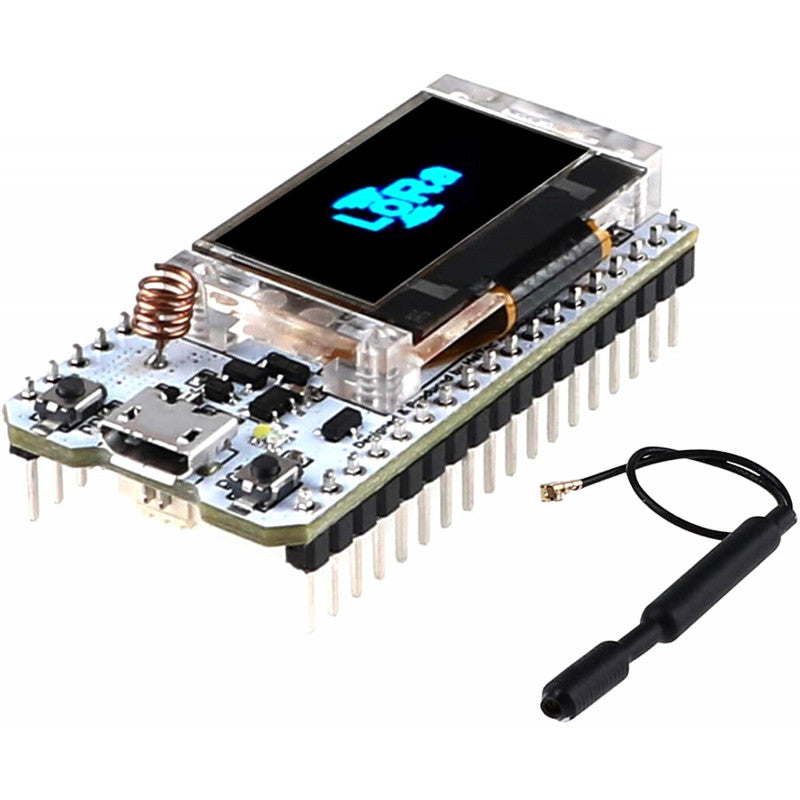

ESP32 OLED Lora Board with CP2102 USB/Type-C Interface – Long Range 2.8Km Wireless IoT Module
Upgrade your IoT and wireless communication projects with this ESP32 LoRa OLED Development Board featuring a 0.96-inch display, SX1276 transceiver, and dual-mode Bluetooth. It supports both Micro USB and USB Type-C interfaces depending on the board version, making it compatible with modern development setups. Ideal for smart home, remote monitoring, and long-range wireless applications.
Specifications:
-
Main Chip: ESP32
-
Display: 0.96” Blue OLED
-
Wireless: WiFi (2.4GHz), Bluetooth (Classic + BLE), LoRa (868–915MHz)
-
Connectivity:
-
Micro USB
-
USB Type-C
-
-
Flash Memory: 32M-bit (4MB)
-
Operating Voltage: 3.3V to 7V
-
Frequency: 240 MHz CPU clock
-
Data Rates:
-
WiFi: up to 150 Mbps
-
LoRa: up to 2.8km range (open area)
-
-
USB Chipset: CP2102
-
Temperature Range: -40°C to +90°C
-
Antenna: U.FL IPEX to SMA, Gain: 2dBi, 915MHz
-
Included Components:
-
1x ESP32 LoRa OLED board
-
1x JST 1.25mm 2P Cable
-
1x 915MHz SMA Antenna with IPEX Adapter
-
2x 19-pin Headers
-
2x Header Stickers
-
