Description

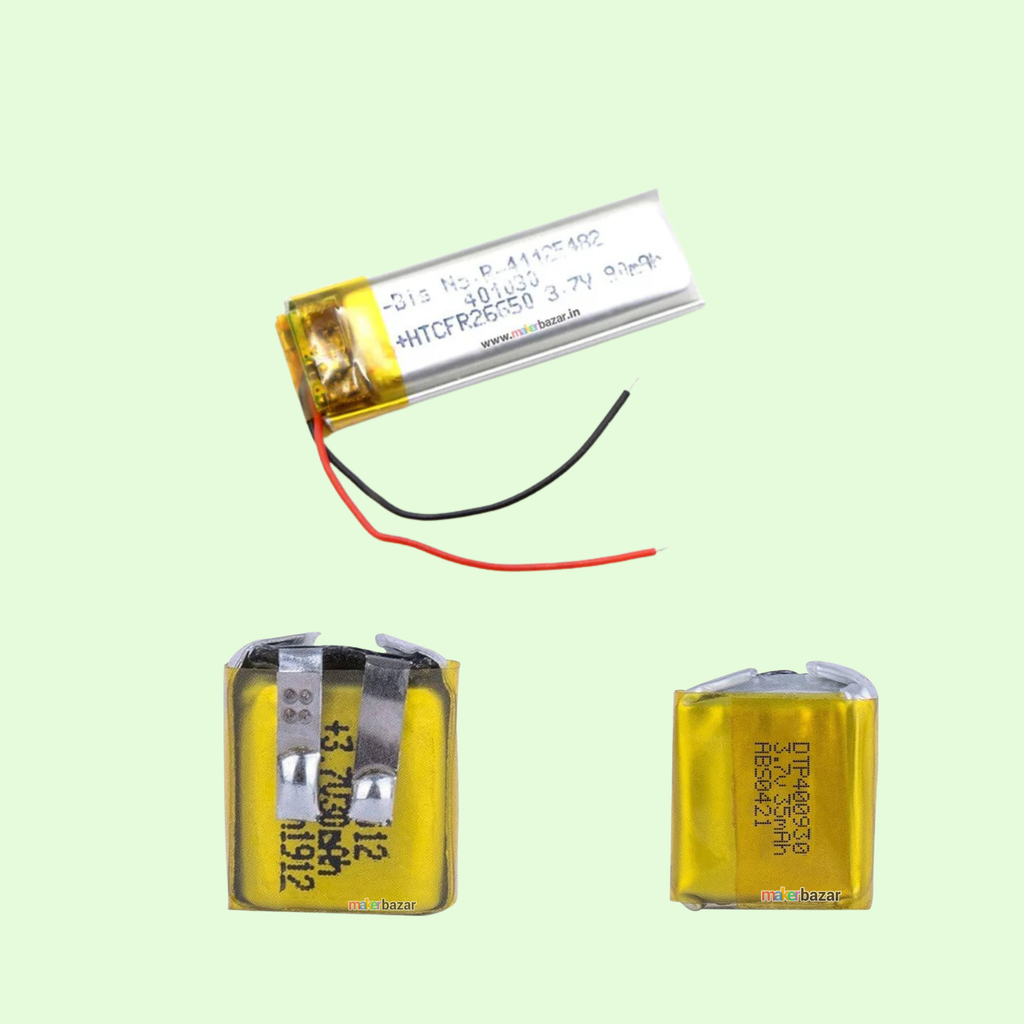

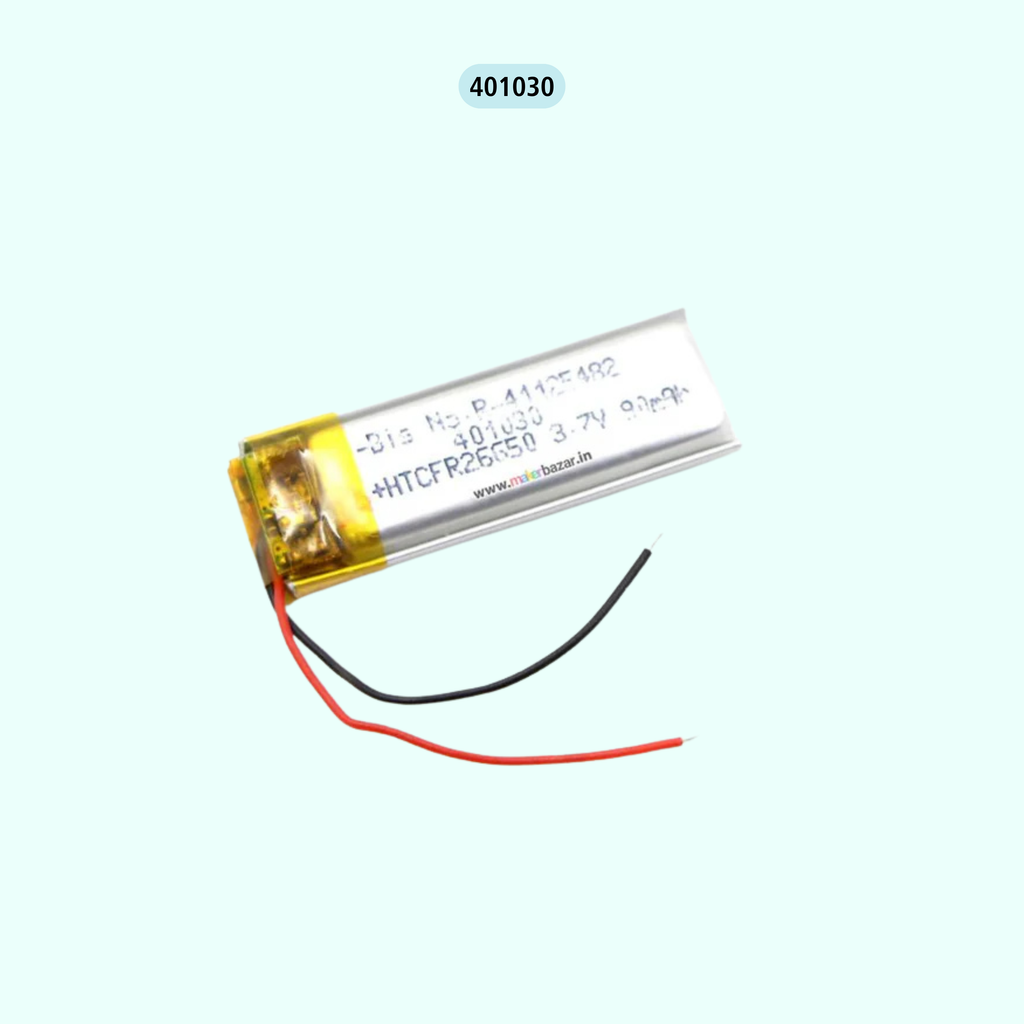

3.7V 90mAh LiPo Rechargeable Battery – Compact Power for Mini Electronics
The 3.7V 90mAh Lithium Polymer (LiPo) Battery is a compact and lightweight power solution designed for small electronic devices, wearables, and DIY projects. Built with Lithium Polymer technology, this single-cell battery delivers stable voltage output and efficient energy performance in a minimal form factor.
With a nominal voltage of 3.7V (ranging from 4.2V fully charged to ~3.2V discharge), this battery is ideal for low-power applications such as microcontrollers, IoT devices, Bluetooth modules, and mini drones. Its small size makes it perfect for projects where space and weight are critical.
⚠ Note: This battery does not include built-in protection circuitry, so an external protection module (PCM/BMS) is recommended for safe usage.
Key Features
- Compact 90mAh Capacity – Ideal for low-power and miniature devices.
- 3.7V Nominal Voltage – Stable and efficient energy output.
- Rechargeable LiPo Technology – High energy density and lightweight design.
- Slim & Lightweight Form Factor – Perfect for compact electronics.
- Reliable Performance – Consistent discharge for small devices.
- Versatile Usage – Suitable for DIY, IoT, and wearable electronics.
- Cost-Effective Solution – Reusable battery for multiple cycles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Lithium Polymer (LiPo) Battery |
| Cell Type | Single Cell |
| Nominal Voltage | 3.7V |
| Fully Charged Voltage | 4.2V |
| Discharge Cut-off Voltage | ~3.2V |
| Capacity | 90mAh |
| Material | Lithium Polymer |
| Rechargeable | Yes |
| Protection Circuit | Not Included |
| Application | Low Power Electronics |
Applications
- Wearable Devices
- IoT Projects & Sensors
- Mini Drones & RC Toys
- Bluetooth & Wireless Modules
- Microcontroller Projects (Arduino/ESP)
- Portable Electronics
- DIY Electronics Projects
Precautions
- Use only with a LiPo-compatible charger.
- Do not overcharge or discharge below safe voltage limits.
- Always use an external protection circuit (PCM/BMS).
- Avoid short circuits, puncturing, or overheating.
- Store at nominal voltage (3.7V) in a cool, dry place.
NOTE: We don't guarantee the accuracy of the size mentioned. Battery size may vary up to ~1mm with every lot. Print on the battery may also vary with every lot.
