Description

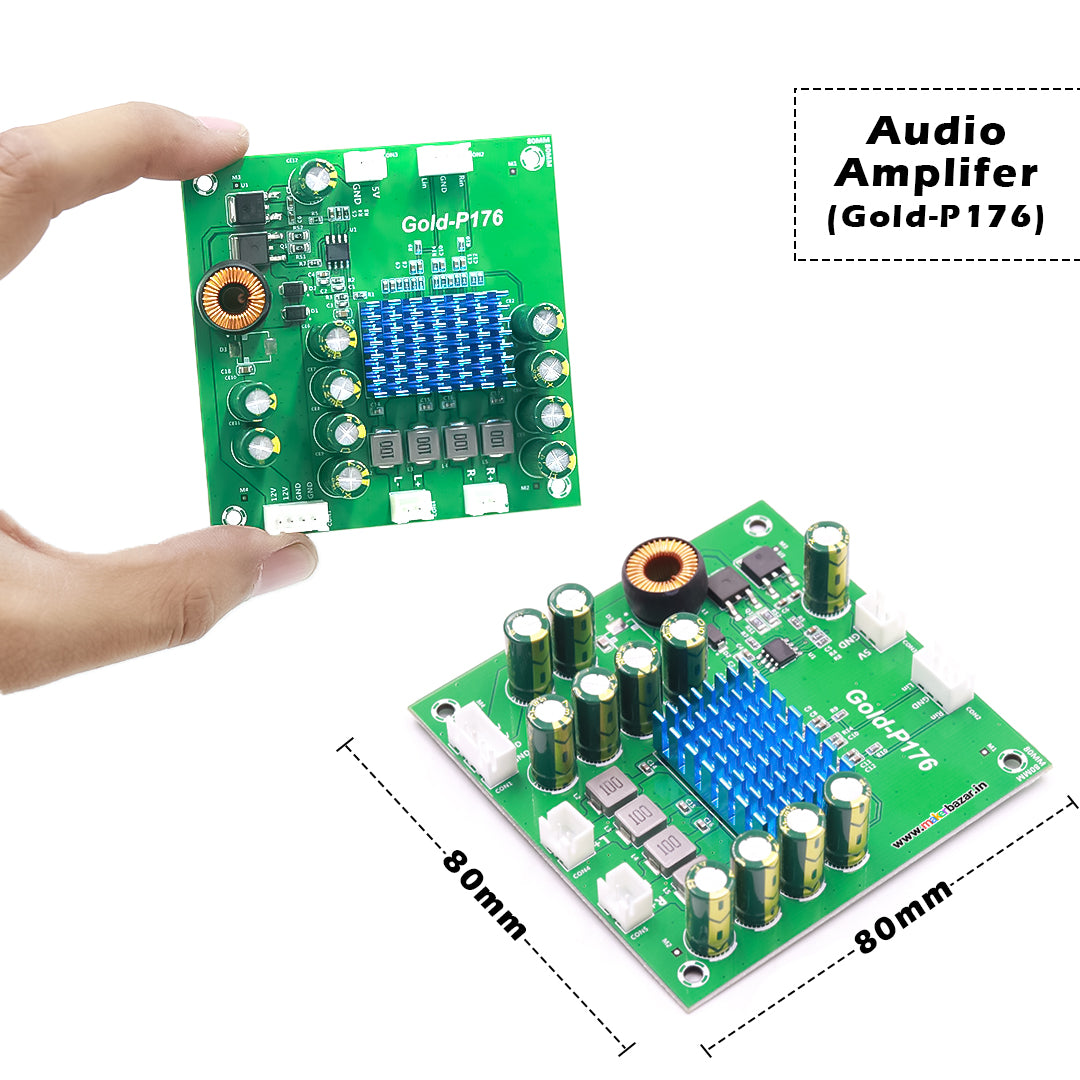

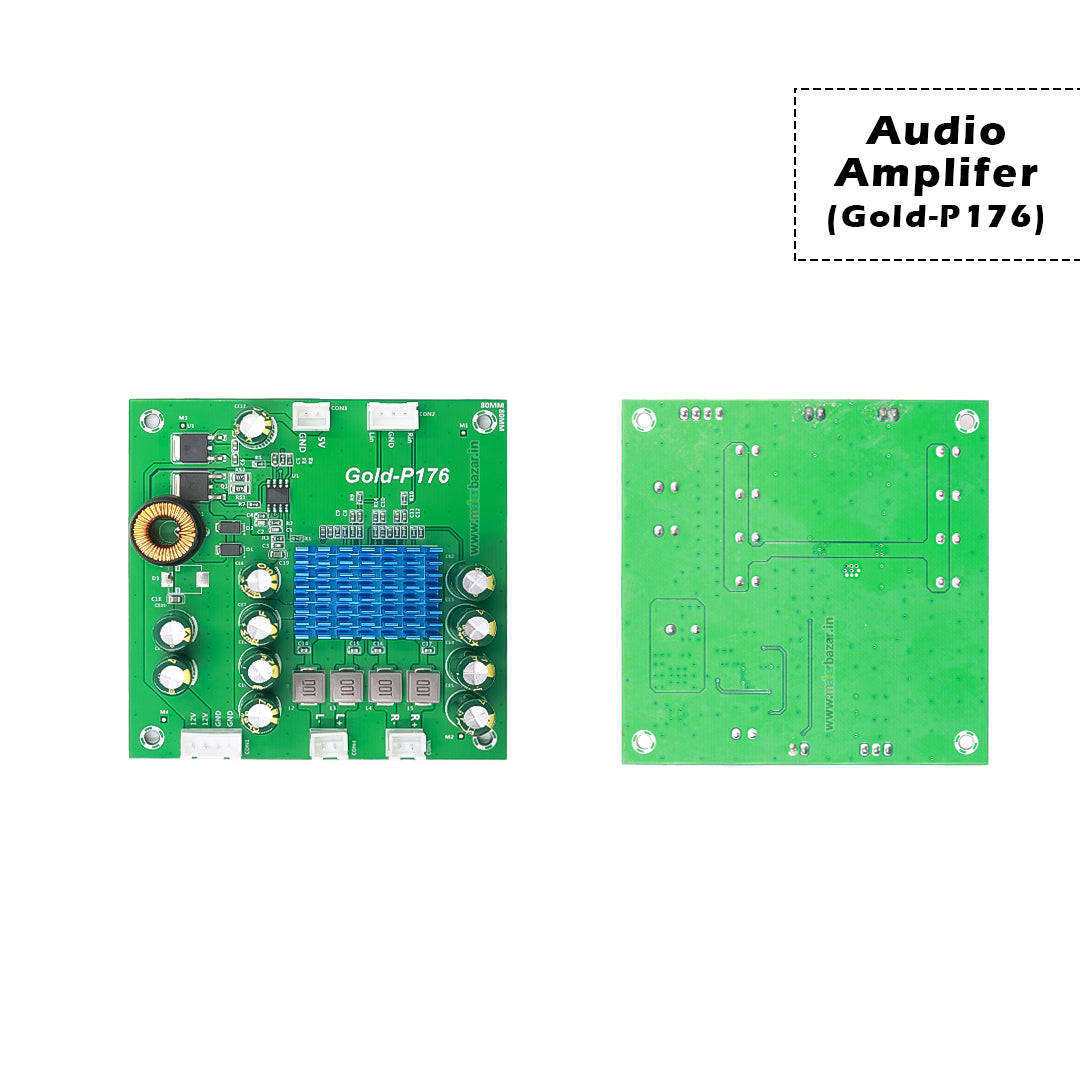

TPA3116 50W Dual Power Channel Amplifier Circuit
The Gold-P176 Dual Channel Audio Amplifier Board offers high-performance audio amplification for various applications. With its dual-channel design, this amplifier board delivers stereo sound output, making it ideal for audio systems, home theaters, and DIY projects. The amplifier board features a robust power output, ensuring clear and powerful sound reproduction.
Equipped with high-quality components, including a high-performance amplifier IC, the Gold-P176 provides reliable and efficient audio amplification. It supports a wide range of input sources and can drive speakers with ease, delivering crisp and immersive audio experiences.
Featuring a compact and versatile design, the Gold-P176 amplifier board is easy to integrate into different audio setups. It supports a range of input voltages and is designed for easy installation and operation. Whether you're building a custom audio system or upgrading an existing setup, the Gold-P176 Dual Channel Audio Amplifier Board offers exceptional performance and versatility.
Product speciation:-
- Amplifier Chip: TPA3116
- Power Output: 50W (per channel)
- Operating Voltage: 12V - 24V DC
- Number of Channels: Dual channel (stereo)
- Input Voltage: 12V - 24V DC
- Input Interface: Terminal blocks or solder pads
- Output Interface: Screw terminals for speaker connection
- Frequency Response: 20Hz - 20kHz
- Signal-to-Noise Ratio (SNR): >100dB
- Total Harmonic Distortion (THD): <0.1%
- Efficiency: >90%
- Operating Temperature: -20°C to 85°C
- Protection: Over-current protection, over-temperature protection, under-voltage lockout
