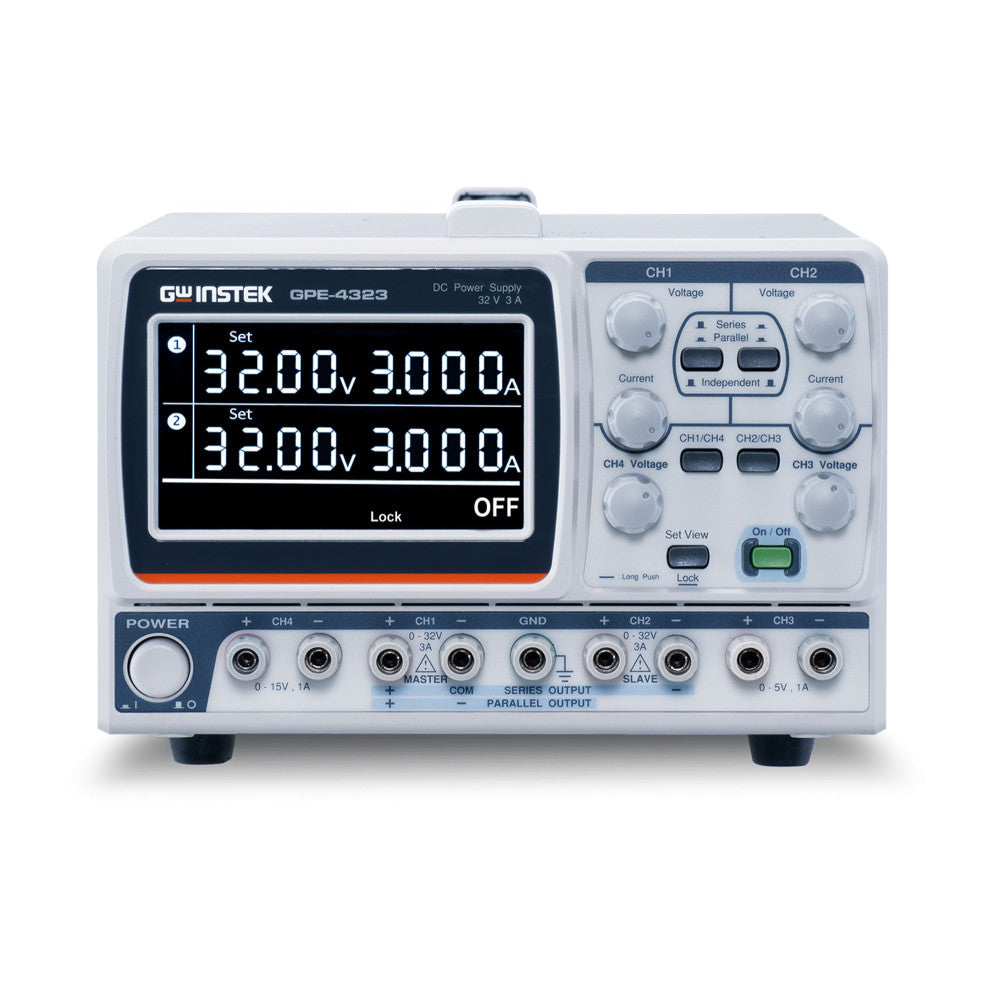

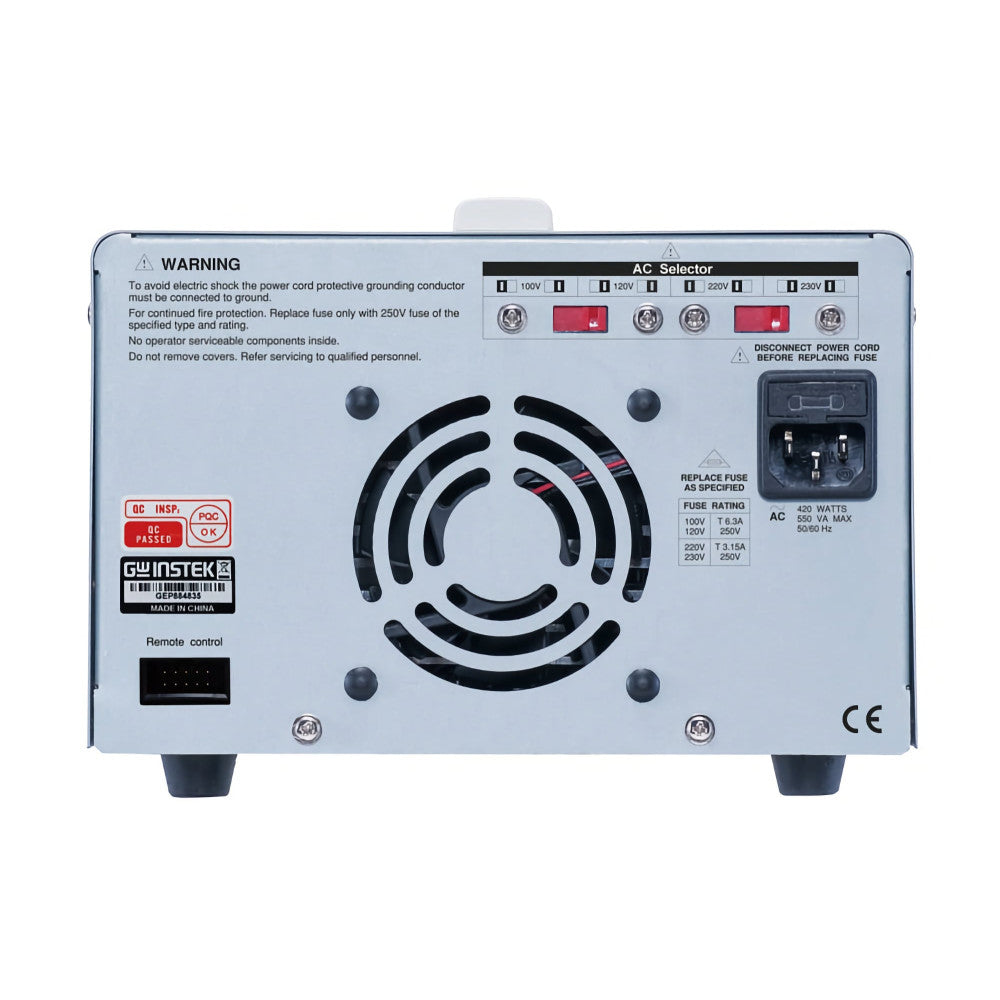

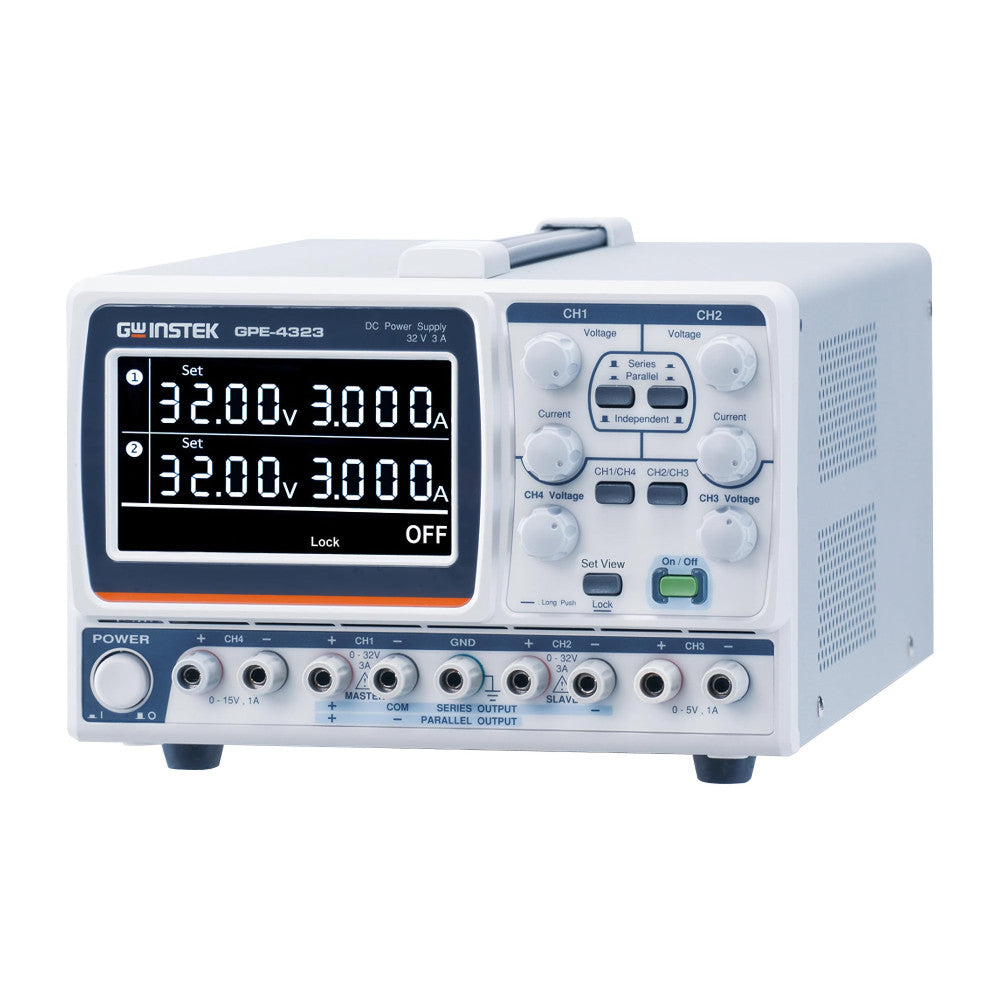

GW INSTEK GPE-4323 Bench Power Supply | 4-Output Adjustable Linear DC Power Supply | 0–32V, 0–3A
The GW INSTEK GPE-4323 Bench Power Supply is a professional-grade 4-output linear DC power supply designed for laboratories, educational institutions, R&D, production testing, repair centers, and engineering applications. It combines two independently adjustable 0–32V/0–3A outputs with two fixed auxiliary outputs (5V/1A and 15V/1A), making it ideal for powering analog and digital circuits simultaneously.
The GPE-4323 features a 4.3-inch LCD display, independent voltage and current adjustment, series and parallel tracking modes, output ON/OFF control, low ripple and noise, and excellent regulation performance. Its smart cooling fan ensures quiet operation, while the linear design provides clean, stable output suitable for sensitive electronic circuits.
Key Features
- Four independent DC outputs
- CH1 & CH2: Adjustable 0–32V / 0–3A
- CH3: Fixed 5V / 1A
- CH4: Fixed 15V / 1A
- High-visibility 4.3-inch LCD display
- Linear regulated power supply
- Series and parallel tracking operation
- Output ON/OFF function
- Low ripple and low noise output
- Smart temperature-controlled cooling fan
- Key lock function
- Analog remote output ON/OFF control
- High accuracy voltage and current readback
- Ideal for laboratory, education, and service applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | GPE-4323 |
| Brand | GW INSTEK |
| Power Supply Type | Linear Bench DC Power Supply |
| Number of Outputs | 4 |
| CH1 Output | 0–32V, 0–3A |
| CH2 Output | 0–32V, 0–3A |
| CH3 Output | 5V, 1A (Fixed) |
| CH4 Output | 15V, 1A (Fixed) |
| Display | 4.3-inch LCD |
| Voltage Resolution | 100 mV |
| Current Resolution | 10 mA |
| Ripple & Noise | ≤1 mVrms |
| Tracking Mode | Series & Parallel |
| Cooling | Smart Cooling Fan |
| Input Voltage | 100–230V AC, 50/60Hz |
| Dimensions | 210 × 155 × 306 mm |
| Weight | Approx. 7–8.5 kg |
