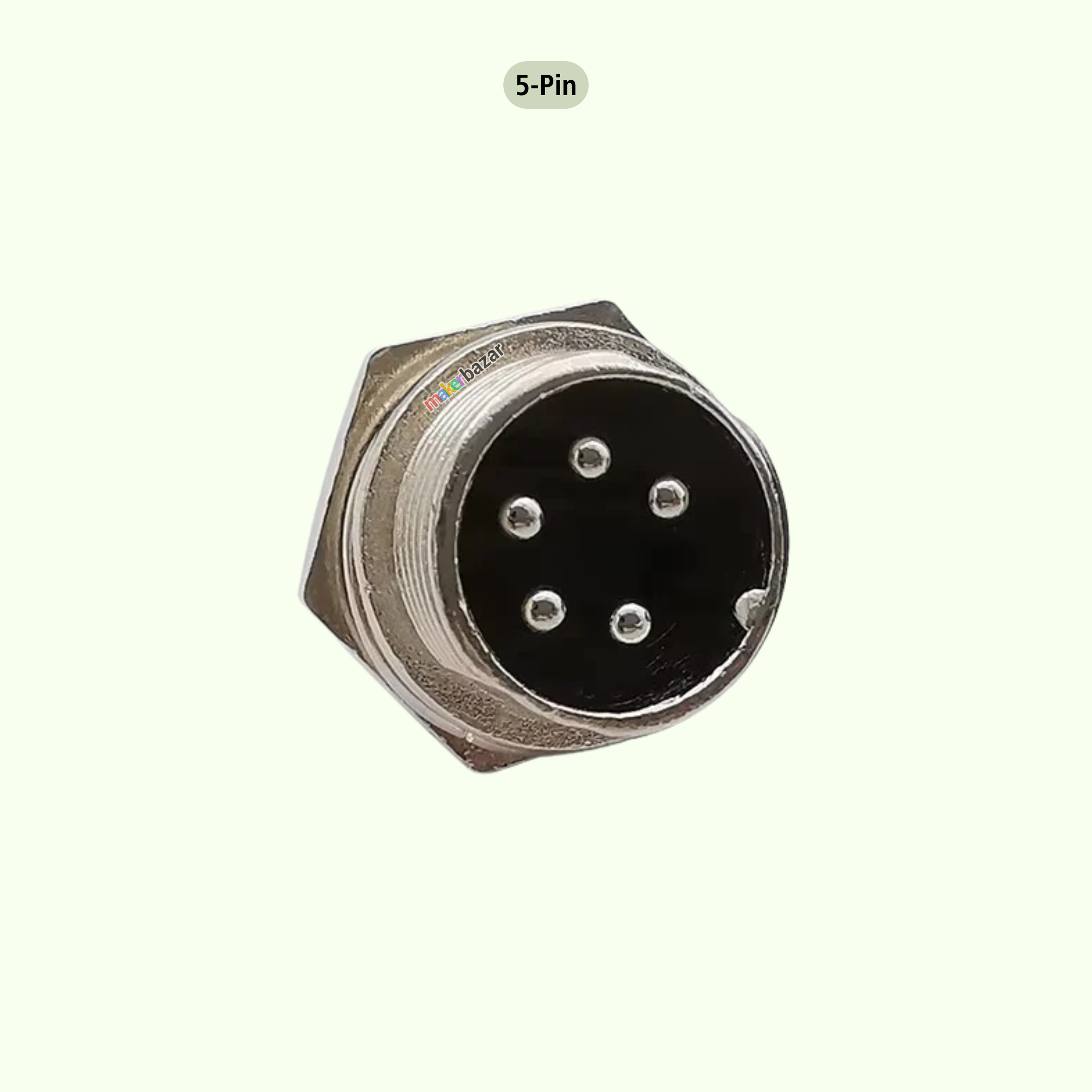

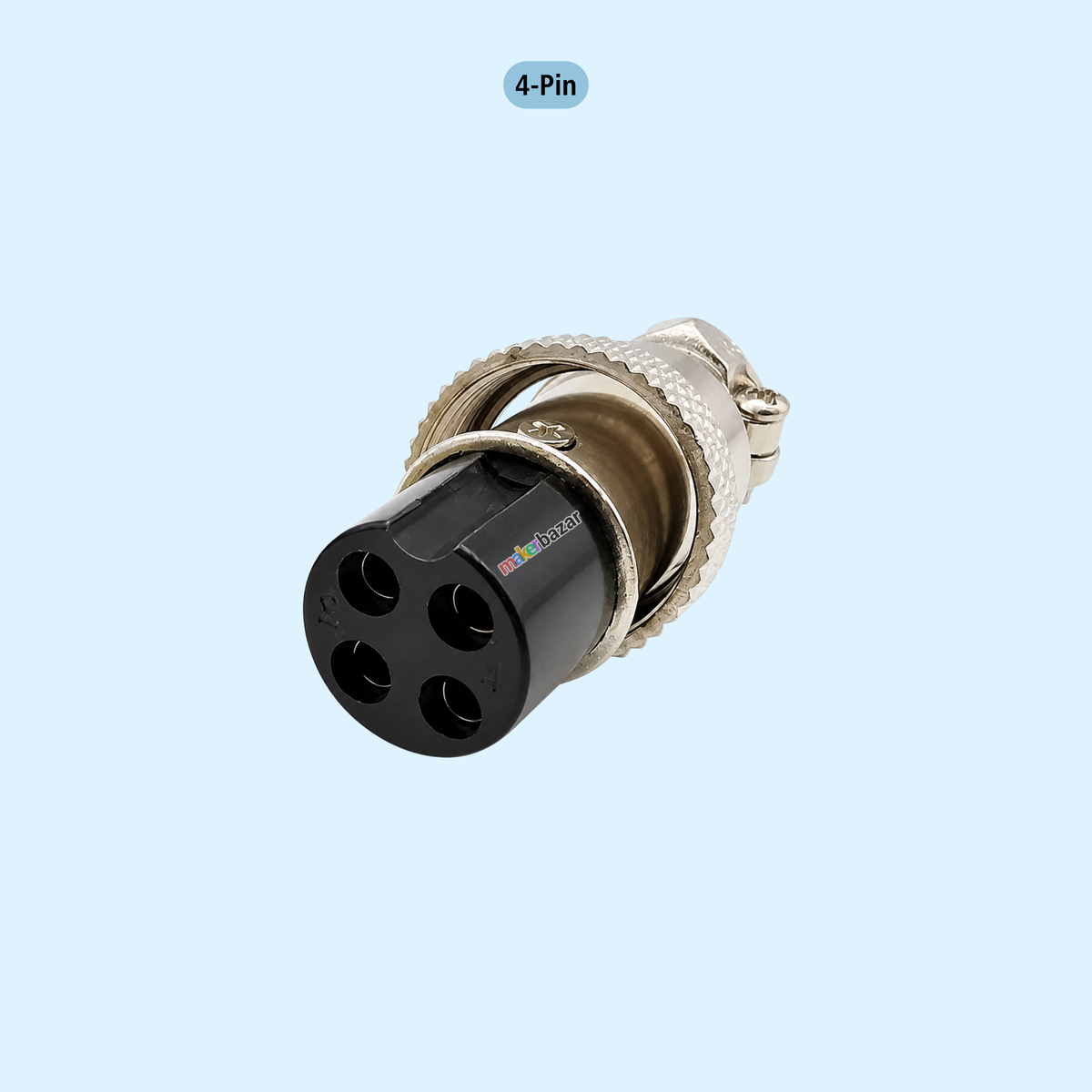

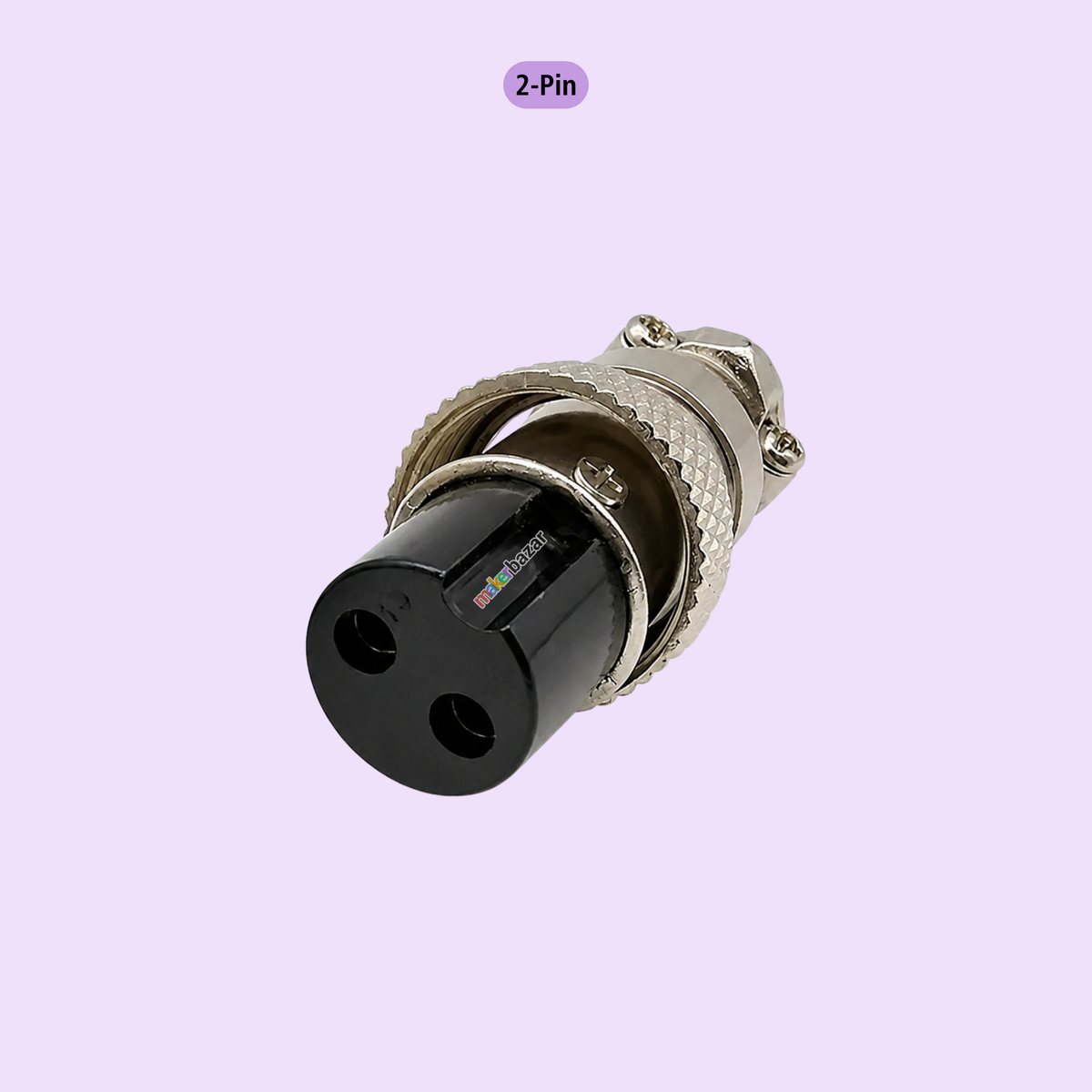

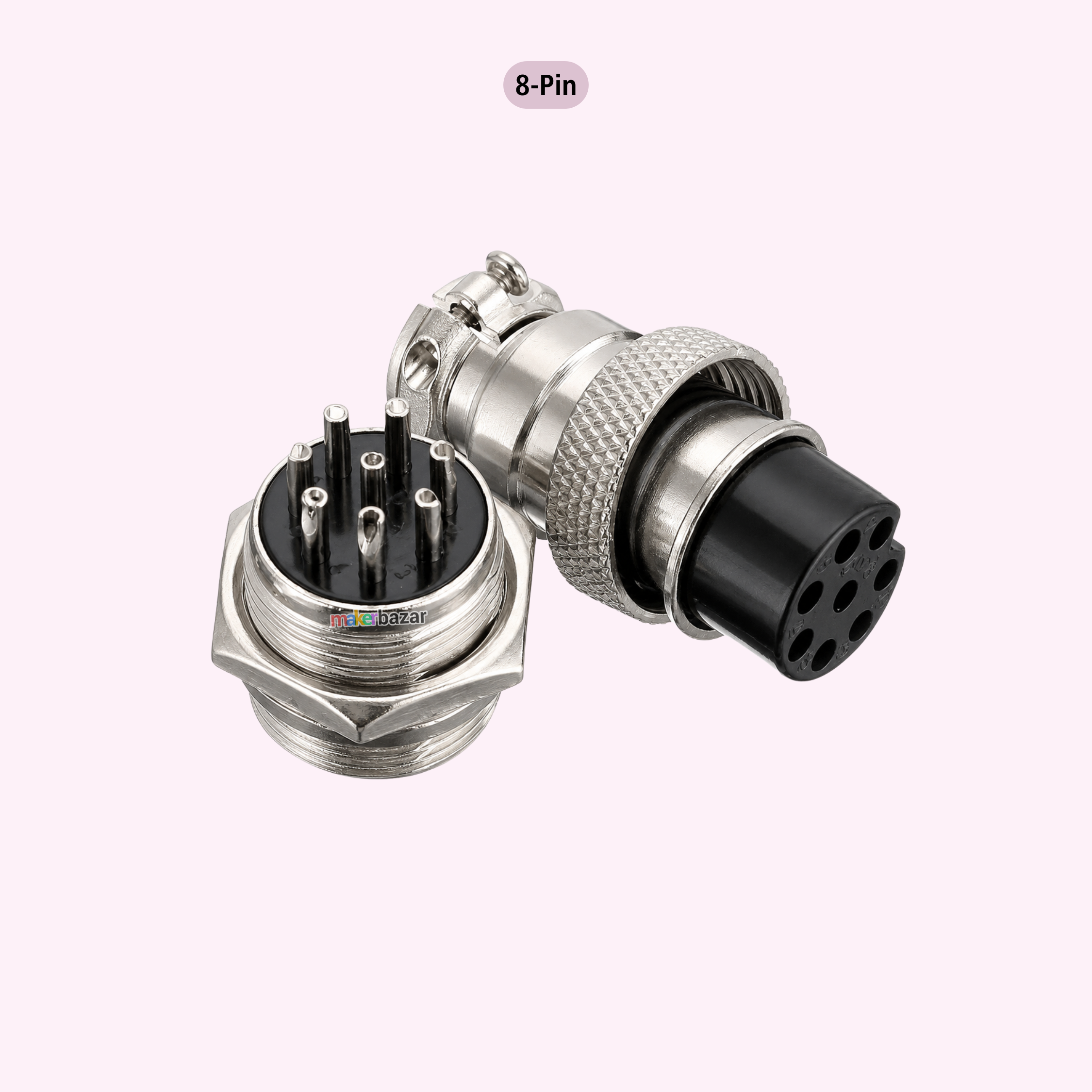

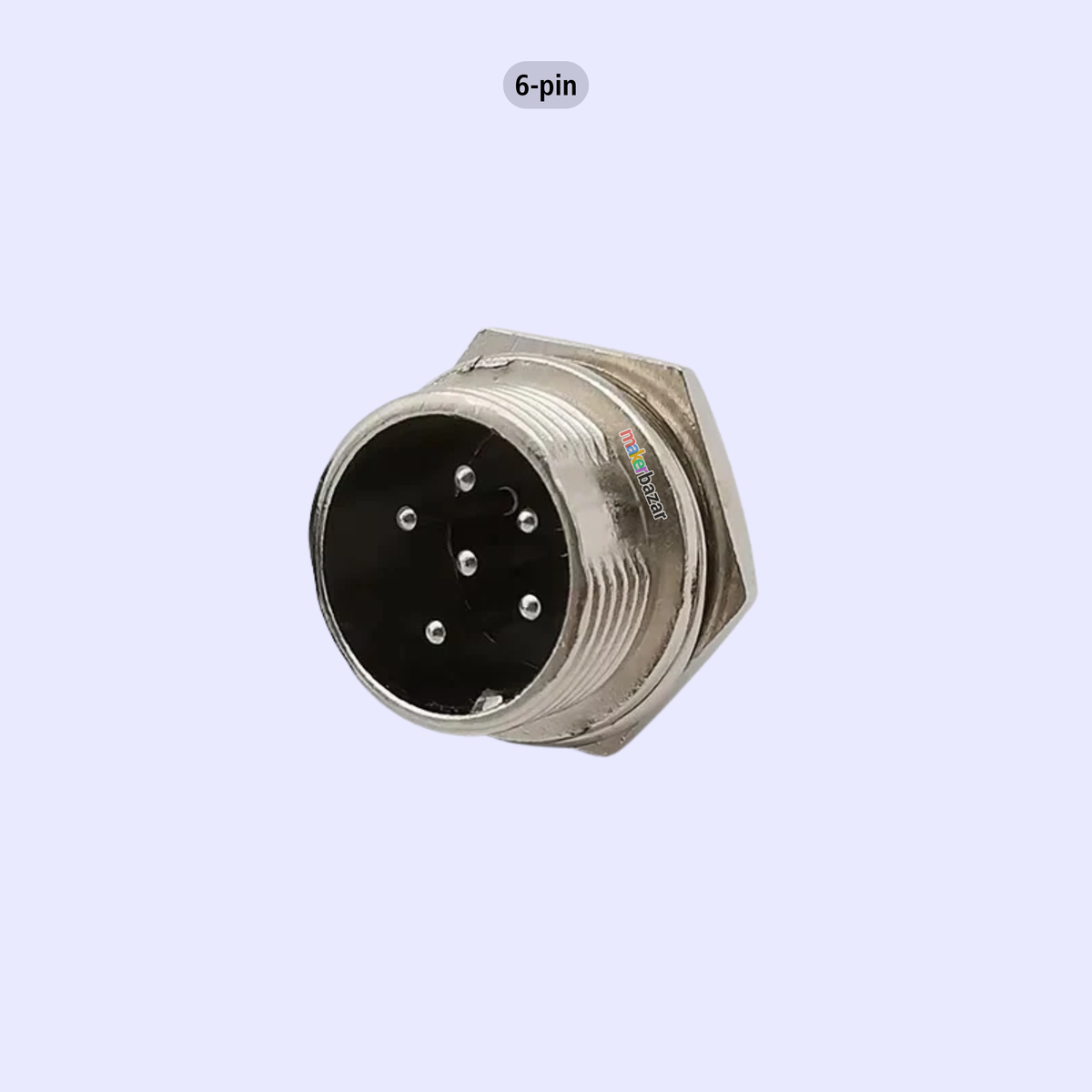

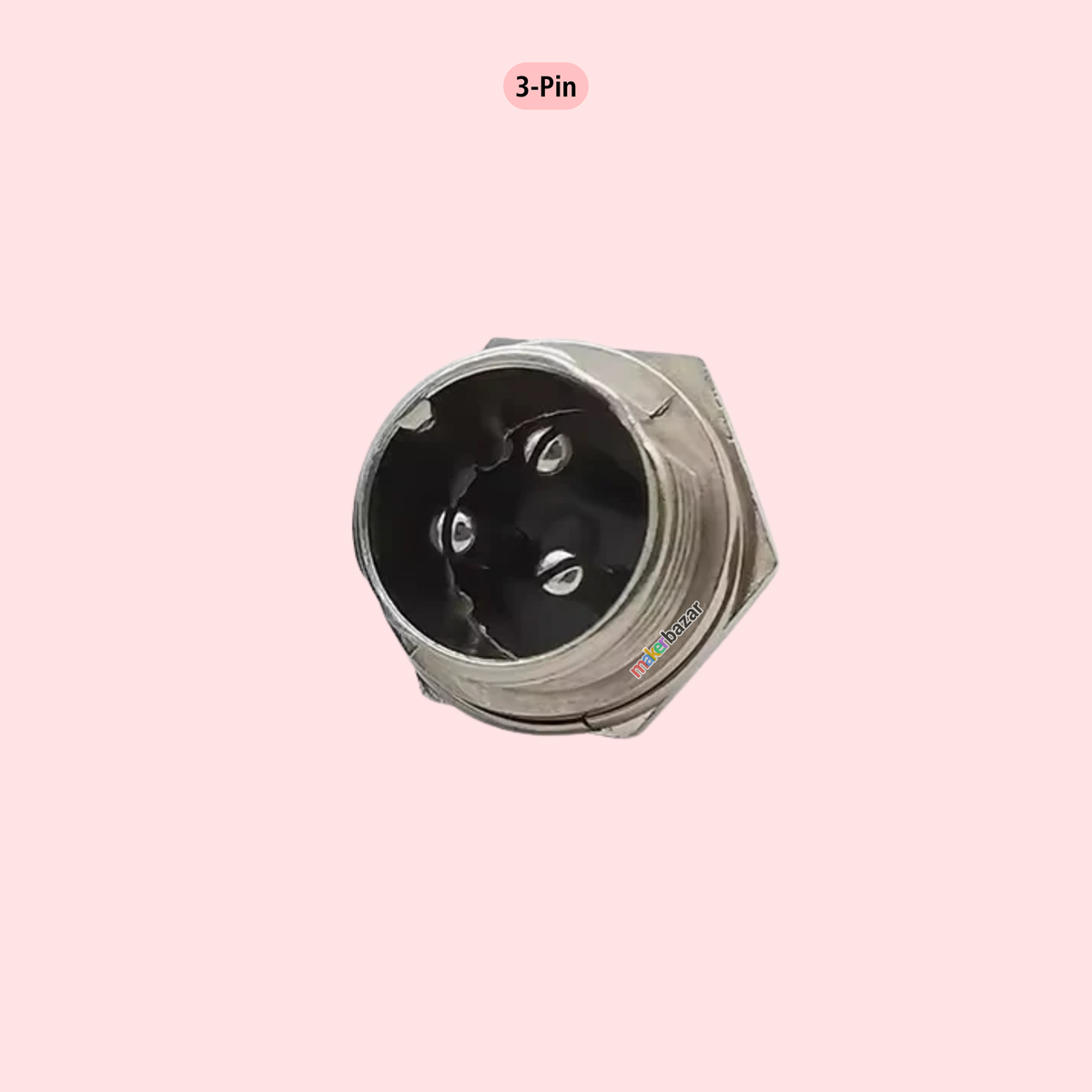

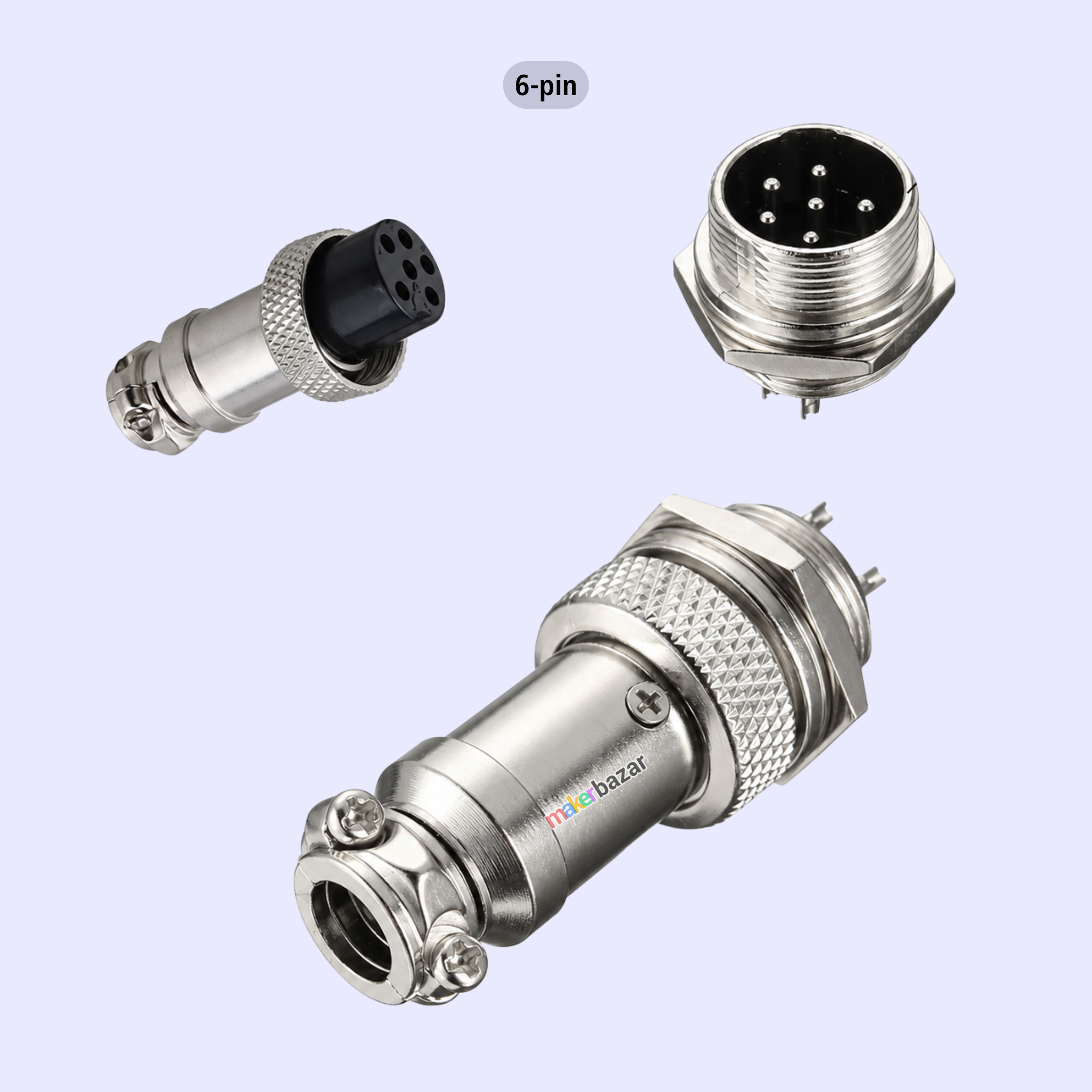

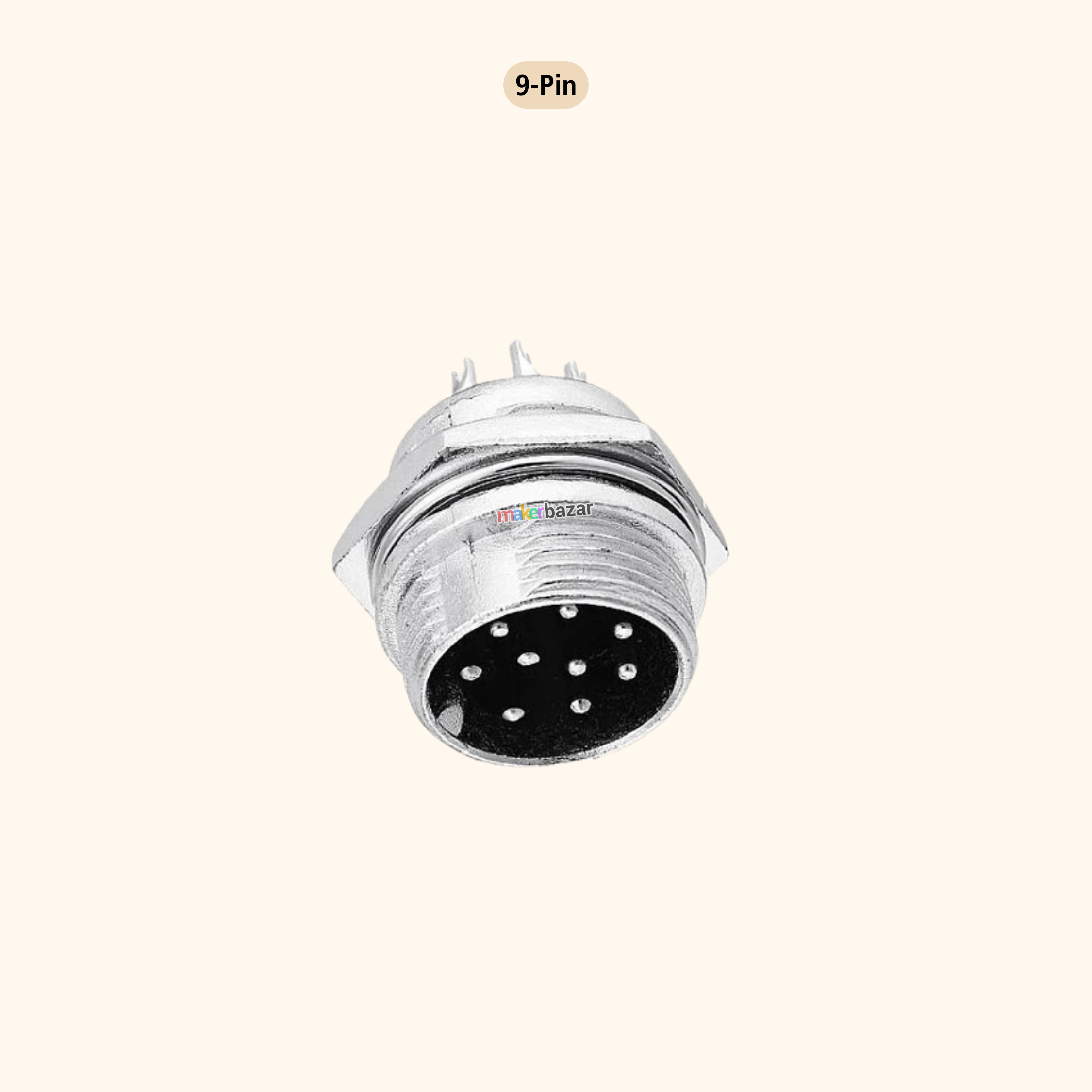

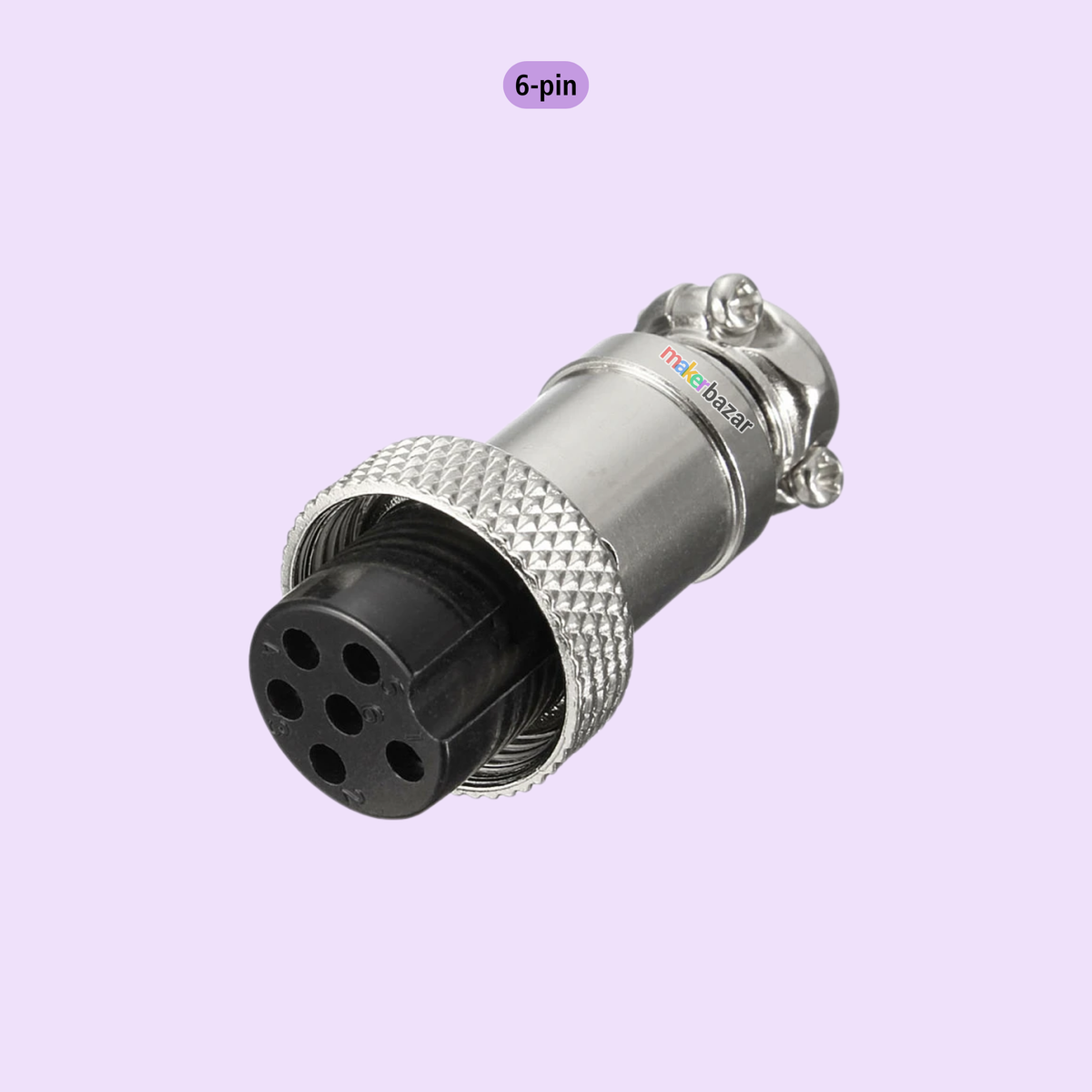

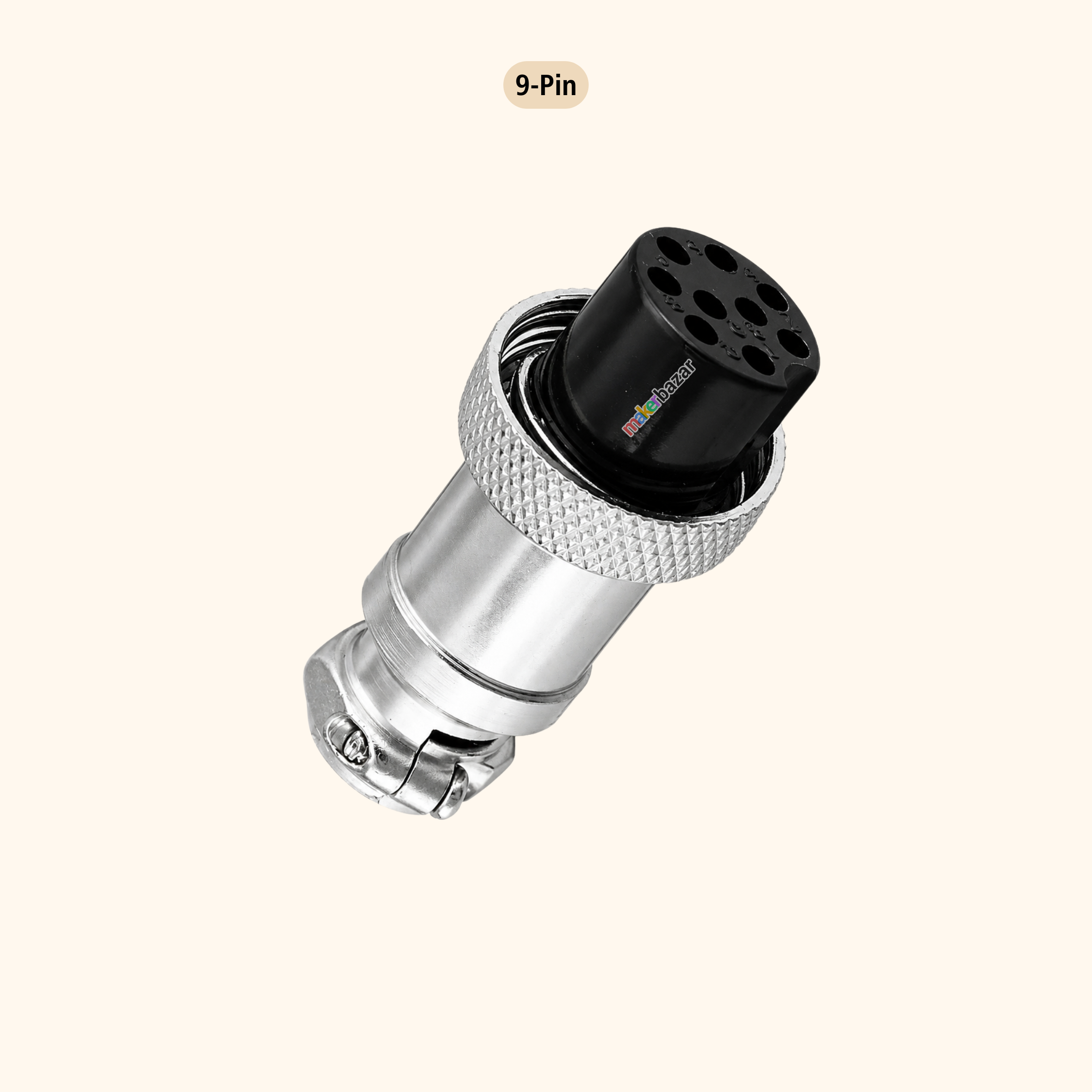

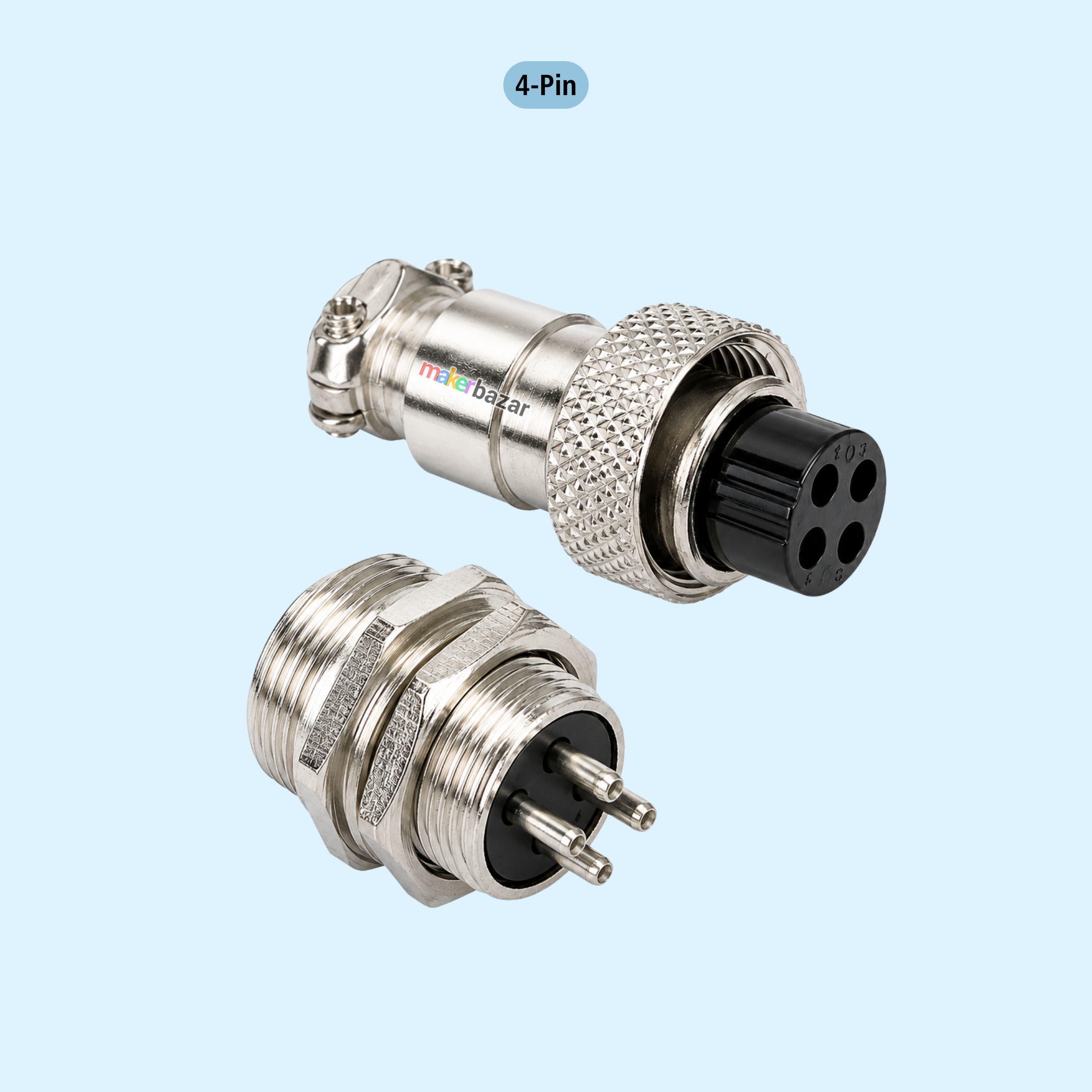

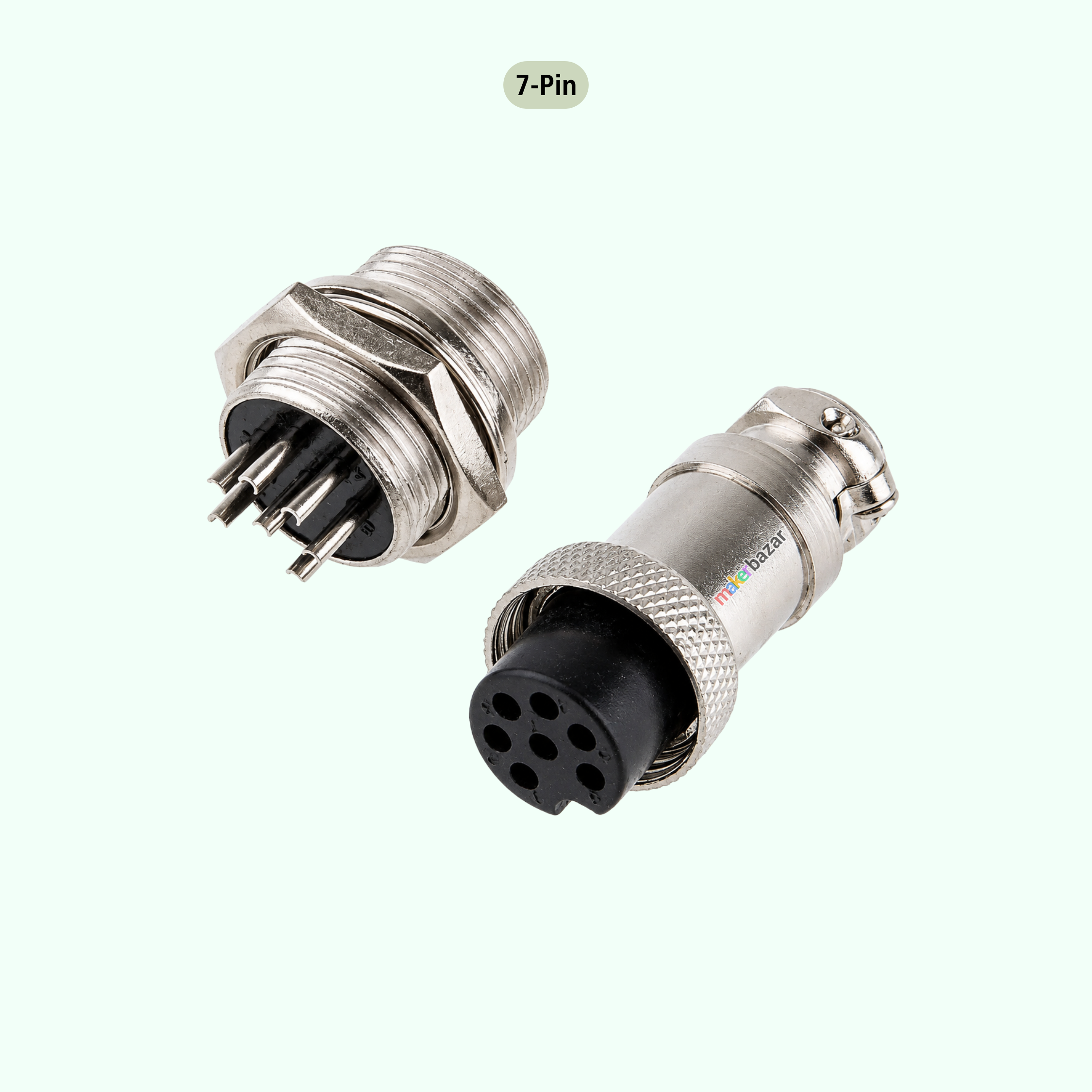

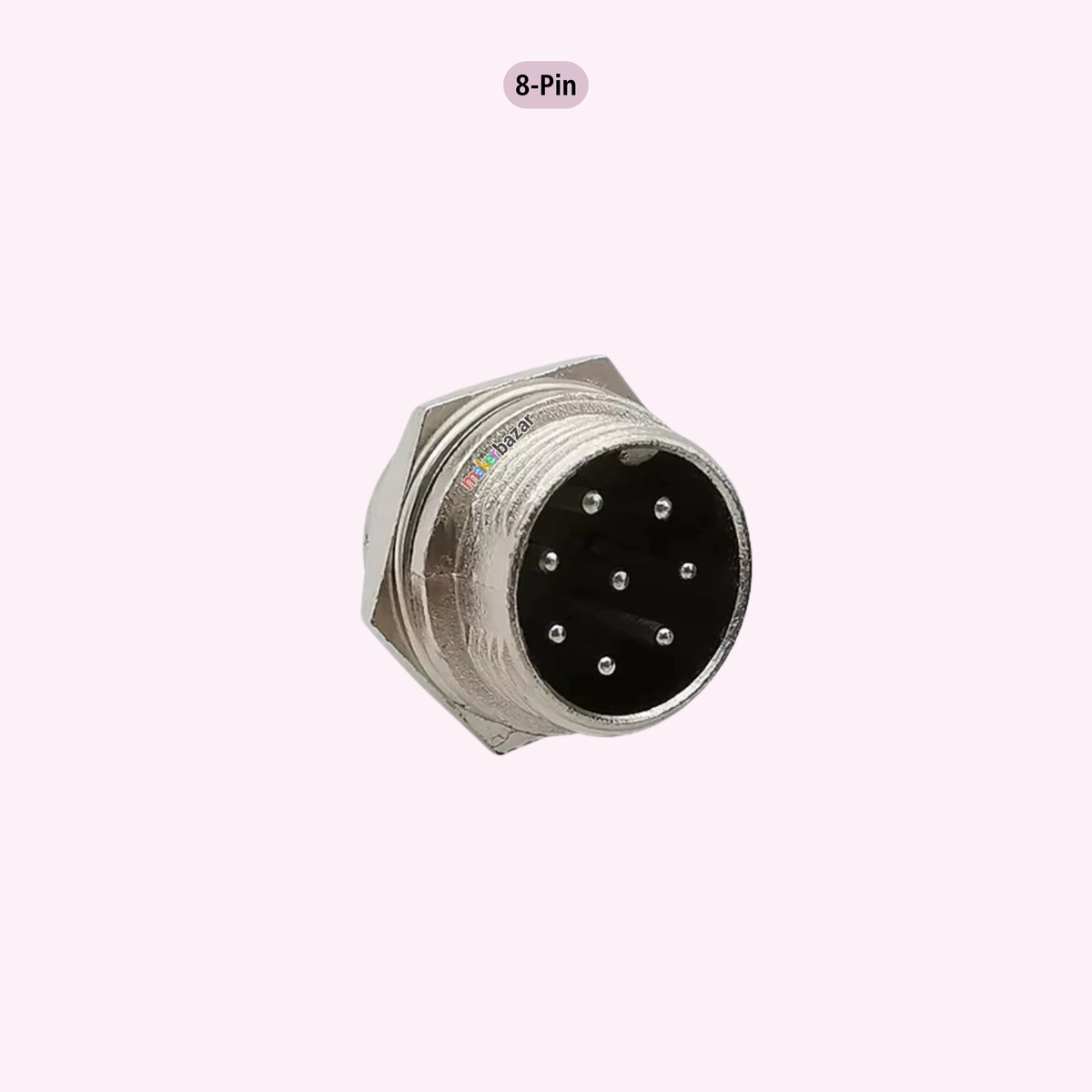

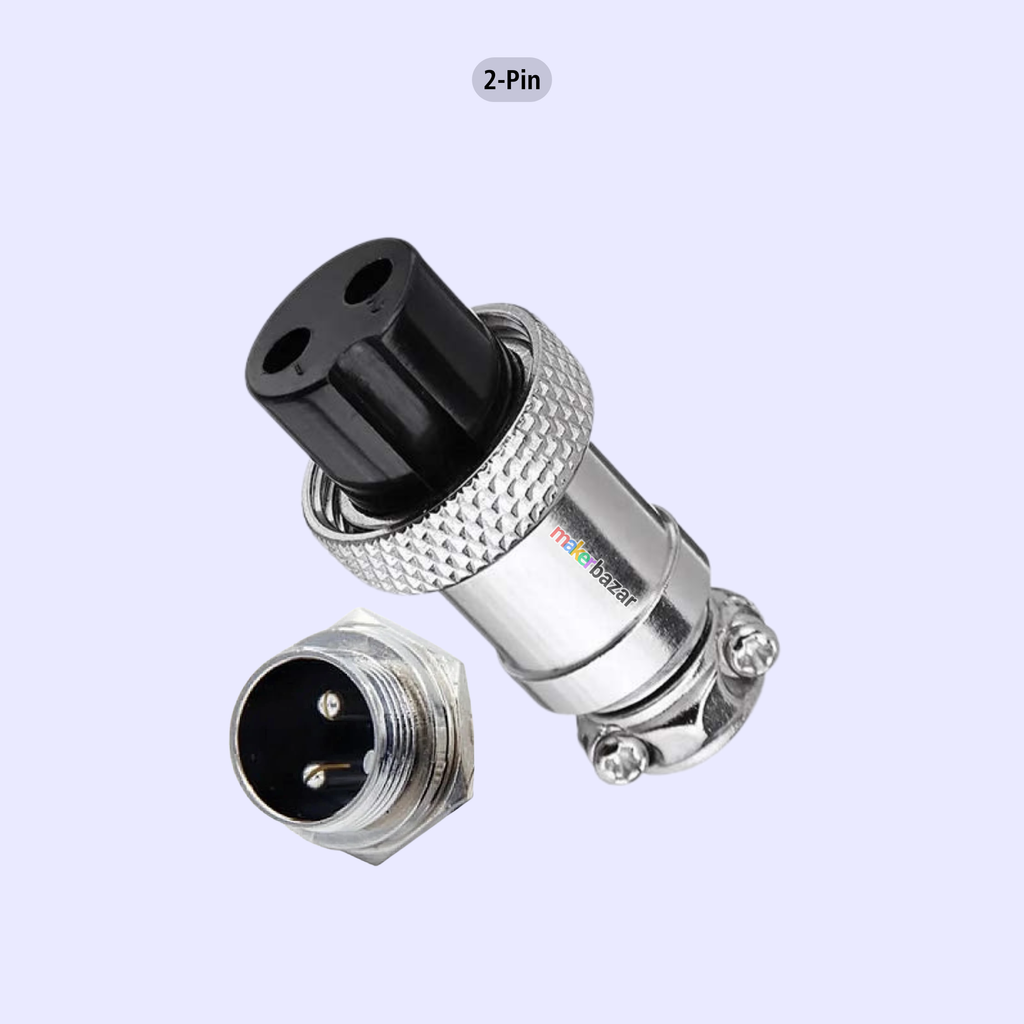

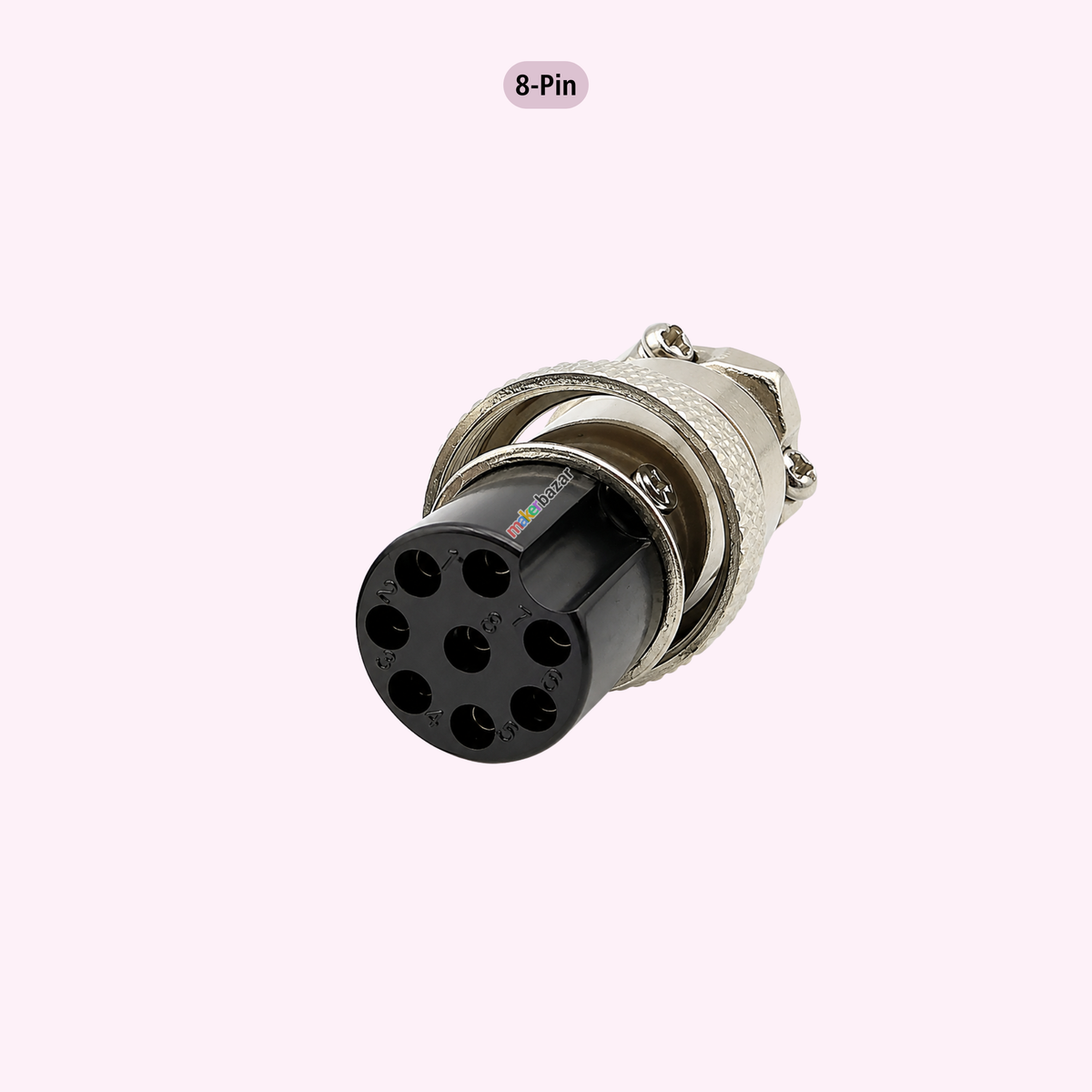

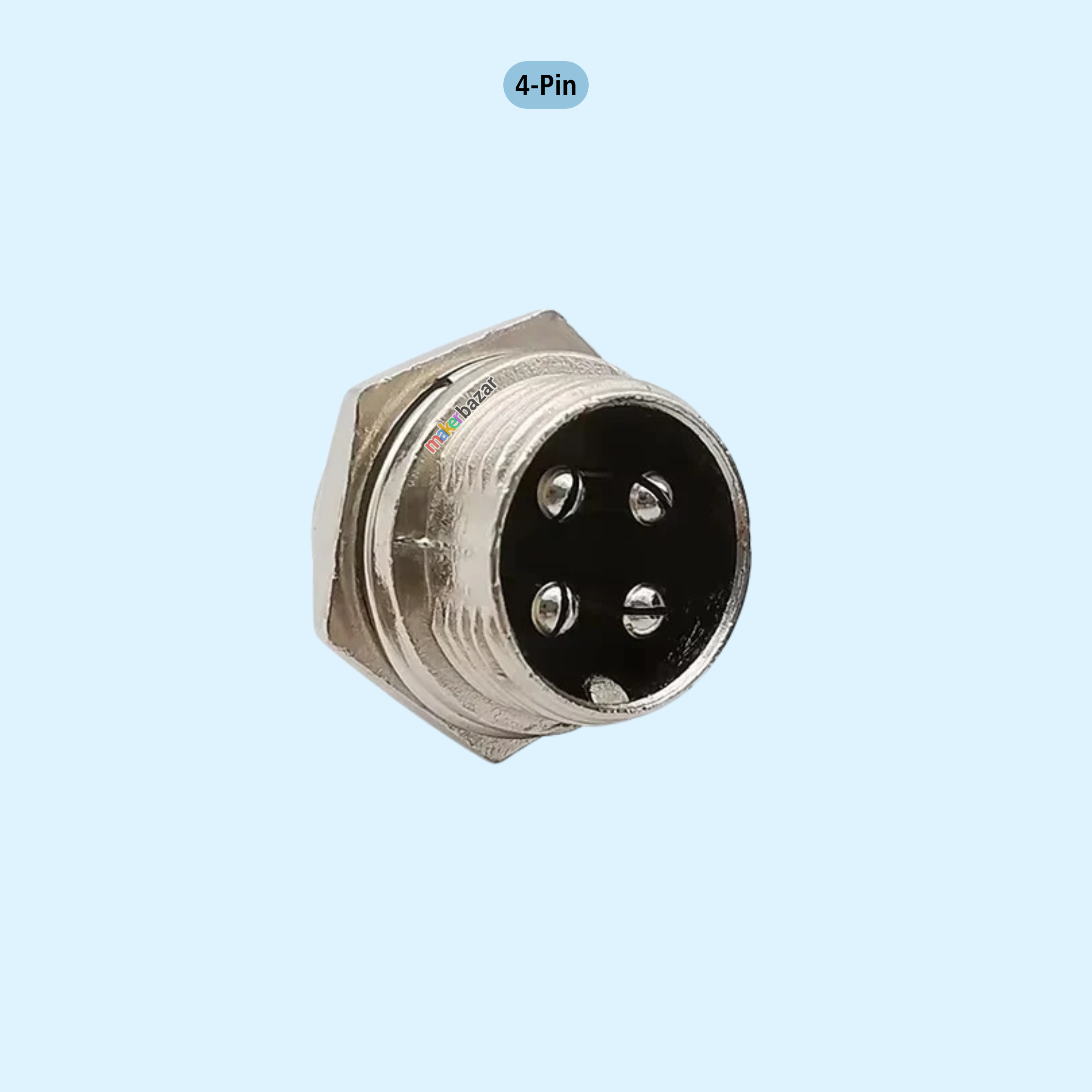

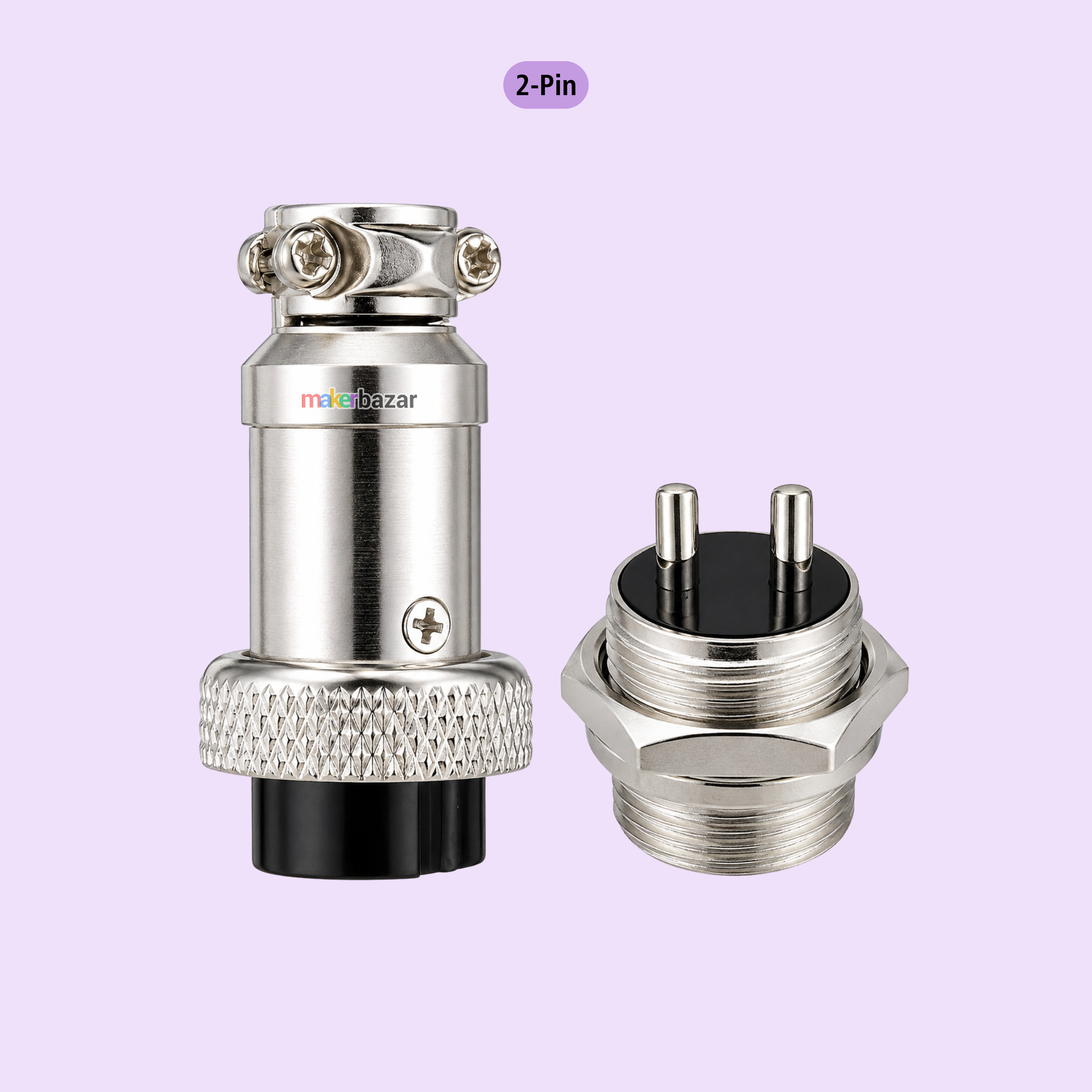

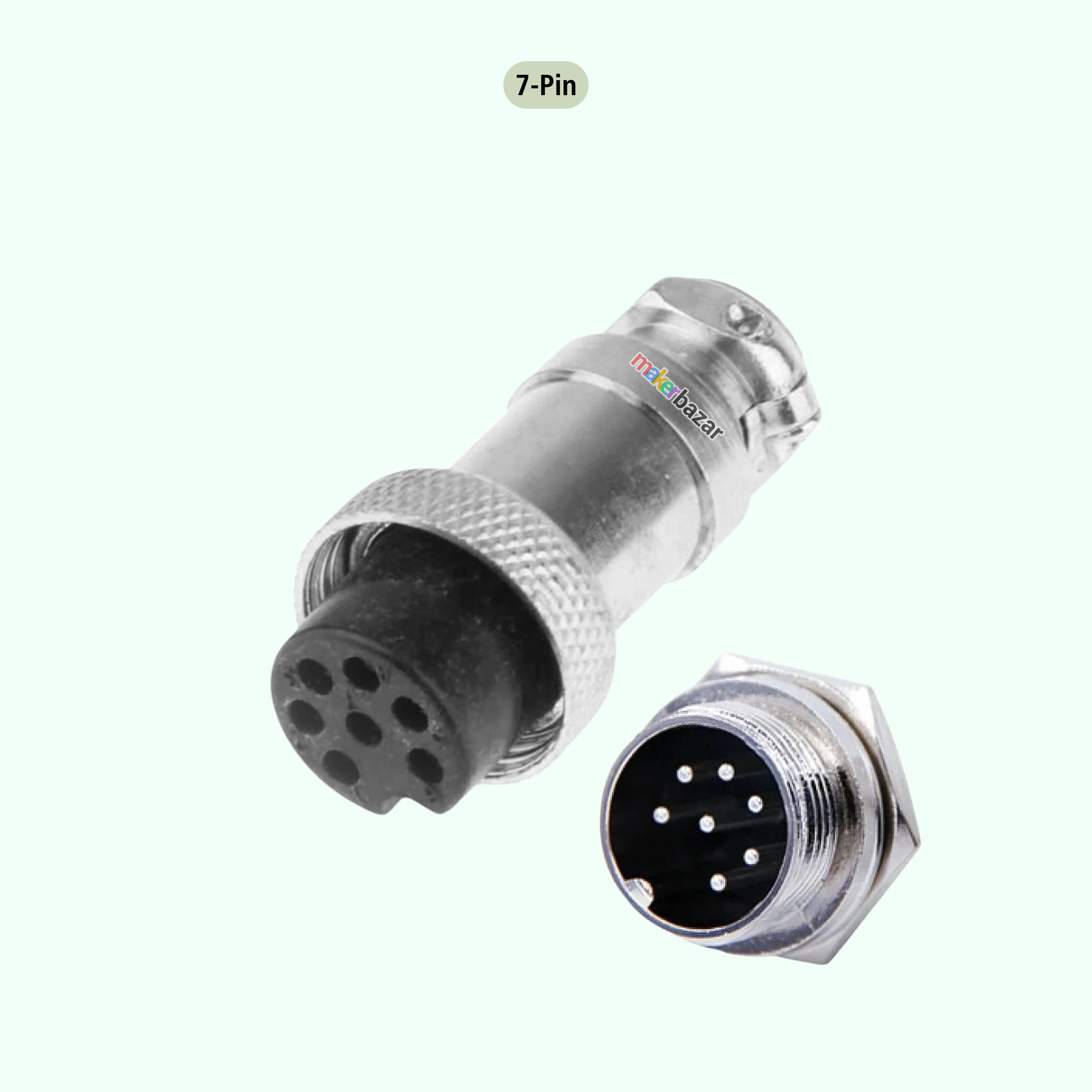

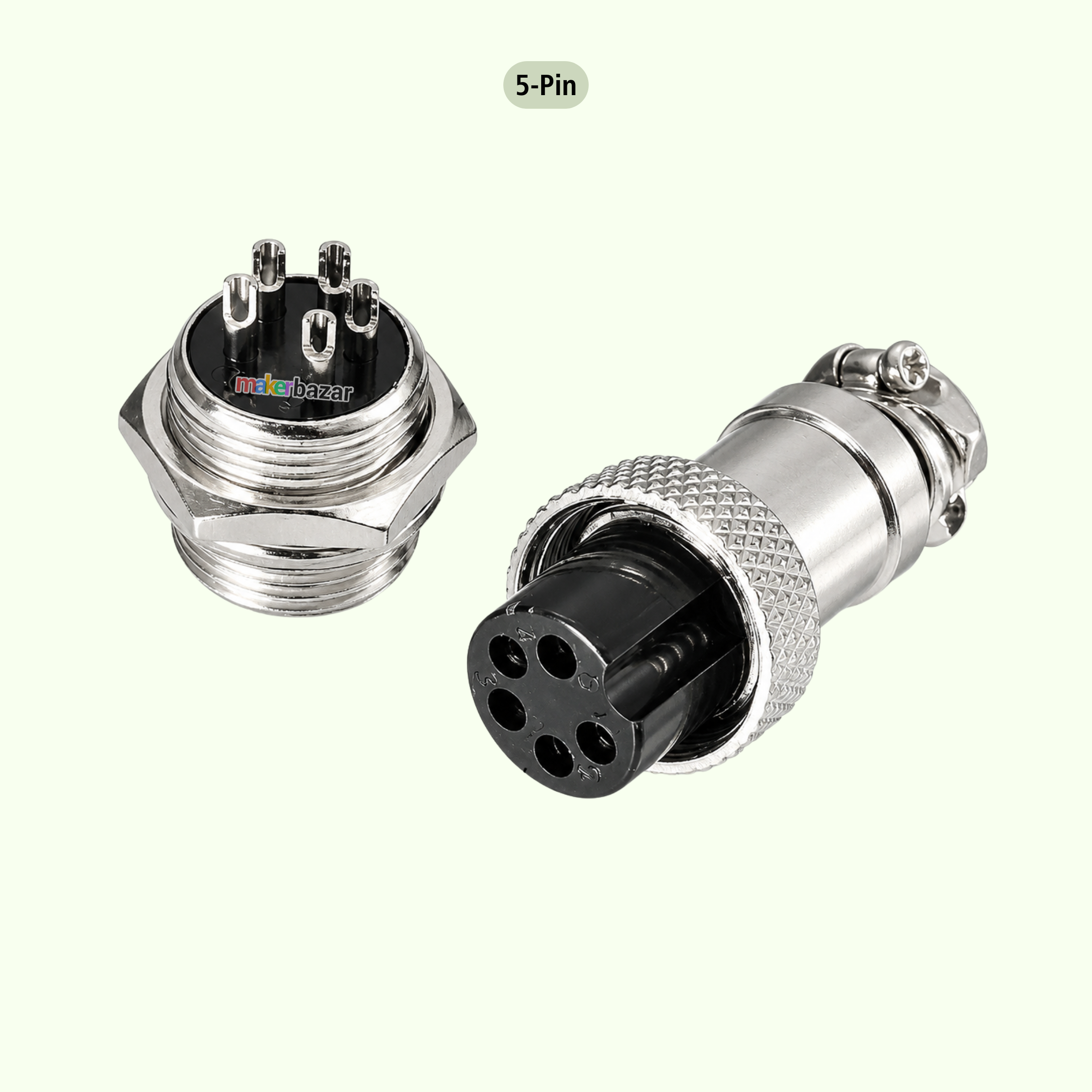

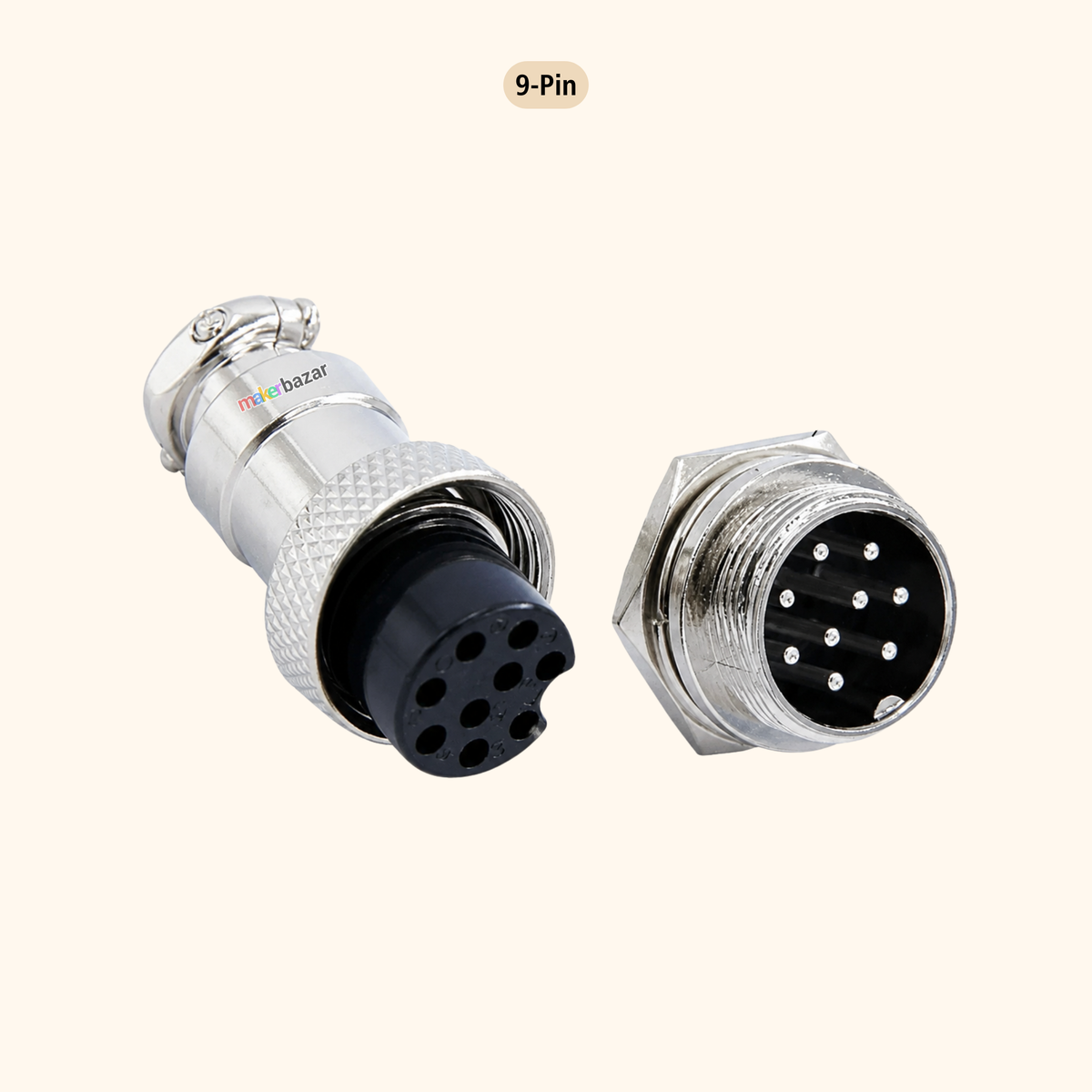

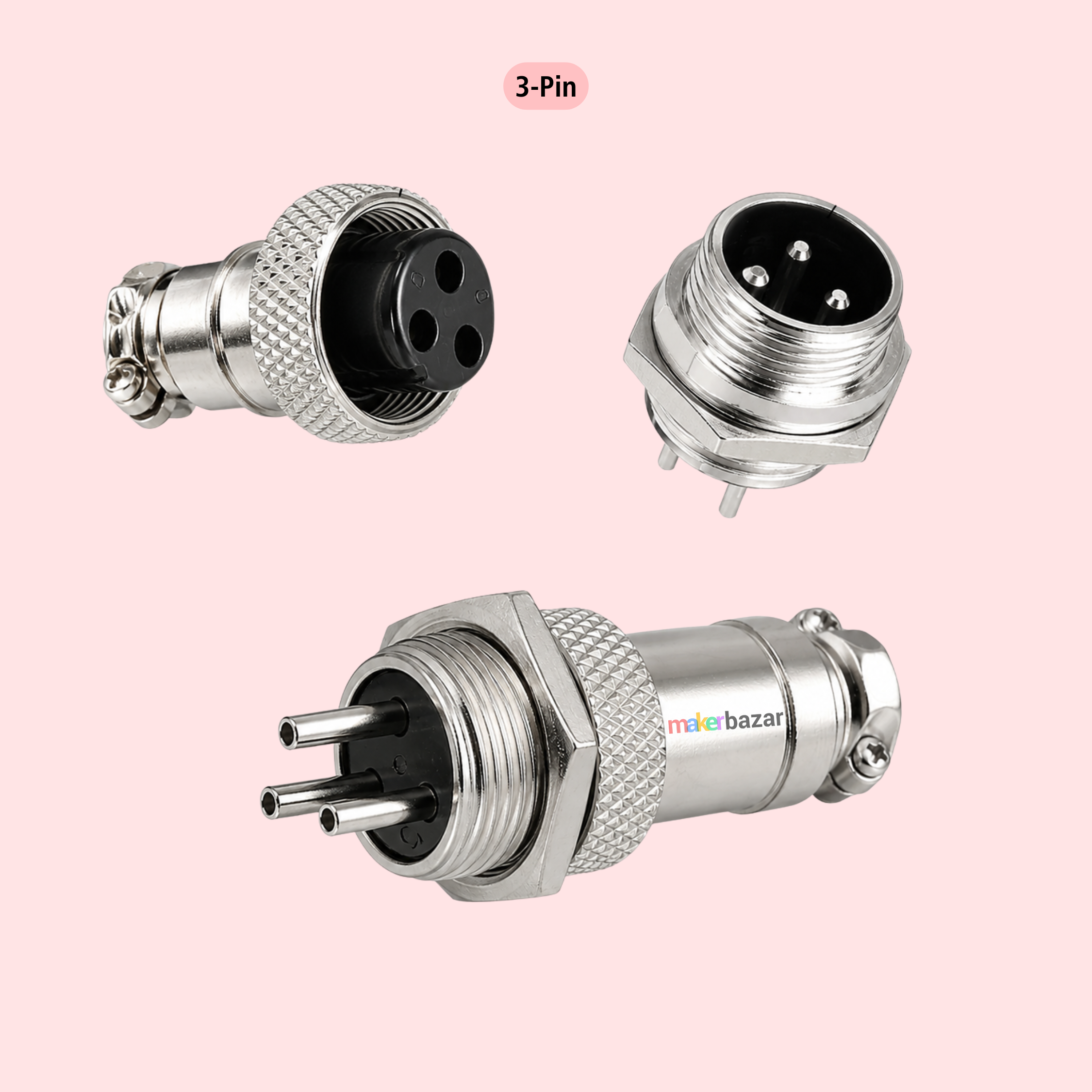

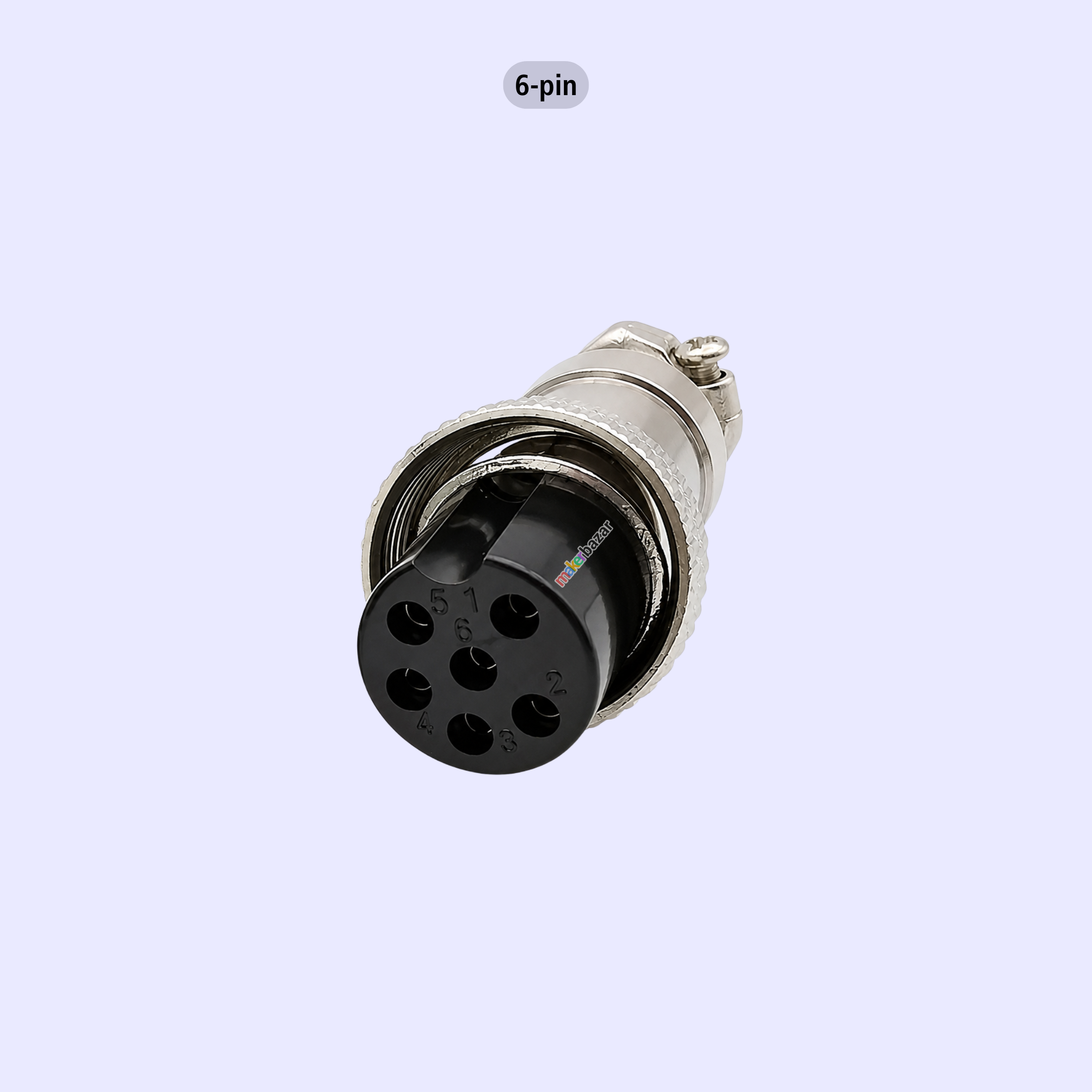

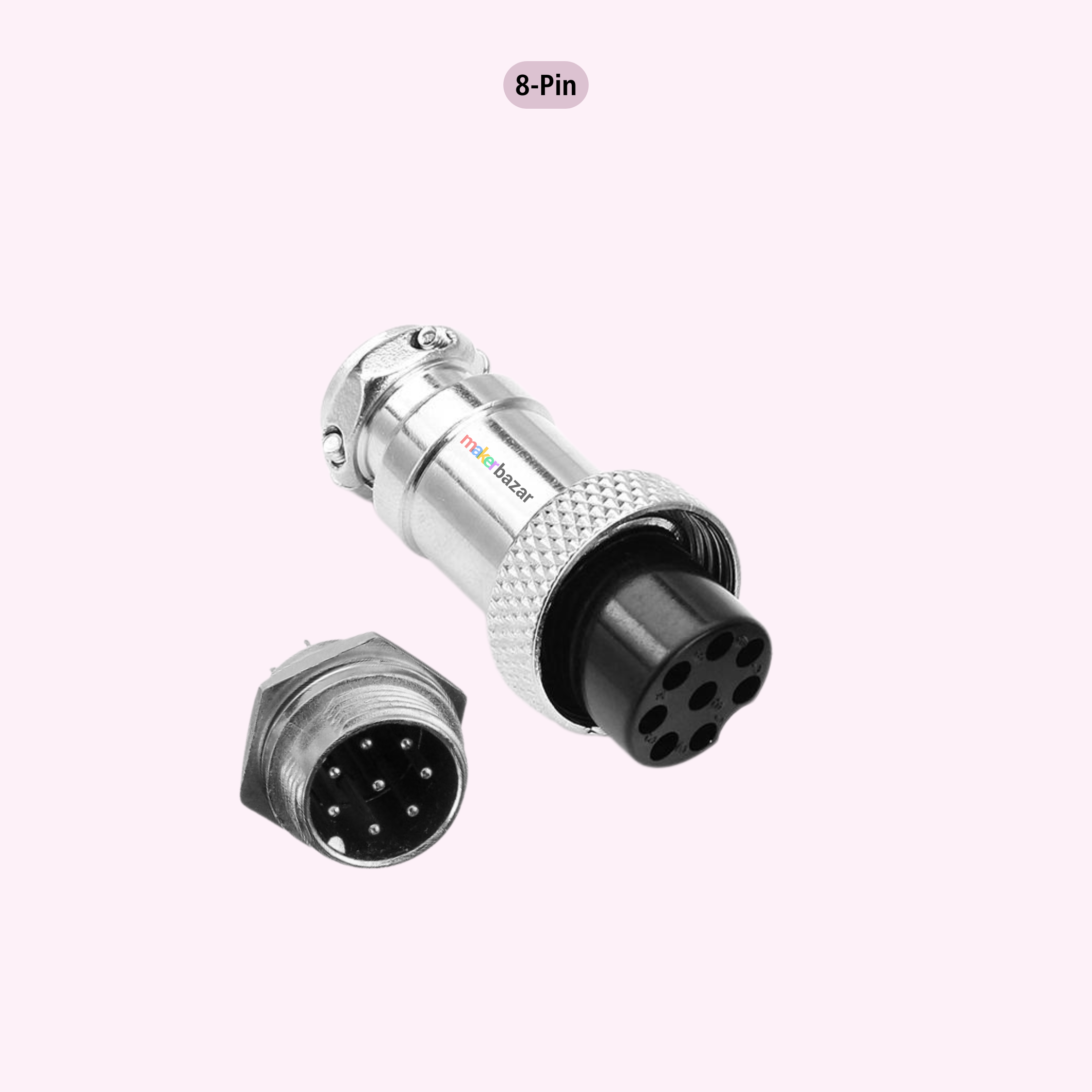

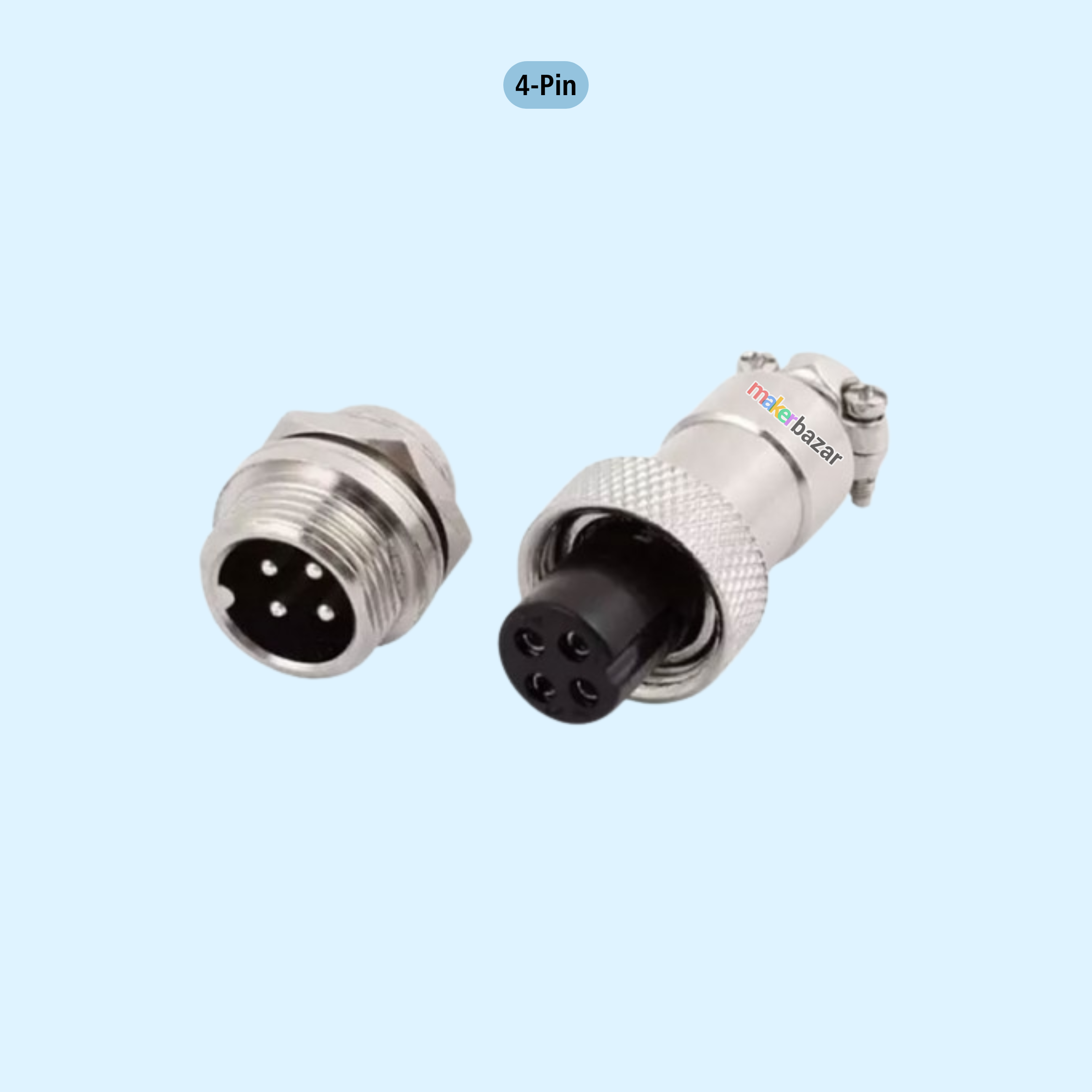

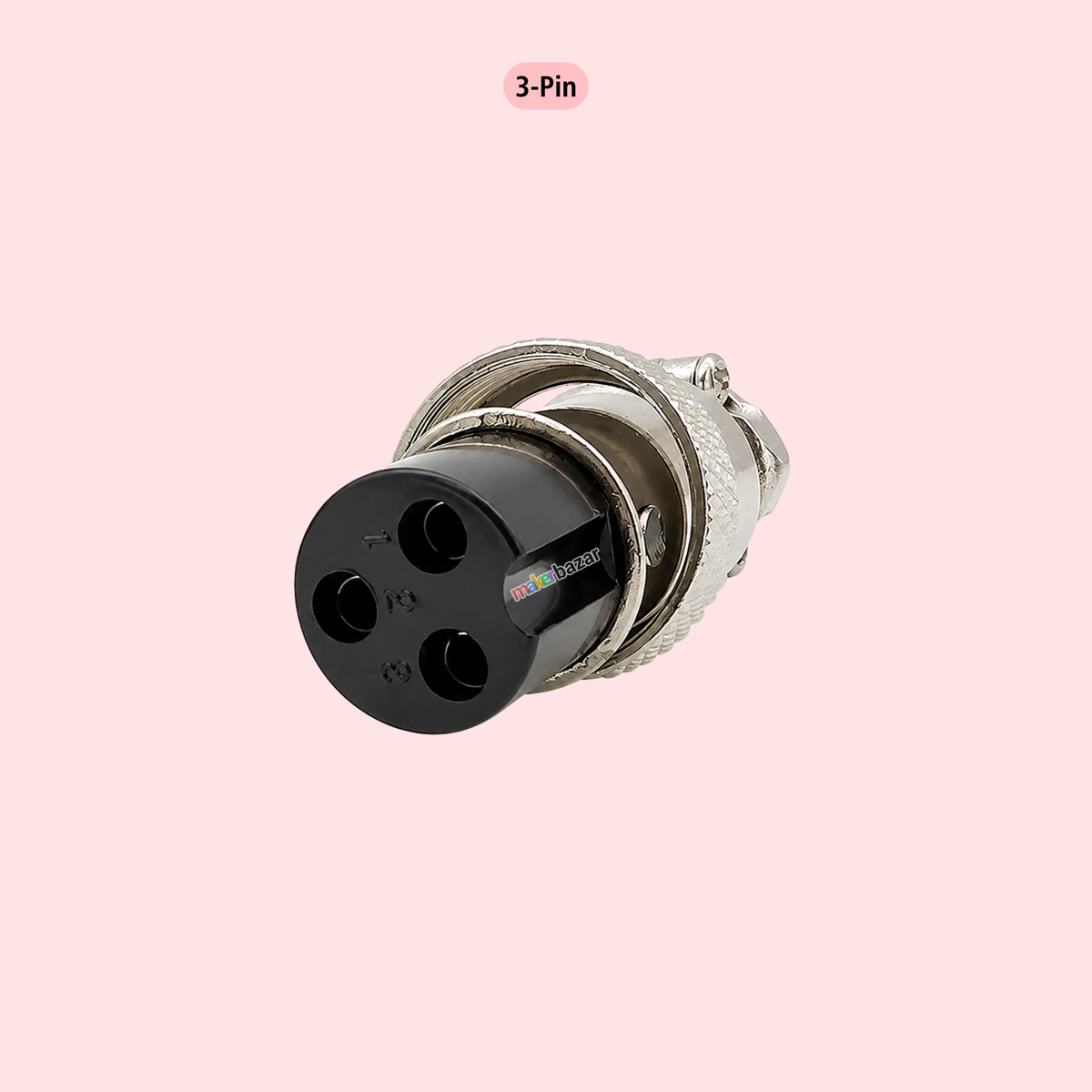

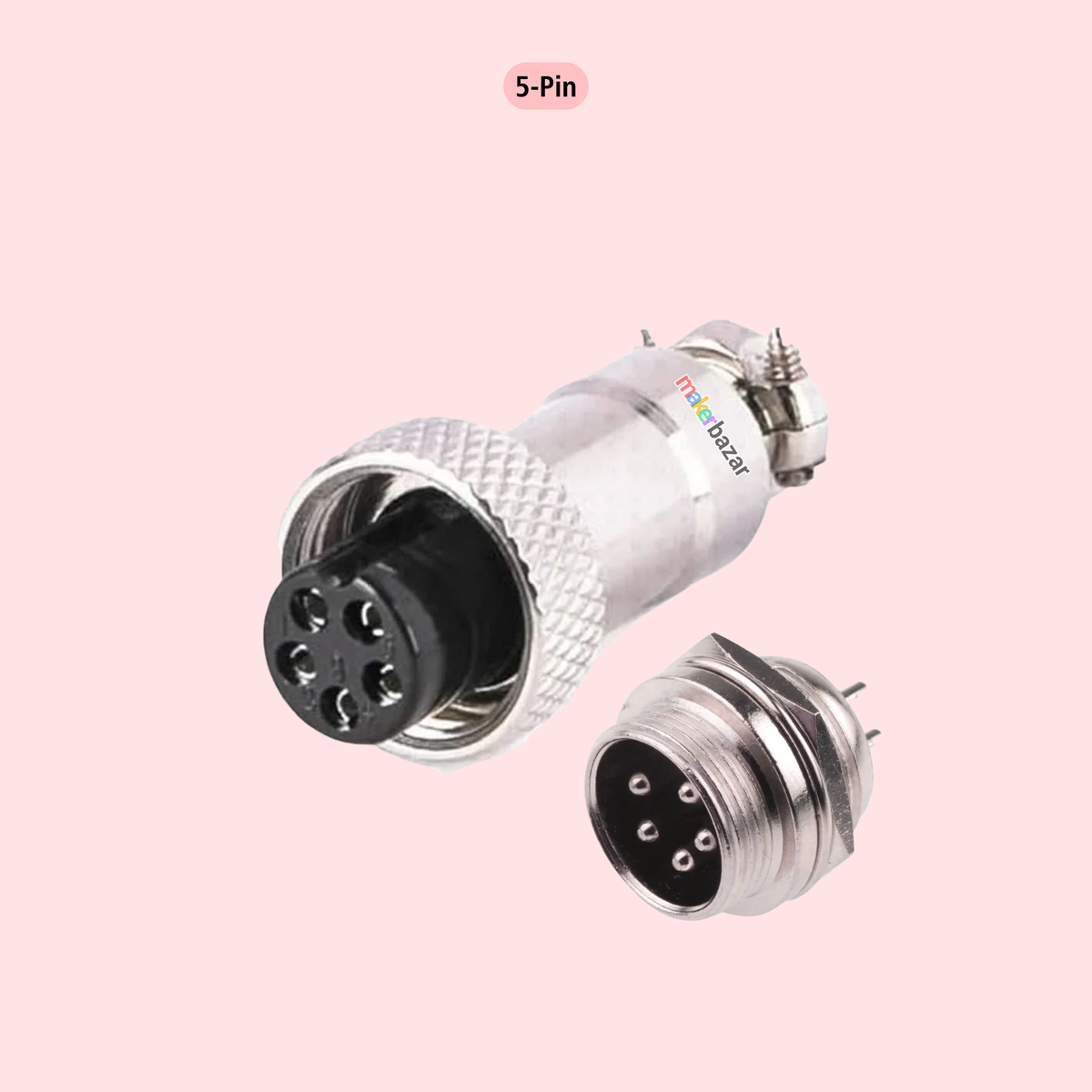

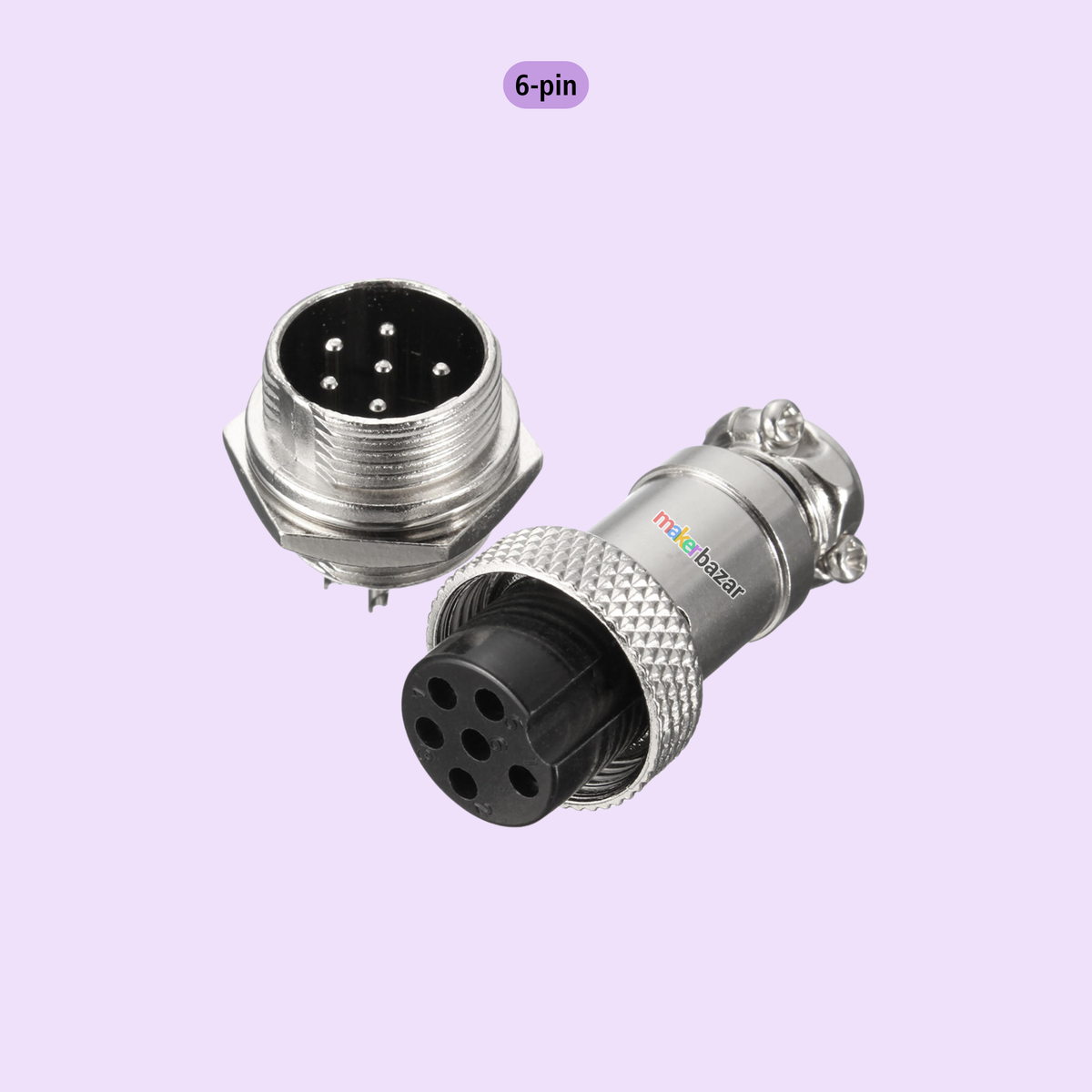

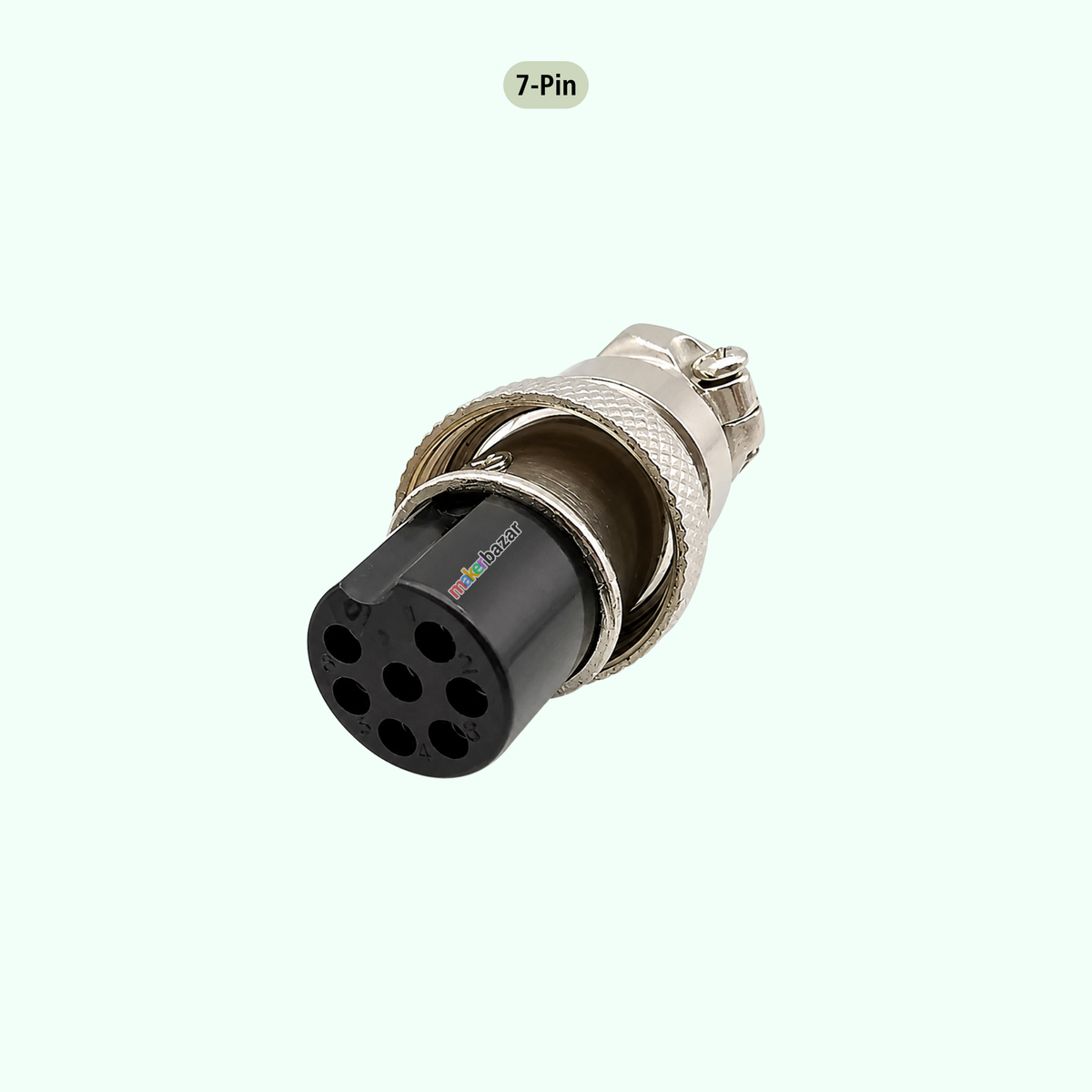

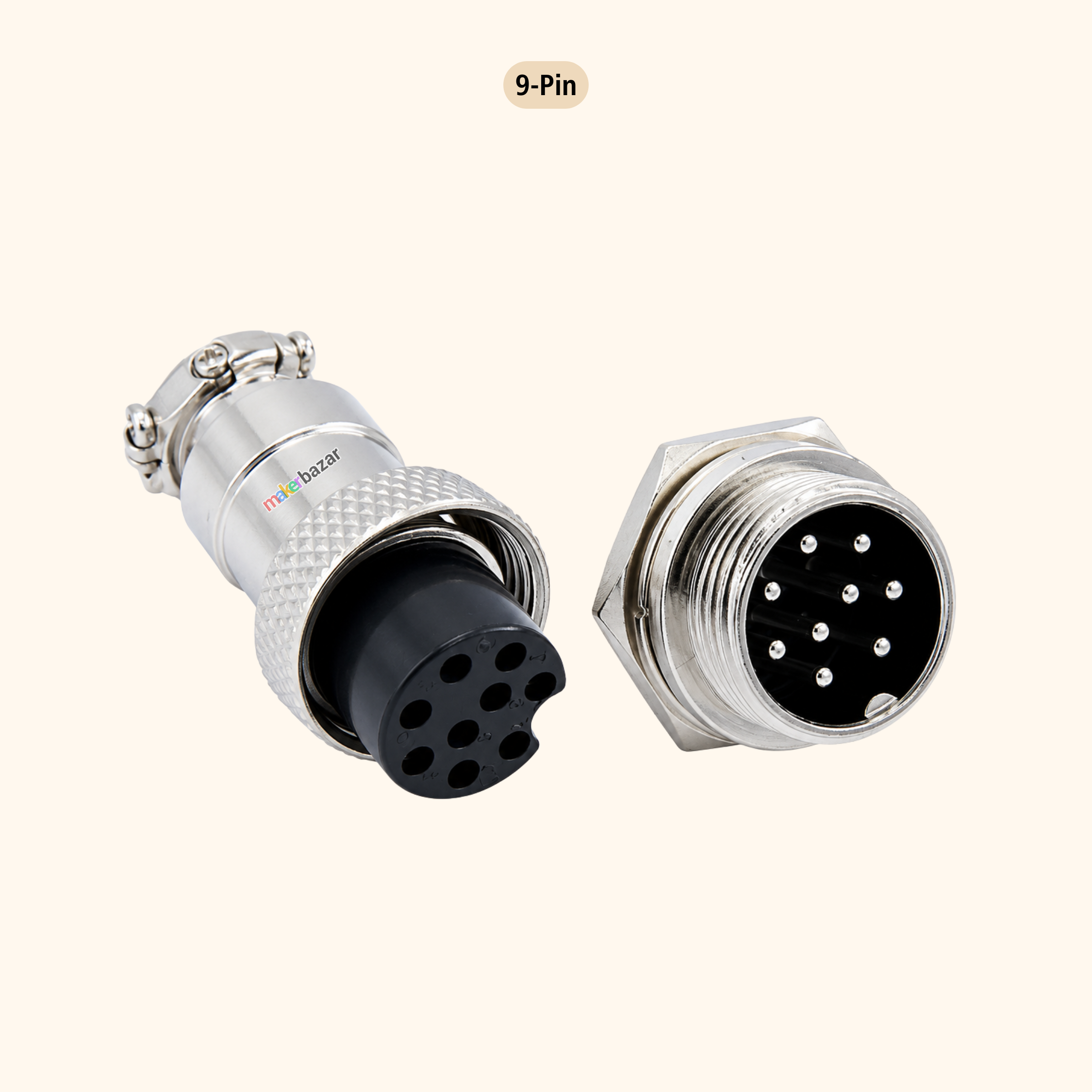

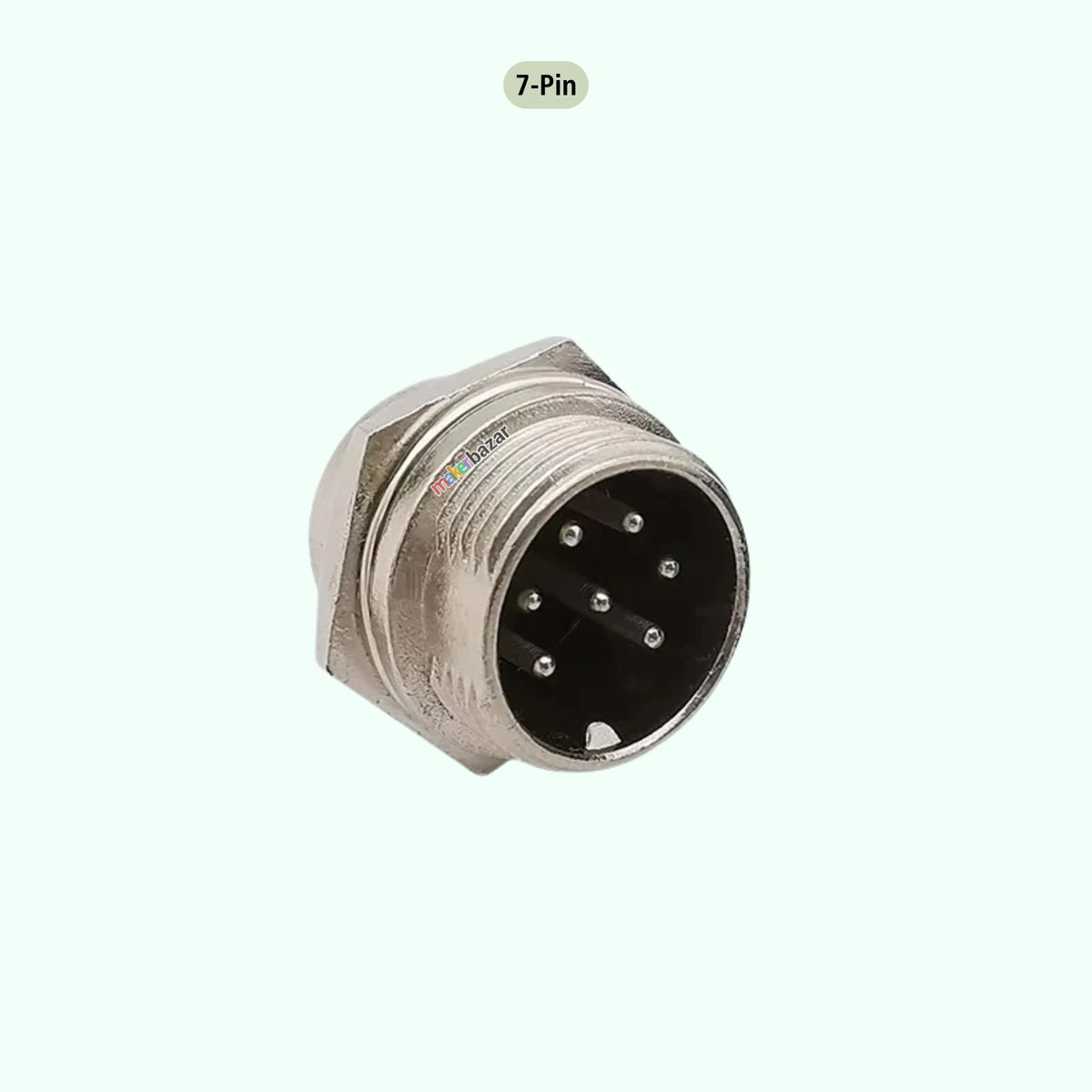

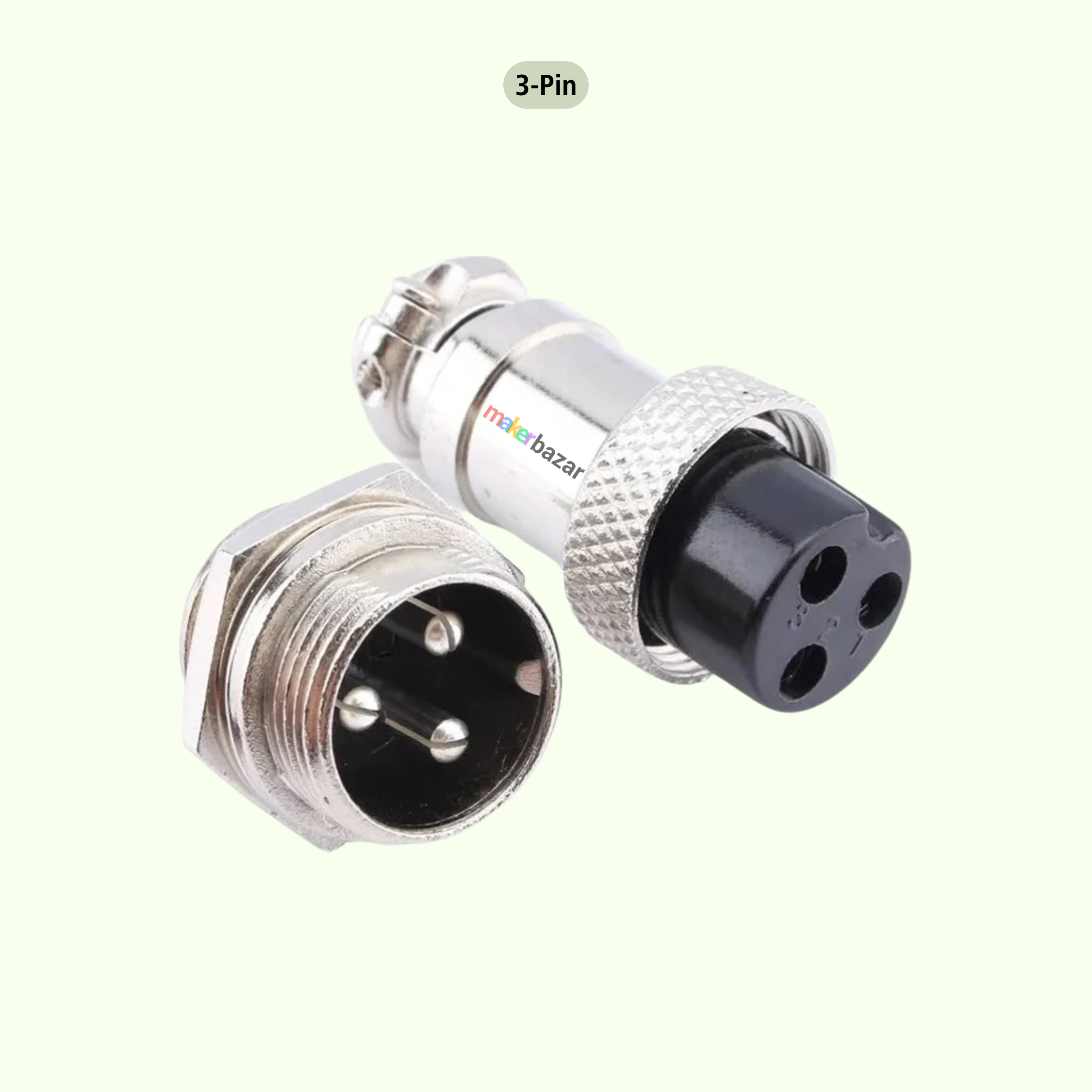

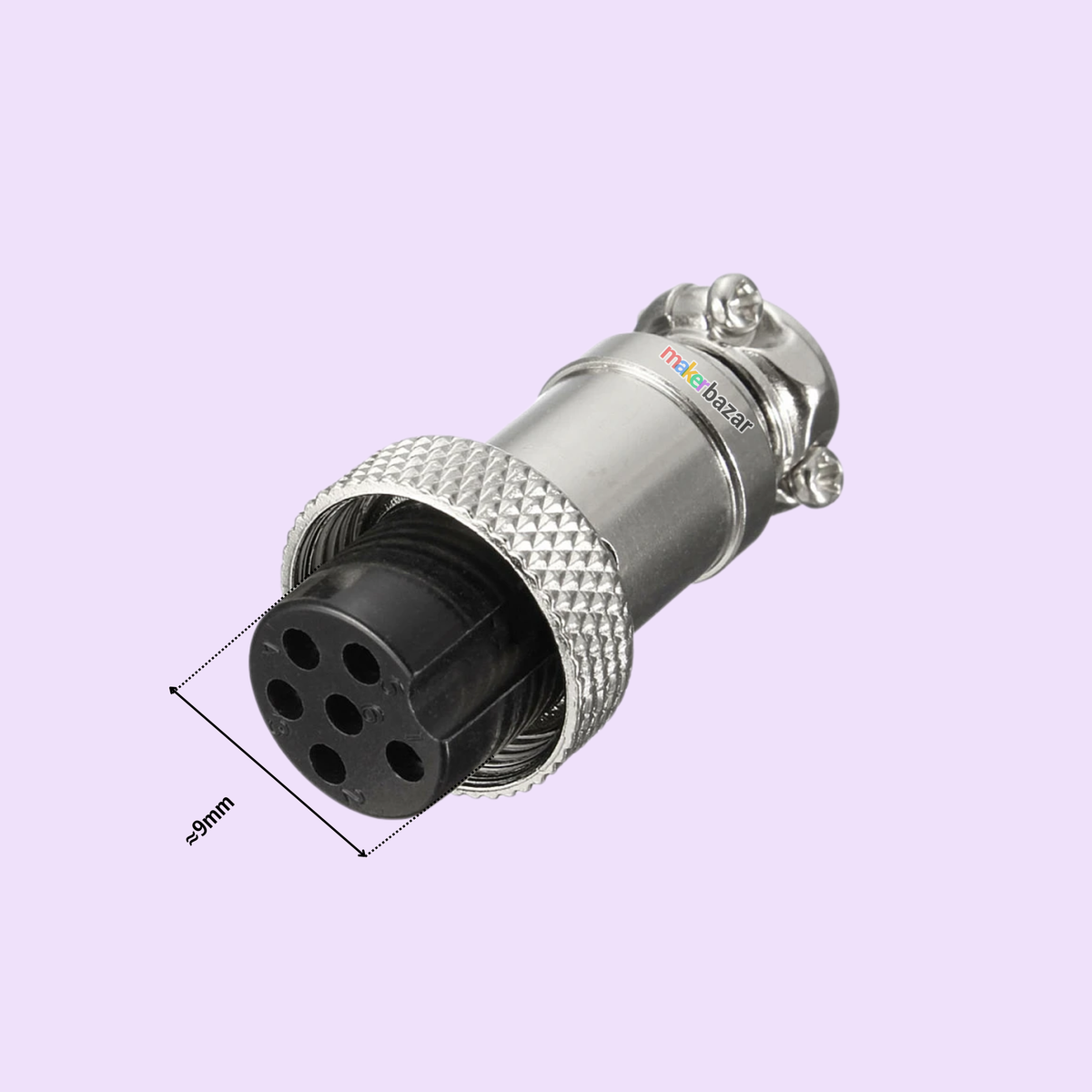

The GX Series Multi-Pin Metal Aviation Connector is a high-quality circular plug and socket connector designed for secure power and signal transmission in industrial, automation, robotics, automotive, and electronic applications. Available in GX-12, GX-16, and GX-20 sizes with multiple pin configurations, these connectors provide a reliable and vibration-resistant connection for demanding environments.
Manufactured from durable nickel-plated metal, the GX connector features a threaded locking mechanism that prevents accidental disconnection caused by vibration or movement. Its compact circular design allows easy installation in control panels, machinery, instruments, communication equipment, sensors, and custom electronic projects.
Suitable for both professionals and DIY enthusiasts, the GX aviation connector offers excellent durability, corrosion resistance, and long service life while ensuring stable electrical connections.
Key Features
- Premium GX Series circular aviation connector.

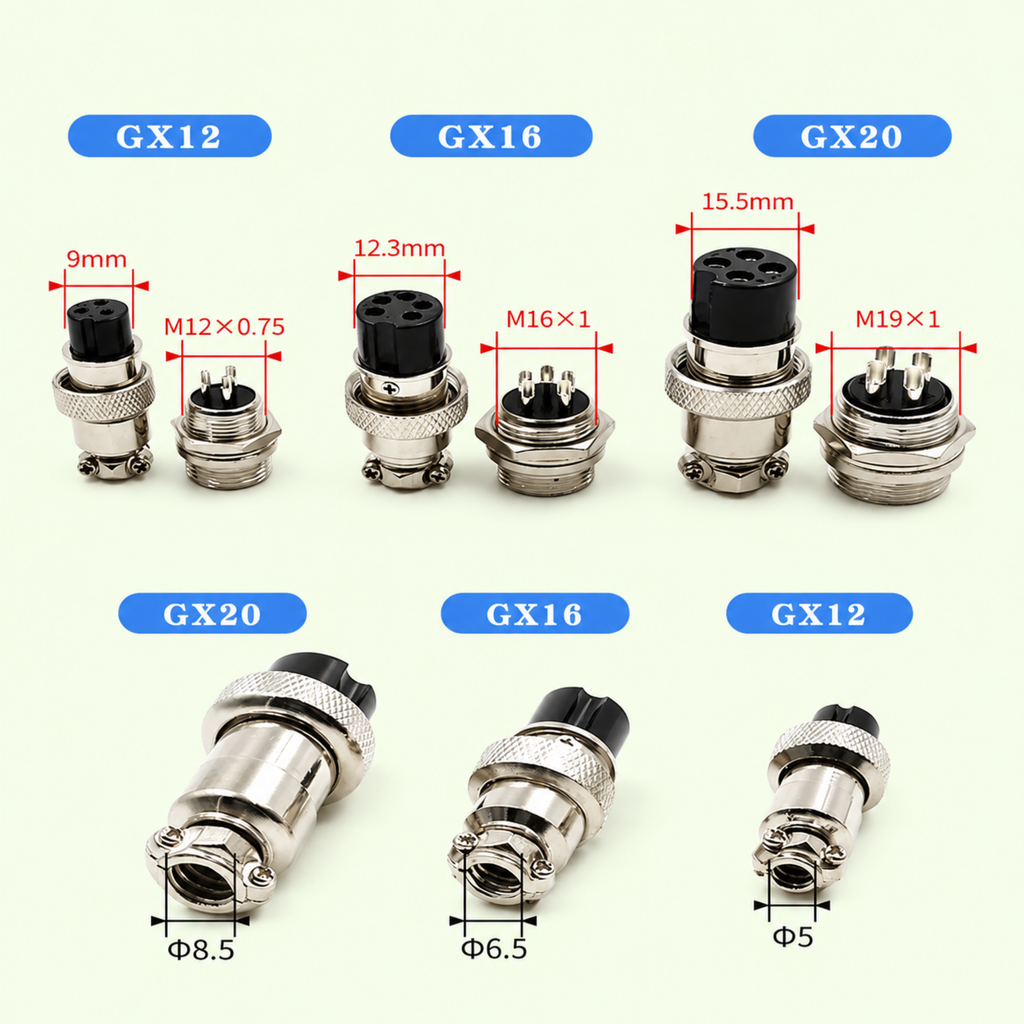

- Available in GX-12, GX-16 & GX-20 sizes.

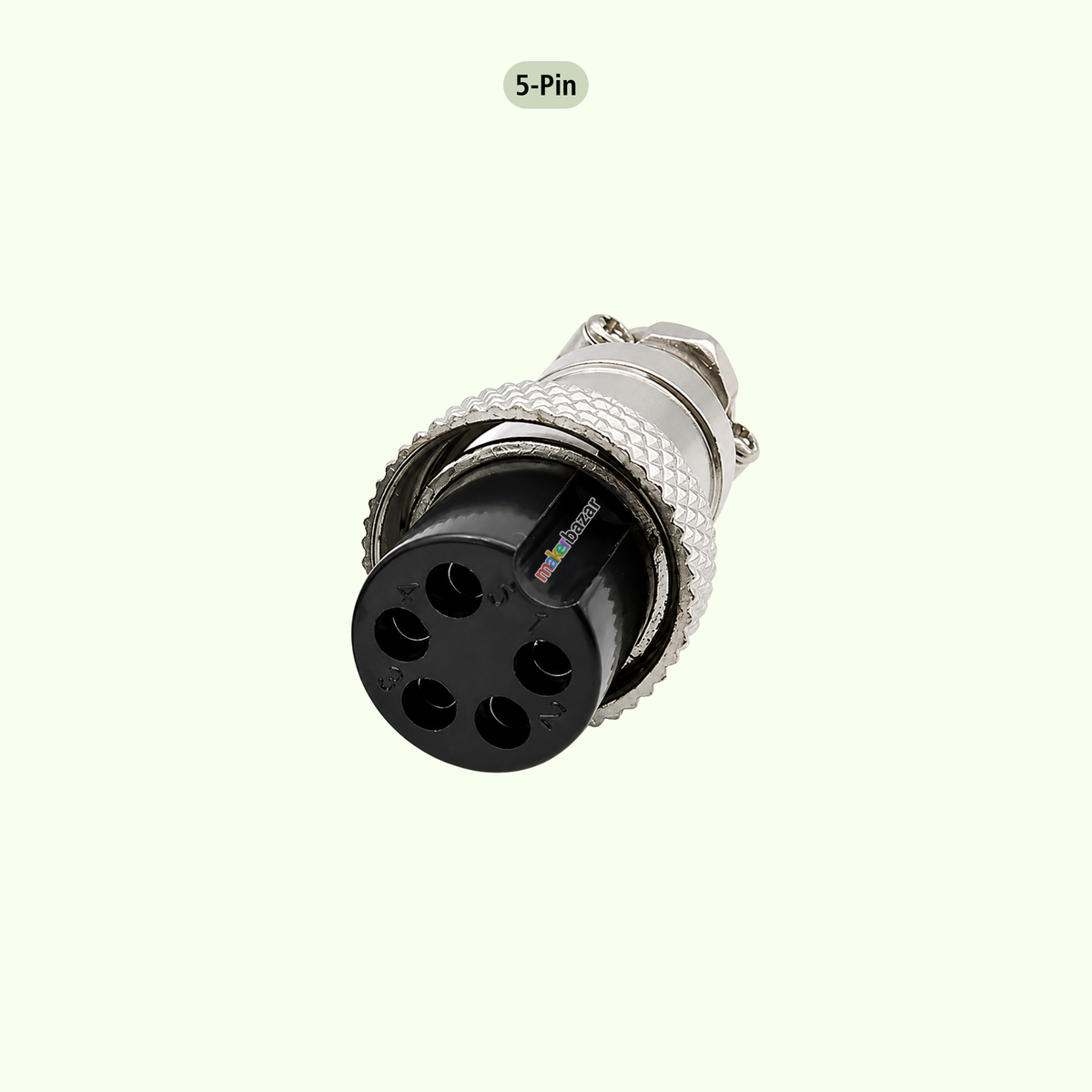

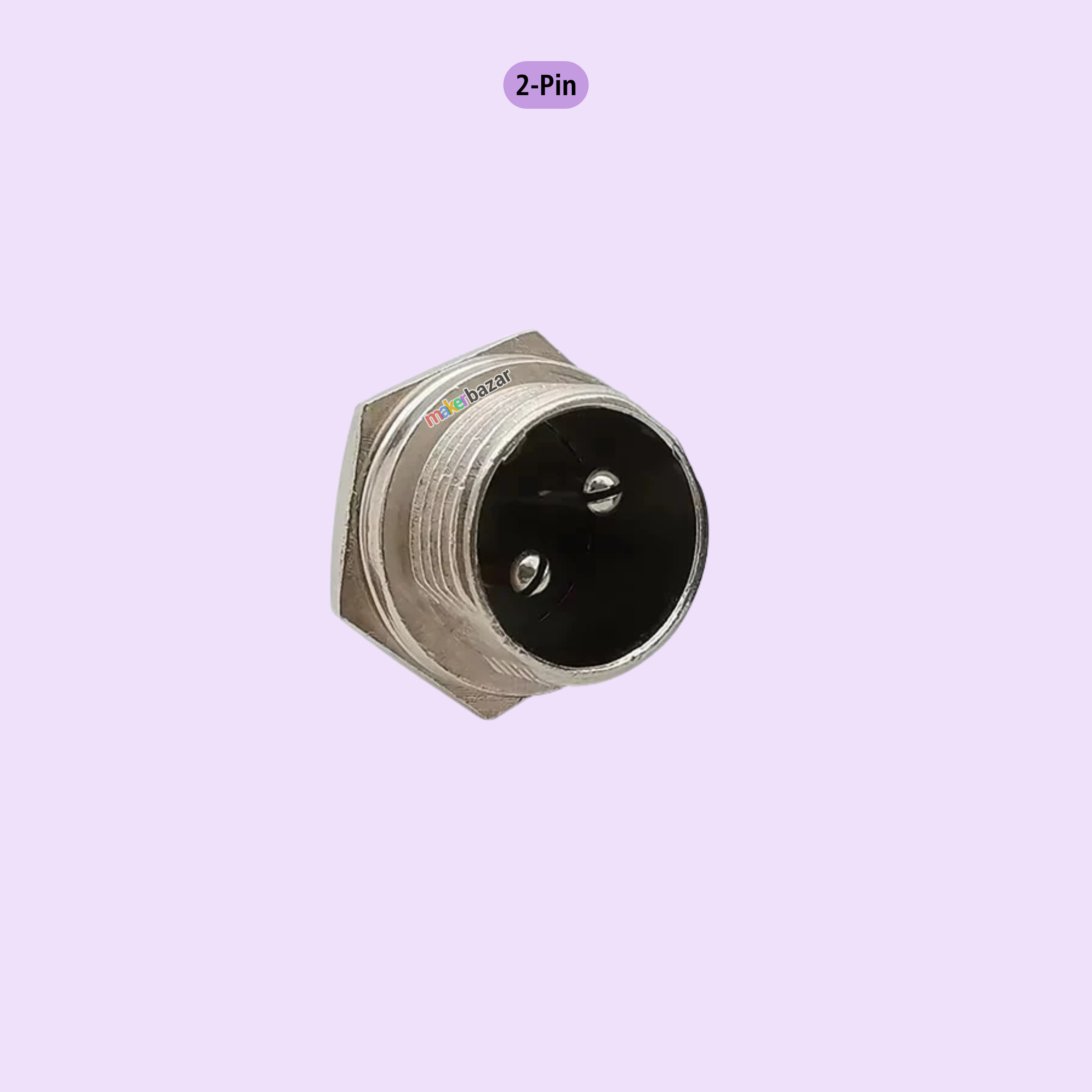

- Multiple pin configurations available.
- Durable nickel-plated metal construction.
- Secure threaded locking mechanism.
- Male and female connector pair.
- Vibration-resistant connection.
- Compact circular design.
- Easy soldering and wiring.
- Corrosion and wear resistant.
- Reliable power and signal transmission.
- Suitable for panel mounting.
- Long service life.
- Ideal for industrial and DIY applications.
Technical Specifications
| Specification |
Details |
| Product Name |
GX Series Aviation Connector |
| Series Available |
GX-12, GX-16, GX-20 |
| Connector Type |
Circular Plug & Socket |
| Connection Type |
Male & Female |
| Mounting Type |
Panel Mount |
| Body Material |
Nickel-Plated Metal |
| Insulator Material |
High-Quality Thermoset Plastic |
| Locking Mechanism |
Threaded Screw Lock |
| Contact Material |
Copper Alloy |
| Application |
Power & Signal Transmission |
| Operating Temperature |
Industrial Grade |
| Corrosion Resistance |
Yes |
| Reusable |
Yes |
Applications
- Industrial Automation
- CNC Machines
- Robotics Projects
- Aviation Electronics
- Automotive Wiring
- Control Panels
- Instrumentation Equipment
- Communication Devices
- Sensor Connections
- LED Lighting Systems
- Audio Equipment
- Medical Equipment
- Power Supplies
- DIY Electronics
- Test & Measurement Equipment
Precautions
- Verify the correct pin configuration before purchase.
- Ensure correct wiring according to the pinout.
- Tighten the locking ring securely after connection.
- Disconnect power before installation or maintenance.
- Avoid excessive pulling on the cable.
- Protect connectors from prolonged water exposure unless properly sealed.
- Ensure proper soldering to prevent poor electrical contact.
- Inspect connectors periodically for wear or damage.
