Description

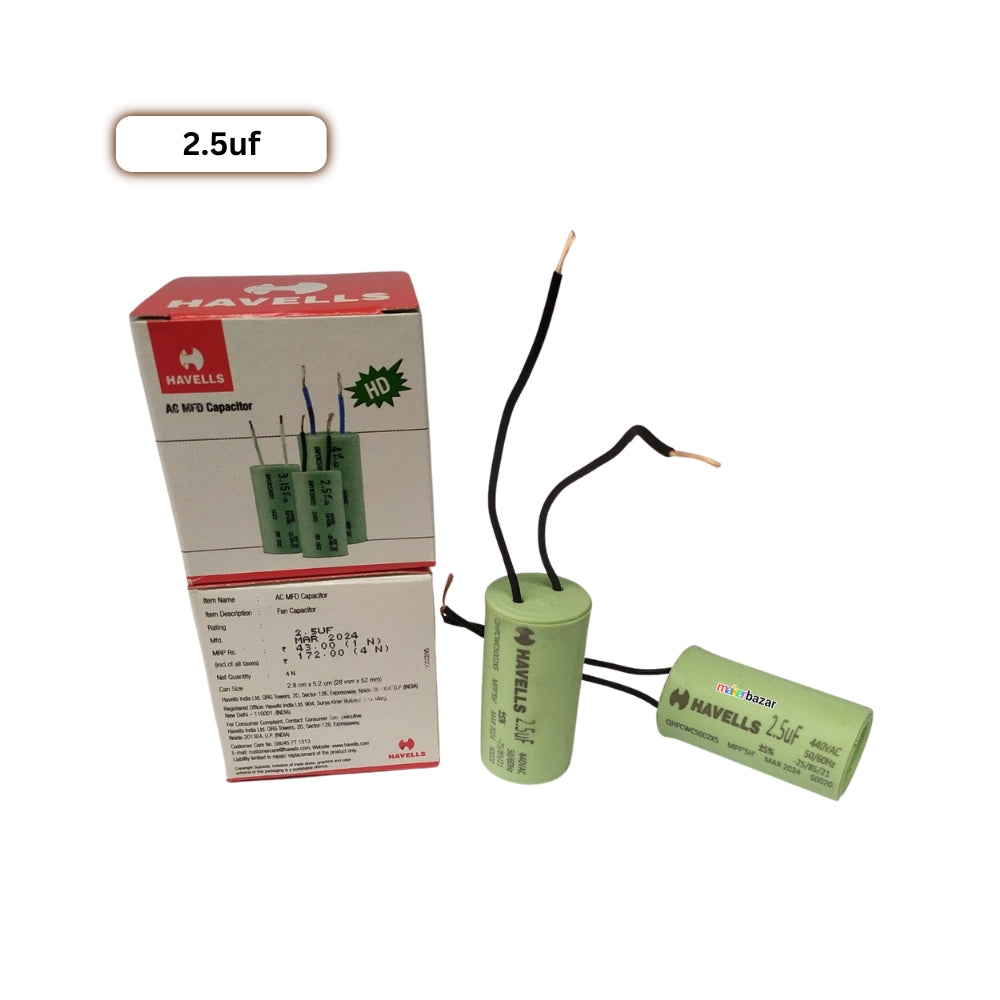

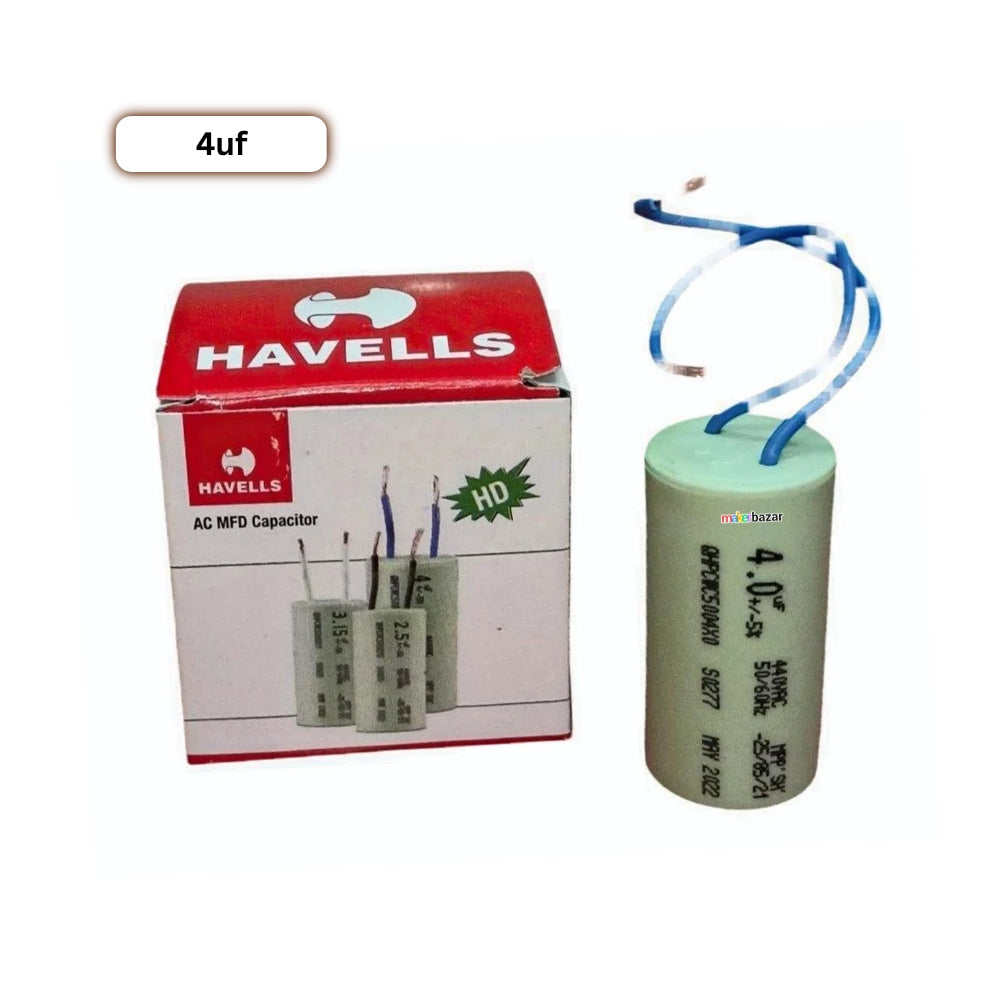

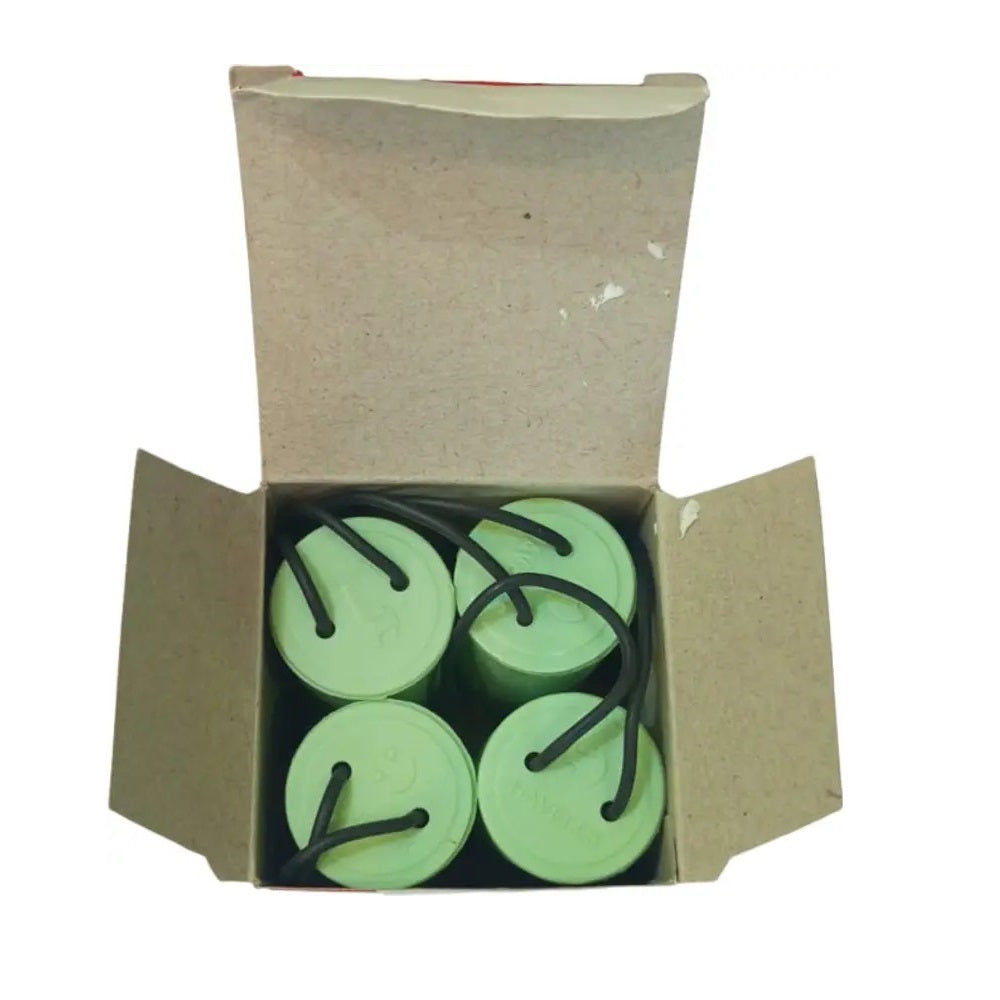

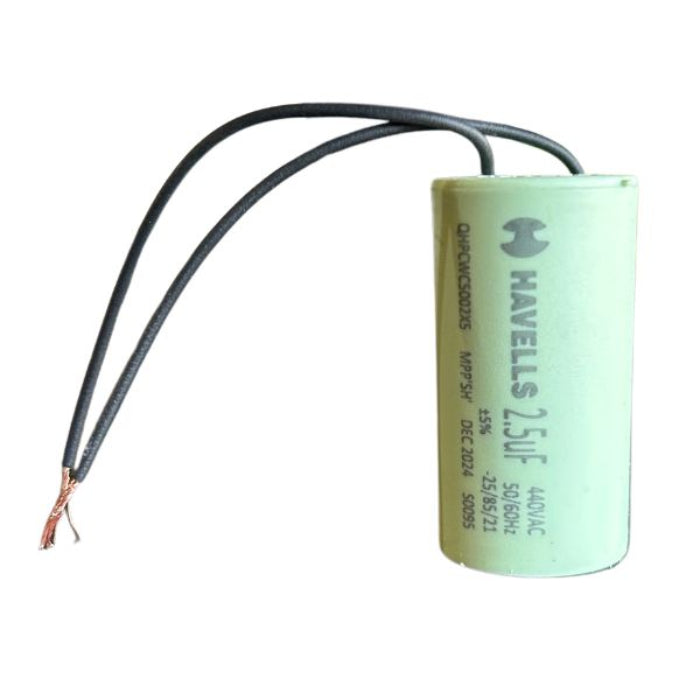

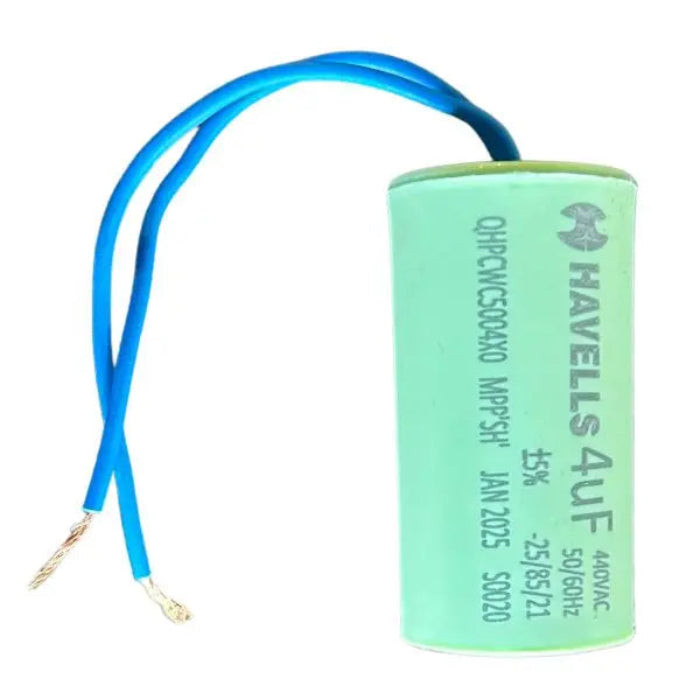

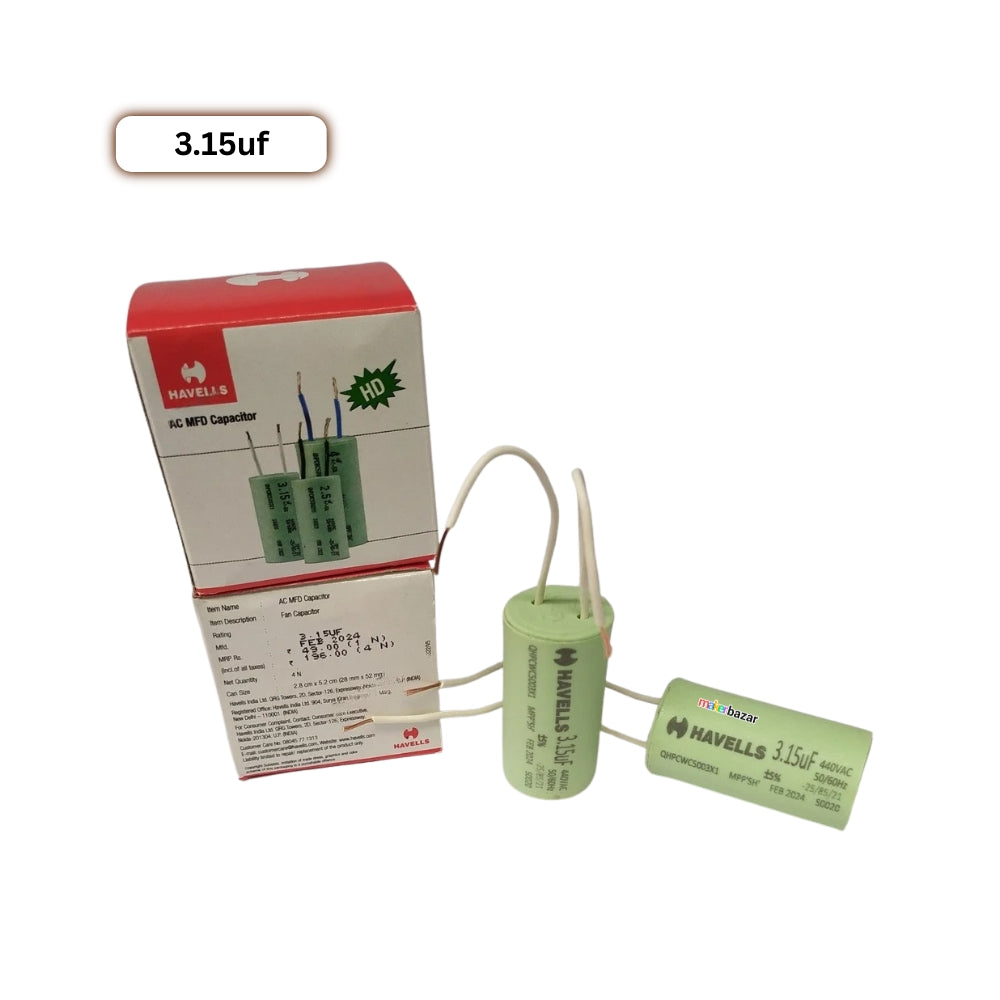

AC MFD Fan Capacitor – Electrolytic Capacitor for Ceiling Fans Cooler Motors
This AC motor run capacitor is designed for use in single-phase motors and fan applications. It provides continuous phase shifting to improve starting torque, efficiency, and performance. Constructed using metallized polypropylene film, the capacitor is housed in a durable casing to withstand heat and vibrations. Ideal for applications such as ceiling fans, exhaust fans, water pumps, coolers, and compressors.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Capacitance Values | 2.5µF, 3.15µF, 4µF |
| Rated Voltage | 250V / 400V AC |
| Frequency | 50/60Hz |
| Tolerance | ±5% to ±10% |
| Construction | Metallized Polypropylene Film |
| Operating Temperature | -25°C to +70°C (typical) |
| Shape | Cylindrical or Box-type |
| Mounting | Wire leads or terminal connections |
| Polarity | Non-polarized |
| Applications | Ceiling fans, table fans, exhaust fans, water pumps, air coolers, small compressors |
| Life Expectancy | ≥10,000 hours |
