Description

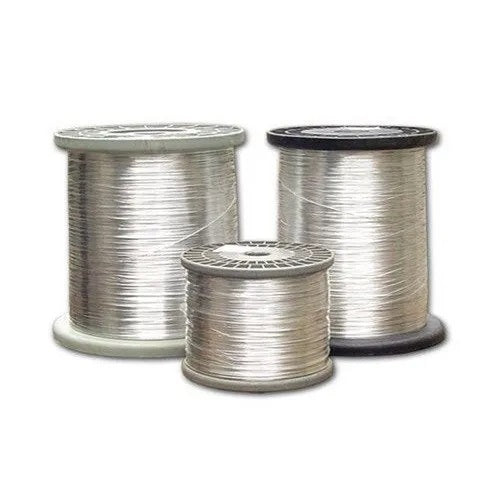

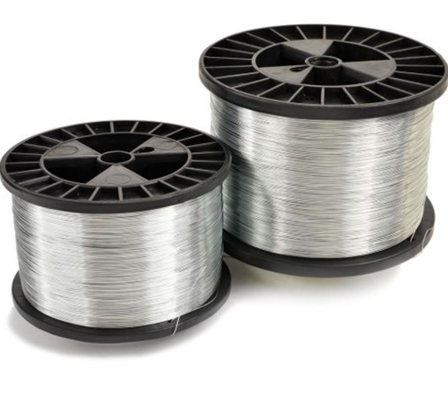

Hot Cutting Nichrome Heating Coils Resistor Wire for DIY
Nichrome is a special nickel and chromium alloy. Cr20Ni80 belongs to a kind of electro thermal alloy, which has stable structure and electrical physical performance, in addition, good high temperature mechanical property, fine could plastic deformation and weld ability, as a result of which. it cannot have the brittle fracture due to long-term use. The alloy is widely used in manufacturing the household appliances and heating elements below the working temperature of 1000'C.

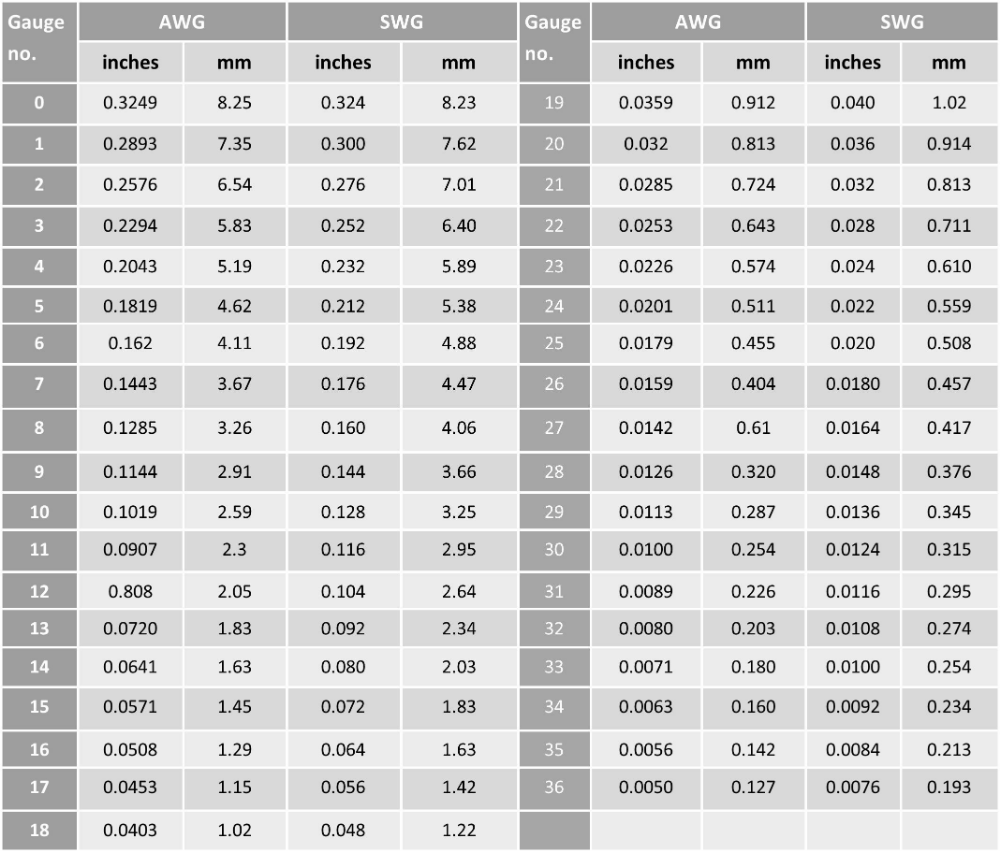

SWG Gauge | MM | Grams in 1-Meter (Approx.) |
Meters in 1kg (Approx.) |
21swg | 0.813mm | 3.75gms | 266meters |
24swg | 0.559mm |
1.77gms | 562meters |
26swg | 0.457mm | 1.19gms | 840meters |
28swg | 0.376mm | 0.80gms | 1242meters |
32swg | 0.274mm | 0.66gms | 1500meters |
