2W/3W/5W/10W/20W HLK-xxM05 Series AC-DC

Hi-Link AC to DC Power Supply Modules are compact, high-efficiency, and fully isolated switching power converters designed for embedded electronics, IoT devices, smart home systems, and industrial automation projects. Each module converts 100–240V AC mains voltage into a stable, regulated DC output—making it the safest and most reliable way to directly power low-voltage electronic circuits from the grid.

All Hi-Link modules are built to meet UL, CE, and EMC safety standards, offering exceptional protection features such as short-circuit protection, overload protection, high isolation, and low ripple noise. Their PCB-mountable, fully enclosed design ensures long-term stability, high power density, and minimal heat generation.

Engineered with global input compatibility, low power consumption, and high reliability, Hi-Link modules have become the industry standard for powering smart home devices, automation controllers, communication equipment, sensors, and microcontroller boards, including ESP8266, ESP32, and Arduino.

Whether your project requires 2W, 3W, 5W, 10W, or 20W output, Hi-Link offers the perfect module with proven stability, compact size, and international safety approval.

---

Key Features

• Supports wide AC input: 100–240V

• Fully isolated AC to DC switching power module

• High efficiency & low power consumption

• Low ripple and noise for stable performance

• Output overload & short-circuit protection

• Ultra-compact, PCB-mount design

• Meets UL, CE, EMC and safety test standards

• High reliability with long operational life

• Ideal for: IoT, smart home, automation, sensors, DIY electronics

• No heat sinks required in most applications

• Natural air cooling design

---

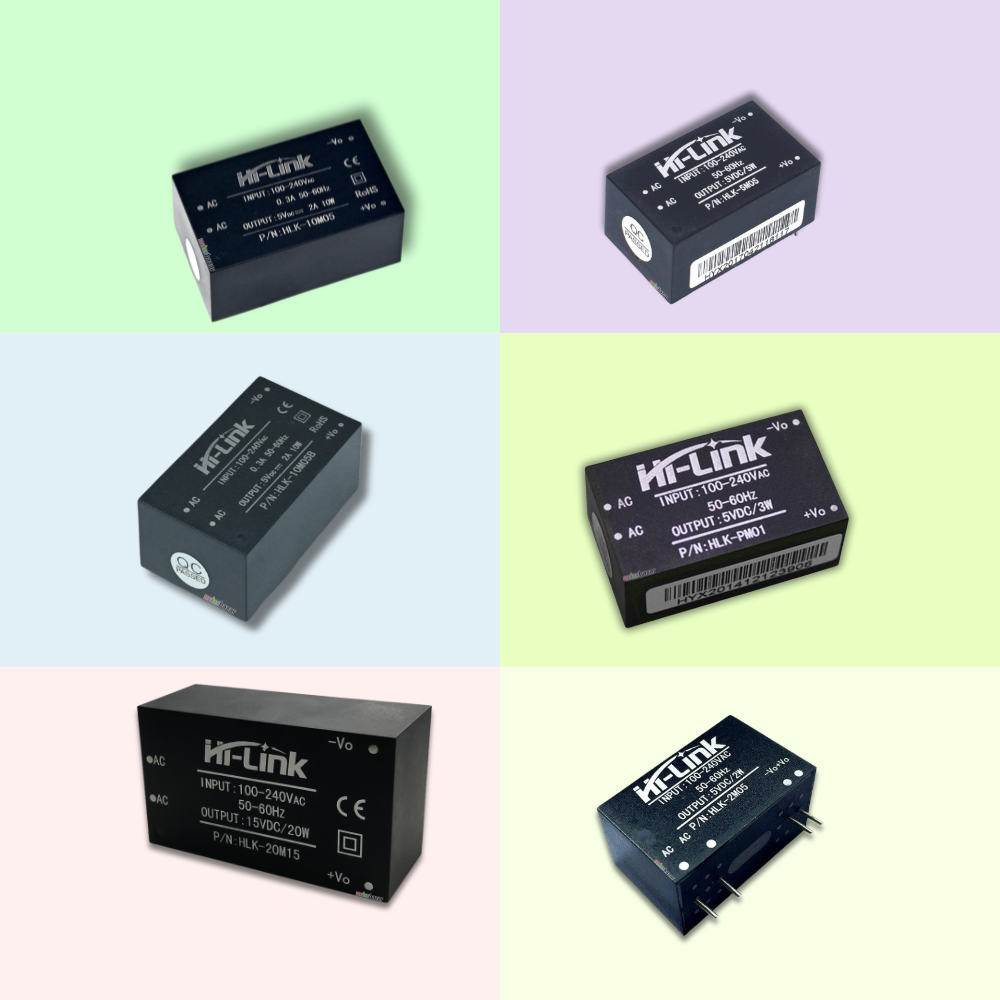

Available Variants:

Use these as your Shopify variant names:

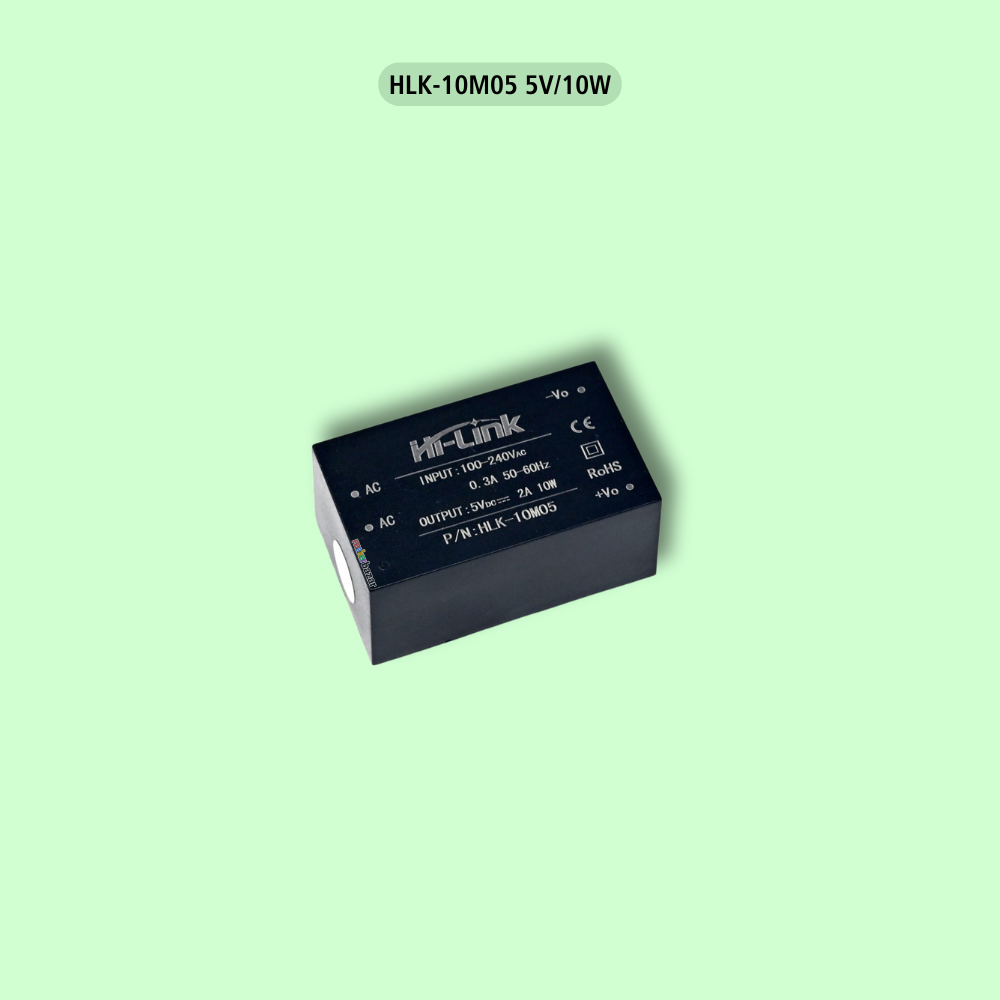

1. Hi Link HLK-10M05 – 5V / 10W

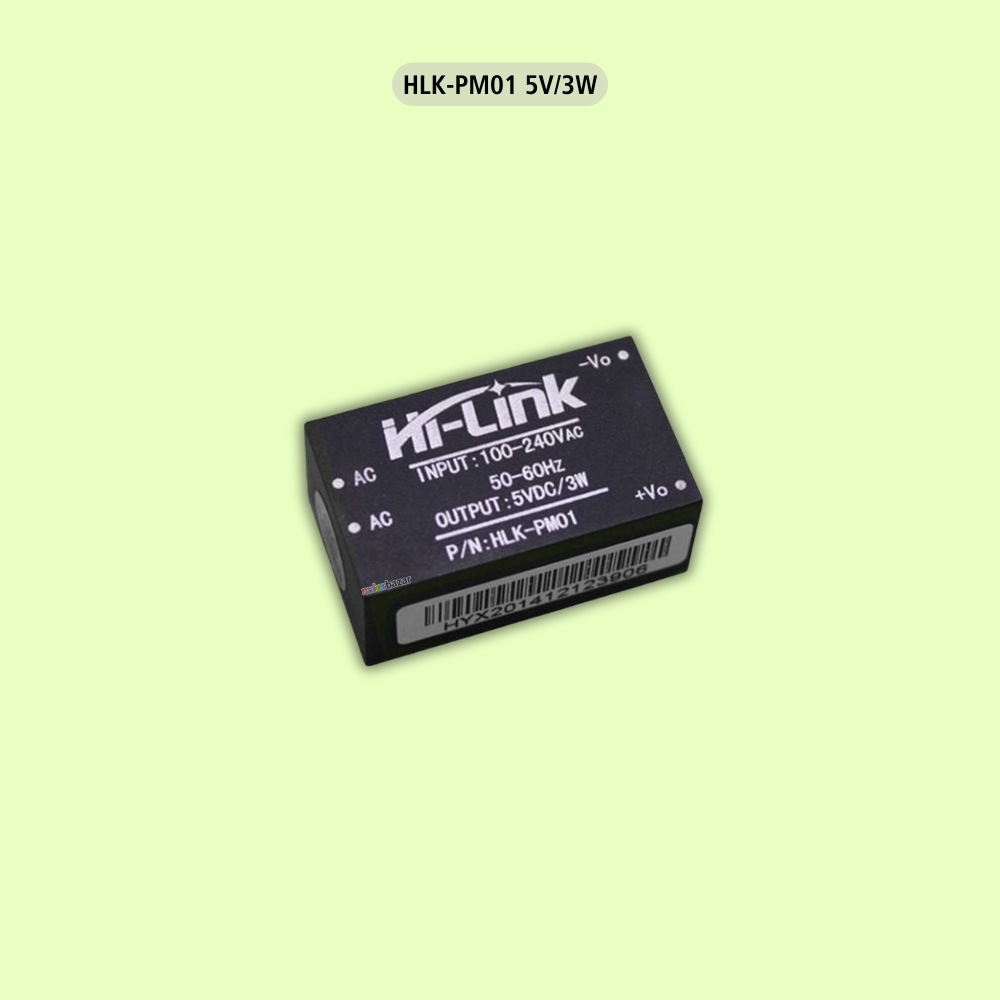

2. Hi Link HLK-PM01 – 5V / 3W

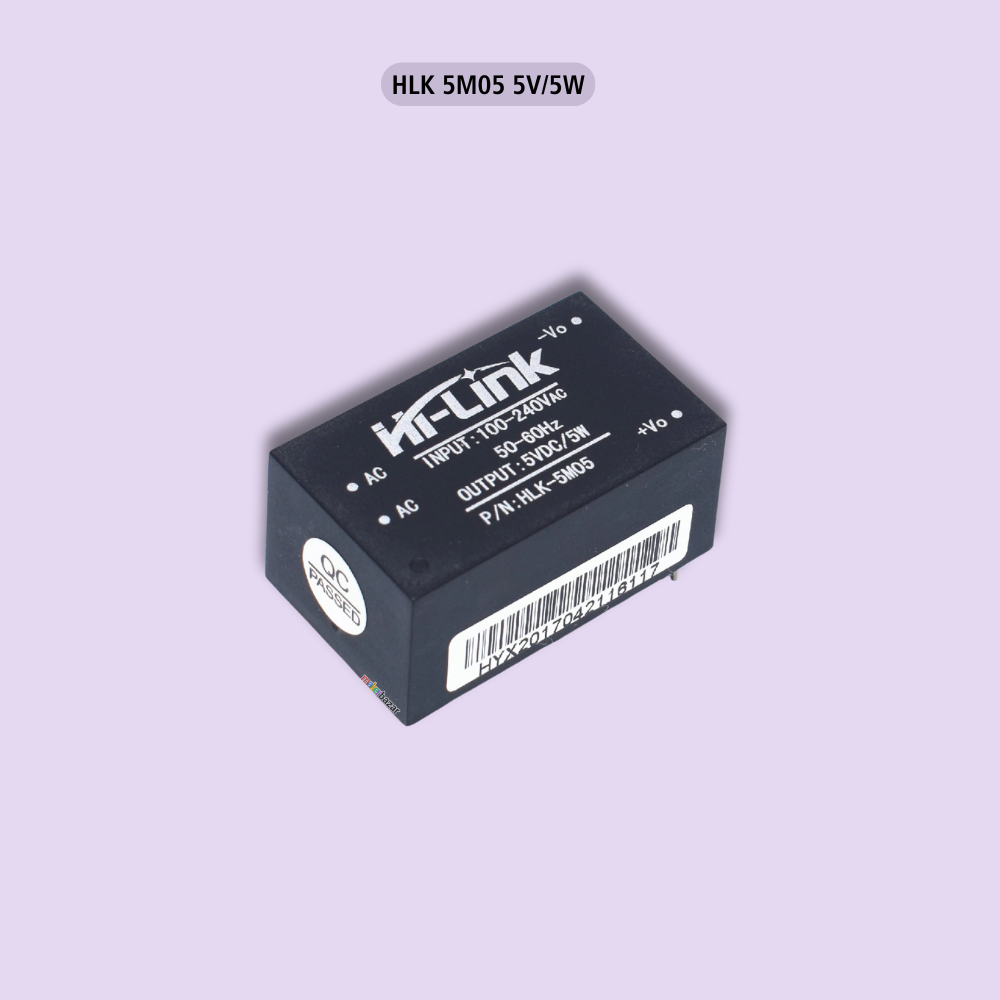

3. Hi Link HLK-5M05 – 5V / 5W

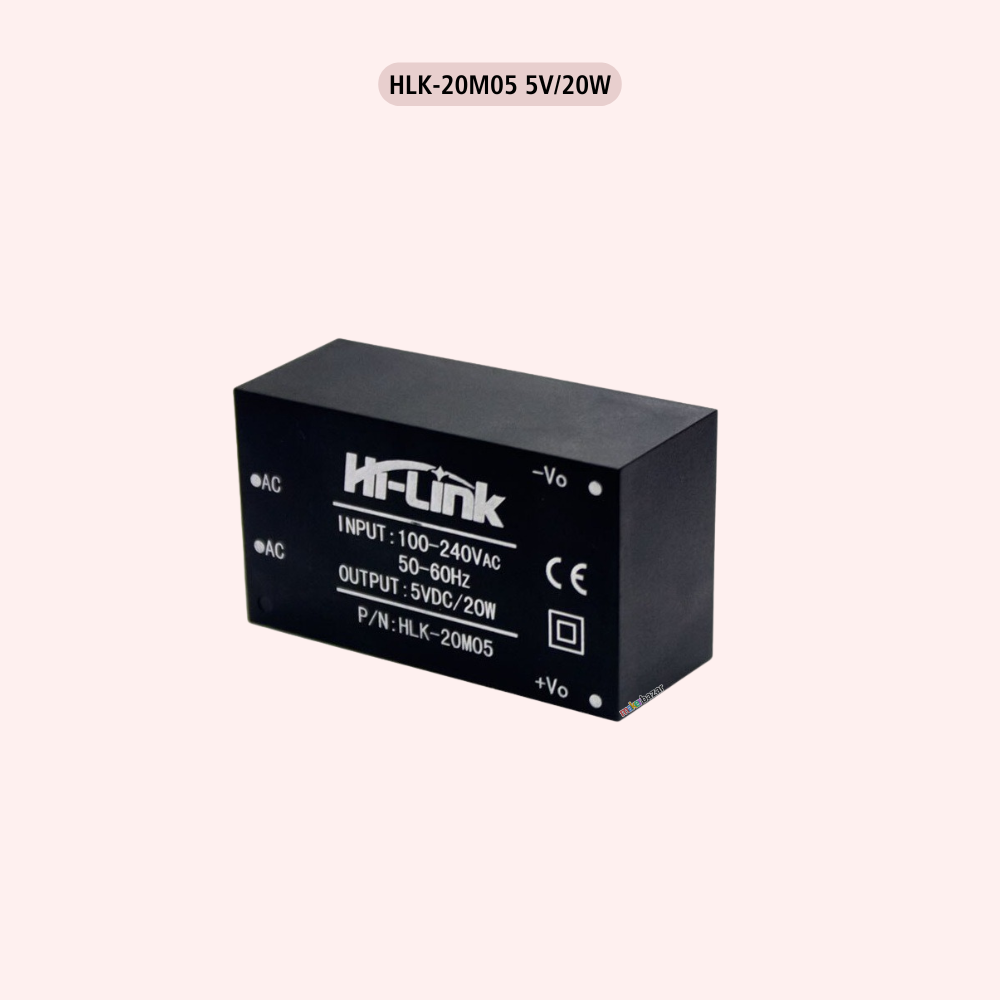

4. Hi Link HLK-20M05 – 5V / 20W

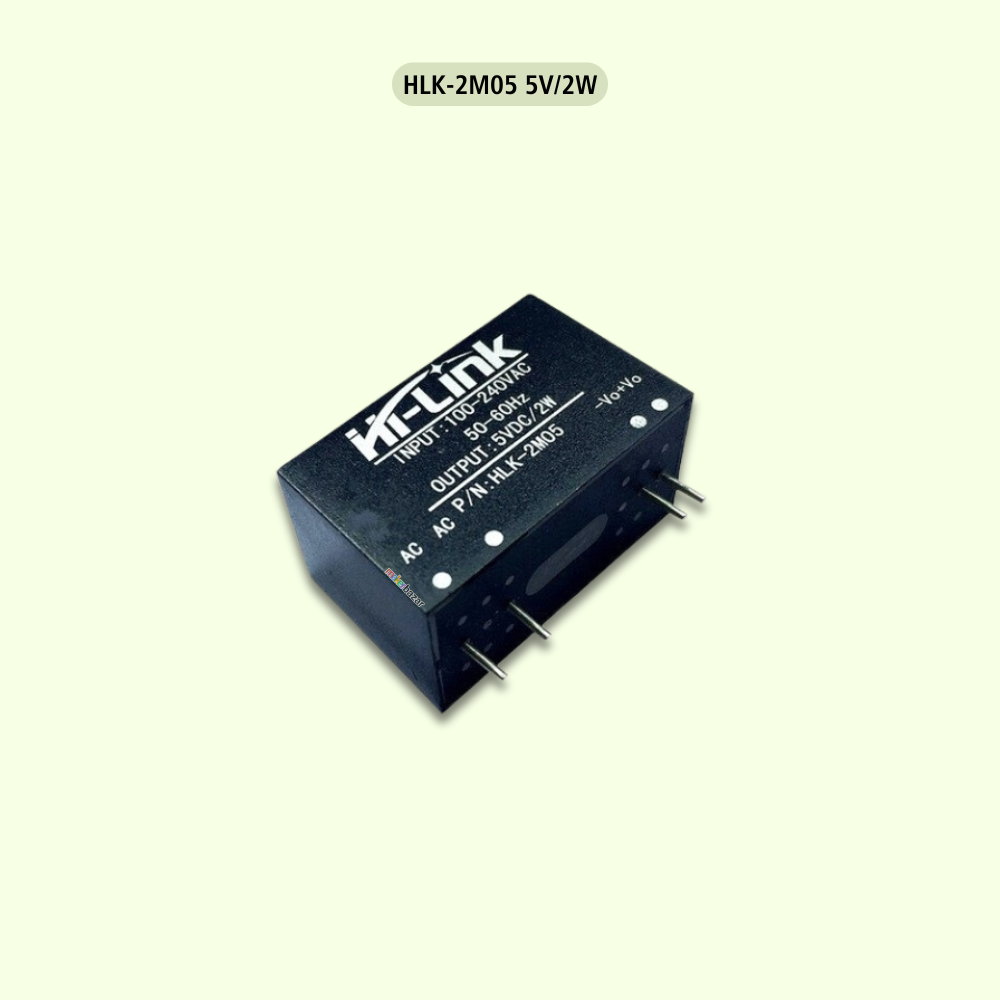

5. Hi Link HLK-2M05 – 5V / 2W

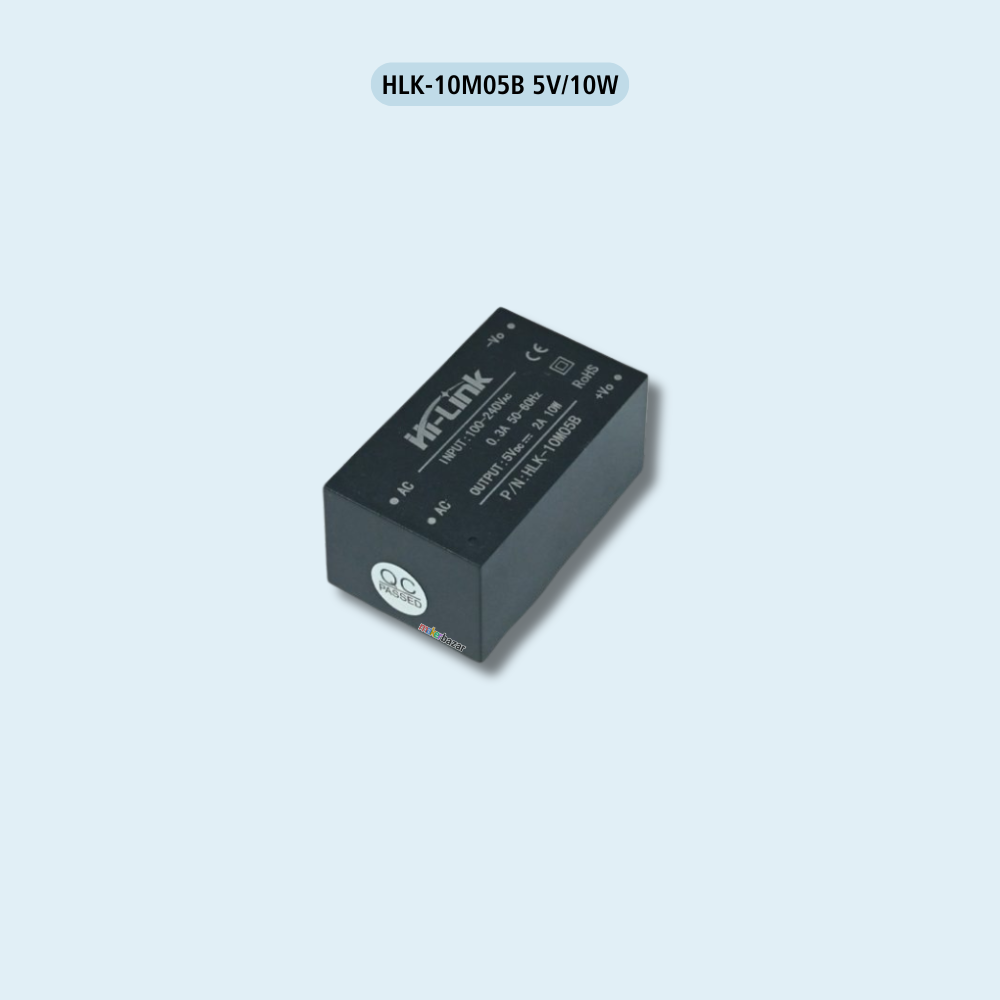

6. Hi Link HLK-10M05B – 5V / 10W

---

Specifications:

Specification	HLK-10M05 (10W / 5V)	HLK-PM01 (3W / 5V)	HLK-5M05 (5W / 5V)	HLK-20M05 (20W / 5V)	HLK-2M05 (2W / 5V)	HLK-10M05B (10W / 5V)
Item Type	Power Module	Power Module	Power Module	Power Module	Power Module	Power Module
Model No.	HLK-10M05	HLK-PM01	HLK-5M05	HLK-20M05	HLK-2M05	HLK-10M05B
Power Rating	10W	3W	5W	20W	2W	10W
Output Voltage	5V	5V	5V	5V	5V	5V
Output Current	2000mA	—	—	4000mA	—	2000mA
Output Power	10W	3W	5W	20W	2W	10W
Output Type	Single	Single	Single	Single	Single	Single
Input Voltage	100–240V	90–264V	90–264V	100–240V	90–245V	85-265V AC
Input Current	—	<0.2A	<0.2A	—	≤0.2A	—
Operating Temperature	-25°C to +60°C	-20°C to +60°C	-20°C to +60°C	-25°C to +60°C	—	-25°C to +60°C
Operating Humidity	5–95%	5–95%	5–95%	5–95%	5–95%	5–95%
Dimensions (mm)	46.9 × 27.8 × 21.8	33 × 19 × 15	38 × 23 × 18	57 × 33 × 22.5	30 × 17 × 19	47.5 × 28.5 × 22
Weight (g)	45g	22g	22g	81g	17g	39g
Waterproof	No	No	No	No	No	IP65 Waterproof

________________________________________________________________________________________________

General Applications:

• Smart Home Controllers

• IoT Nodes & Gateways

• ESP8266 / ESP32 / Arduino Projects

• Industrial Automation

• Communication Devices

• Instrumentation & Sensors

• WiFi & Bluetooth Devices

• Home Appliance Control Systems

---

Package Includes:

• 1 × Hi-Link 5v AC to DC Power Supply Module (based on selected variant)
