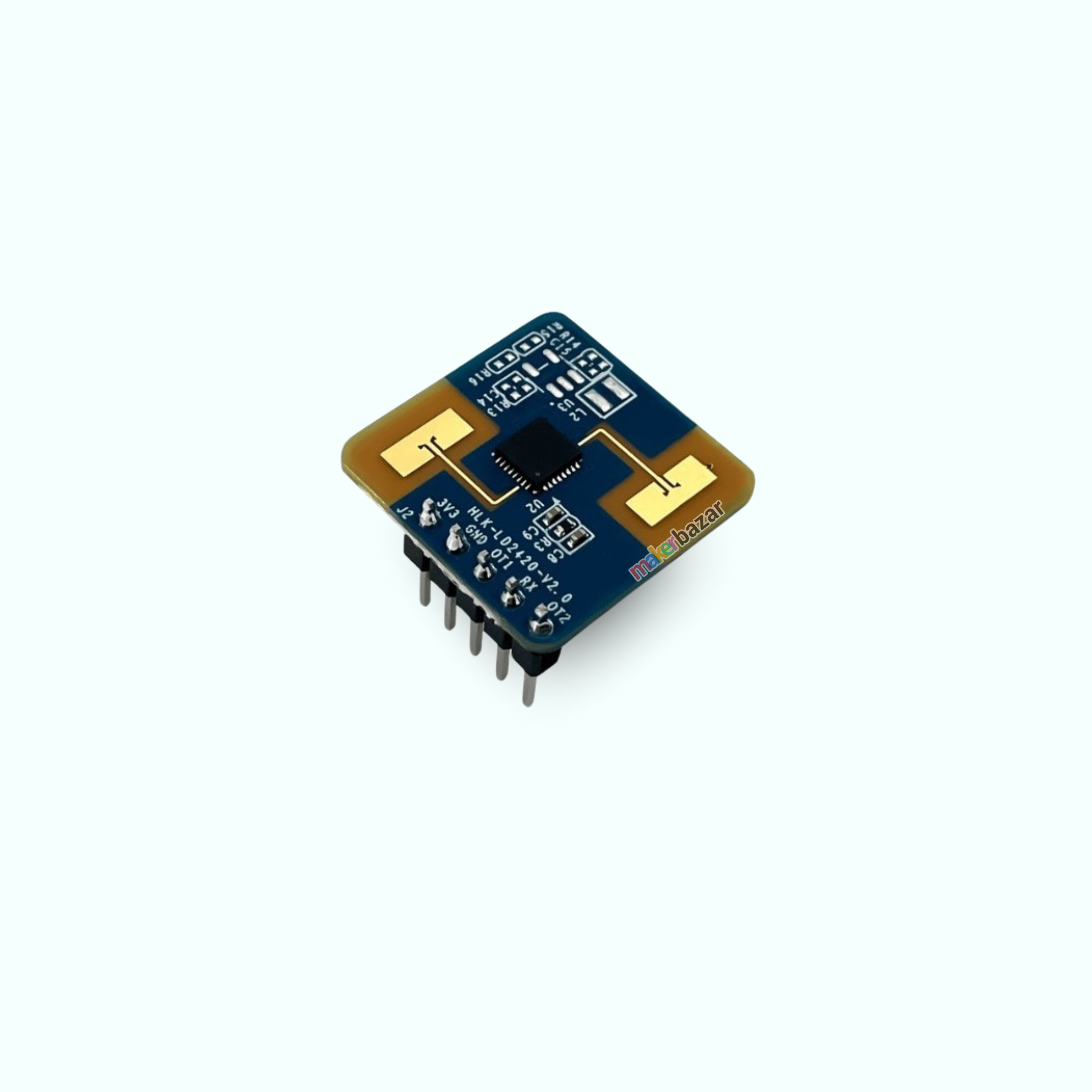

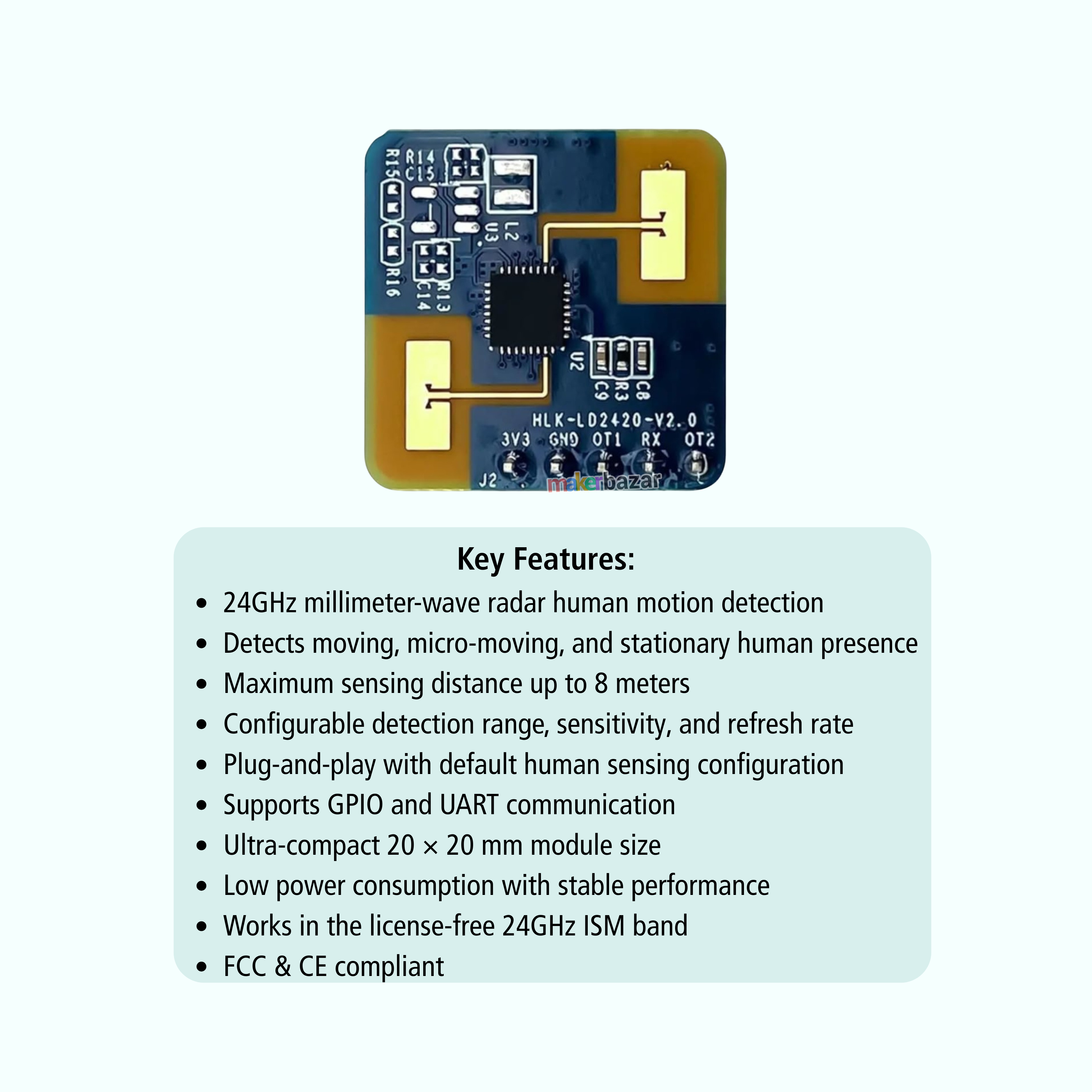

Hi-Link HLK-LD2420 24GHz Human Presence & Motion Radar Sensor
The Hi-Link HLK-LD2420 is a compact, high-performance 24GHz millimeter-wave radar sensor module designed for accurate human presence detection. Using advanced radar distance measurement and proprietary signal processing algorithms, this module can reliably detect motion, micro-movement, and stationary human bodies in indoor environments.
With a sensing range of up to 8 meters, configurable detection zones, and real-time refresh capability, the HLK-LD2420 is ideal for smart automation, lighting control, security systems, and IoT applications. Supporting both GPIO and UART interfaces, the module is truly plug-and-play and easy to integrate into a wide range of smart products.
Key Features:
-
24GHz millimeter-wave radar human motion detection
-
Detects moving, micro-moving, and stationary human presence
-
Maximum sensing distance up to 8 meters
-
Configurable detection range, sensitivity, and refresh rate
-
Plug-and-play with default human sensing configuration
-
Supports GPIO and UART communication
-
Ultra-compact 20 × 20 mm module size
-
Low power consumption with stable performance
-
Works in the license-free 24GHz ISM band
-
FCC & CE compliant

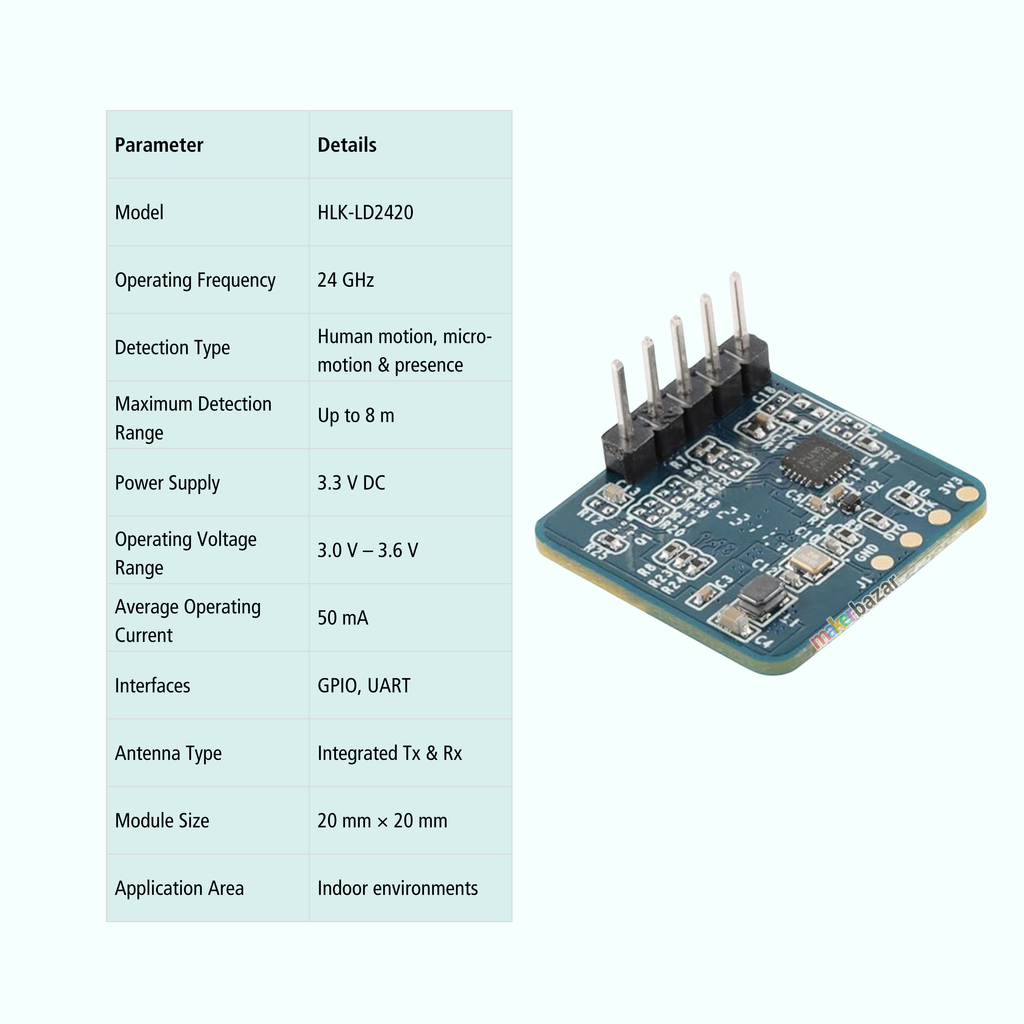

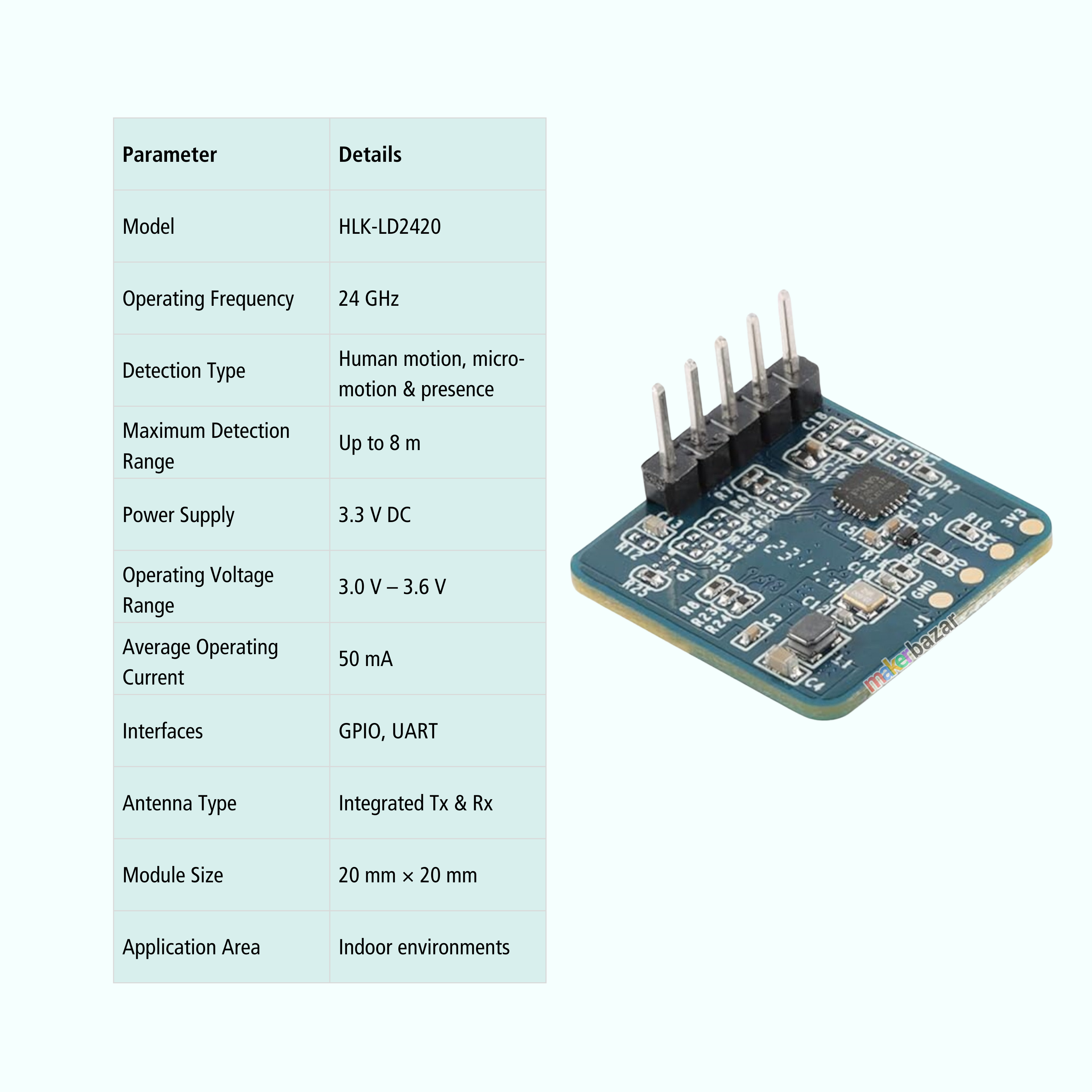

Technical Specifications
| Parameter | Details |
|---|---|
| Model | HLK-LD2420 |
| Operating Frequency | 24 GHz |
| Detection Type | Human motion, micro-motion & presence |
| Maximum Detection Range | Up to 8 m |
| Power Supply | 3.3 V DC |
| Operating Voltage Range | 3.0 V – 3.6 V |
| Average Operating Current | 50 mA |

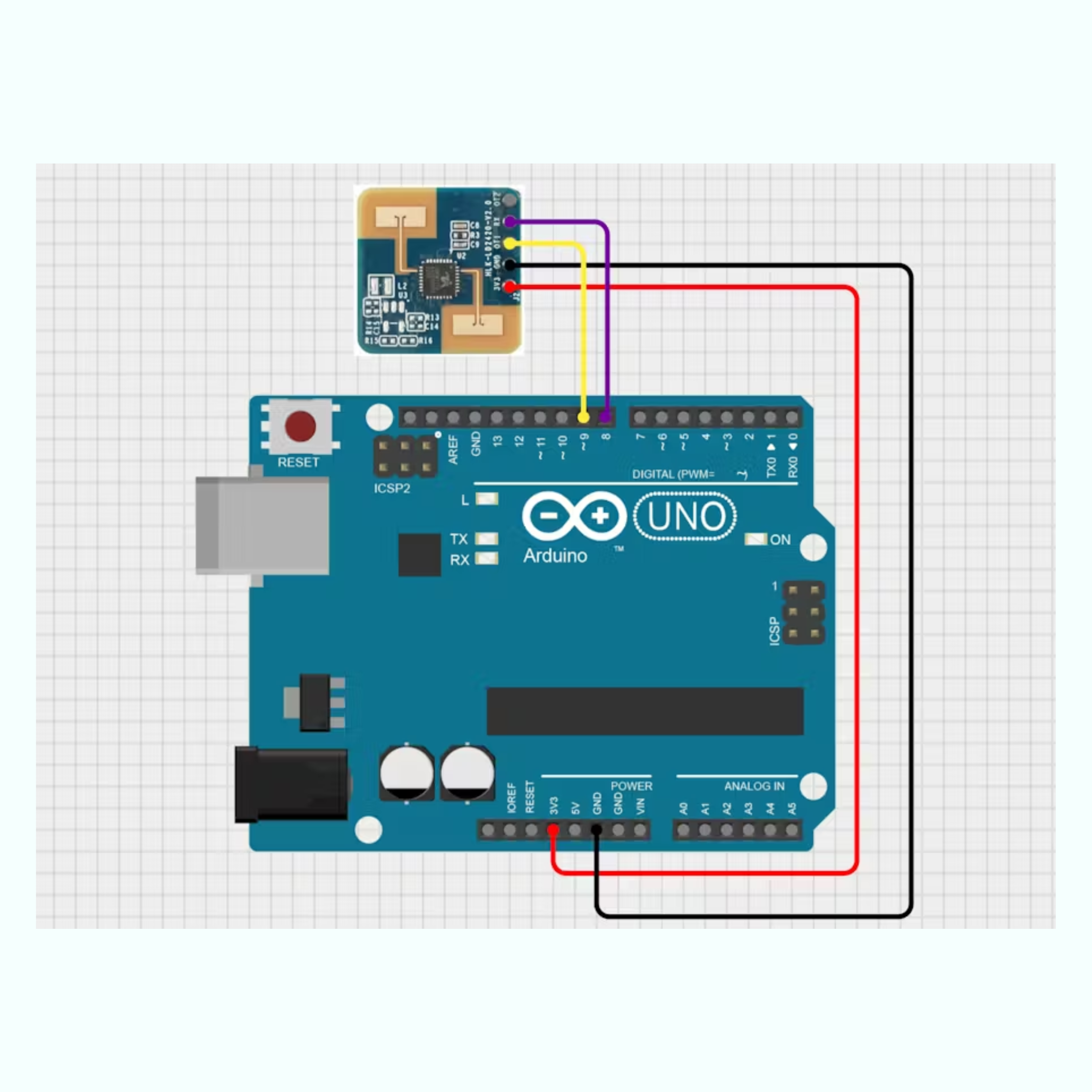

| Interfaces | GPIO, UART |
| Antenna Type | Integrated Tx & Rx |

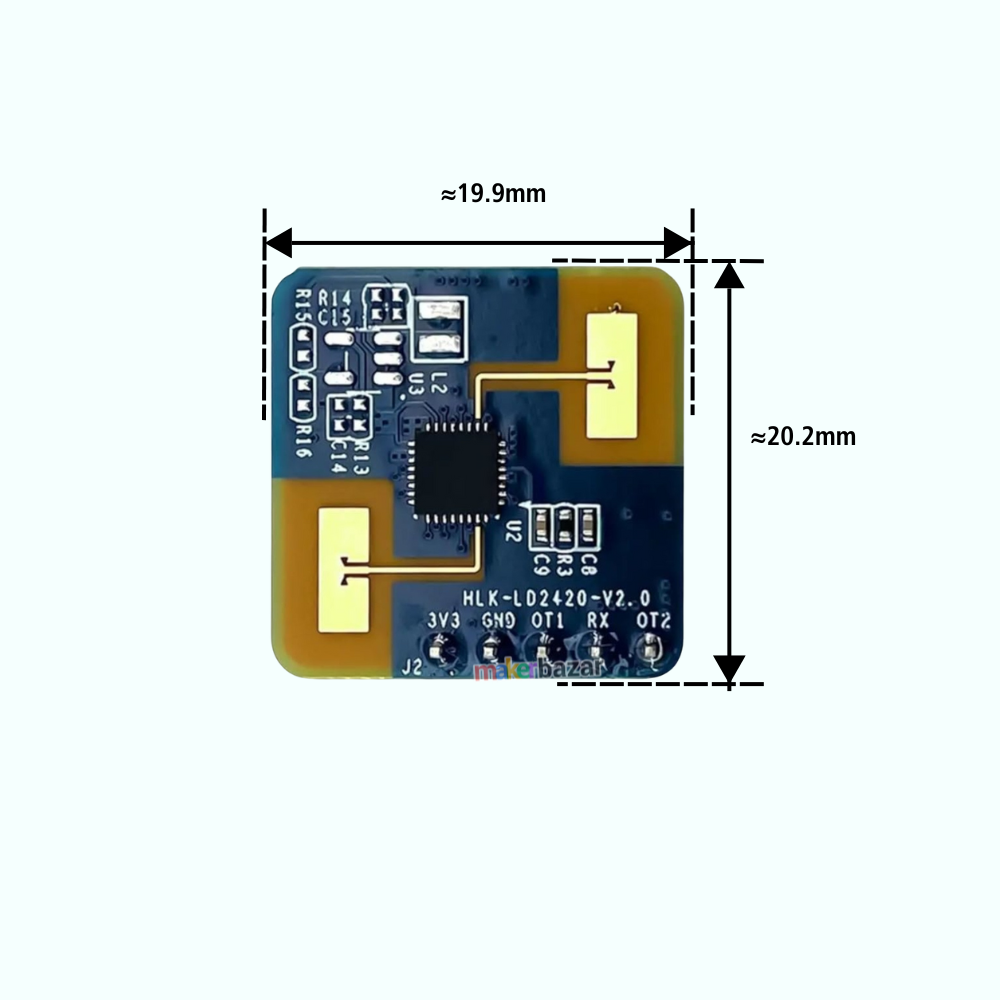

| Module Size | 20 mm × 20 mm |
| Application Area | Indoor environments |

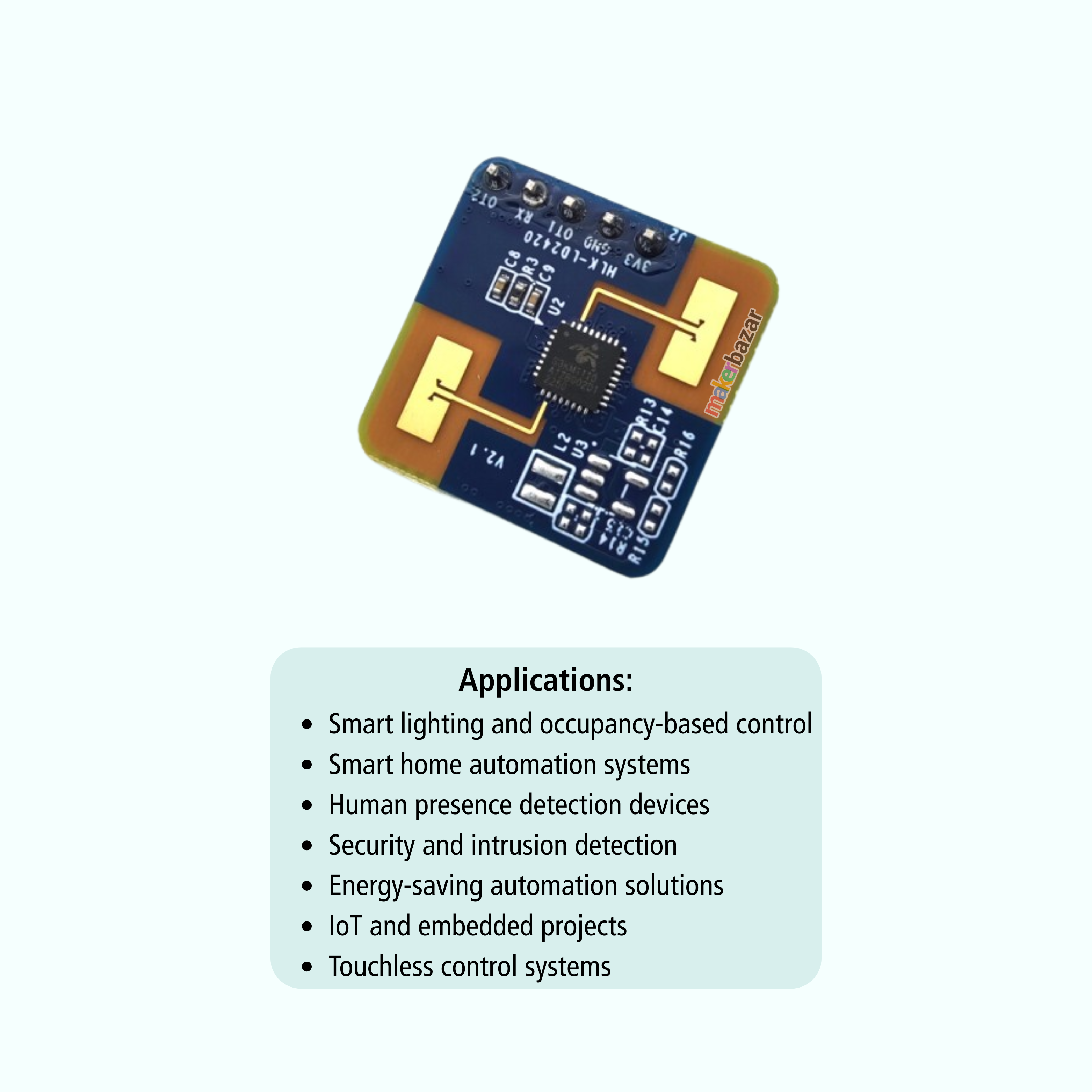

Applications
-
Smart lighting and occupancy-based control
-
Smart home automation systems
-
Human presence detection devices
-
Security and intrusion detection
-
Energy-saving automation solutions
-
IoT and embedded projects
-
Touchless control systems
Precautions
-
Designed for indoor use only
-
Avoid placing near strong metal obstructions
-
Use regulated 3.3V power supply only
-
Ensure proper configuration before deployment
-
Keep away from high-frequency RF interference sources
