Description
HTC DC-3002 30V 2A Precision Linear DC Power Supply
The HTC DC-3002 Linear Regulated DC Power Supply is a compact, high-precision bench power supply designed for laboratories, workshops, educational institutes, and electronics enthusiasts. Delivering adjustable output from 0–30V DC with up to 2A current, it provides clean, stable, and low-noise power for testing, prototyping, and repair applications.
With excellent line and load regulation, ultra-low ripple, and built-in protection features, the DC-3002 ensures safe and accurate performance for sensitive electronic circuits.

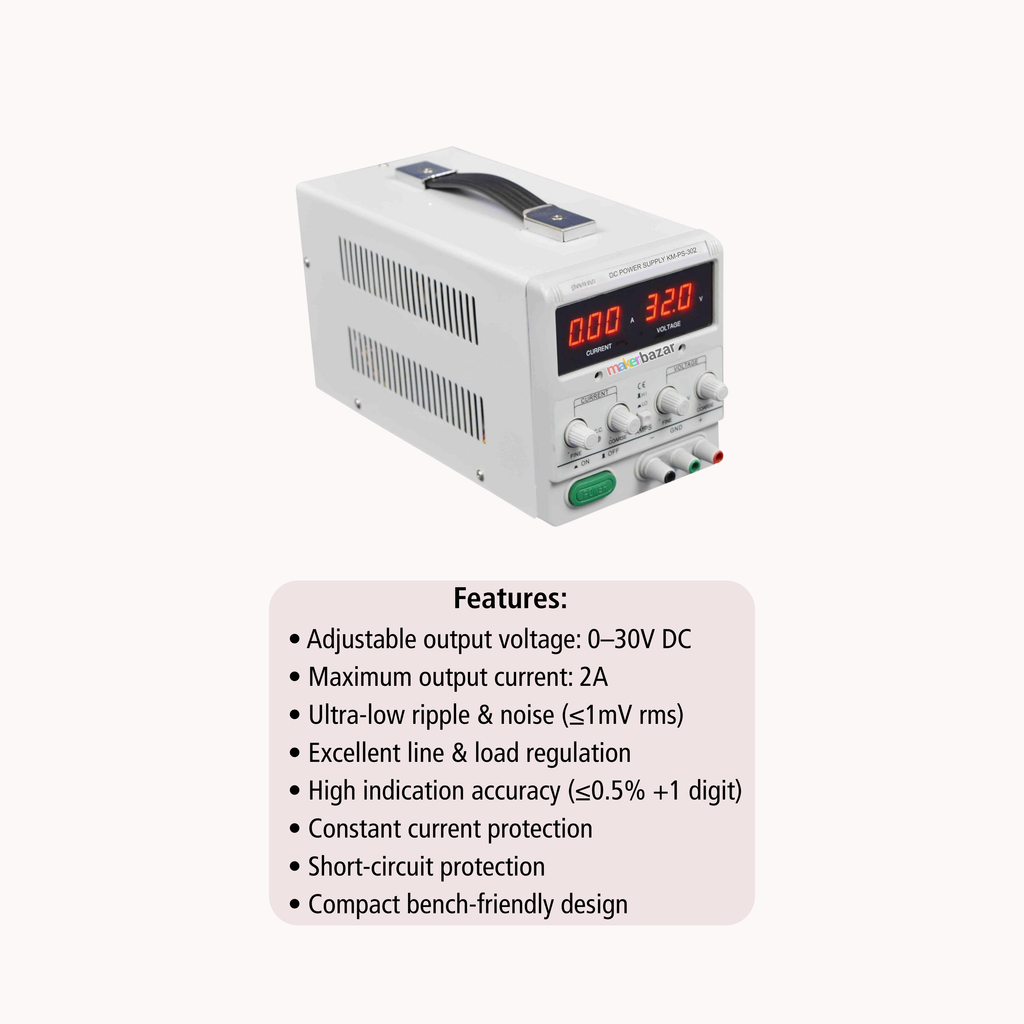

Key Features
• Adjustable output voltage: 0–30V DC
• Maximum output current: 2A
• Ultra-low ripple & noise (≤1mV rms)
• Excellent line & load regulation
• High indication accuracy (≤0.5% +1 digit)
• Constant current protection
• Short-circuit protection
• Compact bench-friendly design
• Stable and clean linear output
• Ready-to-use with included accessories

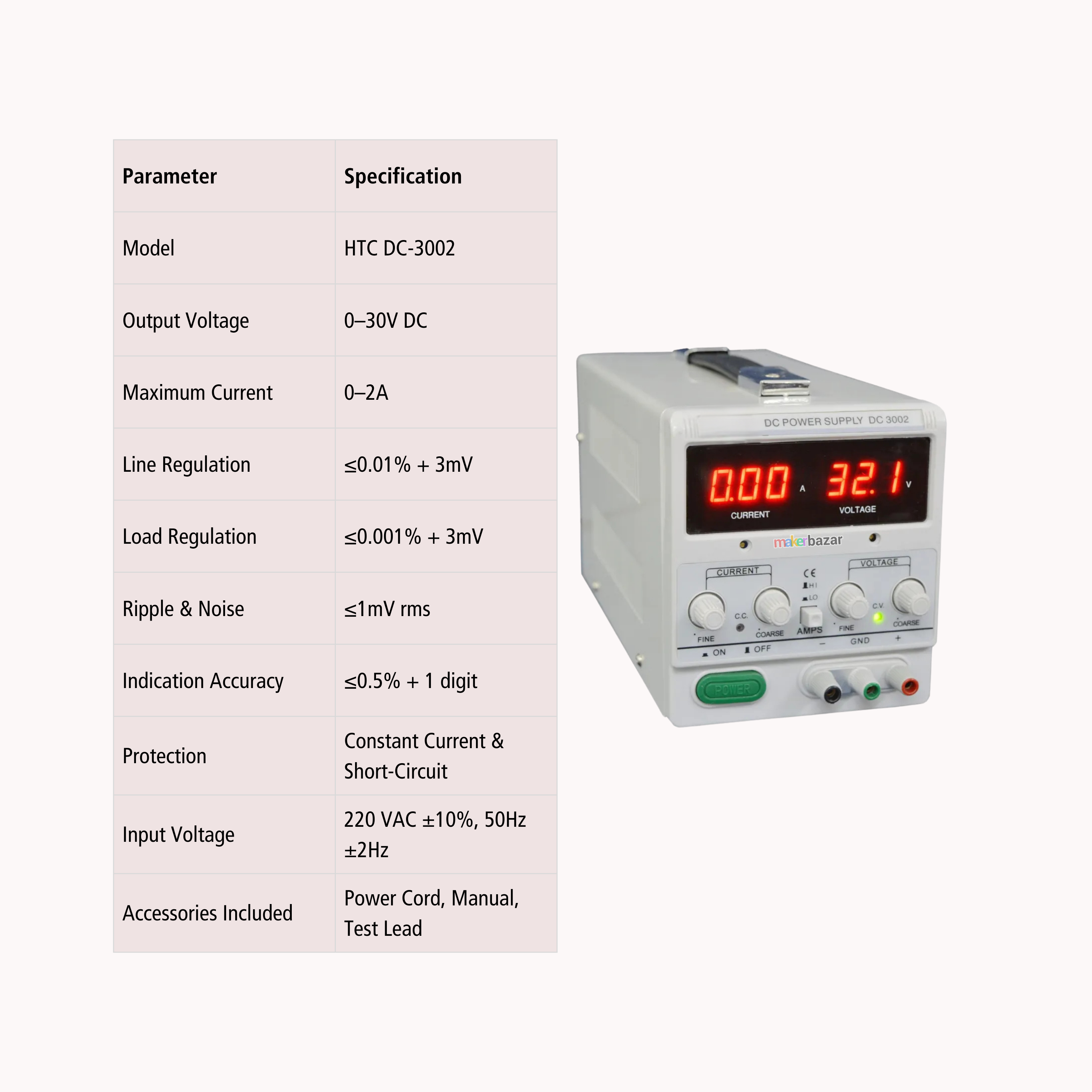

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HTC DC-3002 |
| Output Voltage | 0–30V DC |
| Maximum Current | 0–2A |
| Line Regulation | ≤0.01% + 3mV |
| Load Regulation | ≤0.001% + 3mV |
| Ripple & Noise | ≤1mV rms |
| Indication Accuracy | ≤0.5% + 1 digit |
| Protection | Constant Current & Short-Circuit |
| Input Voltage | 220 VAC ±10%, 50Hz ±2Hz |
| Accessories Included | Power Cord, Manual, Test Lead |

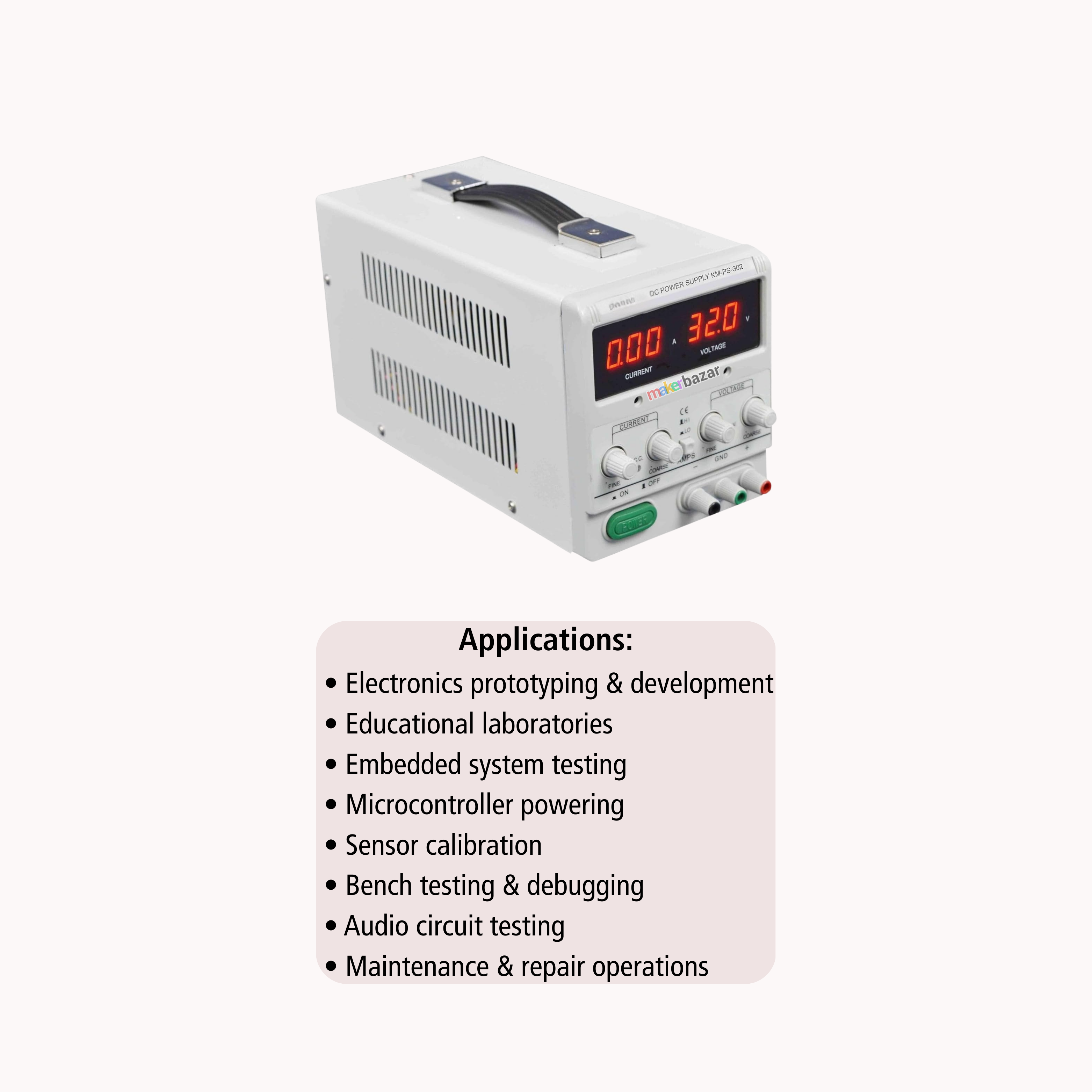

Applications
• Electronics prototyping & development
• Educational laboratories
• Embedded system testing
• Microcontroller powering
• Sensor calibration
• Bench testing & debugging
• Audio circuit testing
• Maintenance & repair operations
• Field service applications
• DIY electronics projects
Precautions
• Use only with 220V AC input supply
• Do not exceed 2A output current rating
• Ensure proper ventilation during operation
• Avoid short-circuiting output terminals
• Turn off before connecting or disconnecting load
• Keep away from moisture and dust
