Description
5-LED USB Mist Maker Humidifier Circuit Board – Ultrasonic Atomization Module

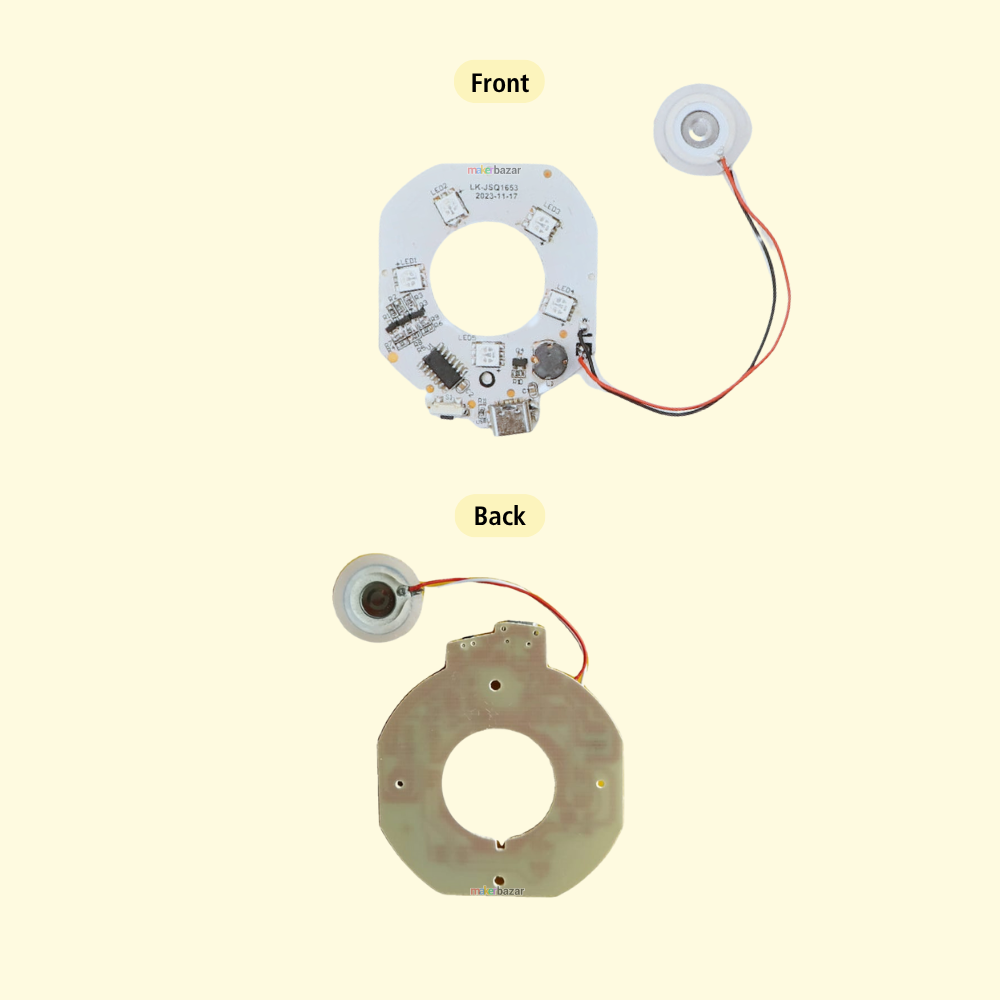

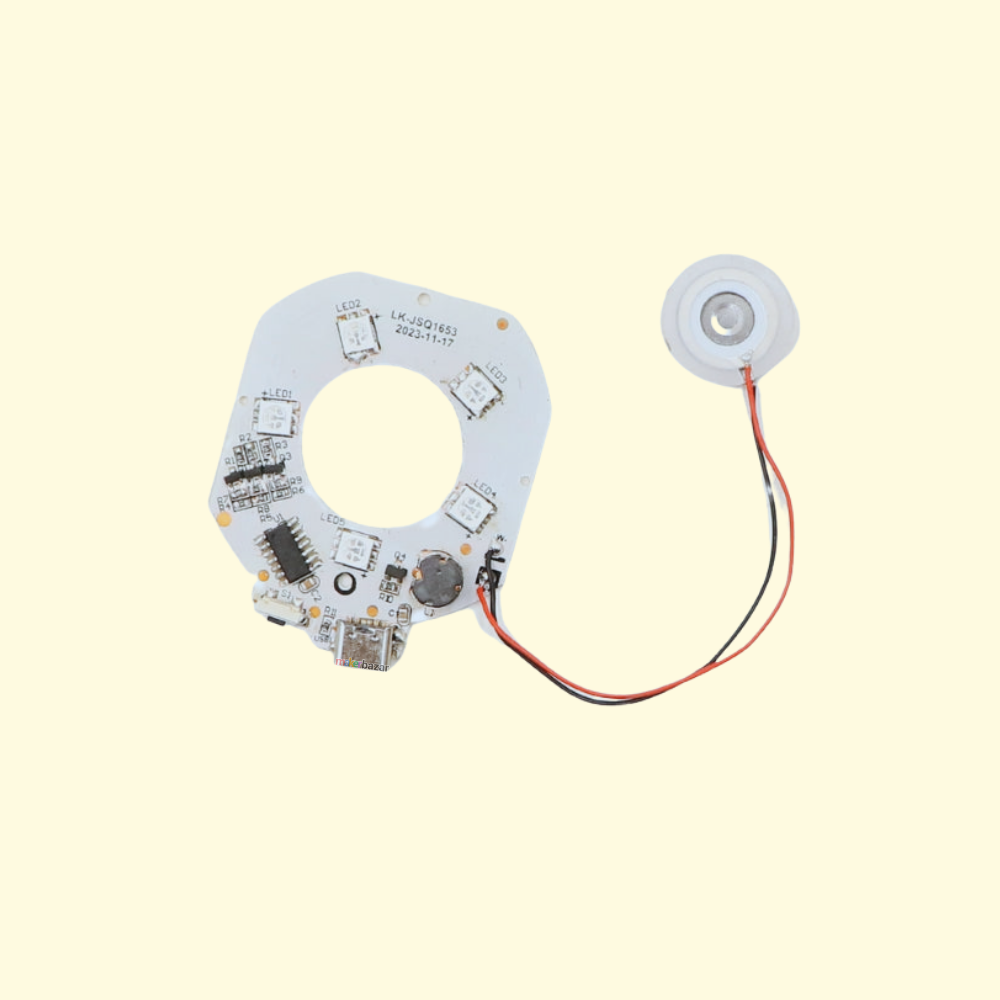

This Ultrasonic Mist Maker Module is a compact and efficient solution for generating cool mist in humidifiers and aroma diffusers. The module includes an ultrasonic ceramic transducer disc connected to a PCB featuring a USB Type-C input, LED lighting, and integrated driver circuitry.
It atomizes water into fine mist using ultrasonic vibration, making it perfect for use in small humidifiers, aroma diffusers, or custom DIY projects. The 5 integrated LED lights add a glowing visual effect when the mist is generated.

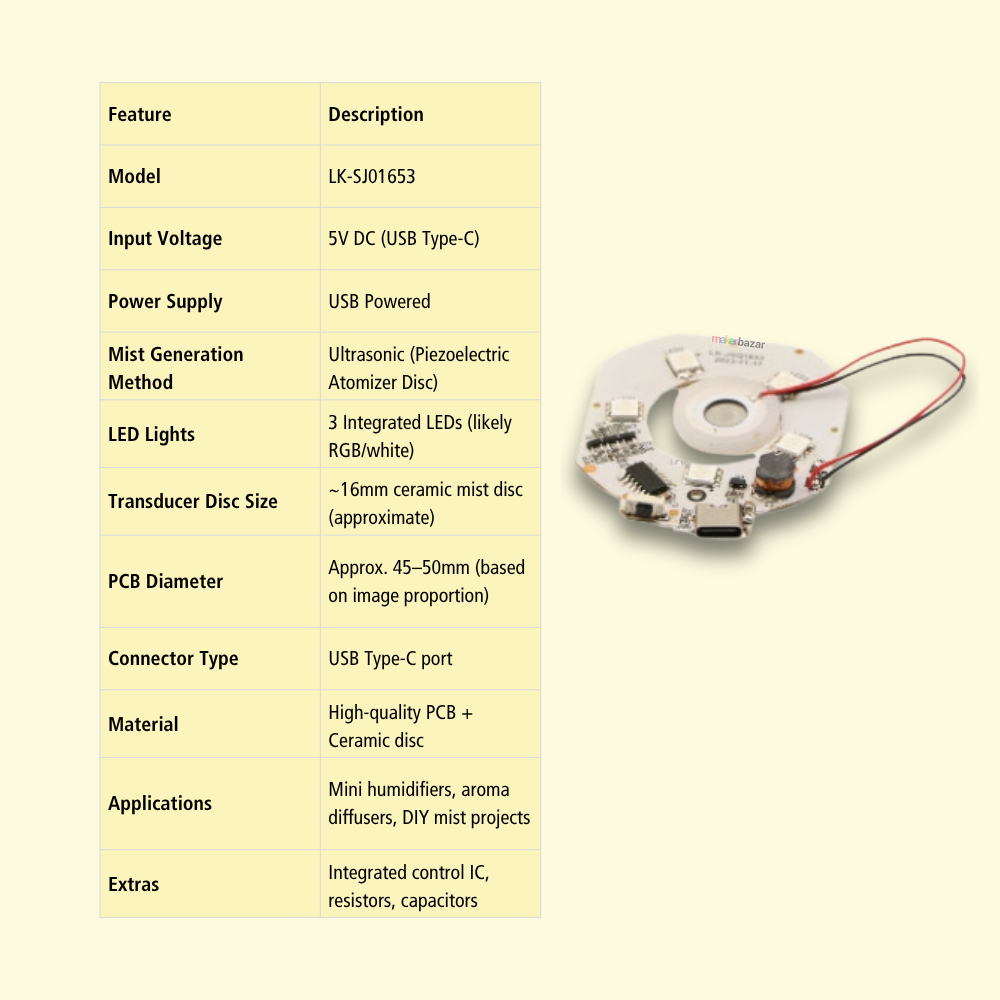

Specifications:
| Feature | Description |
|---|---|
| Model | LK-SJ01653 |
| Input Voltage | 5V DC (USB Type-C) |
| Power Supply | USB Powered |
| Mist Generation Method | Ultrasonic (Piezoelectric Atomizer Disc) |
| LED Lights | 3 Integrated LEDs (likely RGB/white) |
| Transducer Disc Size | ~16mm ceramic mist disc (approximate) |

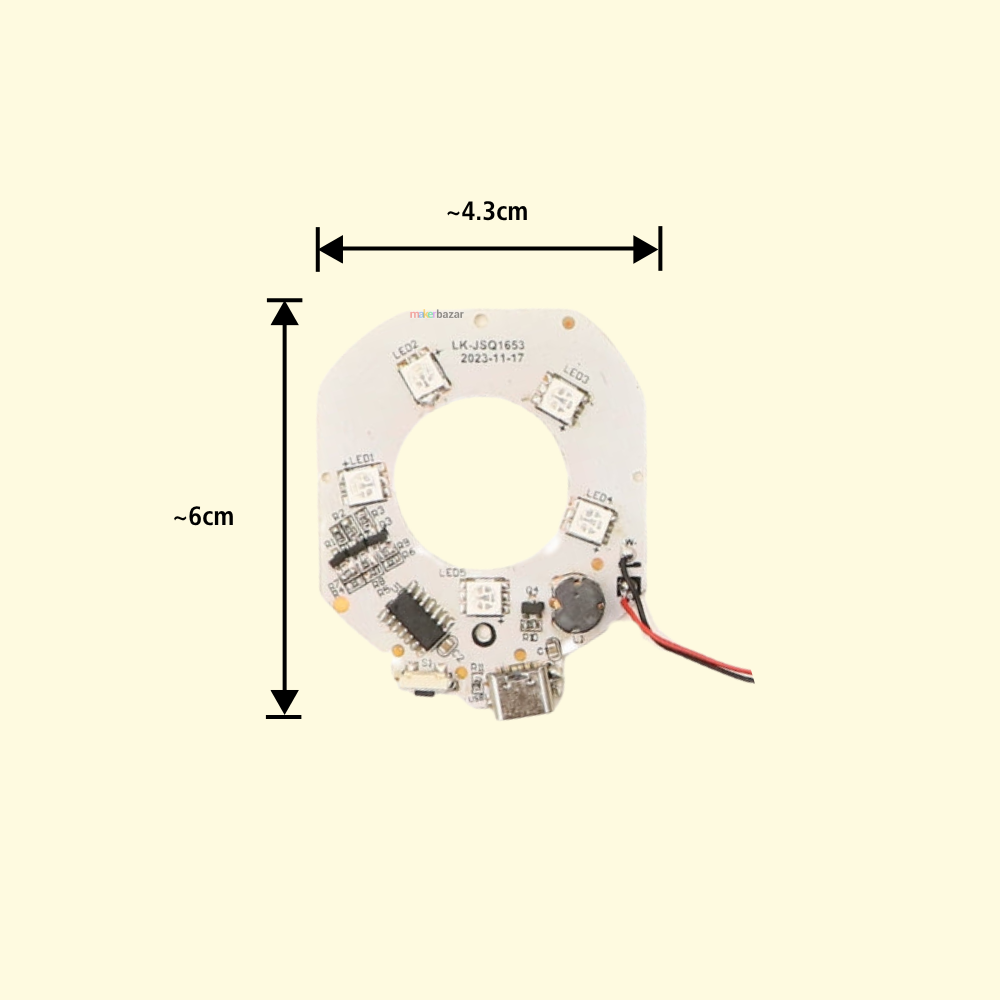

| PCB Diameter | Approx. 45–50mm (based on image proportion) |
| Connector Type | USB Type-C port |
| Material | High-quality PCB + Ceramic disc |
| Applications | Mini humidifiers, aroma diffusers, DIY mist projects |
| Extras | Integrated control IC, resistors, capacitors |

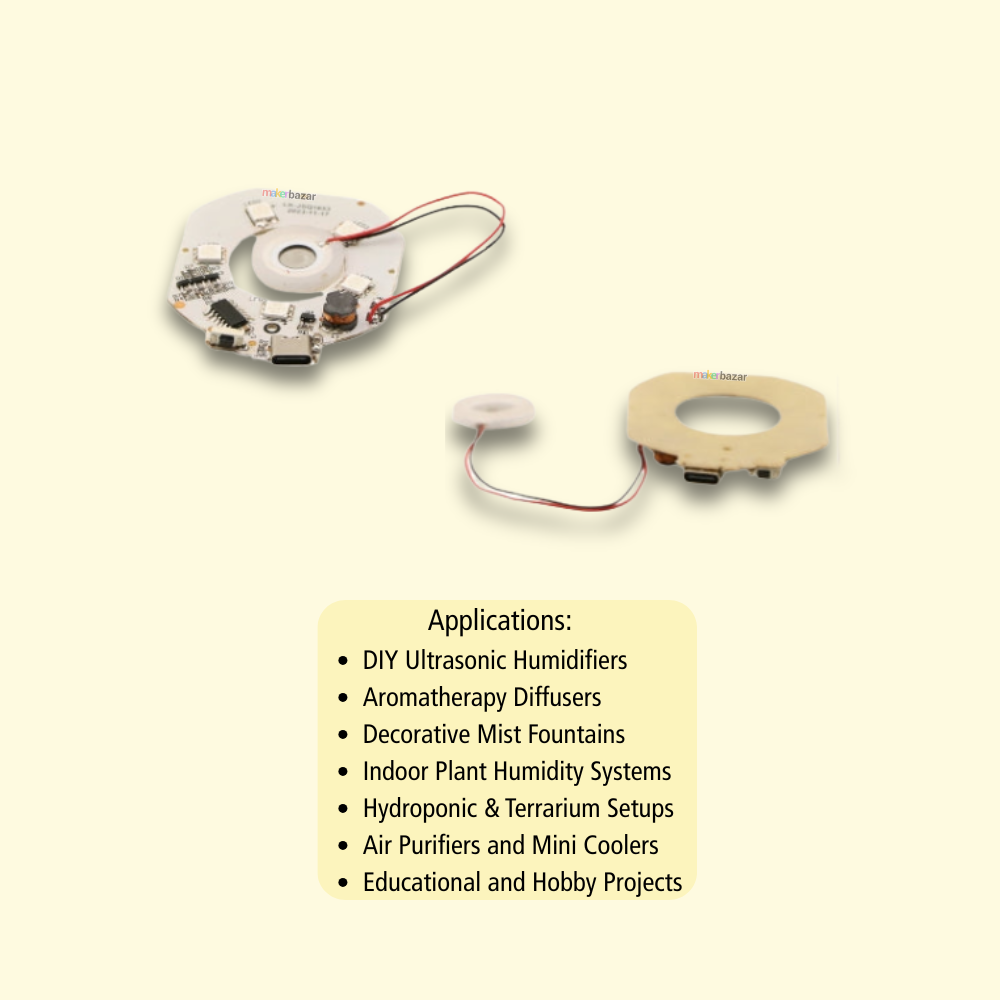

Applications
-
DIY Ultrasonic Humidifiers
-
Aromatherapy Diffusers
-
Decorative Mist Fountains
-
Indoor Plant Humidity Systems
-
Hydroponic & Terrarium Setups
-
Air Purifiers and Mini Coolers
-
Educational and Hobby Projects
