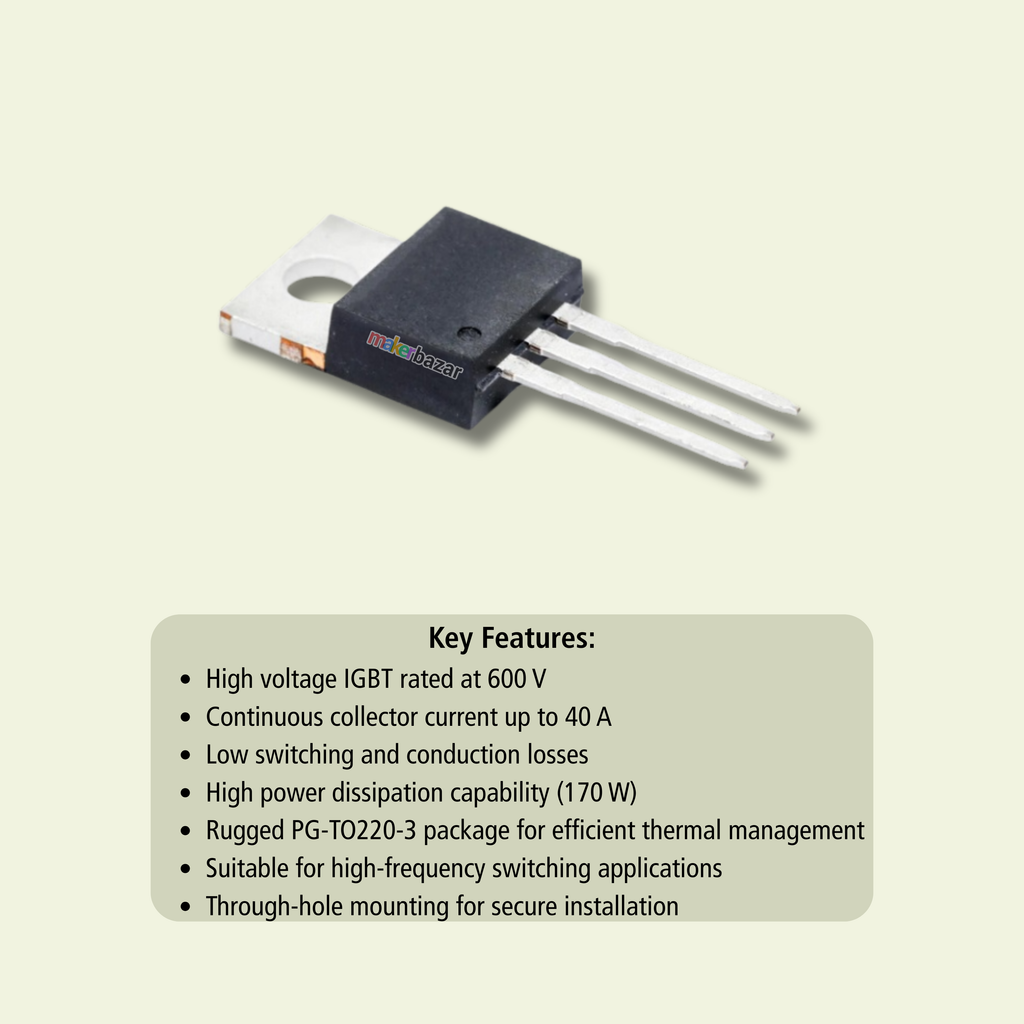

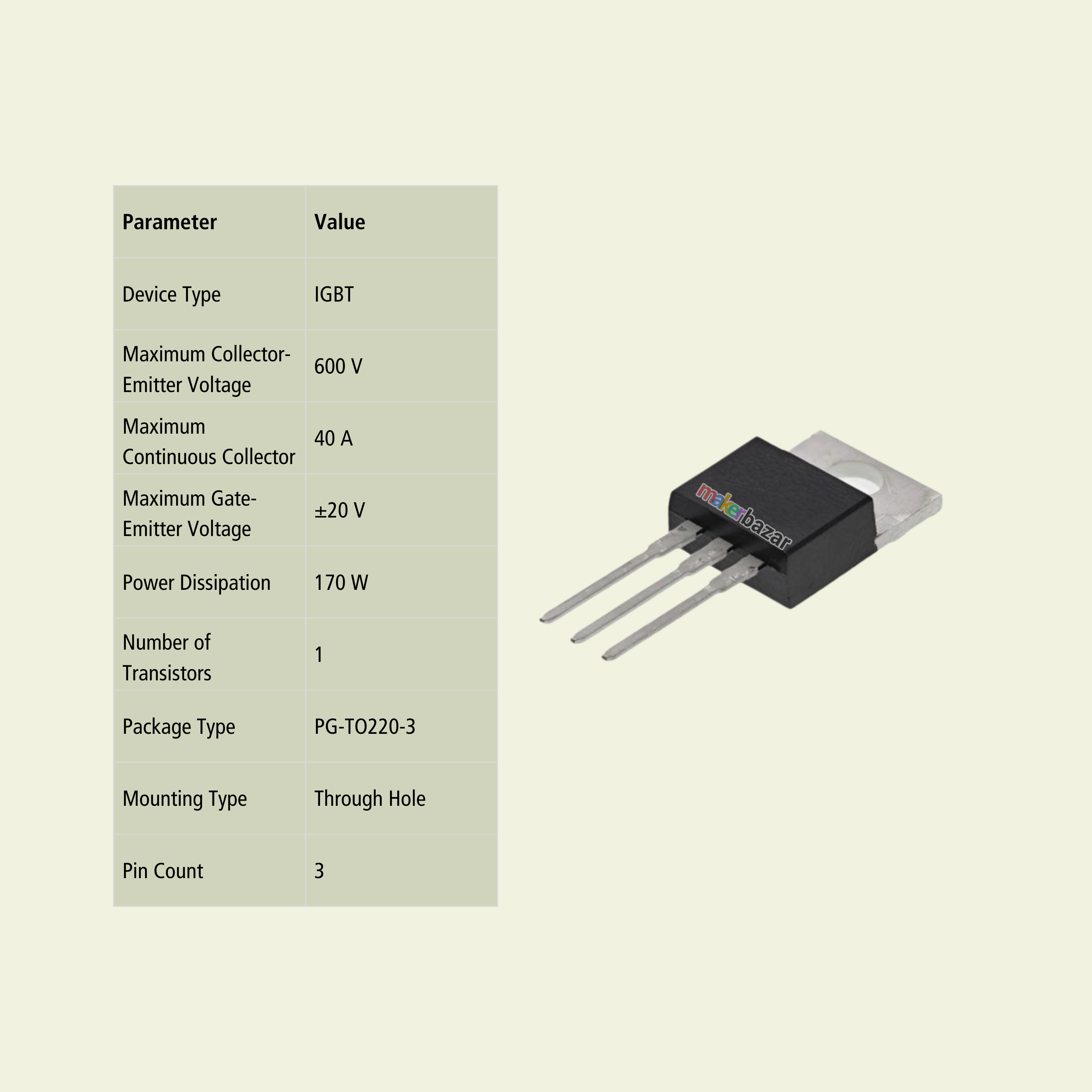

Infineon TRENCHSTOP™ IGBT – High-Performance Through-Hole Power Transistor

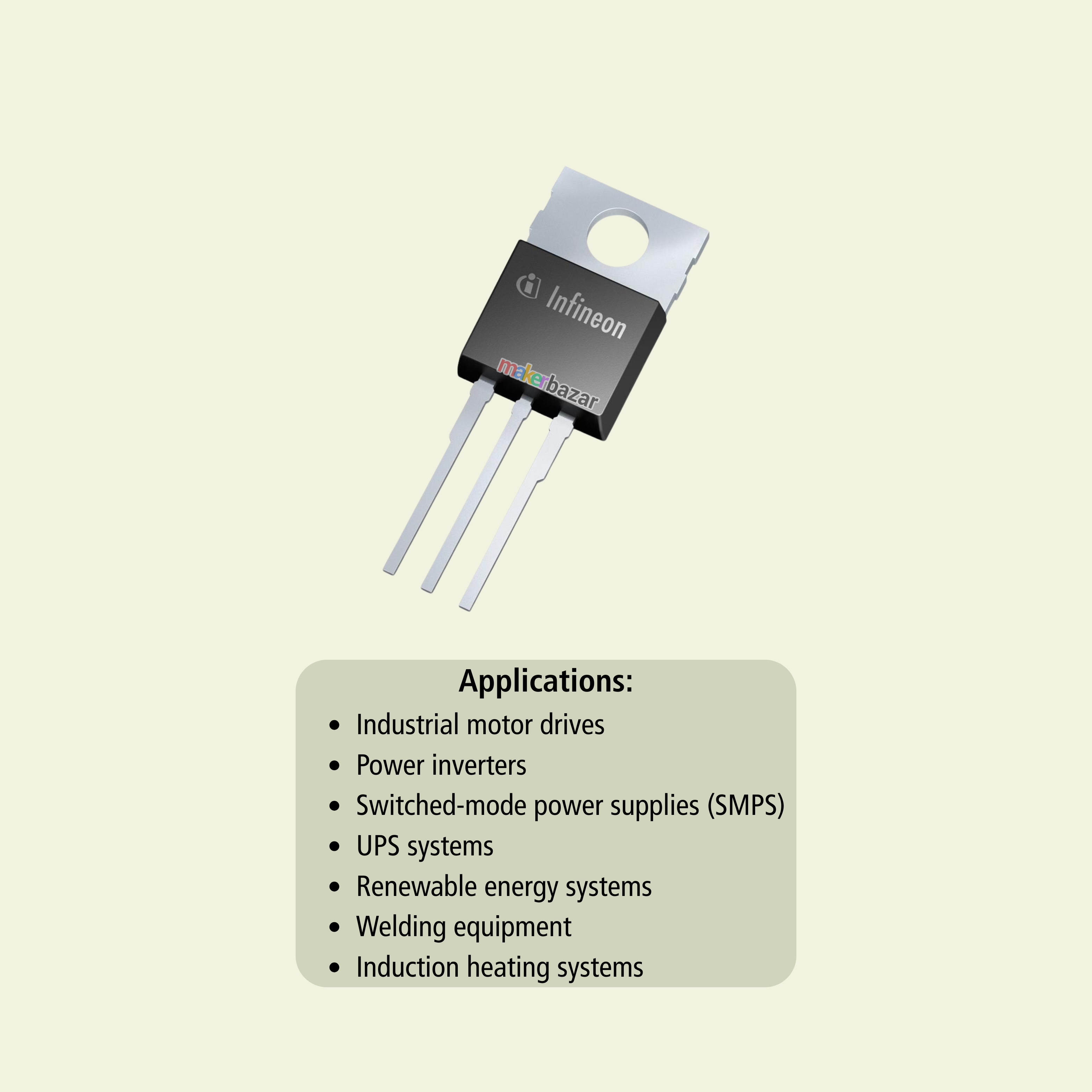

The Infineon TRENCHSTOP™ Single IGBT Transistor series are high-efficiency through-hole insulated gate bipolar transistors (IGBTs) designed for robust power switching, motor drives, power supplies, welding equipment, UPS systems, and industrial converters. Utilizing advanced TRENCHSTOP™ technology, these IGBTs deliver low saturation voltage, reduced switching losses, excellent ruggedness, and high temperature tolerance—making them ideal for medium- to high-power electronic applications.

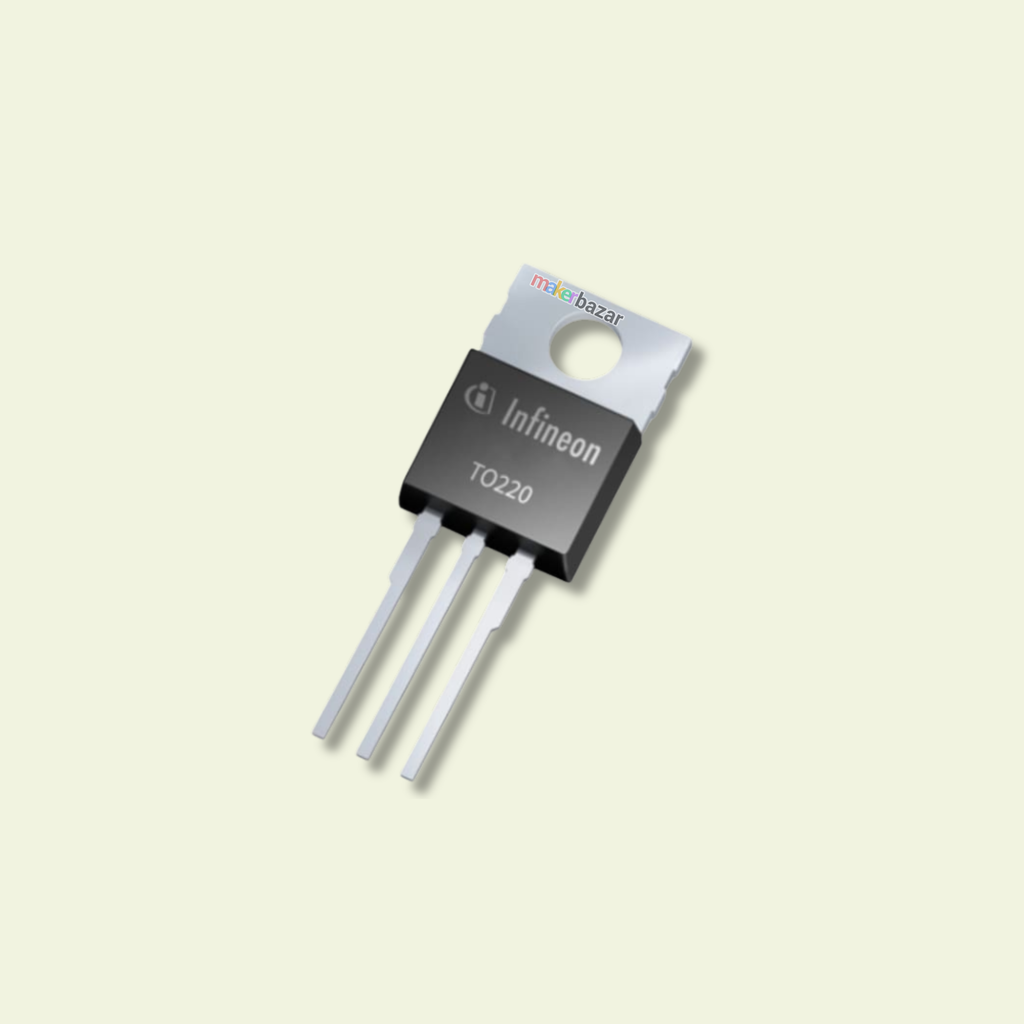

Built for reliability and performance, Infineon’s TRENCHSTOP™ family covers a broad range of voltage and current ratings in through-hole packages such as TO-220 and TO-247, allowing designers flexibility across industrial designs and prototyping projects.
| Variant / Part Number | Vce Max | Ic (Max) | Package | Mounting | Typical Use |
|---|---|---|---|---|---|
| Infineon IGP15N60T IGBT – 600V 15A | 600 V | 15 A | TO-220 | Through-Hole | Medium power SMPS & drives |
| Infineon IGBT 100A 600V TO‑247 | 600 V | 100 A | TO-247 | Through-Hole | High current power applications |
| Infineon IGBT 50A 1200V IGW25N120H3F KSA1 | 1200 V | 50 A | TO-247 | Through-Hole | High voltage power conversion |
| Infineon IGBT 80A 650V IKW50N65ES5X KSA1 | 650 V | 80 A | TO-247 | Through-Hole | Motor drives & inverter stages |
| Infineon IGBT 80A 1200V FKSA1 | 1200 V | 80 A | TO-247 | Through-Hole | Industrial and HV applications |
| FGA25N120ANTD IGBT – 1200V 25A | 1200 V | 25 A | TO-220 | Through-Hole | General power switching |
