IRF Series N-Channel Power MOSFET Transistor TO-220
IRF Series N-Channel Power MOSFET Transistor TO-220

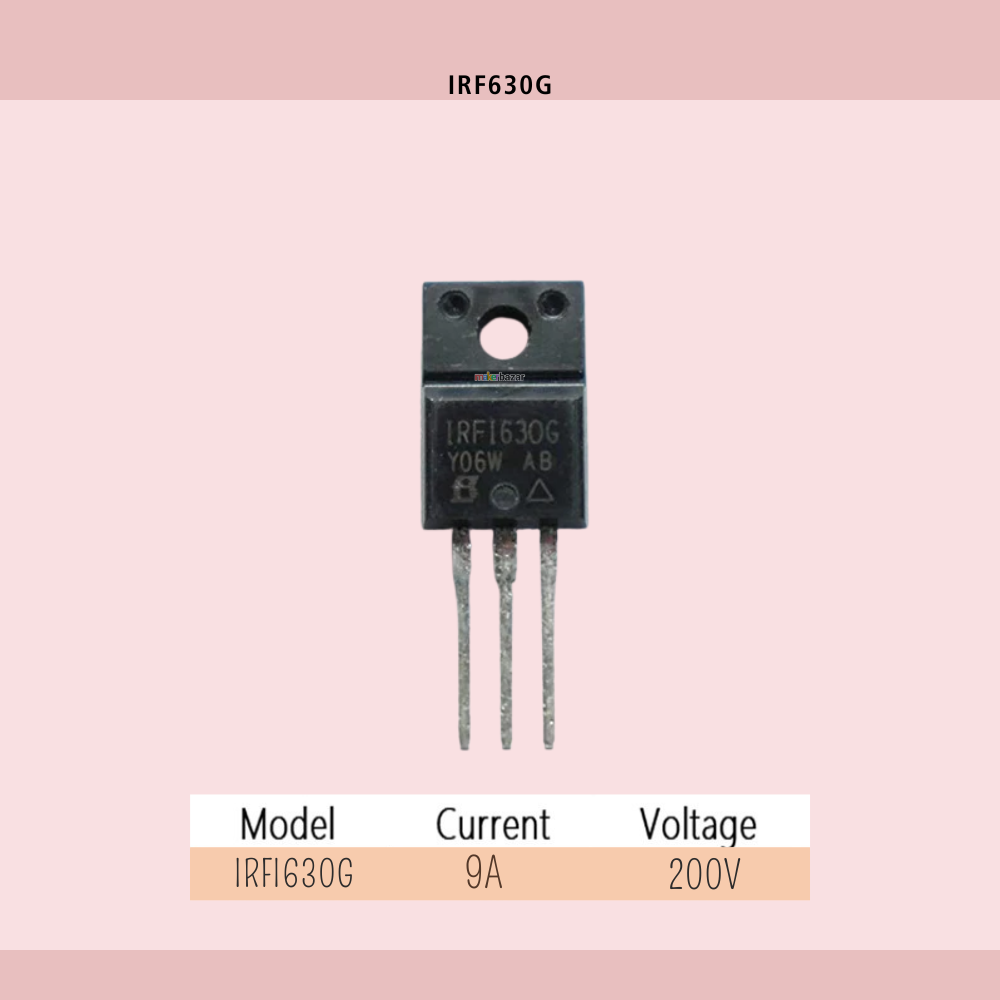

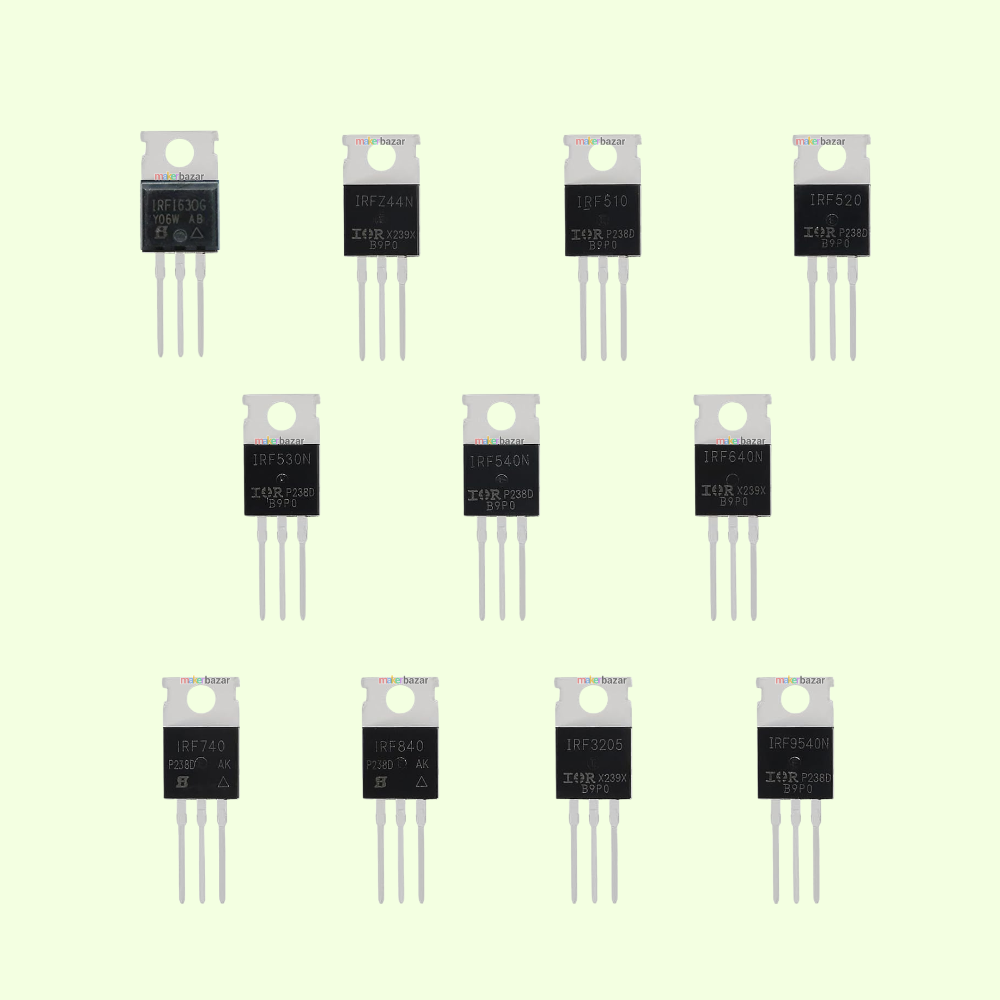

Makerbazar-Transistor with model number IRF630 on a light

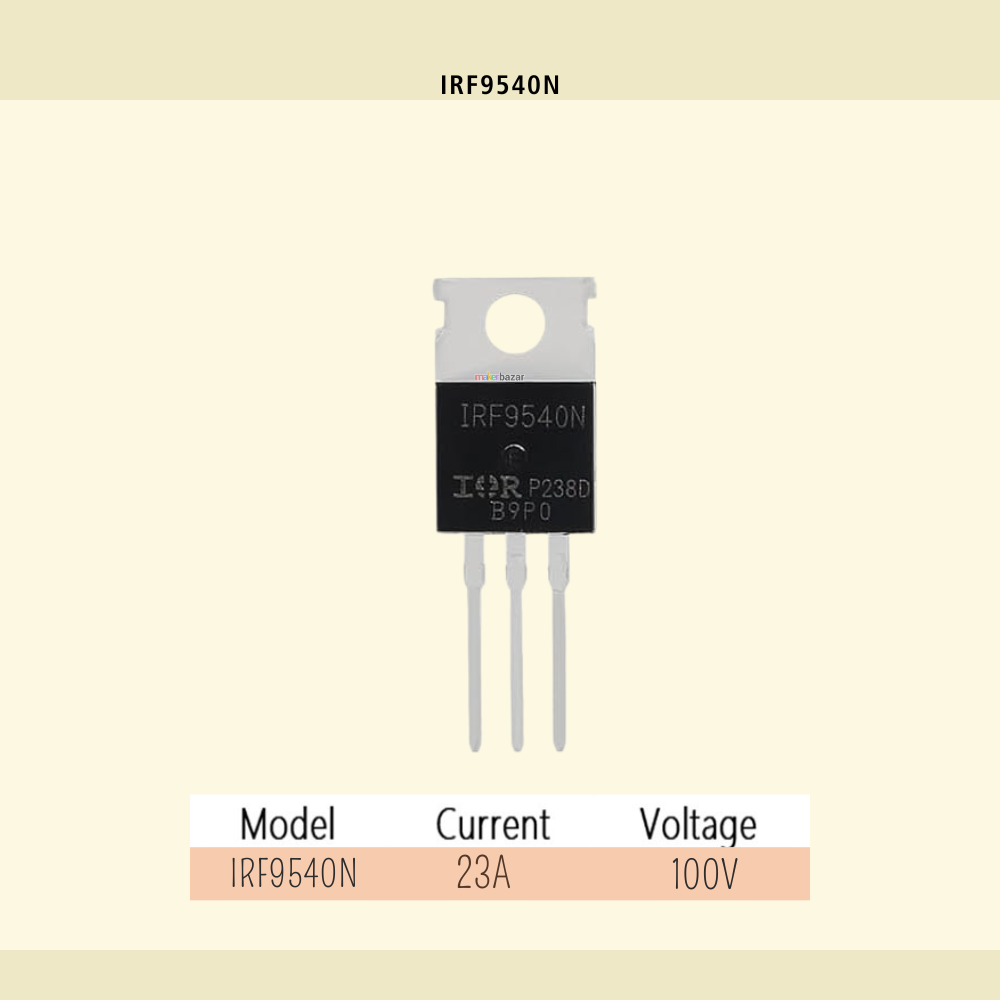

Makerbazar-Transistor with model number IRF9540 on a light

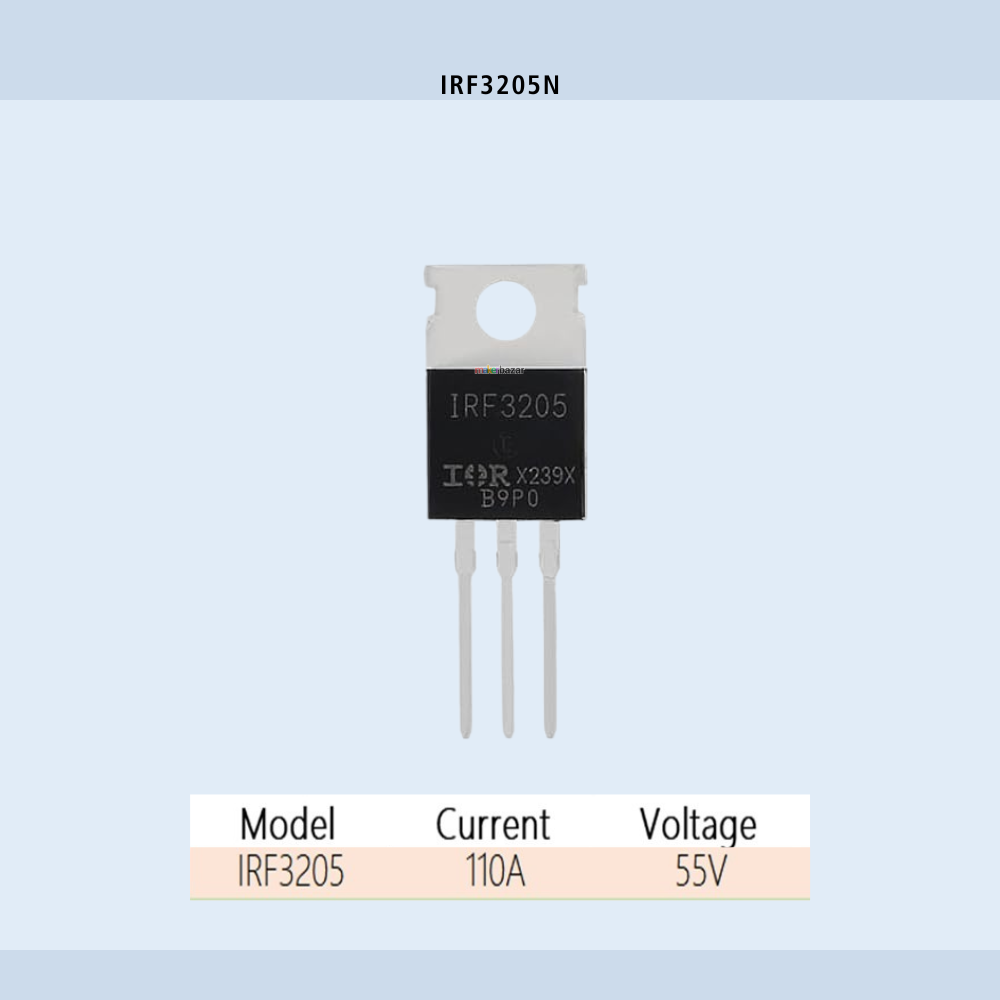

Makerbazar - Transistor with model number IRF3205 on a light blue background

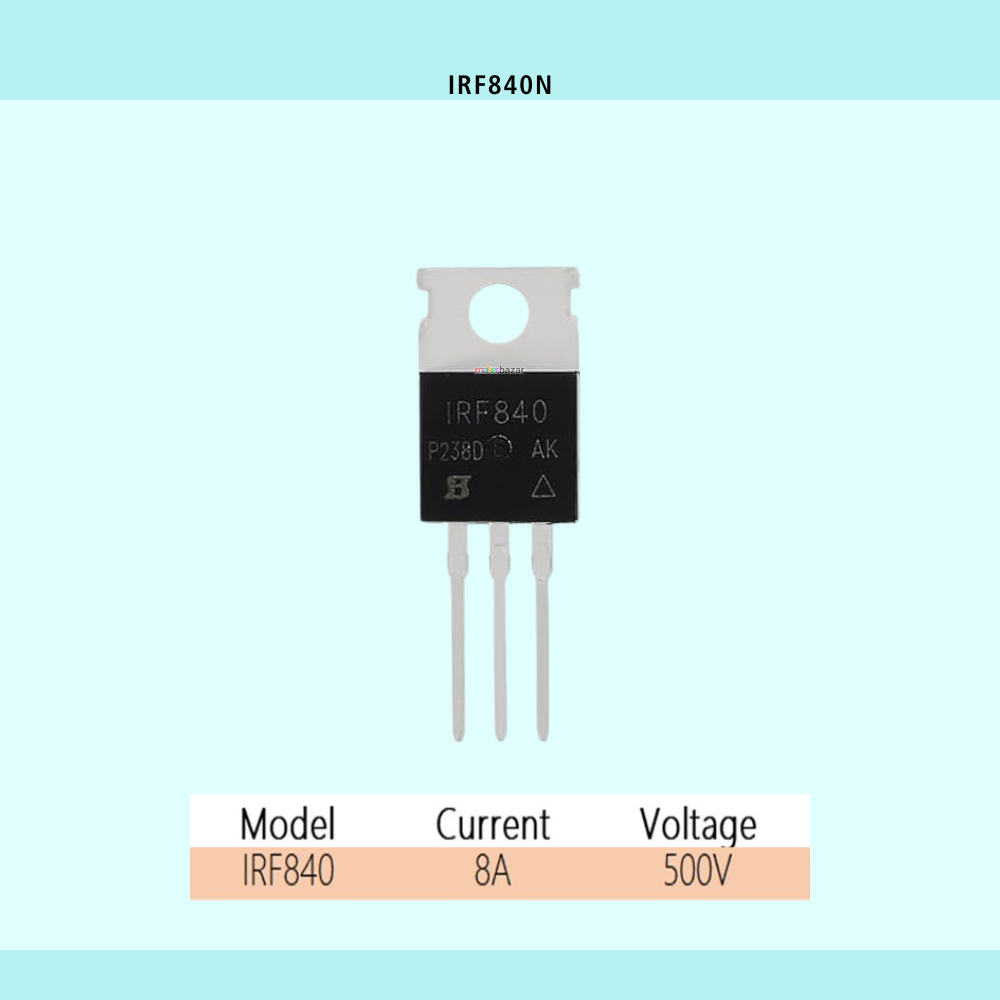

Makerbazar - Transistor with model number IRF840 on a light blue background

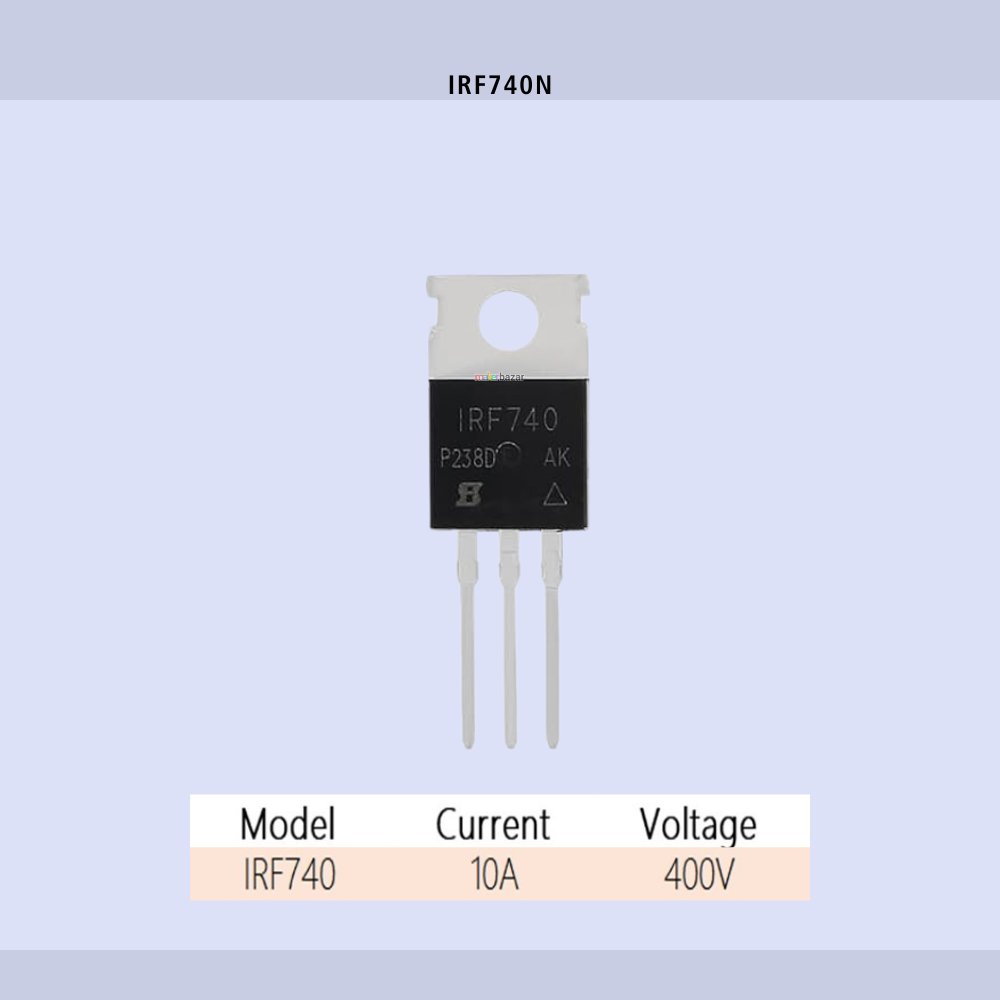

Makerbazar - Transistor with model number IRF740 on a light purple background

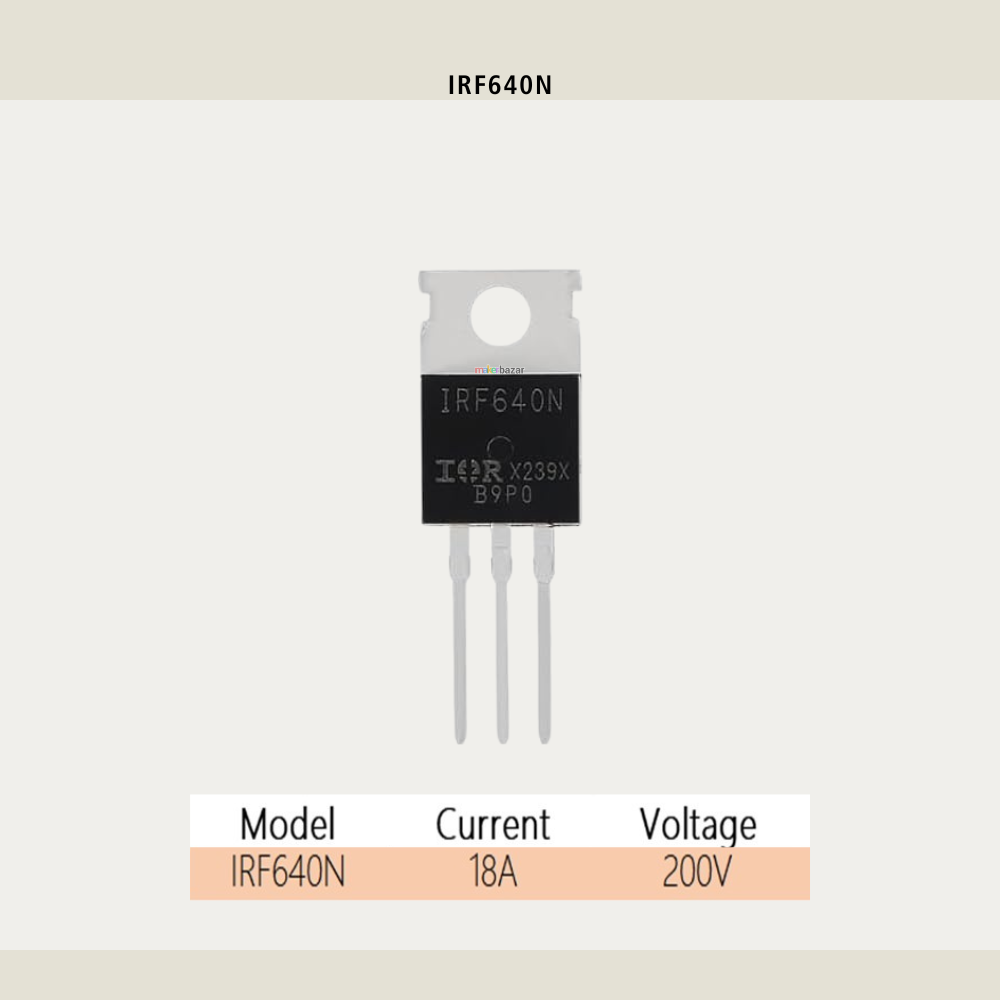

Makerbazar - Transistor with model number IRF640N on a light gray background

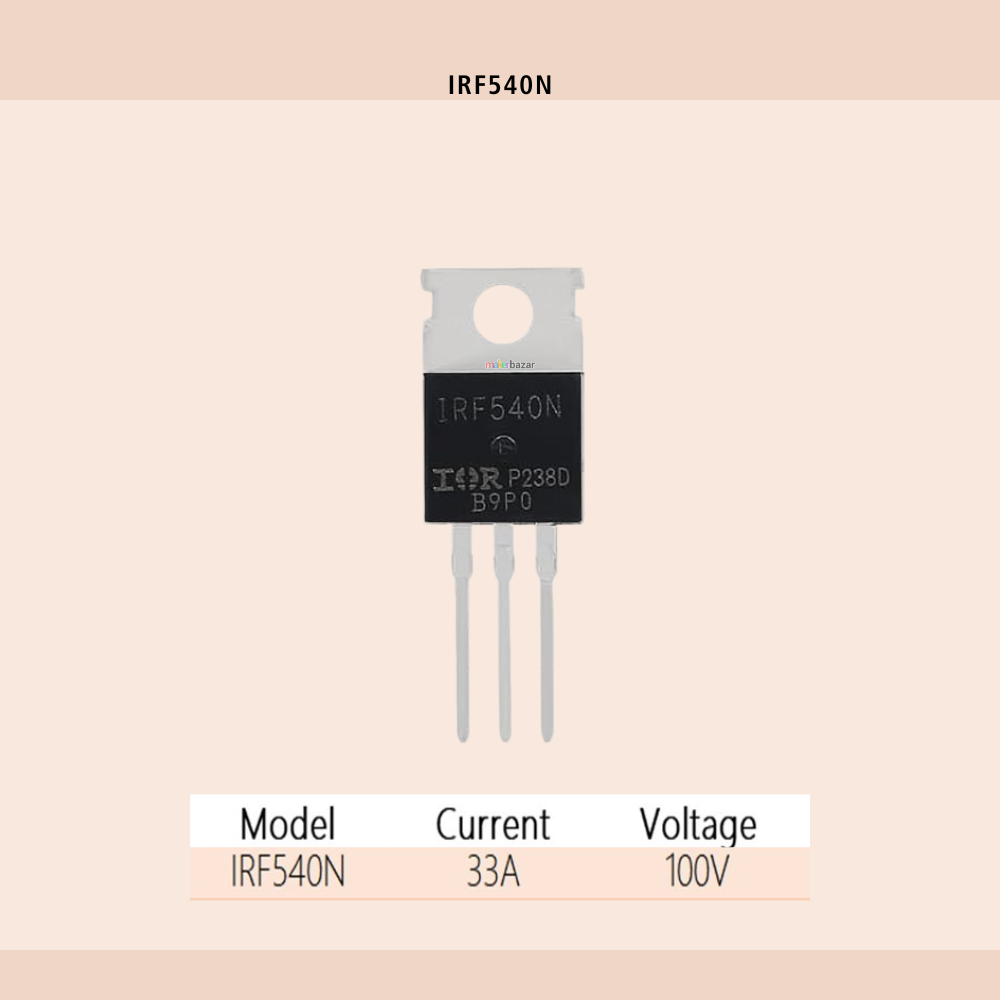

Makerbazar - Transistor with model number IRF540N on a beige background

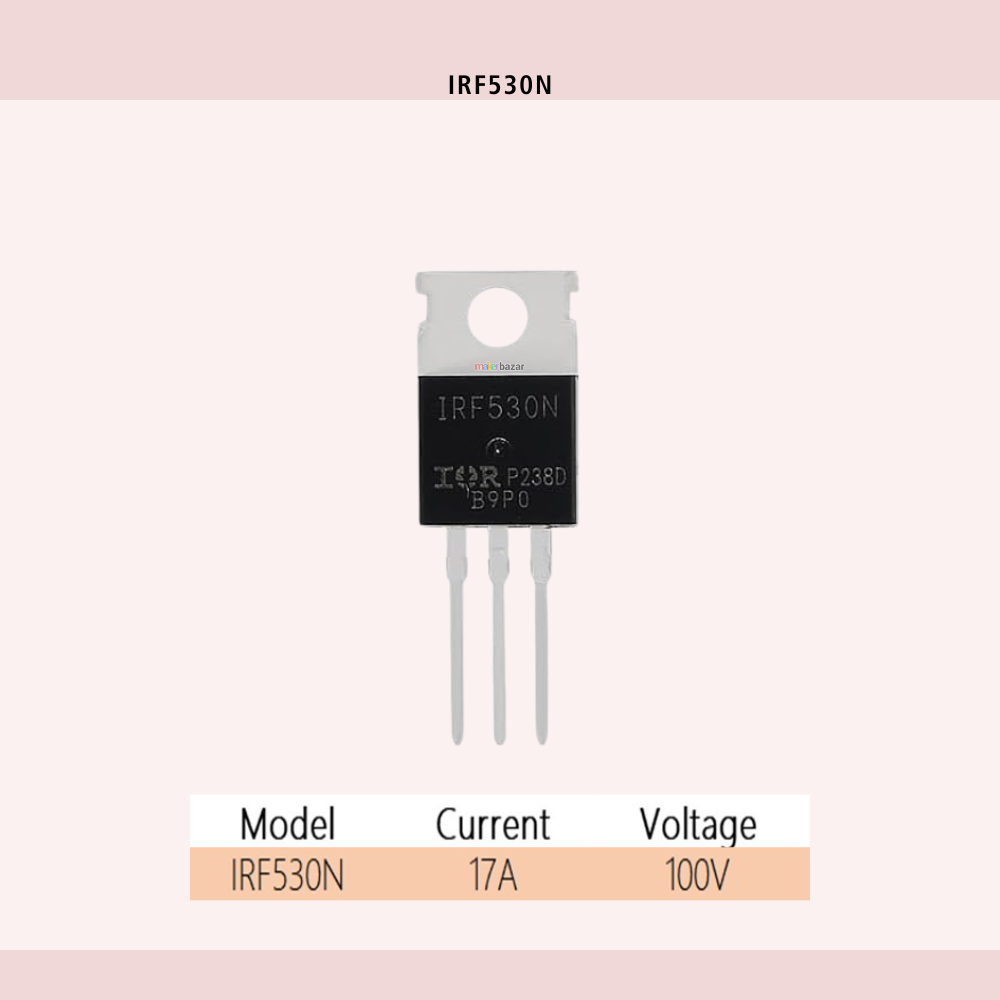

Makerbazar - Transistor with model number IRF530N on a light pink background

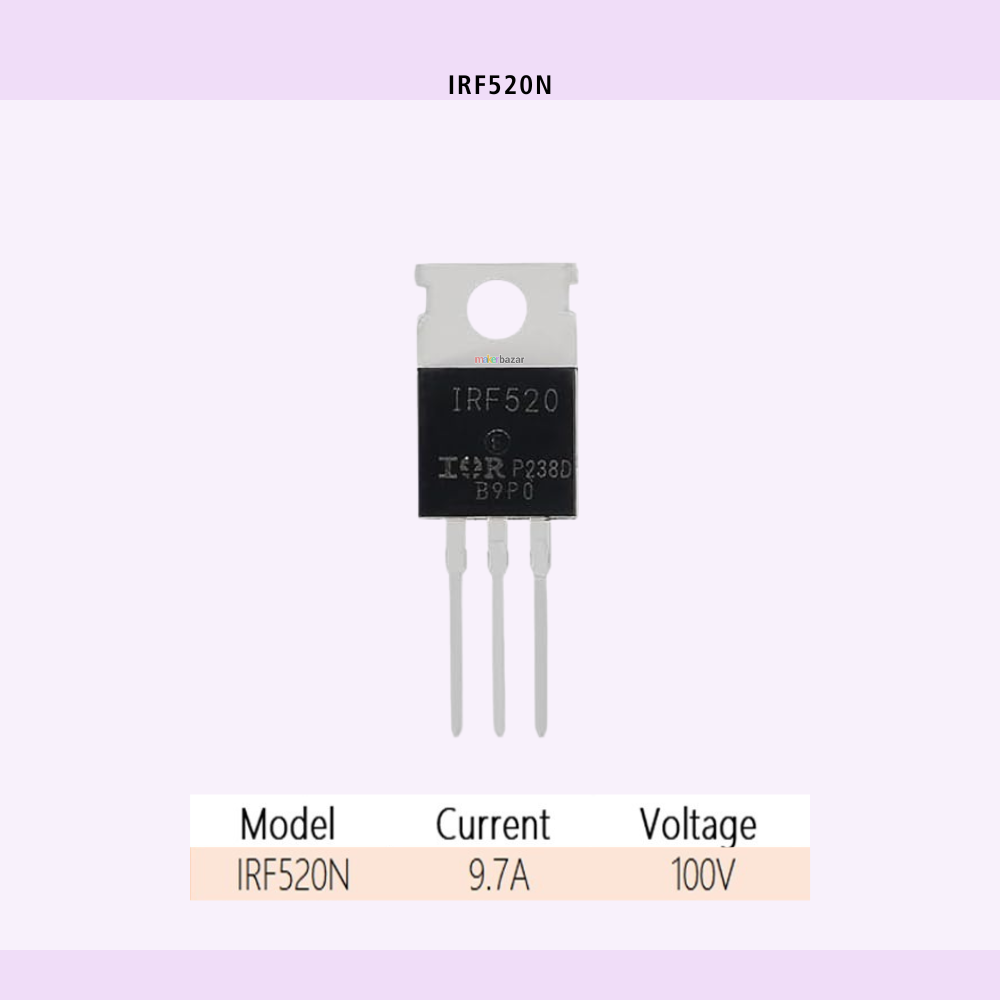

Makerbazar - Transistor with model number IRF520 on a light purple background

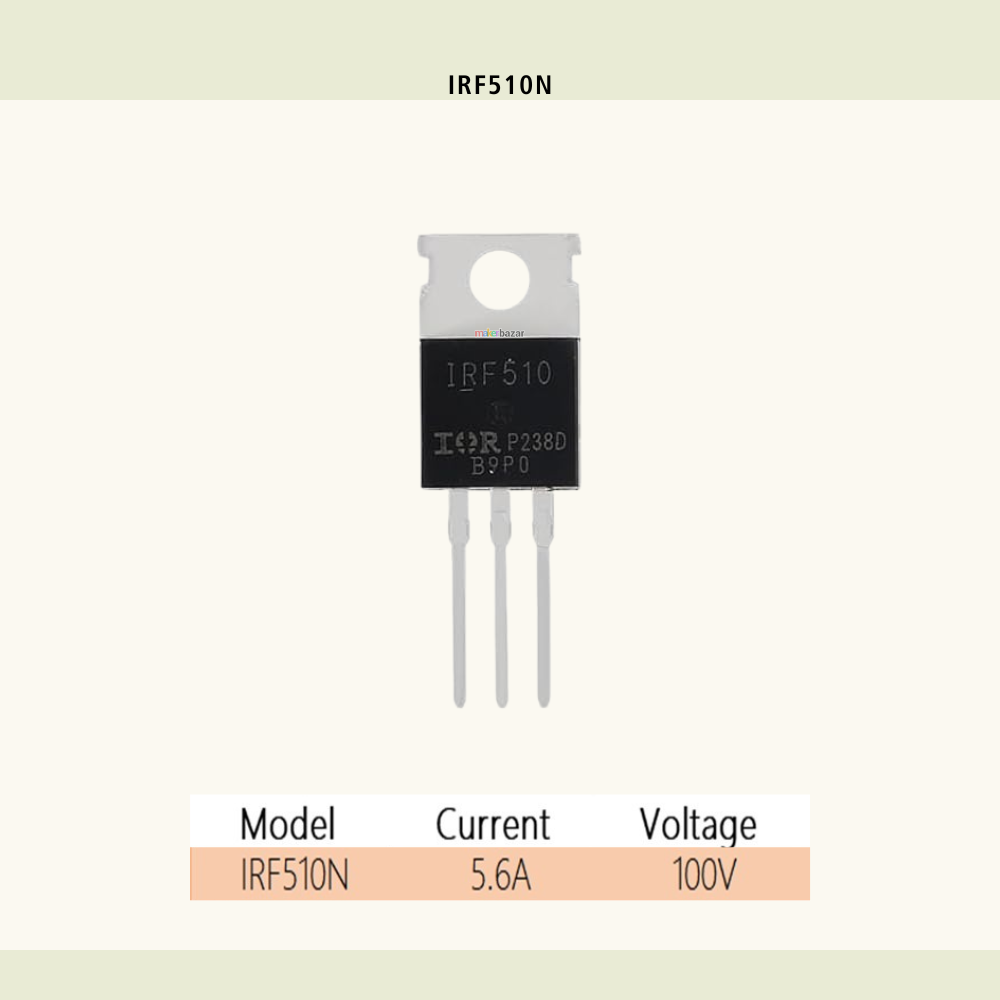

Makerbazar - Transistor with model number IRF510N on a white background
Makerbazar - Transistor with model number IRFZ44N on a white background

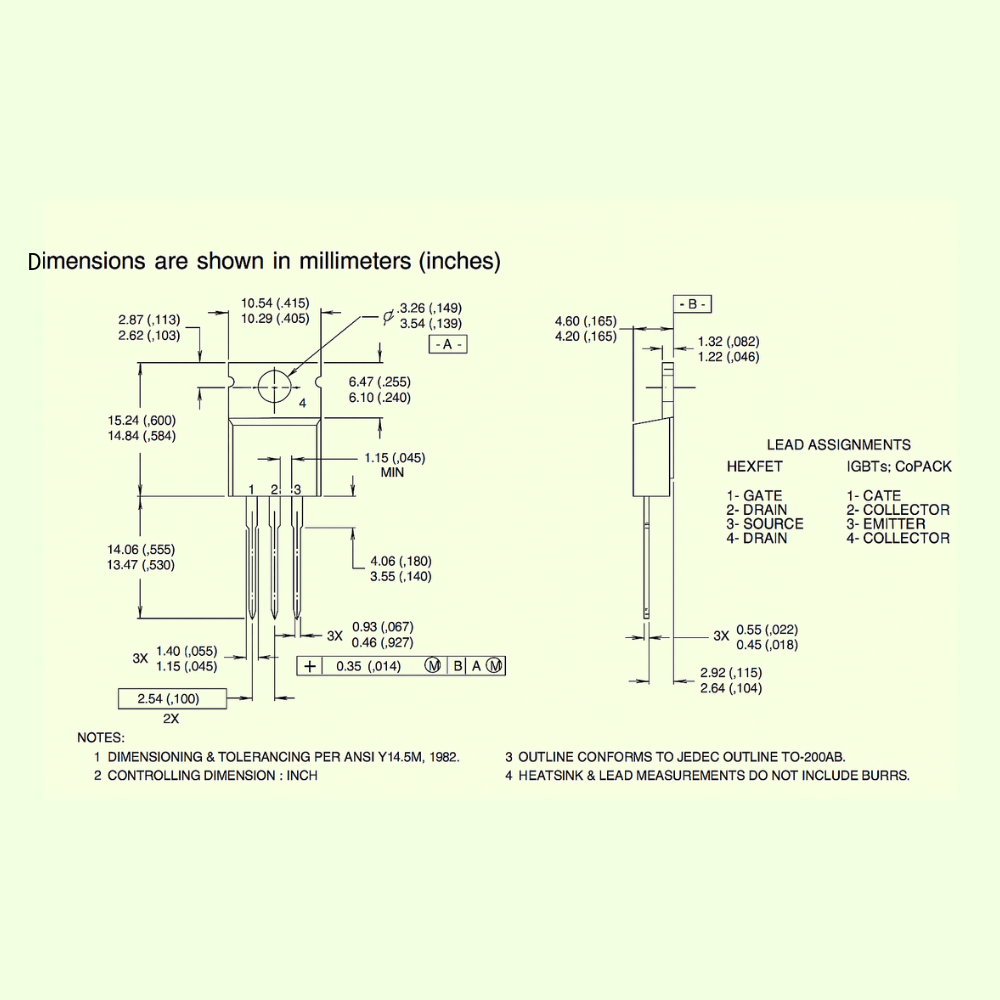

Makerbazar - Technical drawing of IRF series MOSFETs with dimensions in millimetres and inches on a light green background
IRF Series N-Channel Power MOSFET Transistor TO-220
Roll over image to zoom in Click on image to zoom
IRF Series N-Channel Power MOSFET Transistor TO-220IRF Series N-Channel Power MOSFET Transistor TO-220Makerbazar-Transistor with model number IRF630 on a light Makerbazar-Transistor with model number IRF9540 on a light Makerbazar - Transistor with model number IRF3205 on a light blue backgroundMakerbazar - Transistor with model number IRF840 on a light blue backgroundMakerbazar - Transistor with model number IRF740 on a light purple backgroundMakerbazar - Transistor with model number IRF640N on a light gray backgroundMakerbazar - Transistor with model number IRF540N on a beige backgroundMakerbazar - Transistor with model number IRF530N on a light pink backgroundMakerbazar - Transistor with model number IRF520 on a light purple backgroundMakerbazar - Transistor with model number IRF510N on a white backgroundMakerbazar - Transistor with model number IRFZ44N on a white backgroundMakerbazar - Technical drawing of IRF series MOSFETs with dimensions in millimetres and inches on a light green backgroundIRF Series N-Channel Power MOSFET Transistor TO-220

IRF Series N-Channel Power MOSFET Transistor TO-220

SKU: 1013848
Model: IRFZ44N
Price:
₹ 22.00

(₹ 18.64 + 18%GST)

Tax included Shipping calculated at checkout

For Bulk Purchase, Contact us at +91-9717583225 or Sales@ecompass.xyz

Description

IRF Series N-Channel Power MOSFETs | High Current, Fast Switching

The IRF Series N-Channel Power MOSFETs are high-performance transistors designed for switching and amplification applications in power electronics, motor drivers, converters, and general-purpose circuits.

Each MOSFET in this series delivers low on-resistance, high current capacity, and fast switching performance, making them ideal for both DC and AC power control. These components are commonly used in DC-DC converters, inverters, motor control systems, and battery protection circuits.

Available in various models, including IRF510N, IRLZ44N, IRF520N, IRF530N, IRF540N, IRF640N, IRF740, IRF840, IRF3205, IRF9540N, and IRFZ44N, IRF630G, you can select the one that fits your voltage and current requirements.

Each transistor is built in a TO-220 package, ensuring excellent heat dissipation and easy mounting for both prototyping and production-grade electronics.

Note: Product specifications may vary slightly based on model. Always refer to the datasheet before designing into a circuit.

Key Features:

  • Wide range of N-channel MOSFETs for power and switching applications

  • High drain current capacity

  • Low on-resistance (R<sub>DS(on)</sub>) for efficient power transfer

  • Fast switching speed suitable for high-frequency operations

  • TO-220 package for excellent thermal performance

  • Compatible with logic-level drive in most models

  • Ideal for motor control, inverter, and DC power circuits

  • Reliable, durable design with high breakdown voltage

Technical Specifications:

Model Drain Current (I<sub>D</sub>) Drain-Source Voltage (V<sub>DS</sub>)

IRLZ44N

 47A 55V
IRF510N 5.6A 100V
IRF520N 9.7A 100V
IRF530N 17A 100V
IRF540N 33A 100V
IRF630G 9A 200V
IRF640N 18A 200V
IRF740 10A 400V
IRF840 8A 500V
IRF3205 110A 55V
IRF9540N 23A 100V
IRFZ44N 49A 55V

Applications:

  • Power supply and converter circuits

  • Motor drivers and PWM controllers

  • Inverter and battery management systems

  • DC-DC and DC-AC converters

  • Audio amplifier circuits

  • Switching regulators and chargers

  • General-purpose electronic switching

Precautions:

  • Ensure correct pin orientation (Gate, Drain, Source) before connection.

  • Do not exceed rated voltage or current limits specified for each model.

  • Use heat sinks for high-current applications to prevent overheating.

  • Avoid electrostatic discharge (ESD) during handling; use antistatic protection.

  • Verify the gate threshold voltage (V<sub>GS(th)</sub>) matches your control logic.
