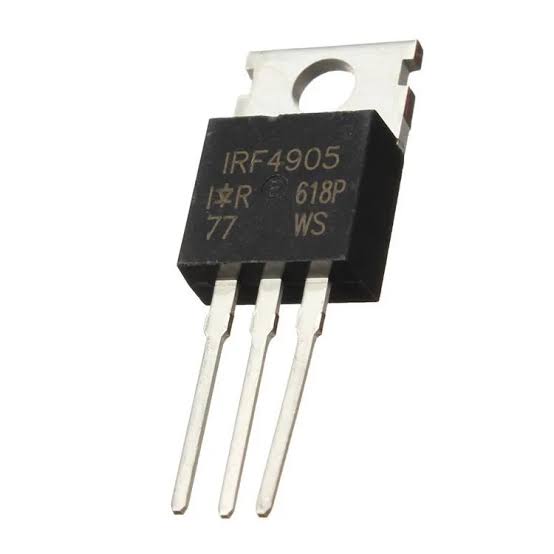

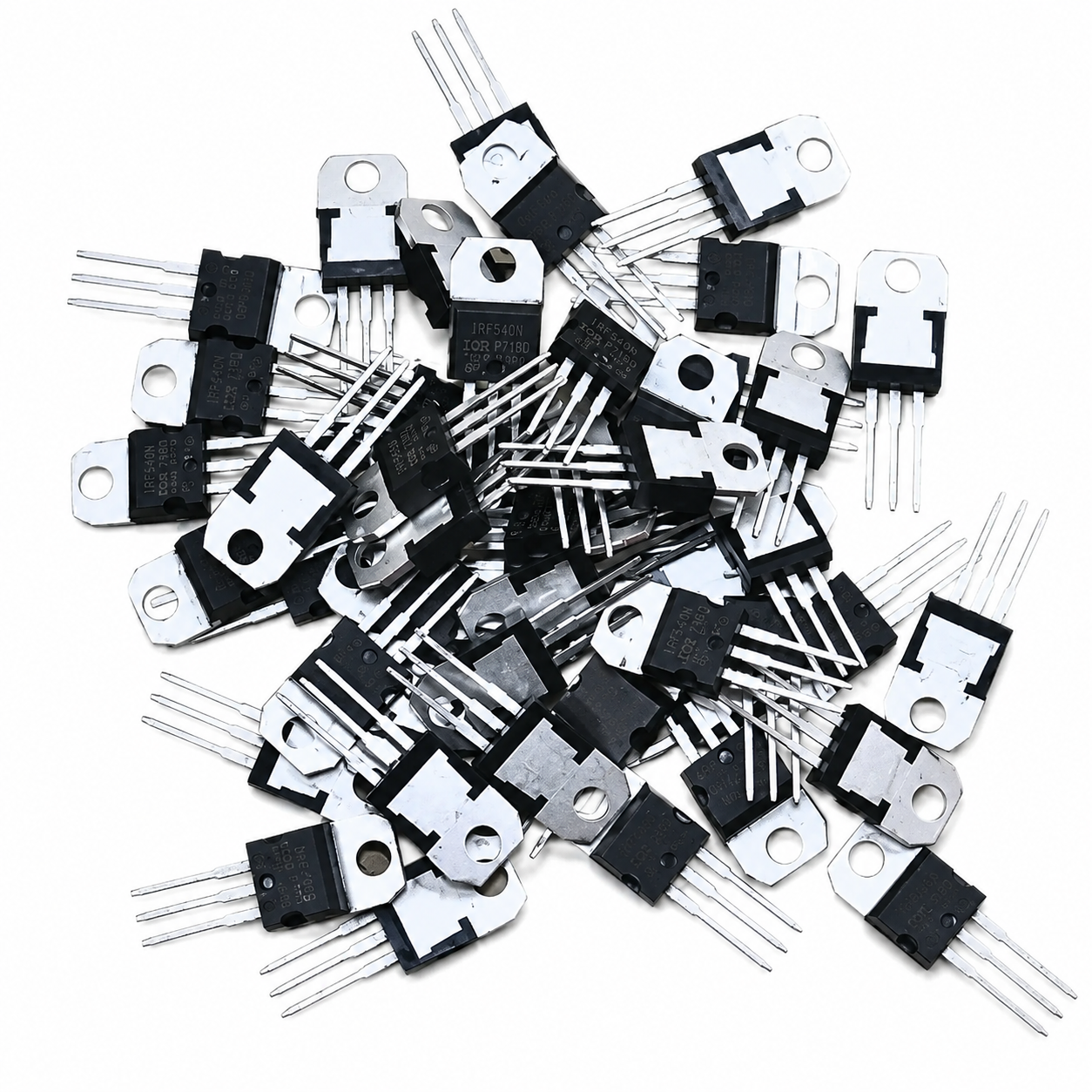

IRF Series P-Channel Power MOSFET Transistor | TO-220 Package | High-Voltage Enhancement Mode MOSFET
The IRF Series P-Channel Power MOSFET Transistors in the TO-220 package are designed for high-efficiency power switching and power management applications. These enhancement-mode MOSFETs feature low ON resistance, fast switching characteristics, and high current handling capability, making them suitable for power supplies, battery protection circuits, motor control, DC-DC converters, inverters, UPS systems, and high-side switching applications.
The TO-220 package provides excellent thermal performance and can be mounted to a heatsink for improved heat dissipation in high-power designs. Depending on the selected model, the IRF Series offers different voltage, current, and R<sub>DS(on)</sub> specifications to suit a wide variety of electronic applications.
Key Features
- P-Channel Enhancement Mode MOSFET
- Industry-standard TO-220 package
- High current handling capability
- Low ON-state resistance (model dependent)
- Fast switching performance
- High avalanche ruggedness
- Low gate drive power requirements
- Suitable for high-side switching
- Excellent thermal performance with heatsink compatibility
- RoHS-compliant variants available (model dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | P-Channel Power MOSFET |
| Channel Type | P-Channel |
| Package | TO-220 |
| Mounting Type | Through Hole |
| Operating Mode | Enhancement Mode |
| Gate Type | Insulated Gate |
| Cooling | Heatsink Compatible |
| Applications | Power Switching & Power Management |
