Description

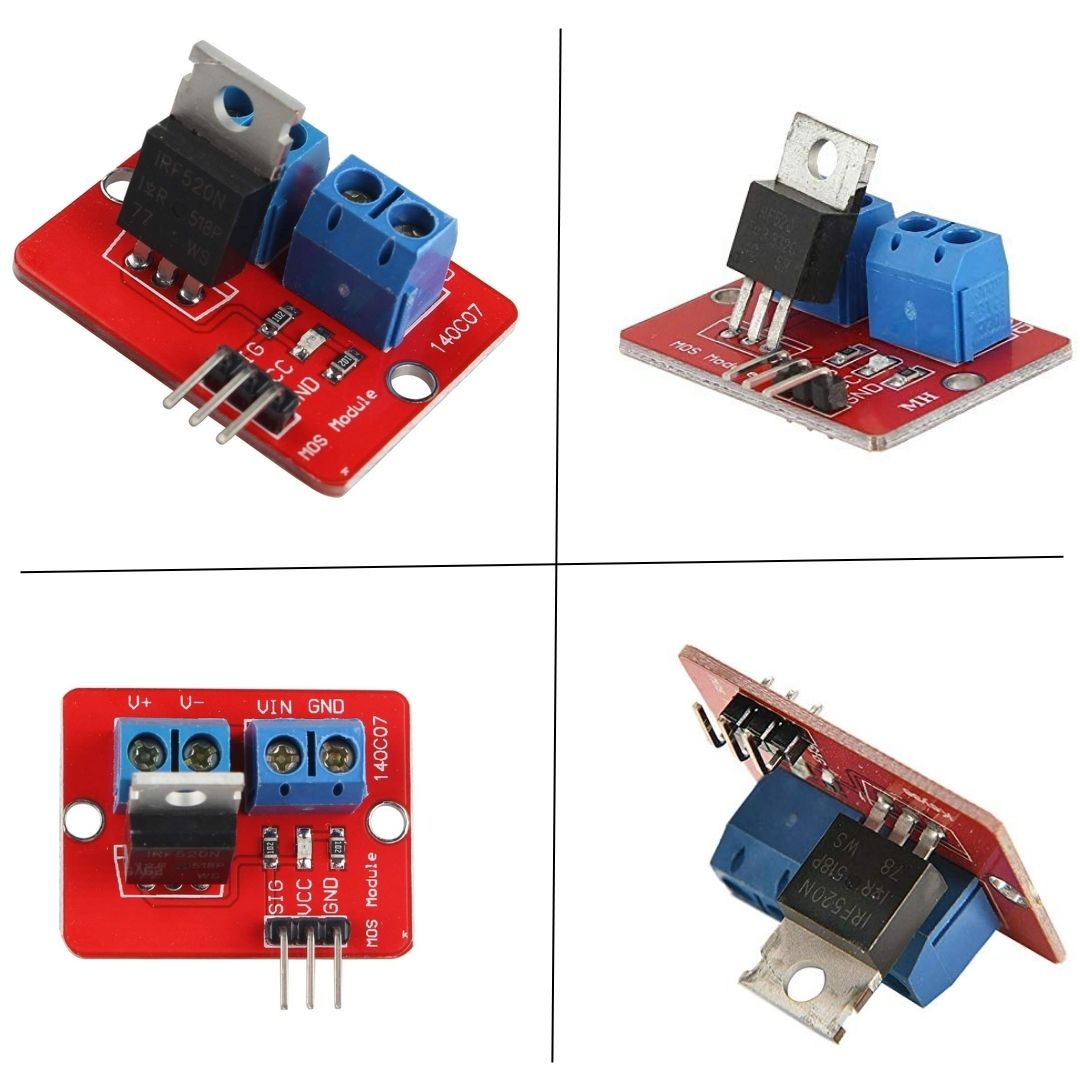

3.3V 5V IRF520 MOSFET Driver Module PWM Regulated Output for Arduino MCU ARM Raspberry Pi
This MOS module is a compact and reliable switch solution for controlling high-power loads with low input voltage. It’s designed for easy integration into various circuits, making it a popular choice in DIY electronics, robotics, and IoT applications. The module uses a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) to efficiently handle high currents and voltages with minimal power loss.
Features:
- Input and Output Terminals: The module has clearly labeled input and output terminals for easy wiring, with terminals for VCC, GND, SIG, and other voltage inputs.
- High-Power Handling: Supports high-power loads, making it suitable for motor control, LED lighting, and other high-power applications.
- Compact Design: With a small form factor, it fits easily onto breadboards or small circuit boards, saving space.
- Low Voltage Control: Allows low voltage from microcontrollers (e.g., Arduino, Raspberry Pi) to control higher voltage circuits.
- Efficient Switching: The MOSFET provides fast and efficient switching, with low heat dissipation.
- Durable Build: Designed with quality components for reliable, long-lasting performance.
Specification:
- Voltage: 3.3 – 5V.
- Ports: Digital Level.
- Output load voltage: 0-24 V.
- Output load current: <5A (1A above need to add heat sink).
- Platform: Arduino, MCU, ARM, raspberry pi.
- Using original IRF520 Power MOS, you can adjust the output PWM
This MOS module is ideal for hobbyists, students, and professionals looking to manage high-power components with precision and minimal energy loss.
