Description

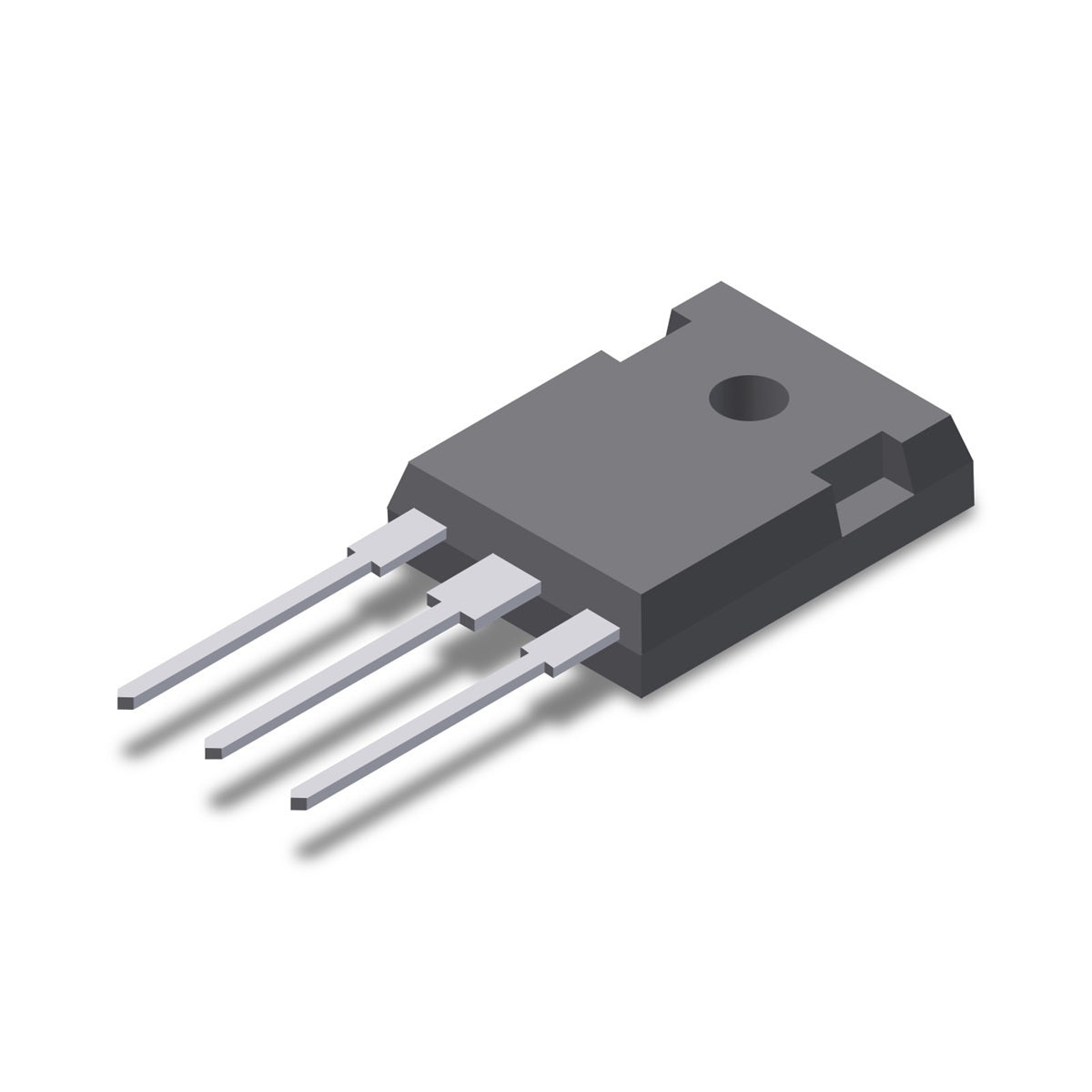

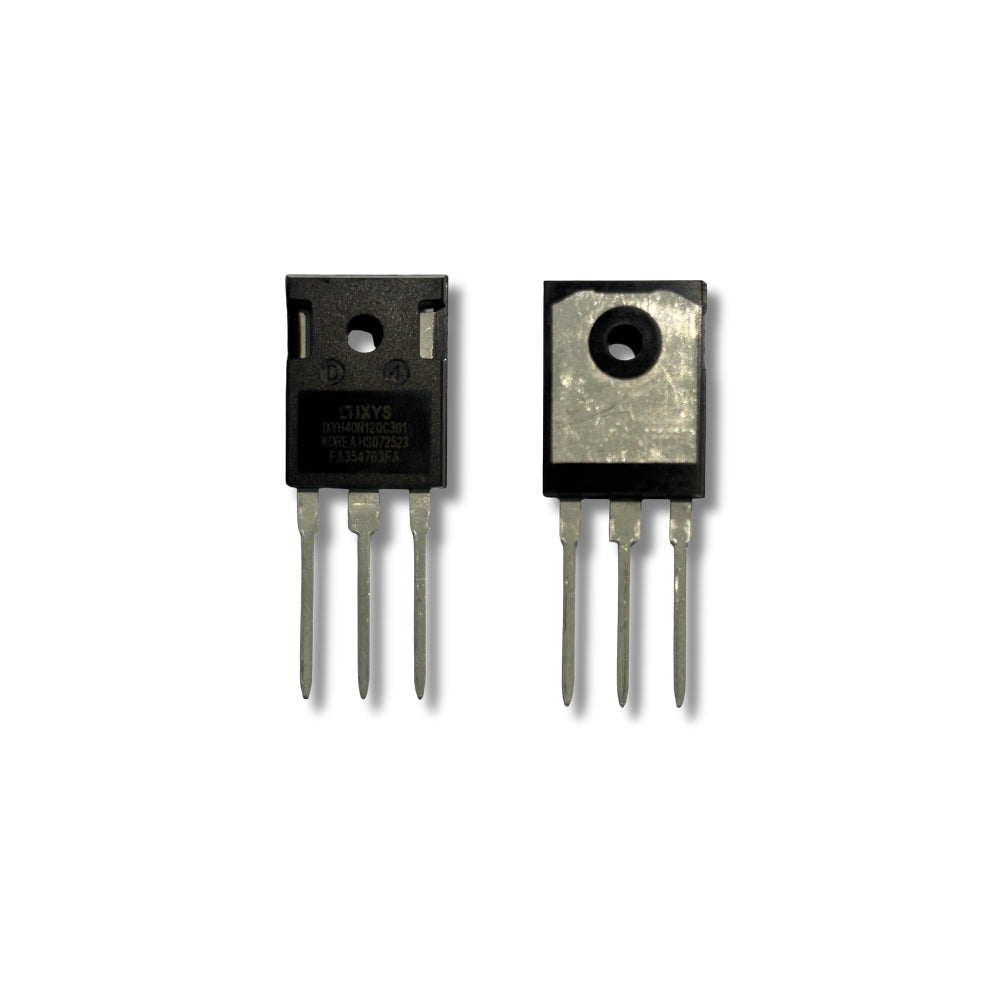

IXYH40N120C3 IGBT Module – 1200V 70A High-Speed Trench Field-Stop Power Transistor
The IXYH40N120C3 is a high-performance IGBT (Insulated Gate Bipolar Transistor) designed to deliver efficient and reliable operation in high-voltage and high-speed switching applications. Rated for 1200V and 70A continuous collector current, this module is suitable for demanding industrial systems such as motor drives, inverters, UPS units, and welding machines.
Built with advanced C3 trench and field-stop technology, the IGBT offers low switching losses and robust short-circuit protection, ensuring long-term durability and energy efficiency.
⚙️ Technical Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V<sub>CES</sub>) | 1200V |
| Continuous Collector Current (I<sub>C</sub>) | 70A |
| Pulsed Collector Current (I<sub>CM</sub>) | 140A |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20V |
| Saturation Voltage (V<sub>CE(sat)</sub>) | 2.5V @ 70A |
| Total Gate Charge (Q<sub>G</sub>) | ~230nC |
| Turn-On Delay Time (t<sub>d(on)</sub>) | ~35ns |
| Turn-Off Delay Time (t<sub>d(off)</sub>) | ~180ns |
| Junction Temperature Range | -40°C to +150°C |
| Package Type | TO-247 (or module, depending on source) |
| Technology | Trench Field Stop (C3-Class) |
🔧 Key Features:
-
High-voltage 1200V rating
-
Continuous 70A current handling
-
Low saturation voltage for reduced conduction loss
-
Fast switching with low turn-off energy
-
Short-circuit ruggedness
-
Ideal for hard switching and resonant mode topologies
-
Compatible with industrial-grade heat sinks
🧲 Applications:
-
Industrial Motor Drives
-
Solar and Wind Inverters
-
UPS and Power Backup Systems
-
Inductive Heating Systems
-
Switch-Mode Power Supplies
-
Welding Equipment
