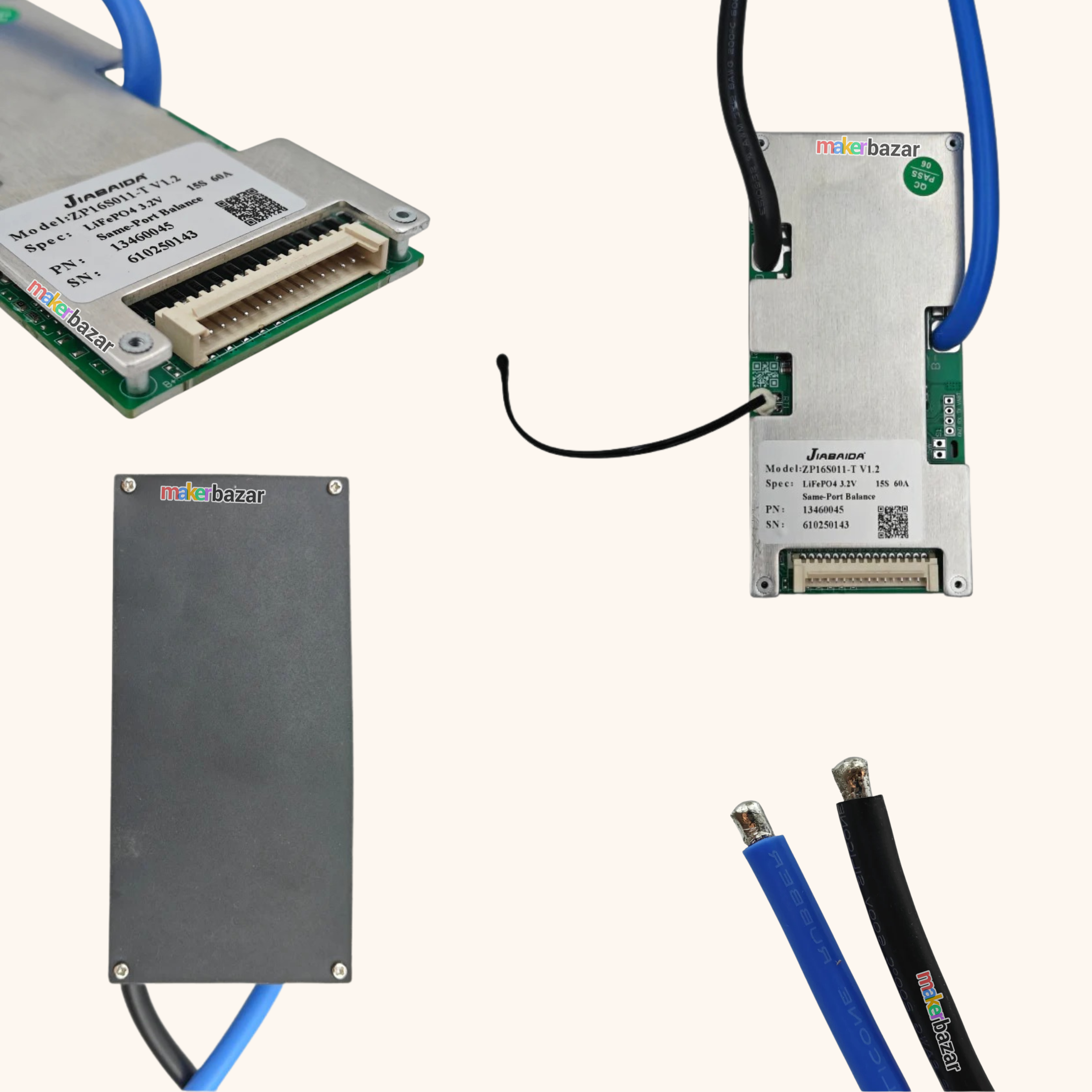

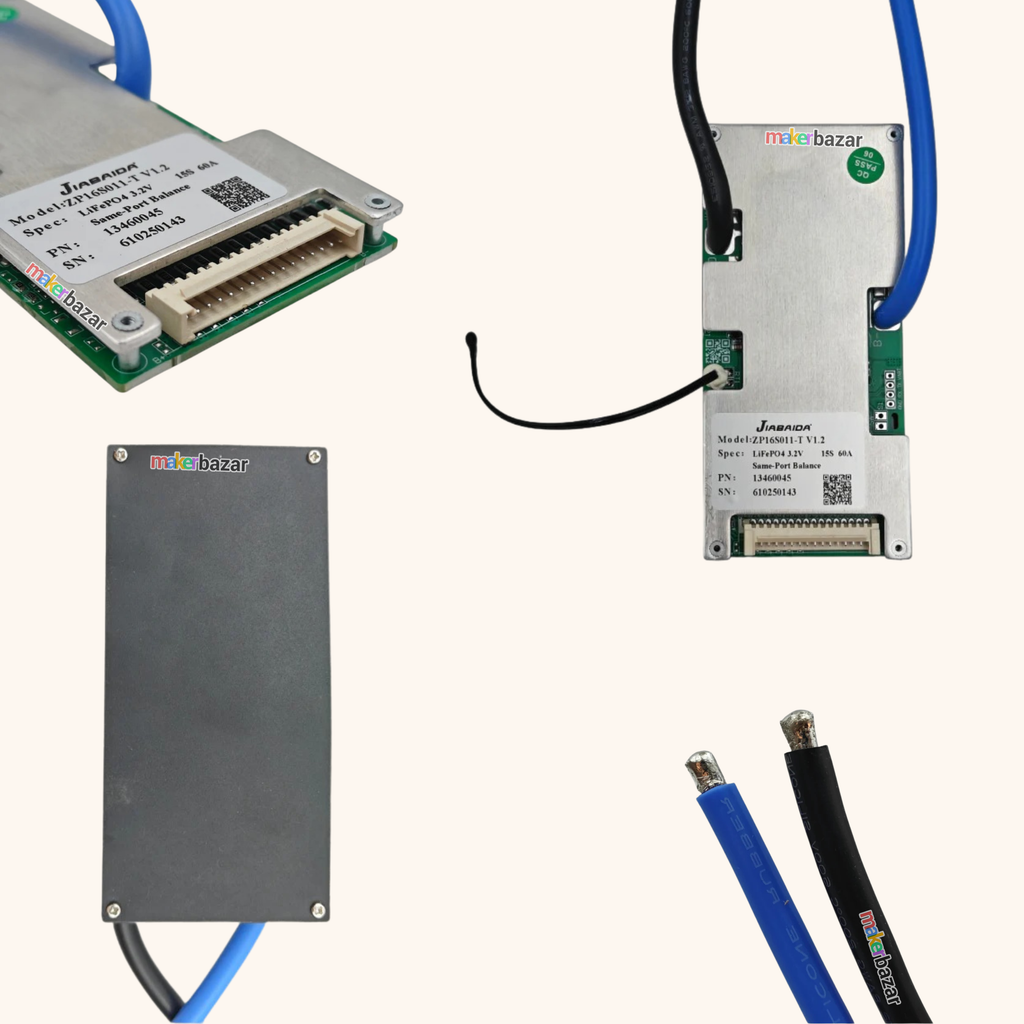

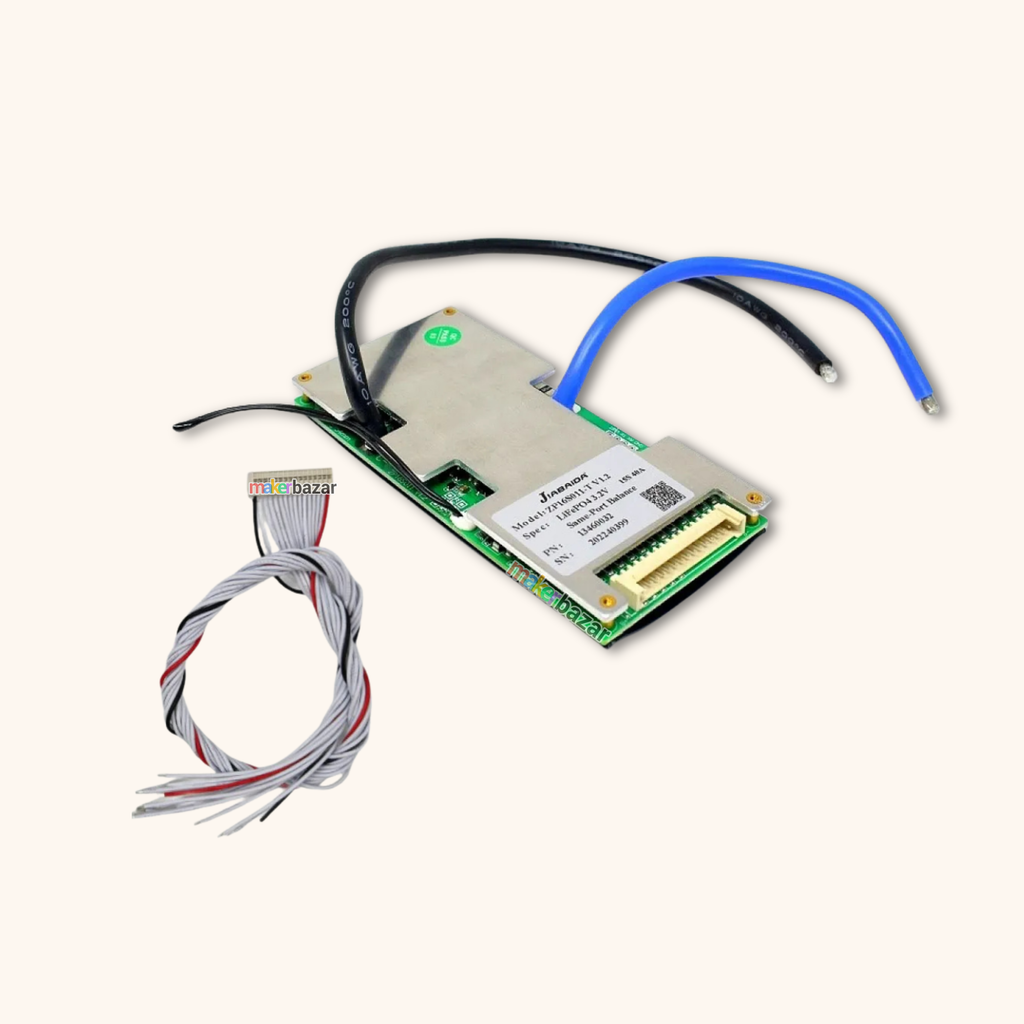

JIABAIDA (JBD) 15S 48V 40A BMS for LiFePO4 Battery Packs
The JIABAIDA (JBD) 15S 48V 40A Battery Management System (BMS) – ZP16S011-T V1.2 is a high-performance protection and monitoring solution designed for Lithium Iron Phosphate (LiFePO4 / LFP) battery packs. Engineered for reliability and precision, this BMS ensures safe operation, extended battery life, and optimal performance in demanding applications.
Supporting 15 series cells (15S) with a nominal voltage of 48V, it provides comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes. The system continuously monitors each cell’s voltage and temperature, ensuring balanced performance across the battery pack.
With high accuracy voltage balancing (±5mV) and advanced control algorithms, this BMS enhances battery efficiency and longevity. Its robust design makes it ideal for electric vehicles, solar energy storage, backup power systems, and industrial battery applications.

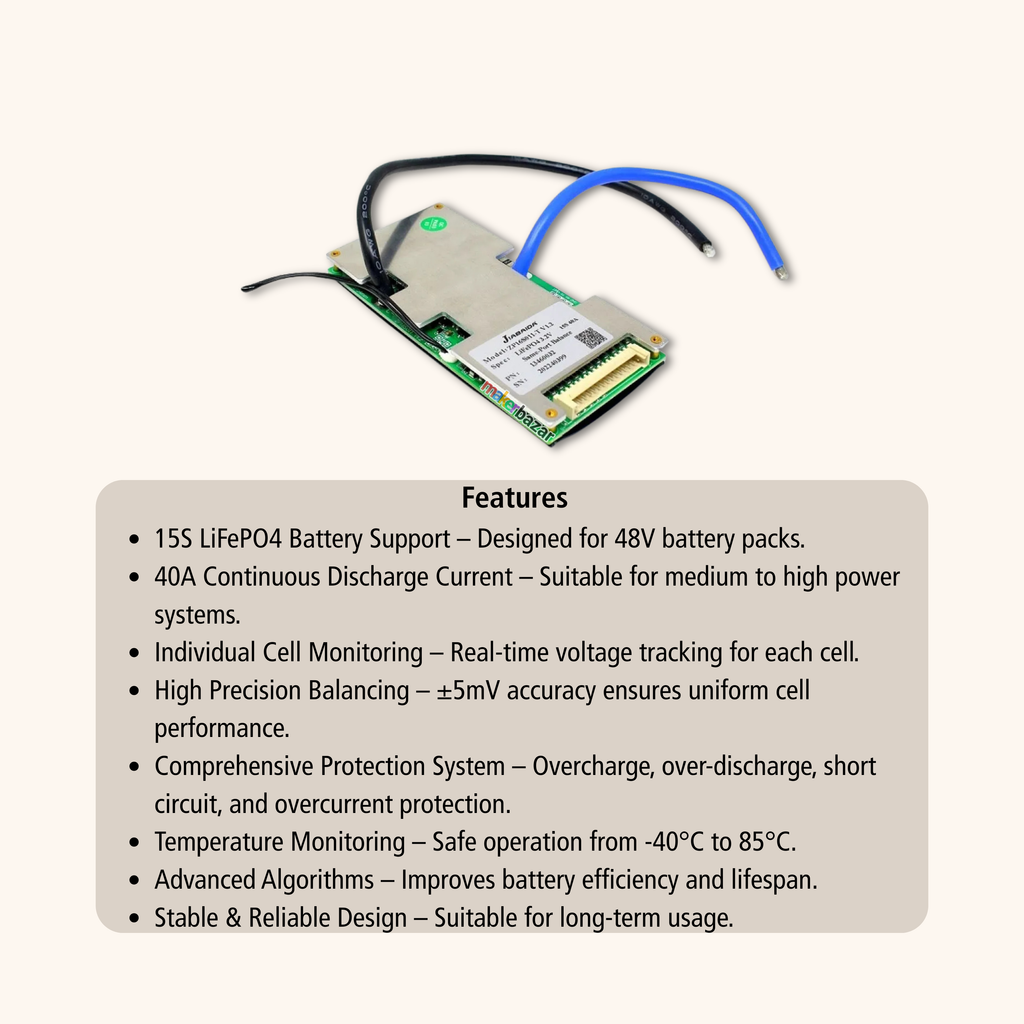

Key Features
- 15S LiFePO4 Battery Support – Designed for 48V battery packs.
- 40A Continuous Discharge Current – Suitable for medium to high power systems.
- Individual Cell Monitoring – Real-time voltage tracking for each cell.
- High Precision Balancing – ±5mV accuracy ensures uniform cell performance.
- Comprehensive Protection System – Overcharge, over-discharge, short circuit, and overcurrent protection.
- Temperature Monitoring – Safe operation from -40°C to 85°C.
- Advanced Algorithms – Improves battery efficiency and lifespan.
- Stable & Reliable Design – Suitable for long-term usage.
- Communication Capability – Supports system integration (variant dependent).

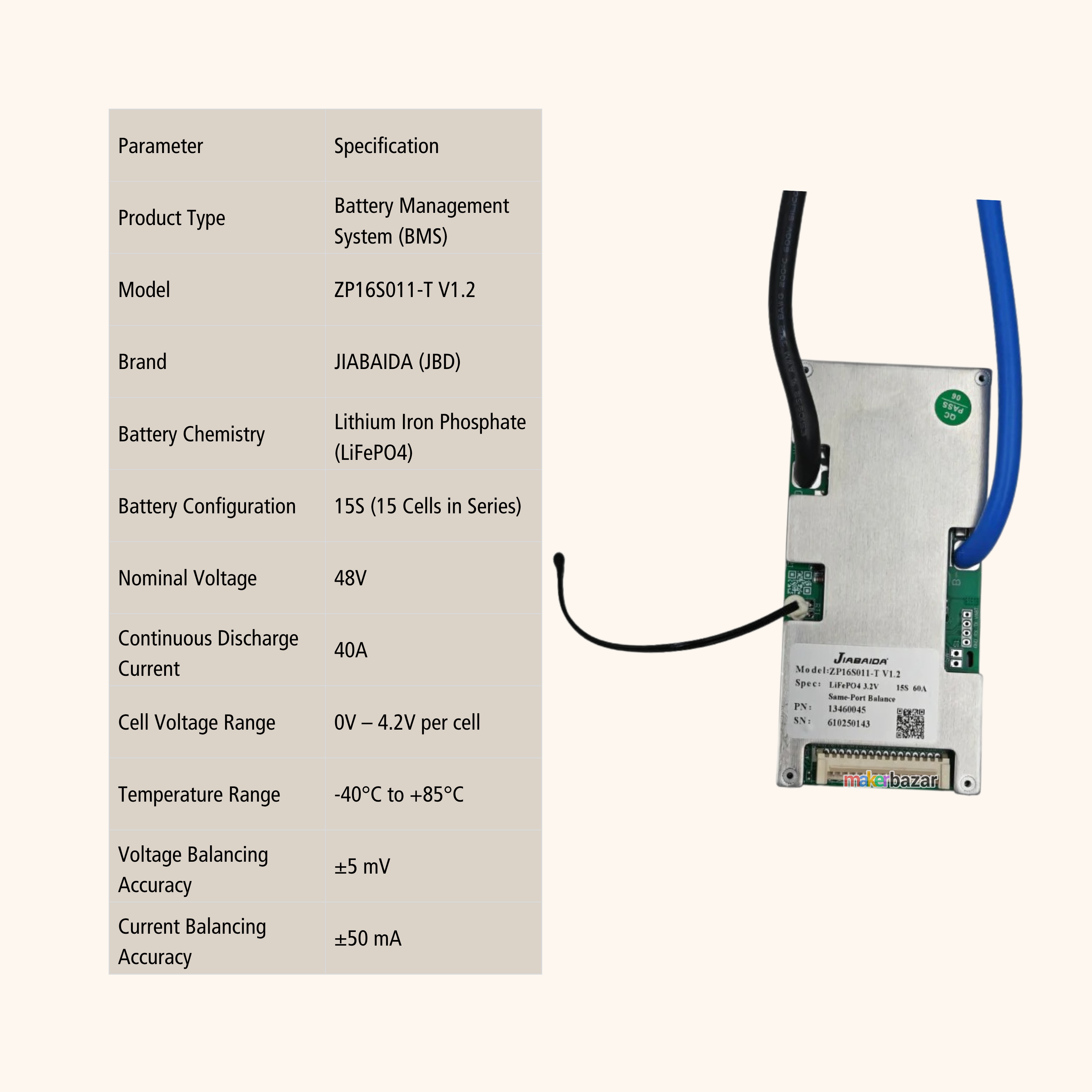

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Battery Management System (BMS) |
| Model | ZP16S011-T V1.2 |
| Brand | JIABAIDA (JBD) |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Battery Configuration | 15S (15 Cells in Series) |
| Nominal Voltage | 48V |
| Continuous Discharge Current | 40A |
| Cell Voltage Range | 0V – 4.2V per cell |
| Temperature Range | -40°C to +85°C |
| Voltage Balancing Accuracy | ±5 mV |
| Current Balancing Accuracy | ±50 mA |

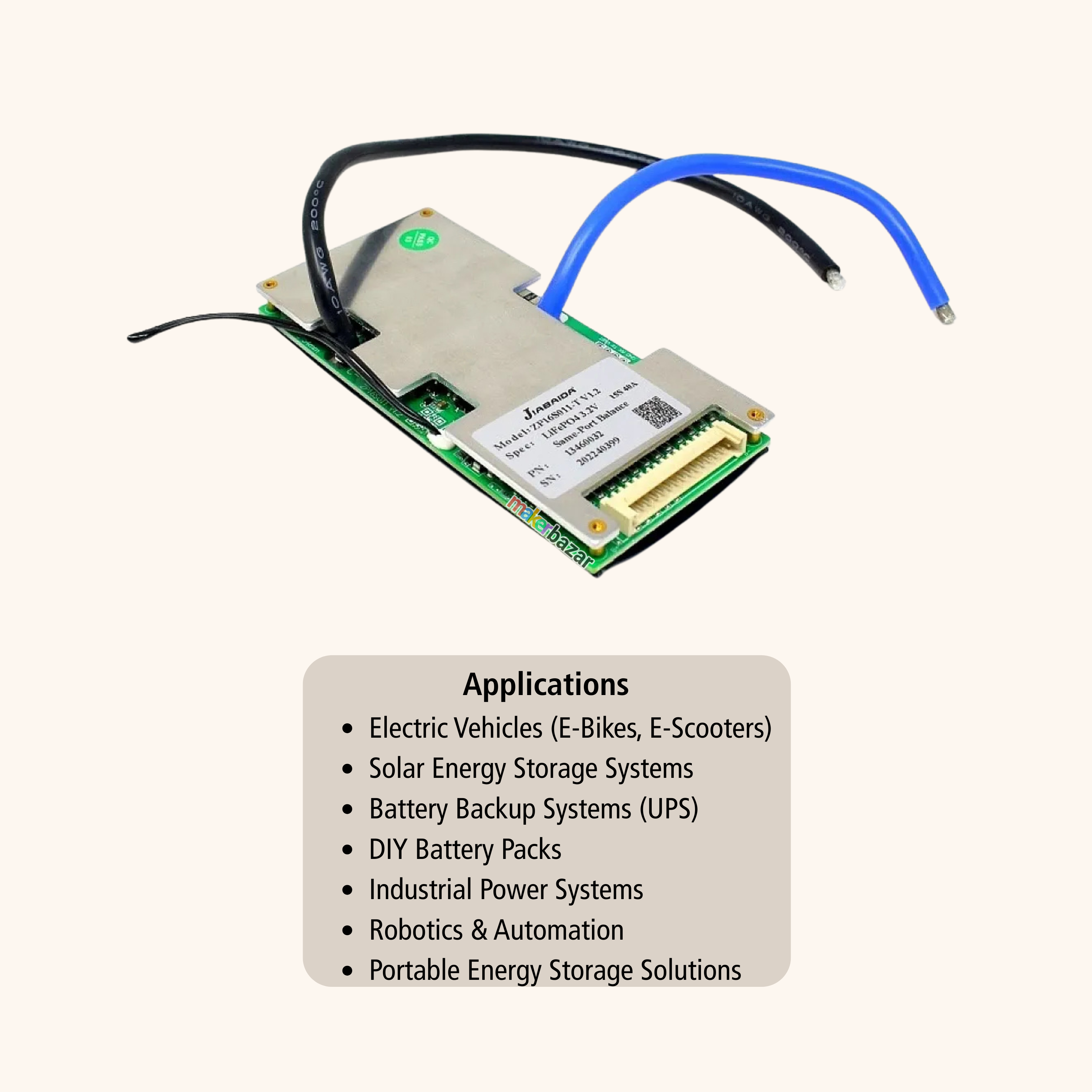

Applications
- Electric Vehicles (E-Bikes, E-Scooters)
- Solar Energy Storage Systems
- Battery Backup Systems (UPS)
- DIY Battery Packs
- Industrial Power Systems
- Robotics & Automation
- Portable Energy Storage Solutions
Precautions
- Ensure correct 15S battery configuration before installation.
- Use proper insulation to avoid short circuits.
- Do not exceed 40A continuous current rating.
- Install in a well-ventilated environment.
- Follow proper wiring guidelines for safe operation.
- Use compatible LiFePO4 cells only.
