Description

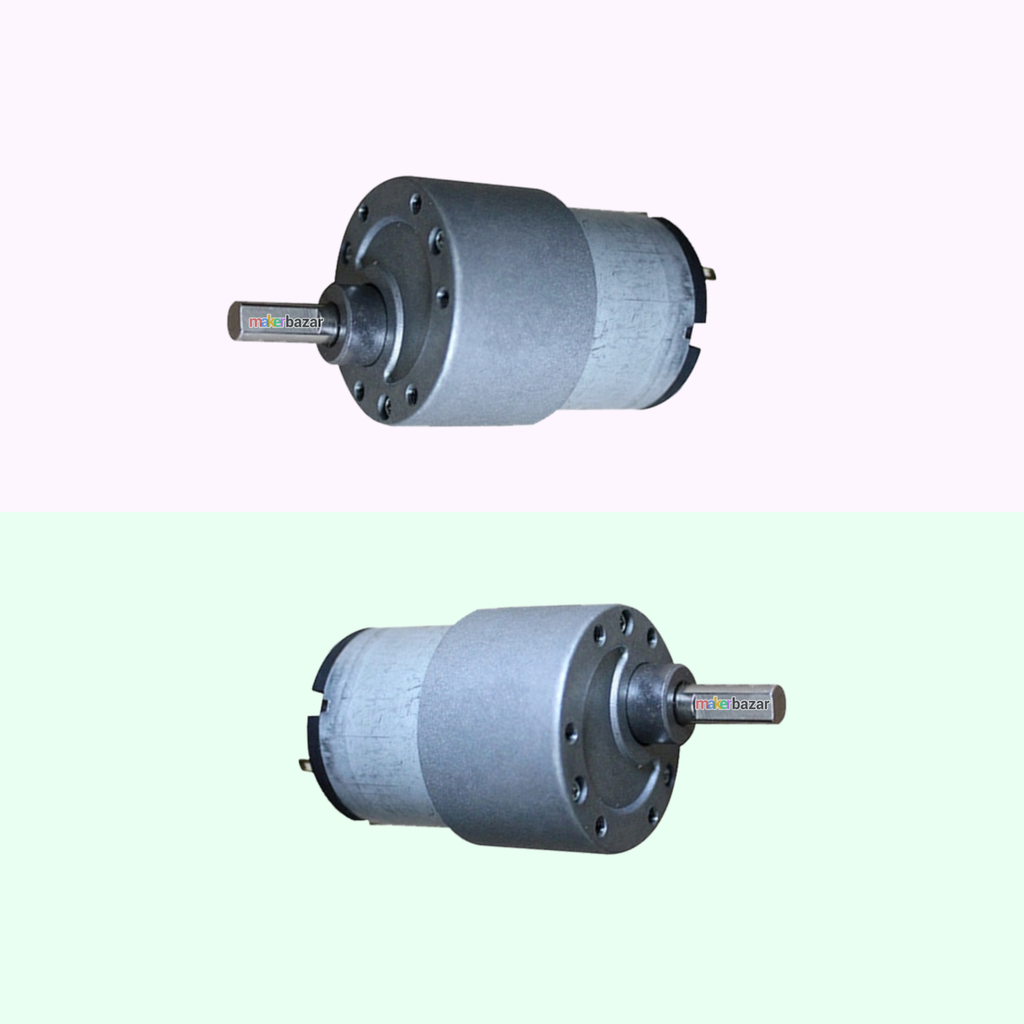

JGB37-520 12V Geared DC Motor for Robotics, Automation & DIY Projects
The JGB37-520 DC 12V Geared Motor is a compact and powerful speed reduction motor designed for applications requiring higher torque and controlled rotational speed. Featuring a durable metal spur gearbox and a high-quality 520-series DC motor, this geared motor delivers reliable performance for robotics, automation systems, actuators, conveyors, smart machines, and DIY engineering projects.
The integrated reduction gearbox effectively lowers the motor speed while significantly increasing output torque, making it ideal for applications that require precise movement and mechanical power. Its sturdy metal construction, centre D-shaft design, and compact form factor ensure easy integration into a wide variety of electromechanical systems.
Whether used in robotic vehicles, automatic dispensers, pan-tilt systems, or custom automation projects, the JGB37-520 gear motor offers dependable operation and long service life.
Key Features
- High-torque 12V DC geared motor.
-
Integrated metal spur gearbox.
- Compact and durable construction.
- Centre D-shaft for secure coupling.
- Suitable for robotics and automation.
- Low noise and smooth operation.
- High-quality metal gear assembly.
- Easy integration into DIY projects.
- Reliable performance for continuous use.

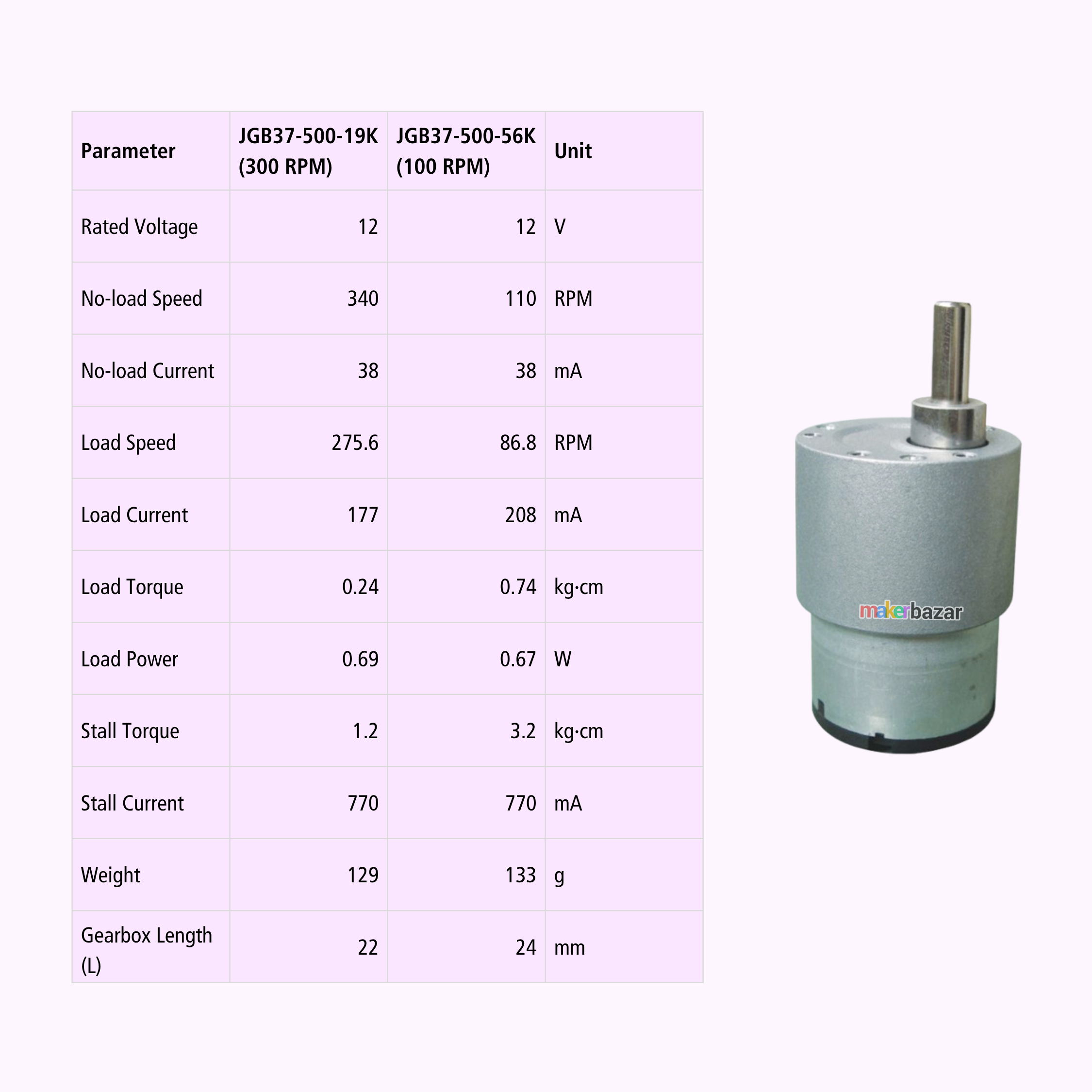

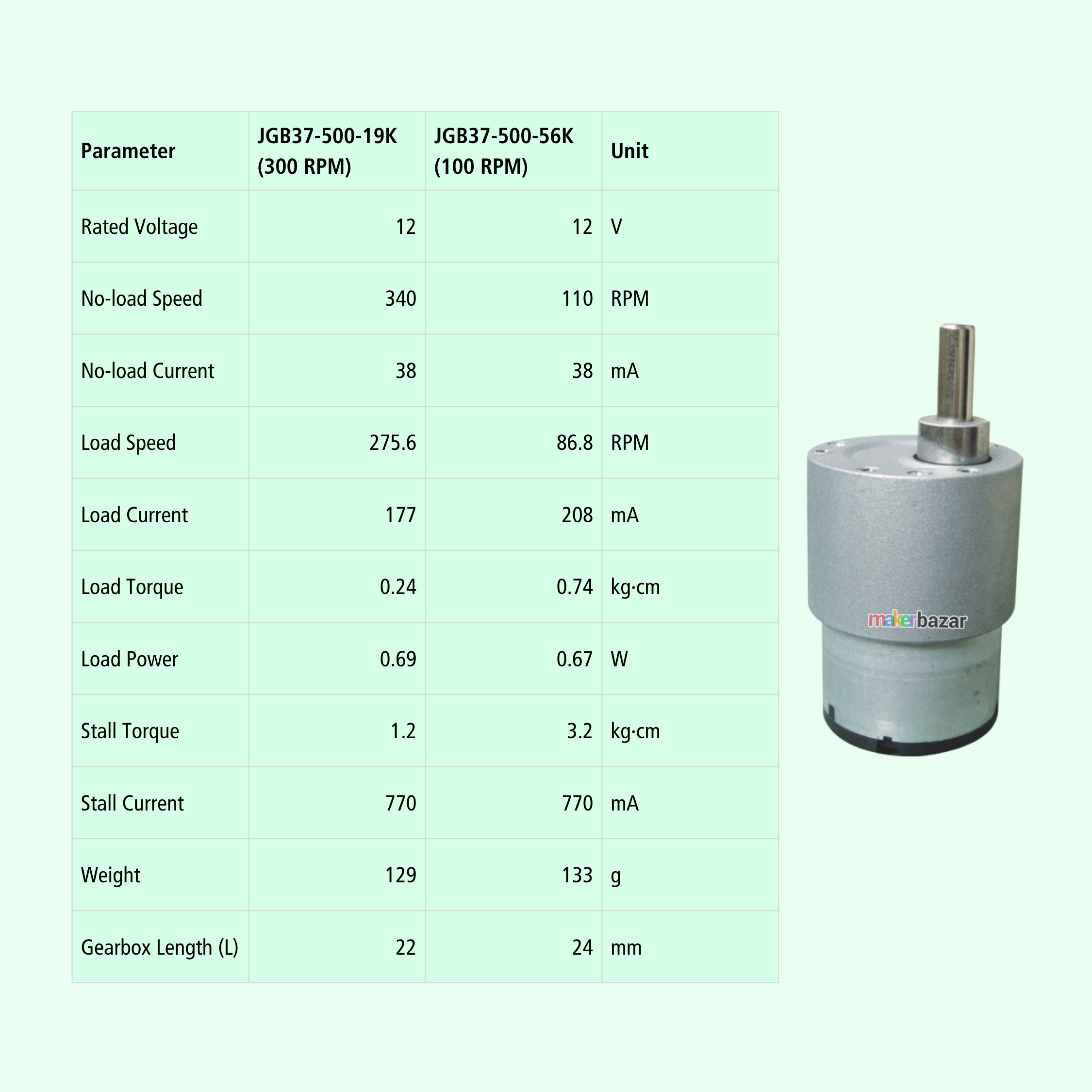

Technical Specifications
| Parameter | JGB37-500-19K (300RPM) |
JGB37-500-56K (100RPM) |
Unit |
|---|---|---|---|
| Rated Voltage | 12 | 12 | V |
| No-load Speed | 340 | 110 | RPM |
| No-load Current | 38 | 38 | mA |
| Load Speed | 275.6 | 86.8 | RPM |
| Load Current | 177 | 208 | mA |
| Load Torque | 0.24 | 0.74 | kg·cm |
| Load Power | 0.69 | 0.67 | W |
| Stall Torque | 1.2 | 3.2 | kg·cm |
| Stall Current | 770 | 770 | mA |
| Weight | 129 | 133 | g |

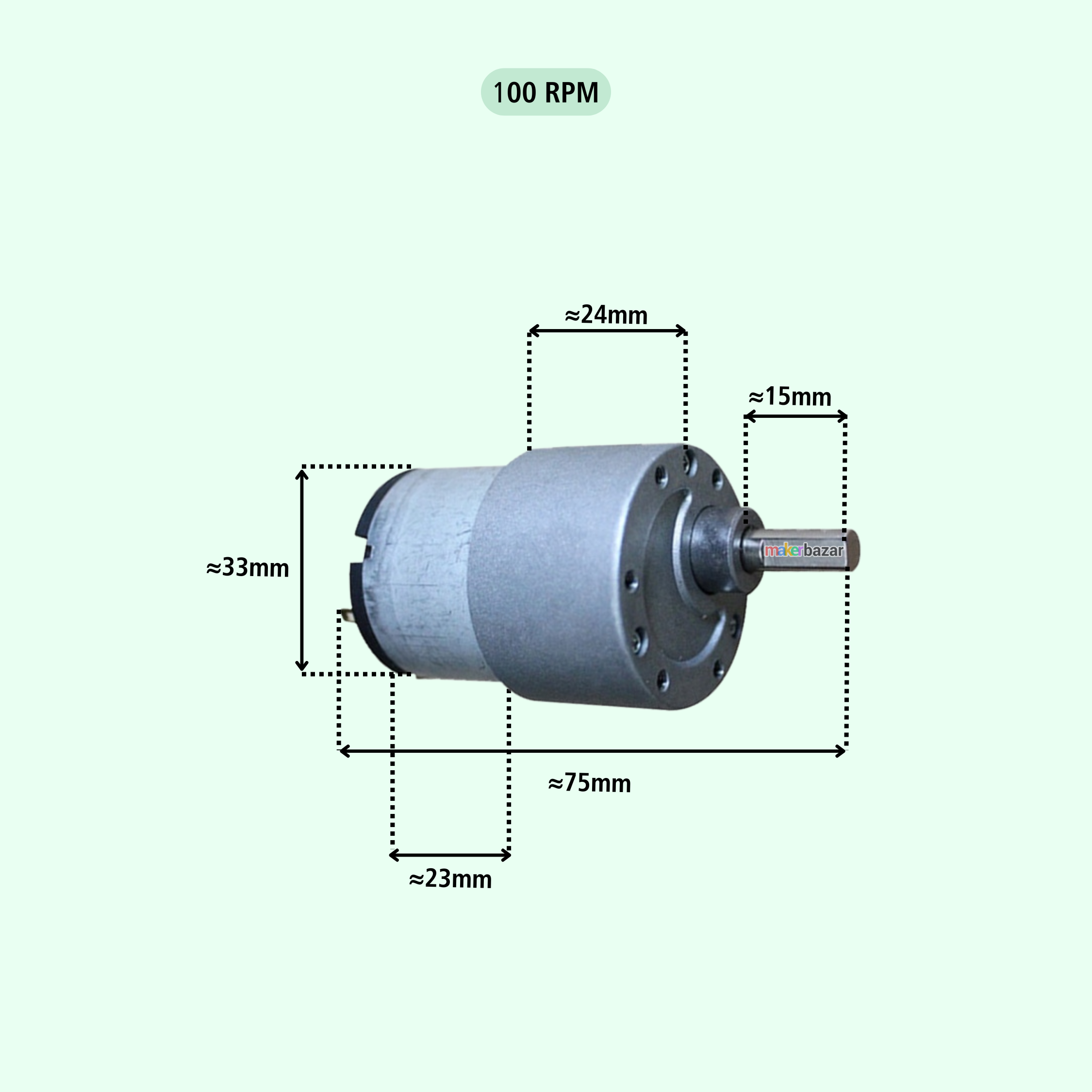

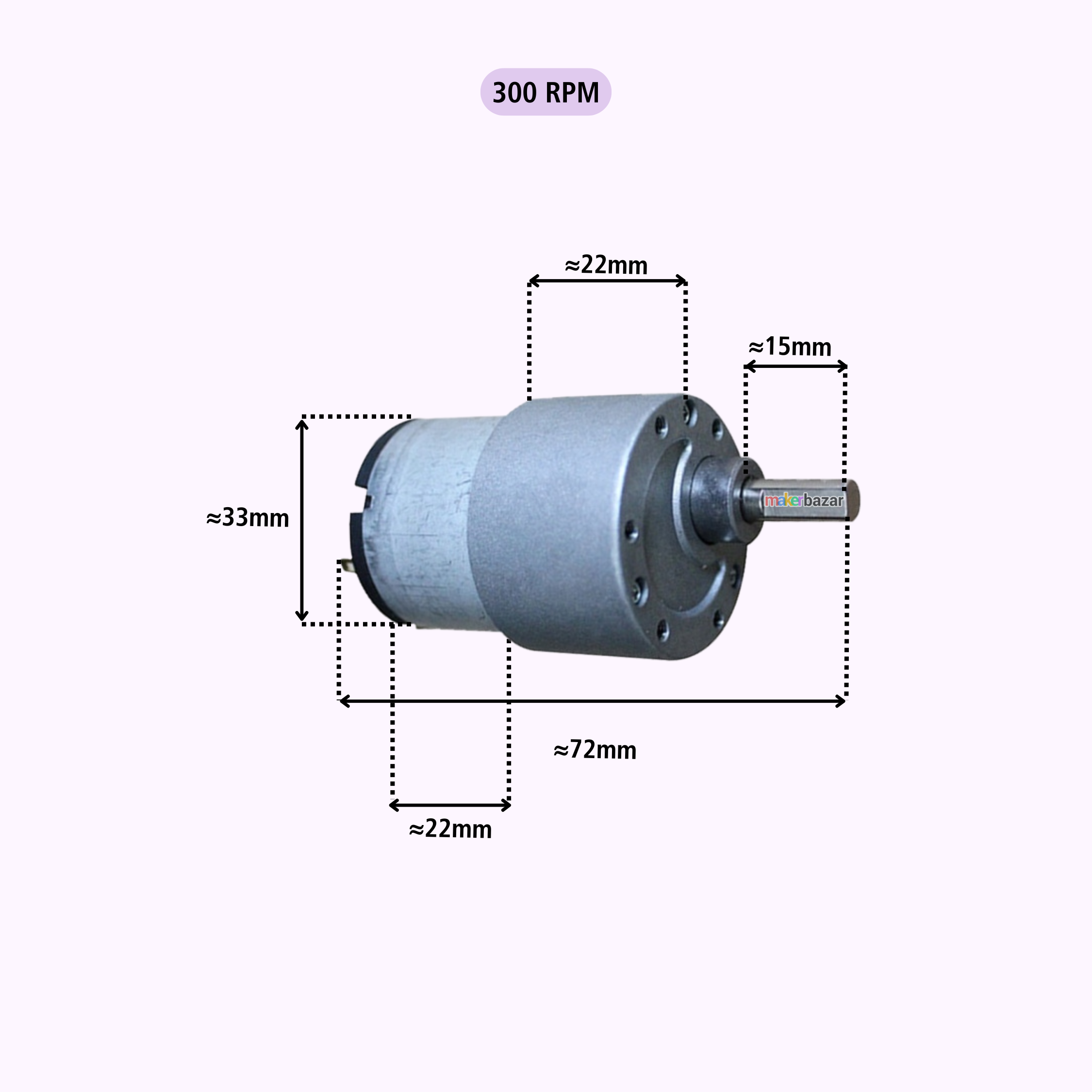

| Gearbox Length (L) | 22 | 24 | mm |

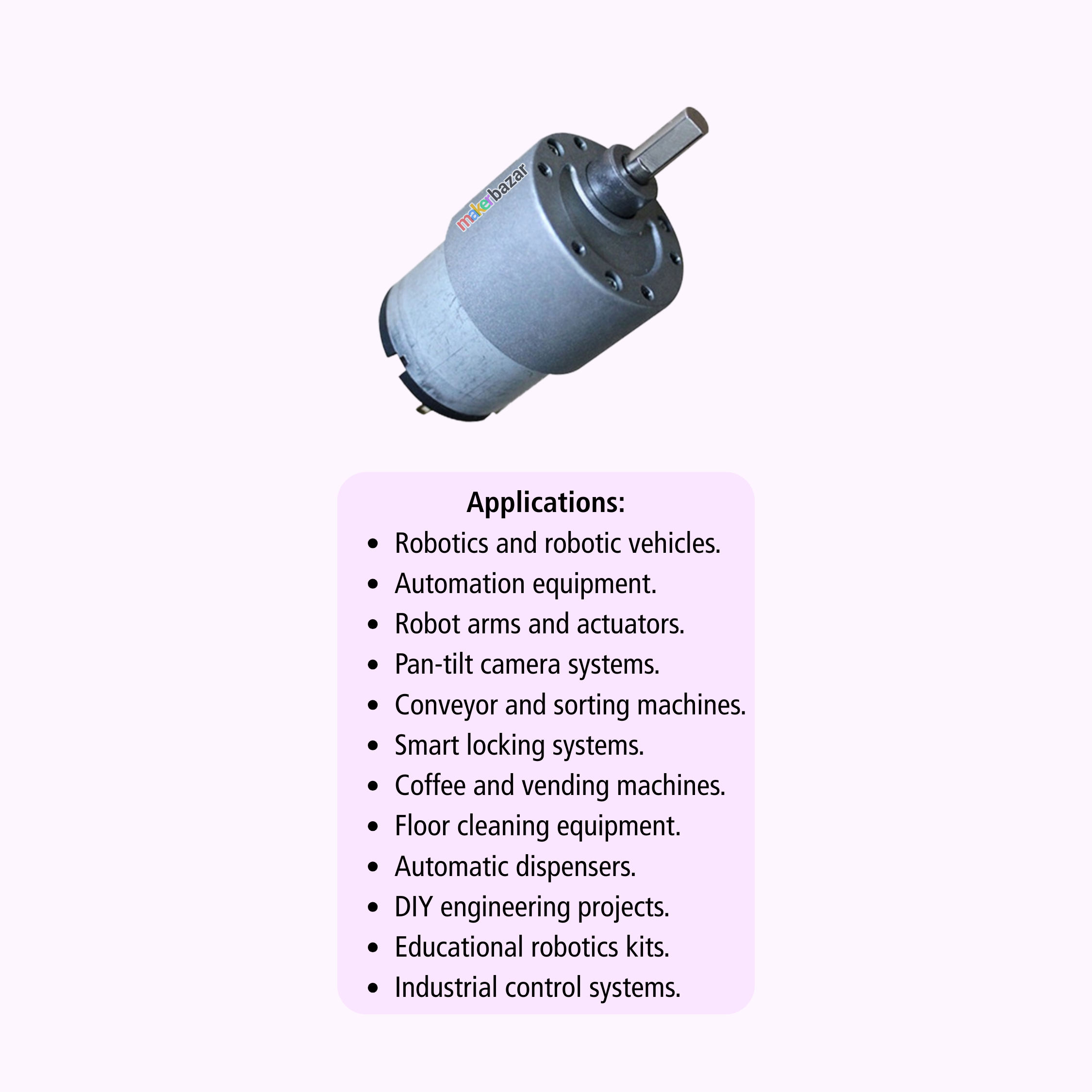

Applications
- Robotics and robotic vehicles.
- Automation equipment.
- Robot arms and actuators.
- Pan-tilt camera systems.
- Conveyor and sorting machines.
- Smart locking systems.
- Coffee and vending machines.
- Floor cleaning equipment.
- Automatic dispensers.
- DIY engineering projects.
- Educational robotics kits.
- Industrial control systems.
Precautions
- Operate only within the recommended voltage range.
- Avoid prolonged stall conditions to prevent motor damage.
- Ensure proper mounting to minimise vibration.
- Do not overload the output shaft beyond rated torque.
- Keep away from moisture and corrosive environments.
- Verify polarity before connecting the power supply.
- Use a suitable motor driver or controller for best performance.
