Description

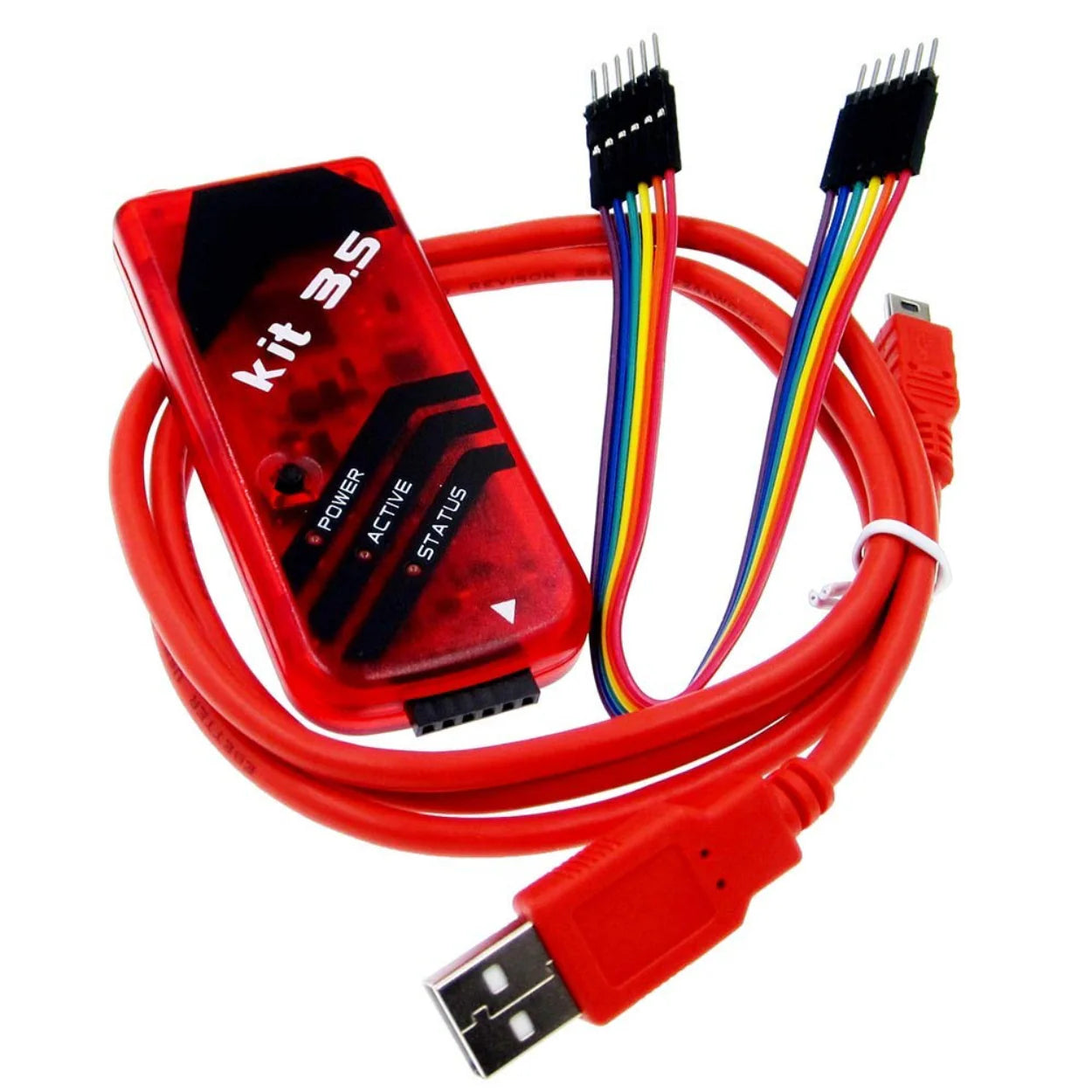

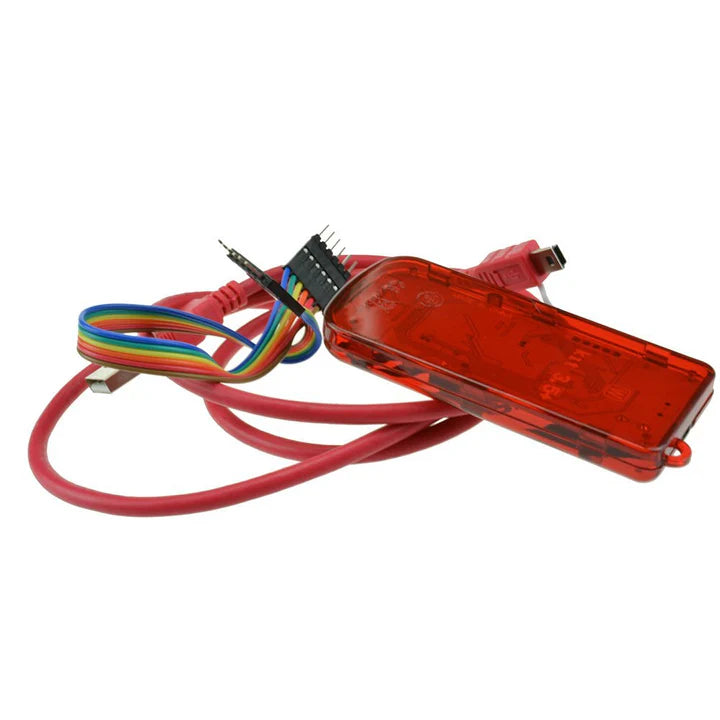

PICKIT3.5 KIT3.5 Programer Simulator without Microchip Logo
The KIT3.5 USB Debugger Programmer Emulator Development Board is a PIC microcontroller programming and debugging tool compatible with PIC and dsPIC Flash microcontrollers. It supports in-circuit programming (ICSP) and debugging using MPLAB X IDE, making it suitable for firmware development, embedded system prototyping, testing, and educational projects. The tool connects to a computer via USB and interfaces with the target board through the ICSP header. It includes status LEDs and jumper wires for quick development setup.
Key Features
- Compatible with PIC and dsPIC Flash microcontrollers
- Supports in-circuit programming (ICSP)
- USB interface for PC connectivity
- Compatible with MPLAB X IDE
- Read, write, erase and verify device memory
- Supports firmware debugging during development
- Status LEDs for Power, Active and Status indication
- Compact portable design
- Includes USB cable and Dupont jumper wires
- Suitable for embedded system development and education
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | USB PIC Programmer & Debugger |
| Model | KIT3.5 |
| Interface | USB |
| Programming Method | ICSP (In-Circuit Serial Programming) |
| Supported Devices | PIC & dsPIC Flash Microcontrollers |
| Software Compatibility | MPLAB X IDE |
| Status Indicators | Power, Active, Status LEDs |
| Debugging | Real-Time Debugging Supported |
| Operating Voltage | Approximately 2V–6V Target Support* |
| Cable Included | USB Cable |
| Accessories | Dupont Jumper Wire Set |
