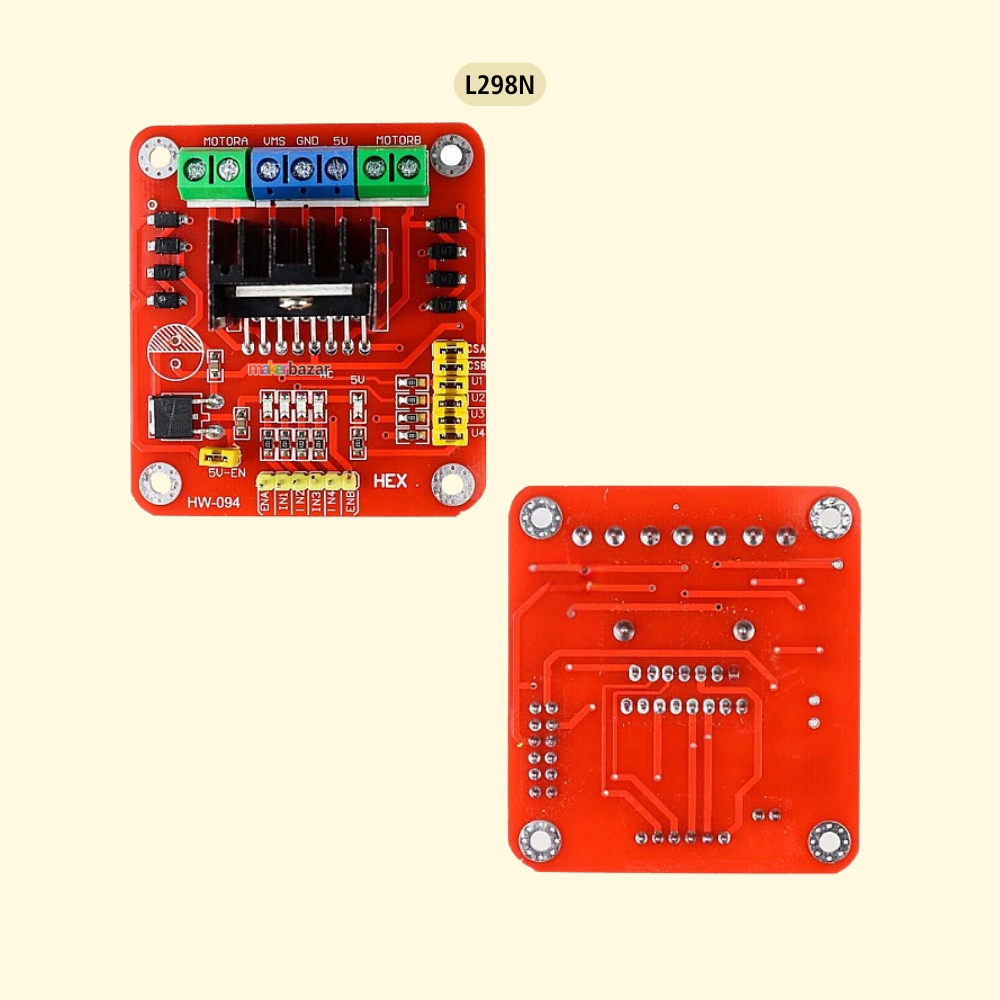

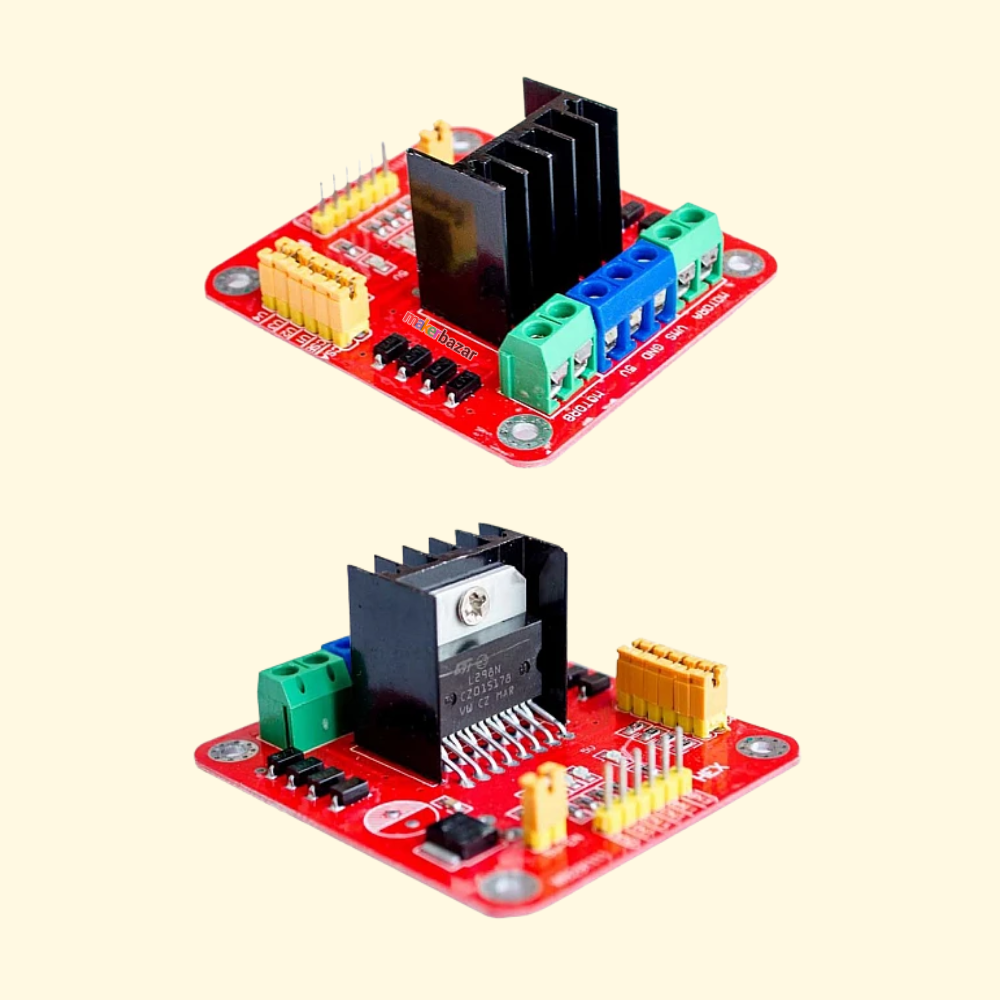

L298N Dual H-Bridge 2A DC Stepper Motor Driver Controller Module
The L298N Dual H-Bridge Motor Driver Module is a versatile motor-control board designed for controlling DC motors and stepper motors in robotics, automation, and DIY electronics projects. Based on the popular L298N dual H-bridge driver IC, the module provides two motor-control channels and can handle motor supply voltages from 5V to 35V DC. It supports up to 2A per channel, making it suitable for a wide range of small and medium motor-control applications. The module can be controlled using Arduino, Raspberry Pi, microcontrollers, switches, relays, and other compatible control systems. Direction and speed can be controlled through the module's input pins, making it useful for robotic vehicles, mechanisms, and mechatronics projects. An integrated heatsink helps dissipate heat during operation. The board also includes useful features such as power indication, current sensing, direction control, and onboard logic-power connectivity.
Key Features
- L298N Dual H-Bridge: Controls two DC motors or a stepper motor.
- Wide Motor Supply: Supports approximately 5–35V DC motor supply.
- 2A Per Channel: Designed for up to 2A per motor channel.
- PWM Speed Control: Supports speed control through PWM-compatible inputs.
- Forward & Reverse Control: Allows bidirectional DC motor operation.
- Built-In Heatsink: Helps dissipate heat during motor operation.
- Current Sensing: Provides current-sensing functionality for motor channels.
- Power Indicator: Onboard LED indicates power status.
- Microcontroller Compatible: Suitable for Arduino, Raspberry Pi, and other controllers.
- Stepper Motor Support: Can be used to drive compatible stepper motors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Driver IC | L298N |
| Driver Type | Dual H-Bridge |
| Motor Type | DC Motor / Stepper Motor |
| Motor Supply Voltage | 5–35V DC |
| Logic Voltage | 4.5–5.5V |
| Logic Current | 0–36mA |
| Maximum Current | 2A per Channel |
| Maximum Power | 20W |
| Operating Temperature | -25°C to 130°C |
| Channels | 2 |
| Speed Control | PWM |
| Direction Control | Yes |
| Current Sensing | Yes |
| Power Indicator | Yes |
| Heatsink | Included |

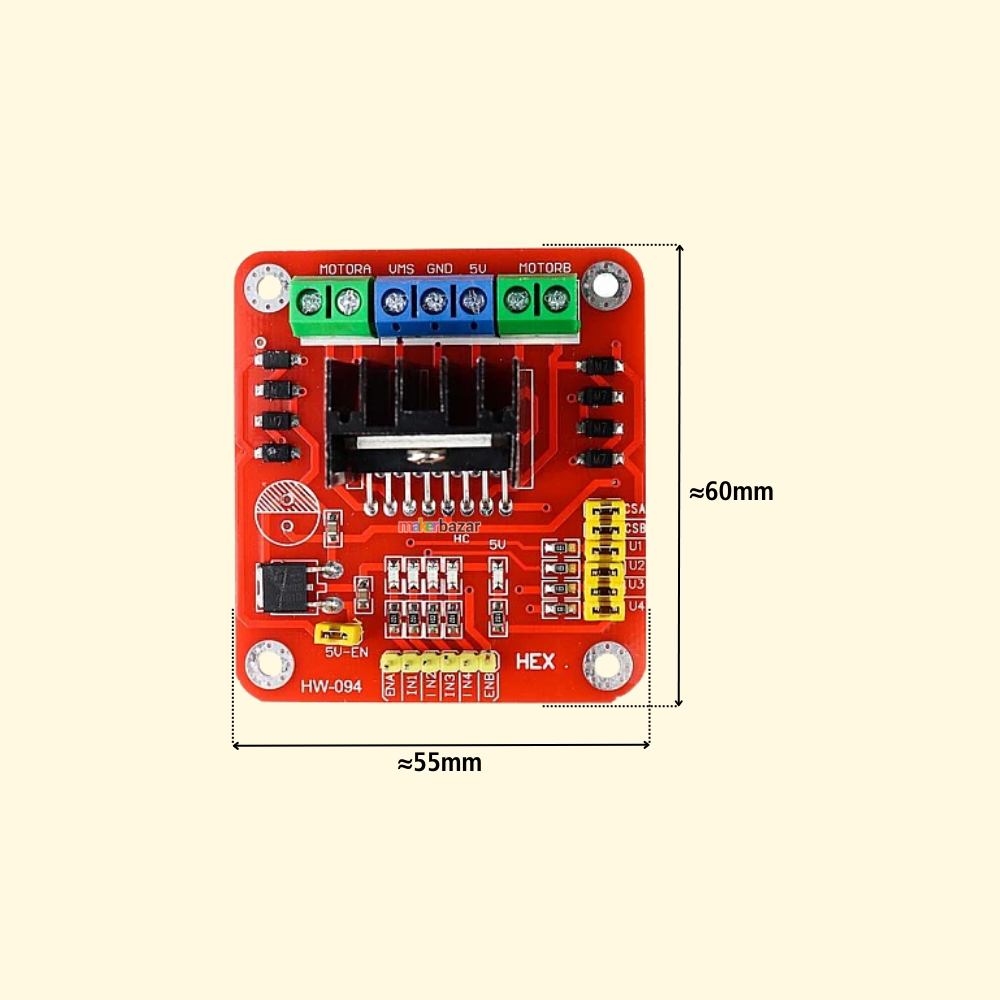

| Length | 60mm |
| Width | 55mm |
| Height | 27mm |
Applications
- Arduino robotics projects
- Raspberry Pi motor control
- DIY robotic cars
- Two-wheel robots
- Four-wheel robotic vehicles
- DC motor control
- Stepper motor control
- Conveyor mechanisms
- Automated mechanisms
- Mechatronics projects
- Motorized toys
- DIY automation
- Electronic prototypes
- CNC and positioning projects
- Educational robotics
- IoT motor-control projects
Precautions
- Do not exceed the specified 35V DC motor supply voltage.
- Do not exceed the recommended current capability of the driver.
- Use an appropriate power supply for the connected motor.
- The L298N can generate significant heat under higher loads; ensure adequate ventilation.
- Use the heatsink properly and avoid touching it during operation.
- Check motor wiring carefully before powering the module.
- Do not short the motor output terminals.
- Connect the logic/control supply according to the module's pin configuration.
- Use a common ground between the controller and driver where required.
- Disconnect power before changing motor wiring.
- Do not operate a motor above its rated voltage or current.
