Driving Motors Made Easy with the L298P Motor Driver Shield

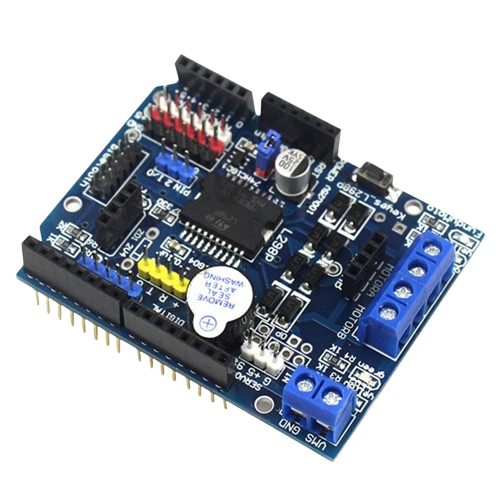

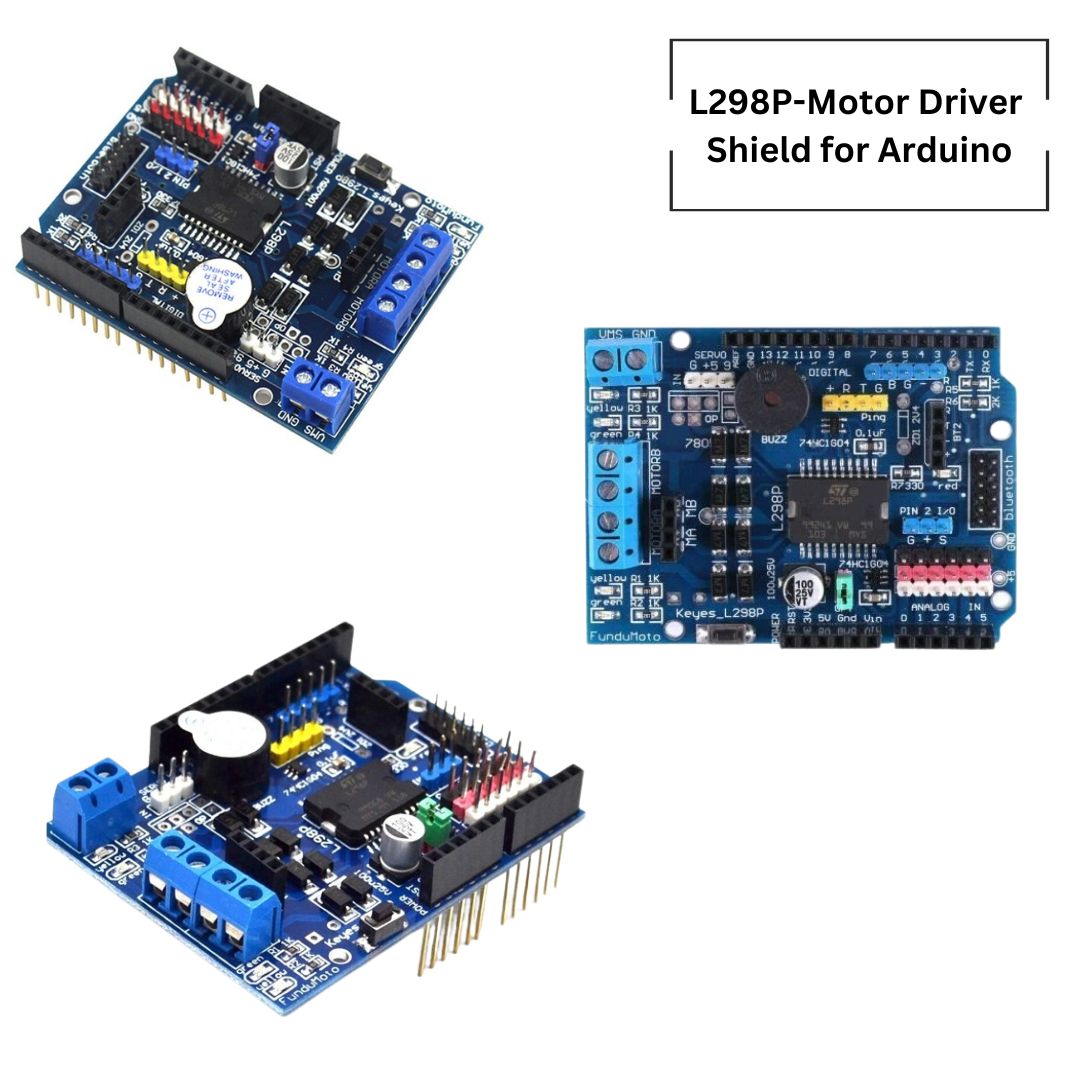

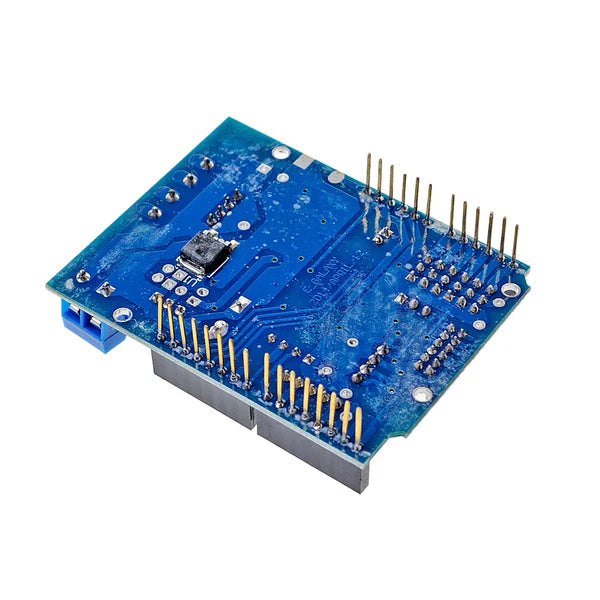

The Arduino Motor Shield is built around the L298P Power Motor Driver IC, offering a full-bridge motor driving capability. It can effectively operate two individual 2A DC motors or a single 2A stepper motor. With separate control over motor speed and direction, it offers versatility in motor control applications. Additionally, there are 6 connectors linked to Arduino analog pins, facilitating swift prototyping.

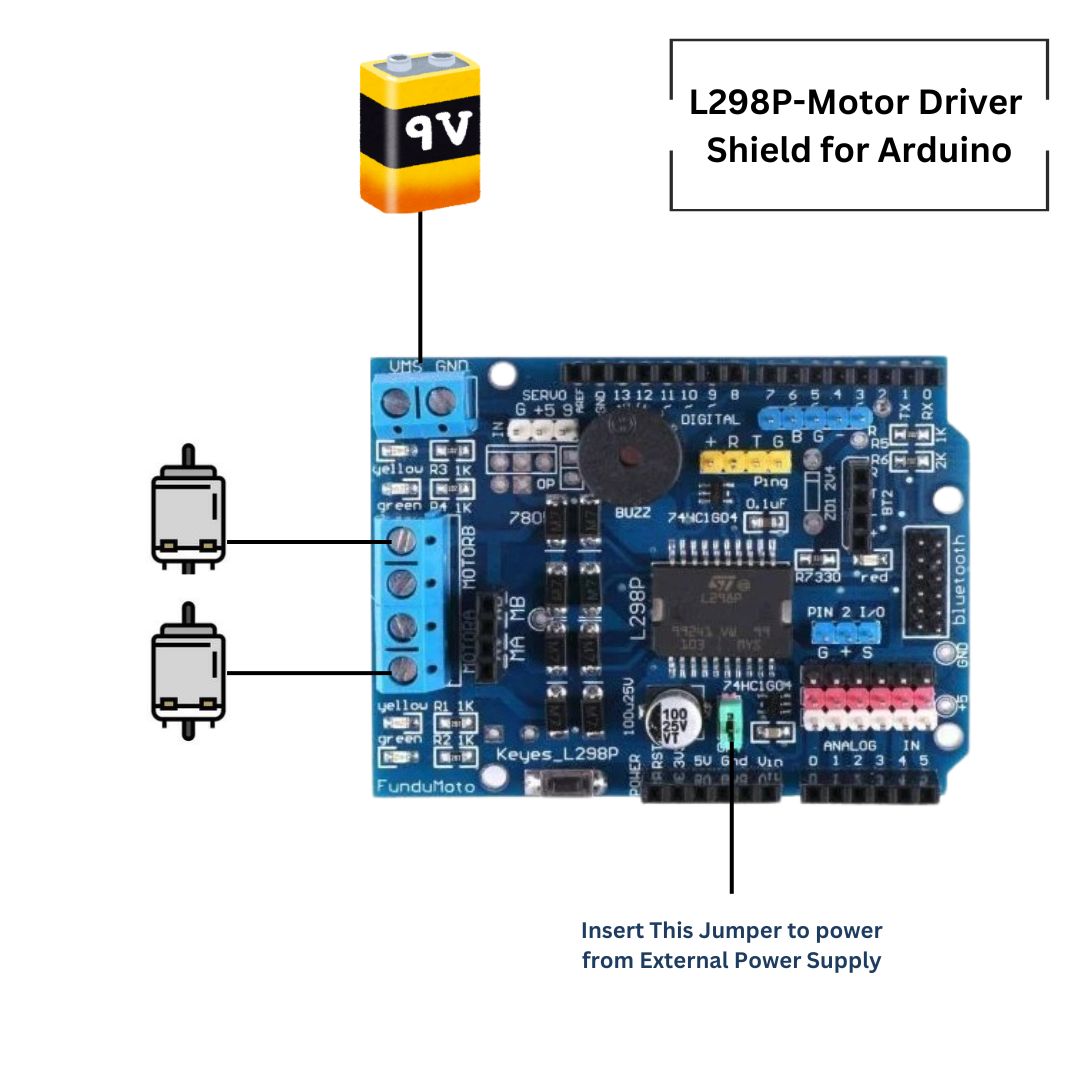

For audible warning needs, an onboard buzzer can be activated as necessary. While the motor shield can draw power directly from the Arduino, it's advisable to utilize an external power source for optimal performance. External power supply usage is strongly recommended for powering the motor shield.
Technical Specifications:
- Logical input voltage (VD): 5V
- Drive input voltage: VIN 6.5 - 12V, PWR IN 4.8 - 24V
- Logical working current (Iss): ≤ 36mA
- Drive working current (Io): ≤ 2A
- Maximum power dissipation: 25W (T= 75°C)
- Size: 68.5mm53mm12mm (LWH)

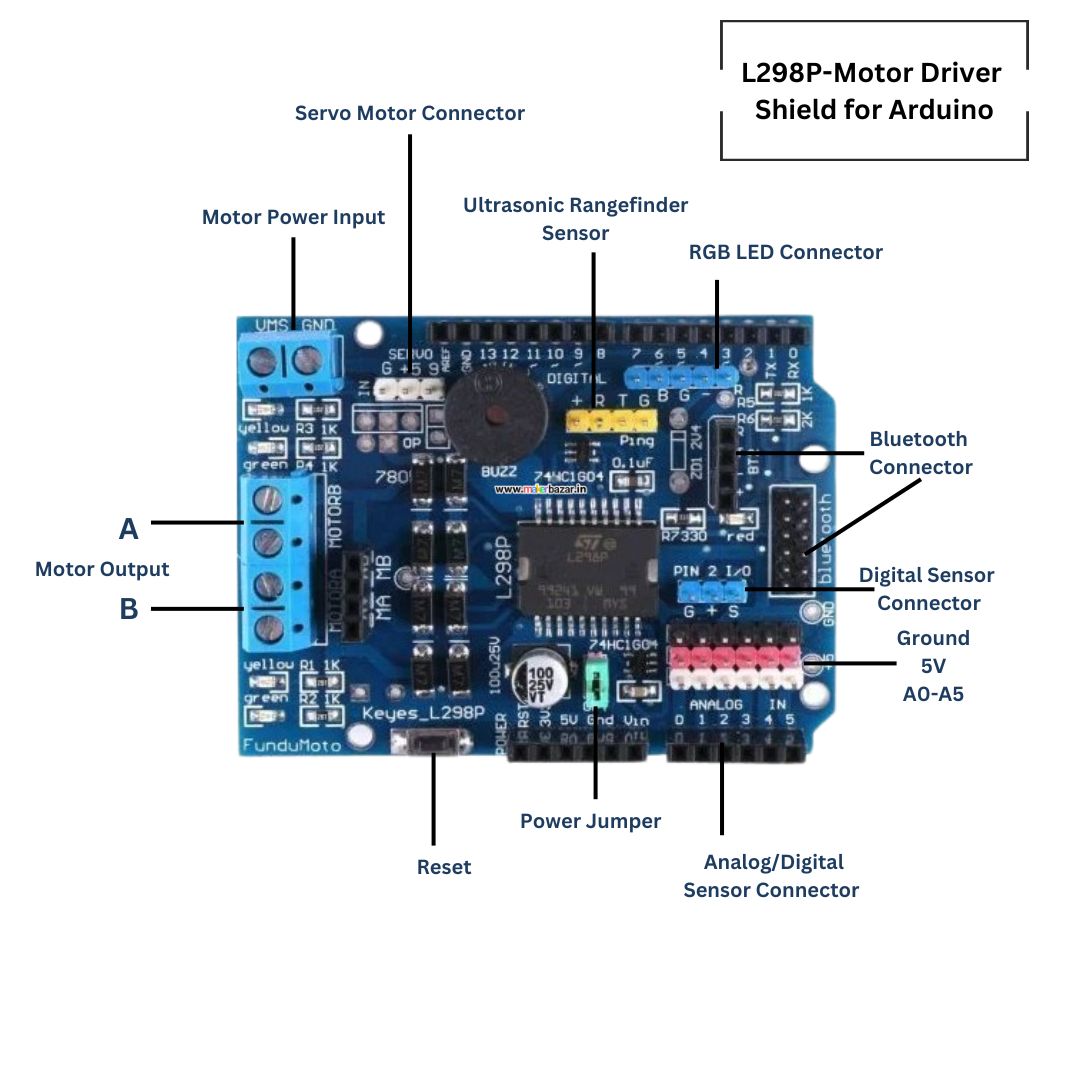

Features:
- Simultaneous control of two DC motors with voltage range of 4.8V to 24V and up to 2A current.
- Schottky diodes are included for protection against reverse motor voltage.
- Dedicated voltage regulator for driving a servo motor.
- Integrated buzzer for sound output.
- Bluetooth connectivity options.
- 6 digital and analog pins with 5V and GND connections for easy interfacing.
- Dedicated pins for connecting an ultrasonic sensor.
