Description
Arduino Line Following Robot DIY Project with IR Sensors
The Line Following Robot DIY Project Kit is an educational and hands-on robotics kit designed to demonstrate automation, sensor integration, and basic control algorithms. Using IR (Infrared) sensors, the robot detects and follows a contrasting line path, such as a black line on a white surface.
This project is built around a pre-programmed Arduino microcontroller and is available in Acrylic Body and MDF Body options. It is widely used in schools, colleges, workshops, and STEM/STEAM learning environments to teach robotics fundamentals, motor control, and sensor-based navigation.
The kit offers an engaging learning experience while providing a solid foundation in Arduino programming and robotics system design.
Key Features
-
Educational Arduino-based line following robot project
-
Uses IR sensors for accurate line detection
-
Available in Acrylic body and MDF laser-cut chassis
-
Pre-programmed Arduino board included
-
Smooth motor control using L298N motor driver
-
Beginner-friendly and easy to assemble
-
Ideal for STEM education and robotics learning
-
MDF body can be easily painted or customized
Technical Specifications
| Parameter | Specification |
|---|---|
| Robot Type | Line Following Robot |
| Control Platform | Arduino (Pre-programmed) |
| Sensor Type | IR Sensors for line detection |
| Body Options | Acrylic Body or MDF Body |
| MDF Thickness | 2.5 mm Premium MDF Sheet |
| Drive System | 2-wheel drive |
| Motor Driver | L298N Dual H-Bridge |
| Power Source | Li-Ion batteries |
| Assembly Type | DIY Kit |
| Customization | MDF body paintable |

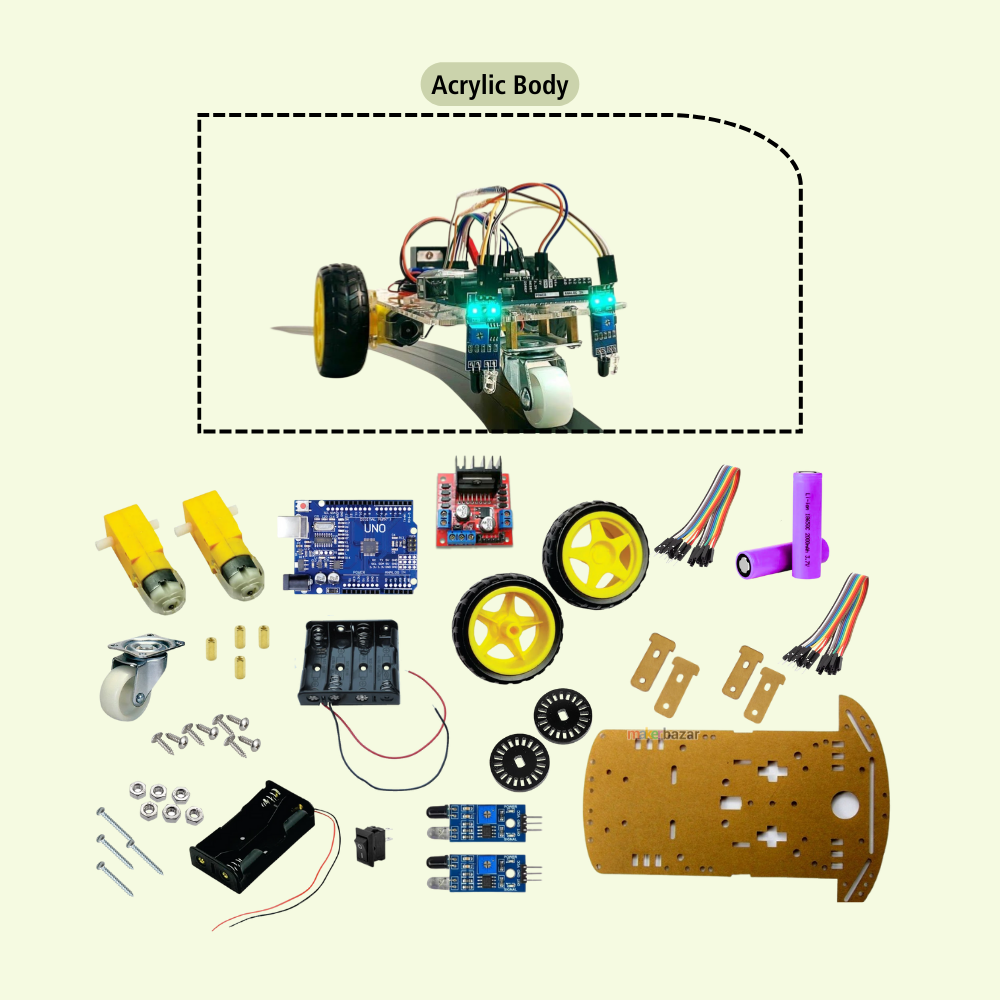

Kit Contents
- Pre-programmed Arduino board
- 2-wheel smart robot chassis (Acrylic or MDF)
- IR sensors for line detection
- Li-Ion batteries
- Battery holders(AA/18650)
- L298N motor driver module
- Jumper cables
- Wheels
- Chassis
- Caster
- Nuts& Bolt
- Spacers

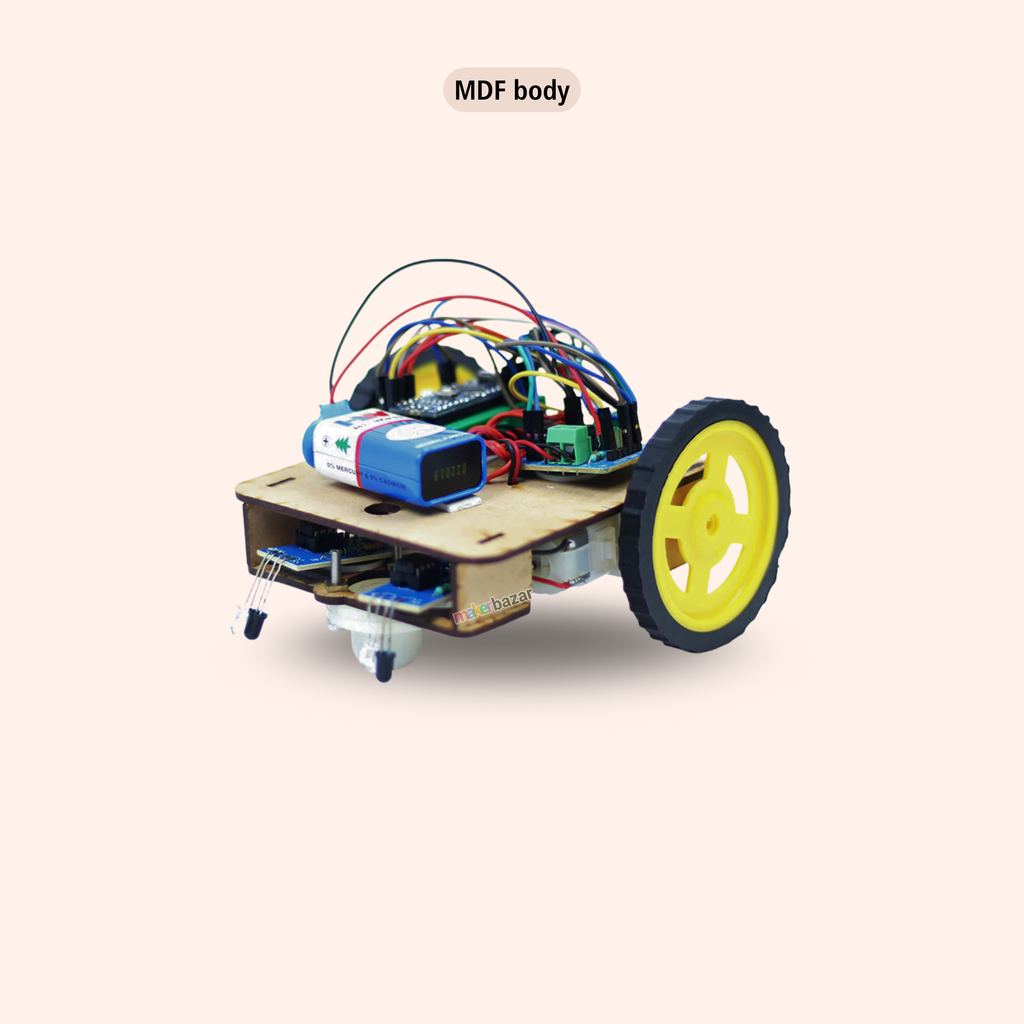

MDF Body Package Option
-
Laser-cut MDF Line Following Robot casing only
-
Material: Premium 2.5mm MDF sheet
-
Easily paintable and customizable
-
Resource files available for download
Applications
-
Robotics and automation learning
-
School and college engineering projects
-
STEM education programs
-
Arduino programming practice
-
Robotics competitions and demonstrations
-
DIY electronics and robotics workshops
Precautions
-
Ensure correct polarity when connecting batteries
-
Calibrate IR sensors before use for best accuracy
-
Avoid moisture and dusty environments
-
Handle acrylic and MDF parts carefully during assembly
-
Adult supervision recommended for beginners
