LM2596 DC-DC Converter Step-Down Module (Adjustable Buck) – LM2596 / LM2596S / LM2596LED / LM2596HVS
The LM2596 DC-DC Buck Converter Module is a highly efficient, easy-to-use step-down voltage regulator that converts a higher DC voltage into a stable lower DC output. Designed with the popular LM2596 regulator IC, these modules are widely used in Arduino, Raspberry Pi, robotics, LED drivers, battery chargers, and power supply projects.

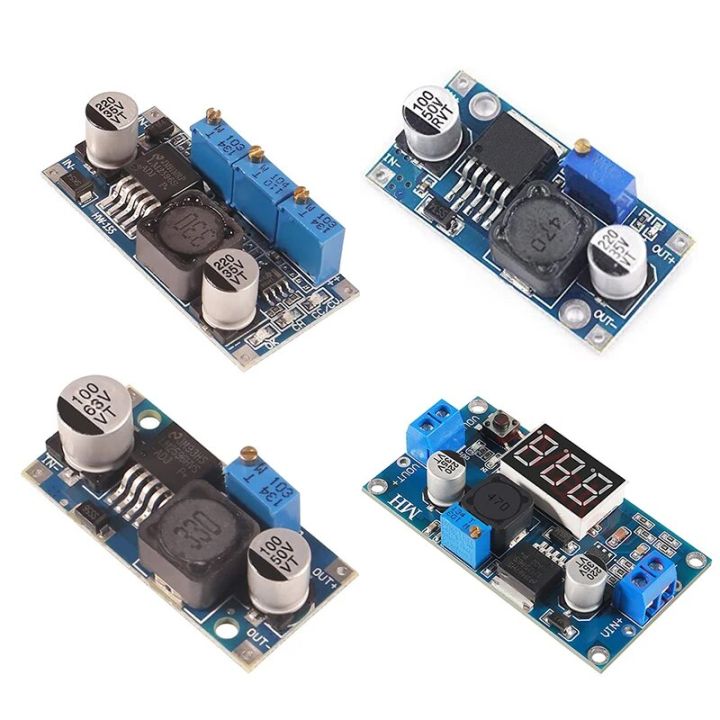

Available in multiple variants:
-

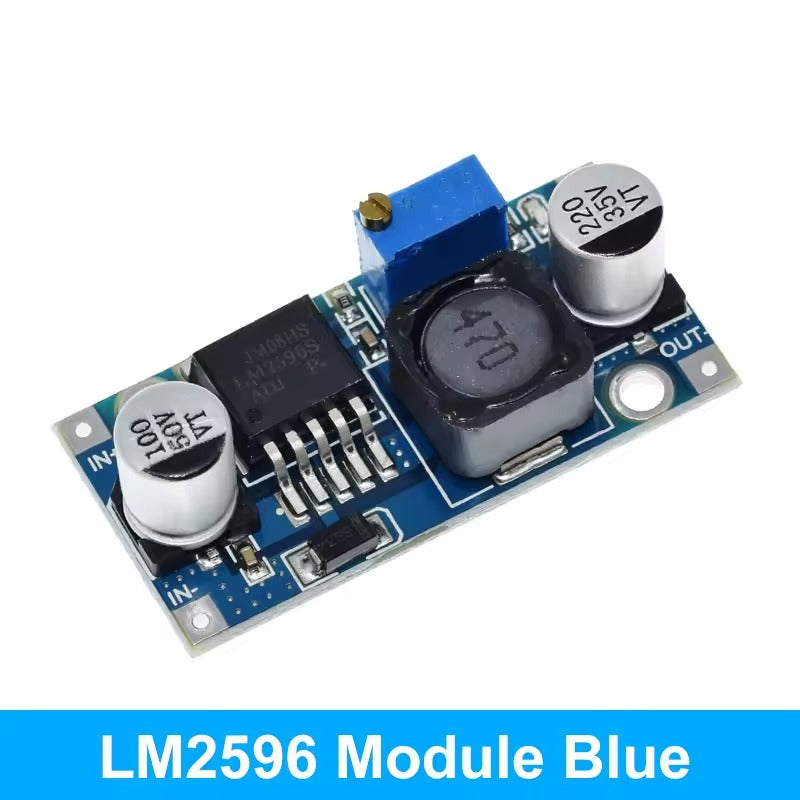

LM2596 Standard – Adjustable buck converter (input up to 40V).
-

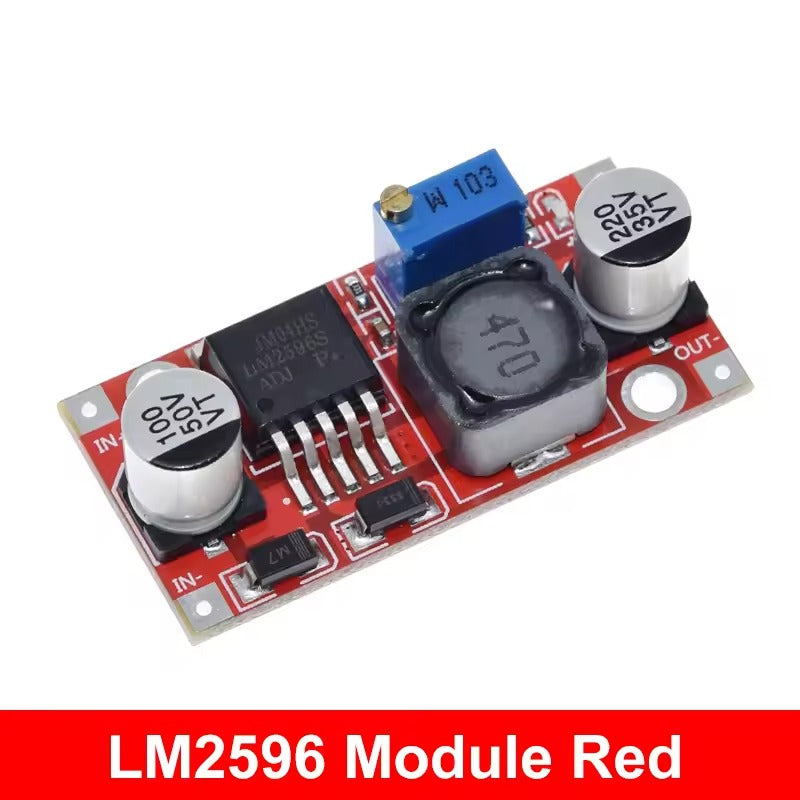

LM2596S – Surface-mount version with compact design.
-

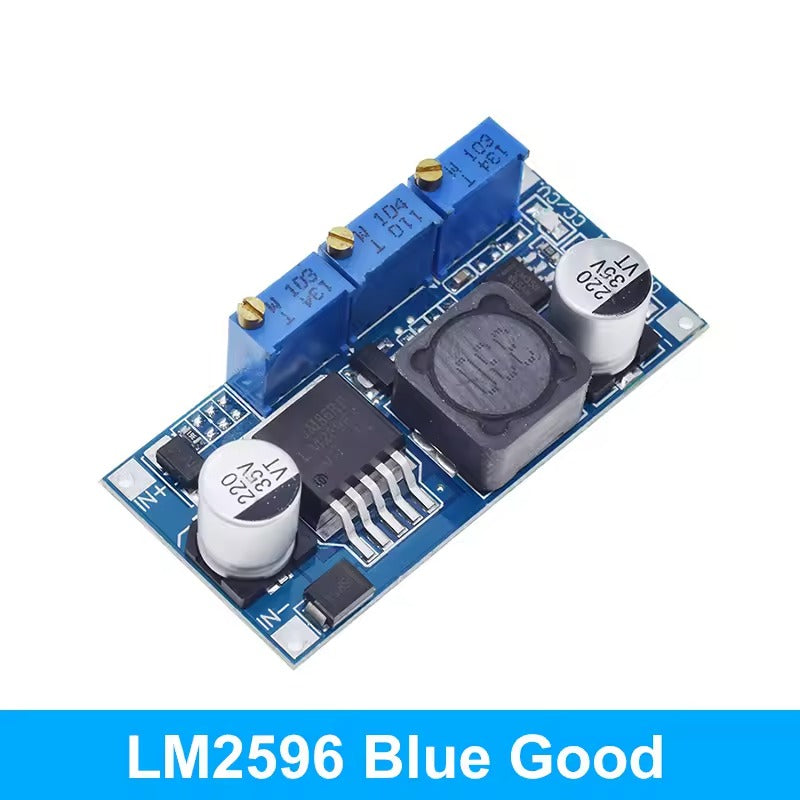

LM2596 LED – Specially designed as an LED driver with constant current capability.
-

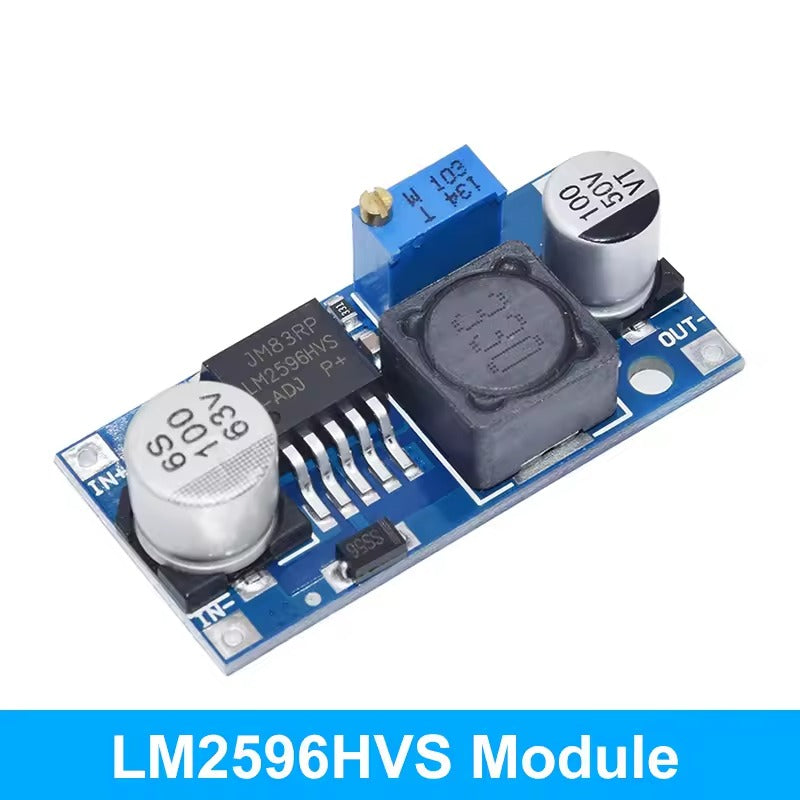

LM2596HVS – High-voltage input version (up to 60V).
These modules are cost-effective, reliable, and essential for any electronics toolkit.
Key Features
-
Based on LM2596 DC-DC buck regulator IC
-
Adjustable output voltage using onboard potentiometer
-
High efficiency (up to 92%)
-
Wide input voltage range (varies by variant)
-
Compact, easy-to-use PCB module
-
Overheating and short-circuit protection (depending on module design)
-
Ideal for Arduino, Raspberry Pi, IoT, robotics, battery charging, LED driving
Technical Specifications (Comparison Table)
| Variant | Input Voltage Range | Output Voltage | Max Current | Special Feature |
|---|---|---|---|---|
| LM2596 (Standard) | 4.5V – 40V DC | 1.25V – 37V DC | 2A (up to 3A peak with heatsink) | General purpose buck converter |
| LM2596S | 4.5V – 40V DC | 1.25V – 37V DC | 2A (3A peak) | Compact surface-mount version |
| LM2596 LED | 4.5V – 40V DC | Constant current + constant voltage | 2A (3A peak) | Designed as LED driver |
| LM2596HVS | 4.5V – 60V DC | 1.25V – 57V DC | 2A (3A peak) | High-voltage input support |
Applications
-
Power supply for Arduino, ESP32, STM32, Raspberry Pi
-
LED drivers (LM2596 LED version)
-
Battery chargers (Li-ion, SLA, NiMH)
-
Robotics & embedded systems
-
DIY power banks & solar projects
-
General DC voltage regulation
