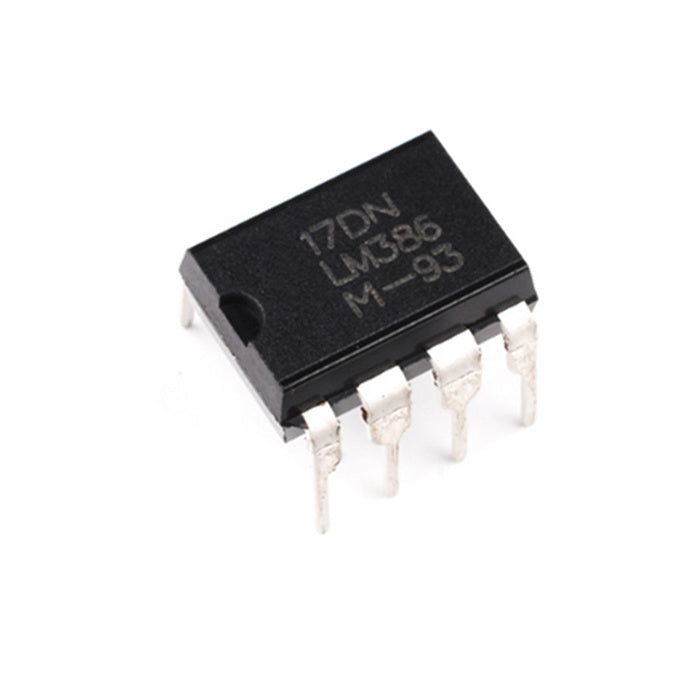

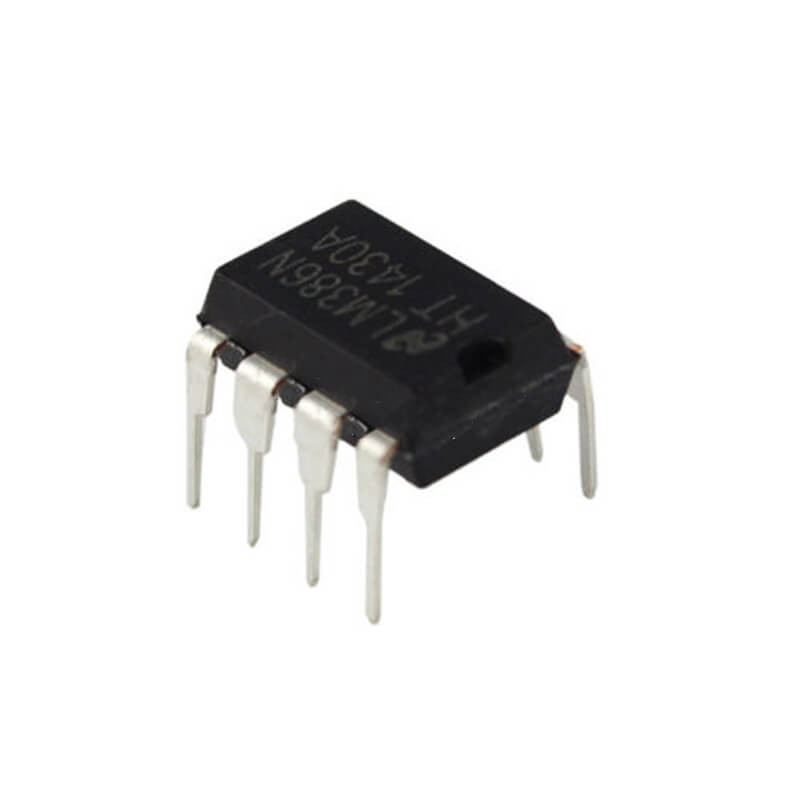

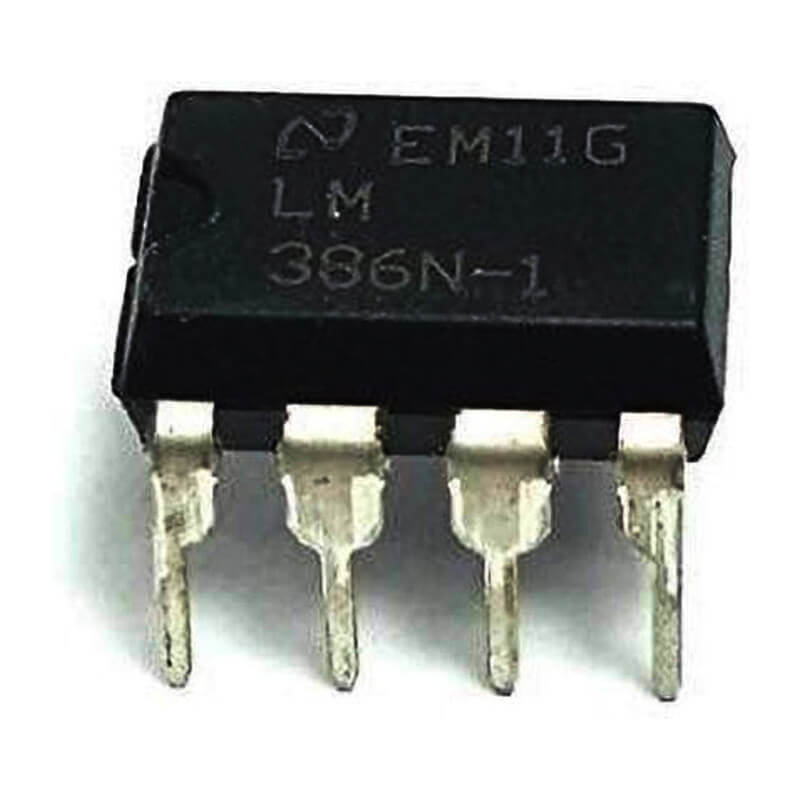

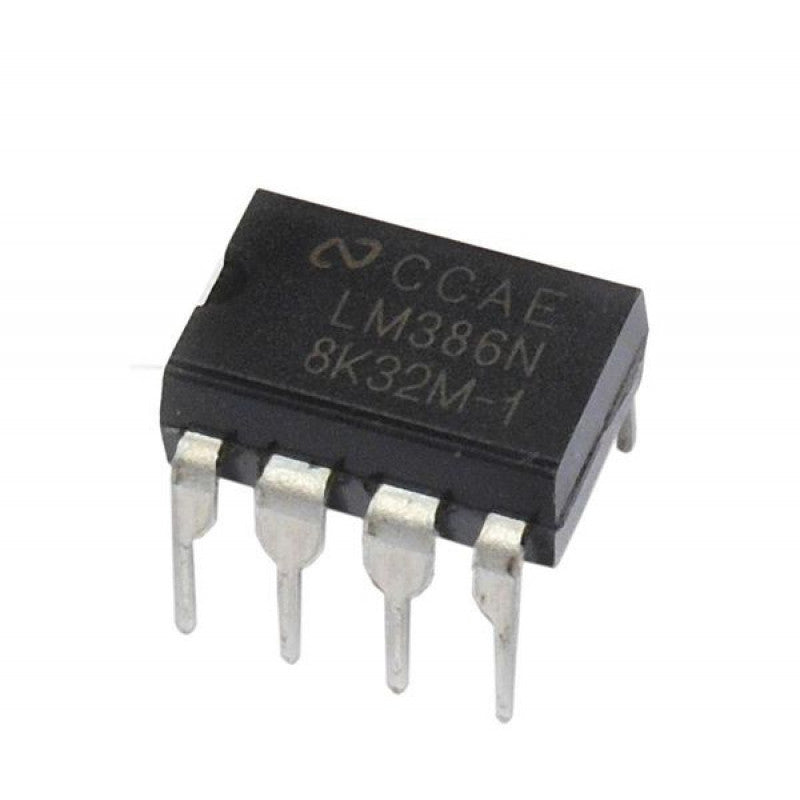

LM386 Low Voltage Audio Amplifier IC Integrated Circuit

SKU: 49305
No reviews

Price:
Sale price₹ 15.00
( ₹ 12.71 without 18% GST.)

Tax included Shipping calculated at checkout

Description

LM386 Low Voltage Audio Amplifier IC Integrated Circuit

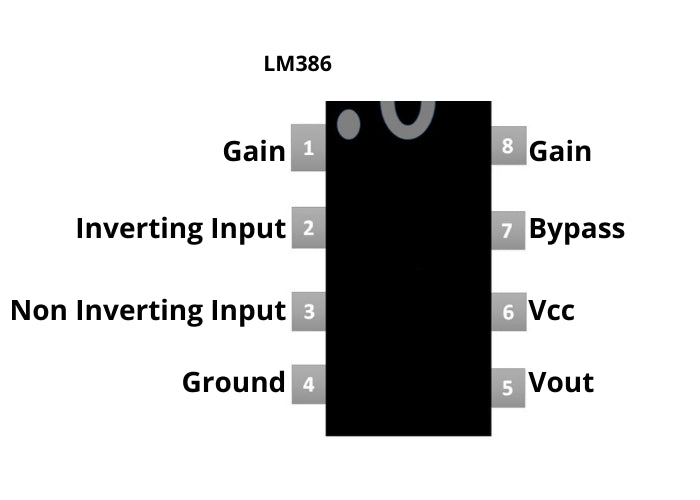

The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep the external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.

The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386 ideal for battery operation.

Features:-

  • Battery Operation
  • Minimum External Parts
  • Wide Supply Voltage Range: 4 V–12 V or 5 V–18 V
  • Low Quiescent Current Drain: 4 mA
  • Voltage Gains from 20 to 200
  • Ground-Referenced Input
  • Self-Centering Output Quiescent Voltage
  • Low Distortion: 0.2% (AV = 20, VS = 6 V, RL = 8 Ω, PO = 125 mW, f = 1 kHz)
  • Available in 8-Pin MSOP Package

Specifications:-

Parameter Specification
Part number LM386
Audio input type Analog Input
Architecture Class-AB
Speaker channels (Max) Mono
Power stage supply (Min) (V) 4
Power stage supply (Max) (V) 18
Output power (W) 0.325
Load (Min)(ohms) 4
THD + N @ 1 kHz (%) 0.2
Iq (Typ) (mA) 4
Control interface Hardware
Closed/open loop Closed
Analog supply (Min) (V) 4
Analog supply (Max )(V) 18
PSRR (dB) 50
Operating temperature range (C) 0 to 70
Rating See Data Sheet



Application

  • TV sound system
  • Radio amplifier and booster
  • Used in a speaker of portable devices
  • Ultrasonic, small servo, and line drivers
  • Intercoms
  • Power converters

Package Contains

  • 1 x LM386 Audio Amplifier IC
