Description
LM324 & LM358 Operational Amplifiers | DIP/SMD Variants Available
Low-Power Operational Amplifier ICs (Op-Amps) are high-performance, energy-efficient analog components designed for signal conditioning, filtering, or other amplification tasks where battery life and low energy consumption are critical. These Op-Amps maintain excellent accuracy and stability while consuming very little current, making them ideal for portable, battery-operated devices, medical instruments, sensor interfaces, and wireless systems.
Specifications:
-
Type: Low-Power Operational Amplifier (Op-Amp IC)
-
Operating Voltage: 1.8V to 5.5V (typical, varies by model)
-
Supply Current: < 1 mA (often in microamperes for ultra-low power versions)
-
Input Offset Voltage: Typically low (e.g., < 5 mV)
-
Gain Bandwidth Product: 100 kHz to several MHz (depending on model)
-
Slew Rate: Low, optimized for low-power operation
-
Input Impedance: High (>10⁶ Ohms)
-
Output Drive: Rail-to-rail output (in many versions)
-
Packaging: Available in SOT-23, SOIC, DIP, and other compact packages
-
Temperature Range: -40°C to +125°C (industrial grade)
-
Applications:
-
Portable electronics
-
Medical devices (e.g., heart rate monitors)
-
Battery-powered sensors
-
Signal conditioning
-
IoT devices and wireless communication
-
| Op-Amp IC | Quiescent Current | Supply Voltage Range | Notable Features | Typical Uses |
|---|

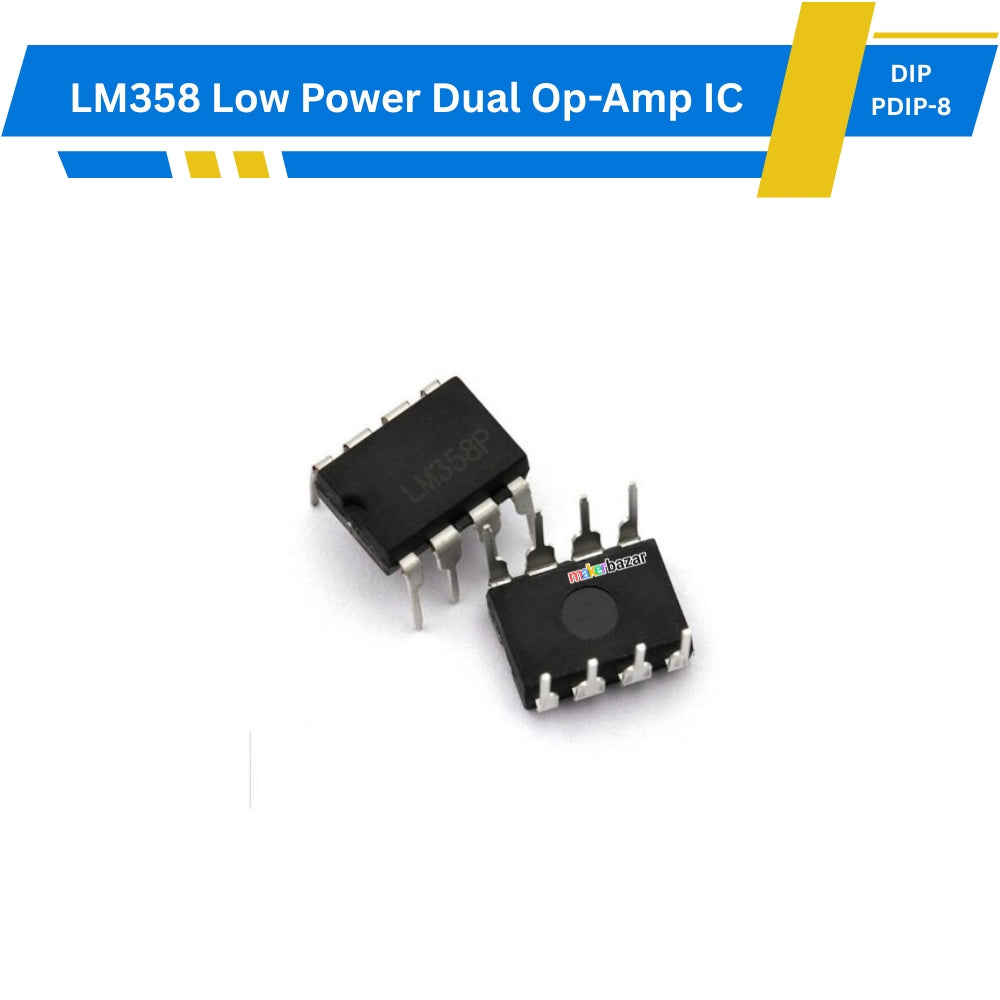

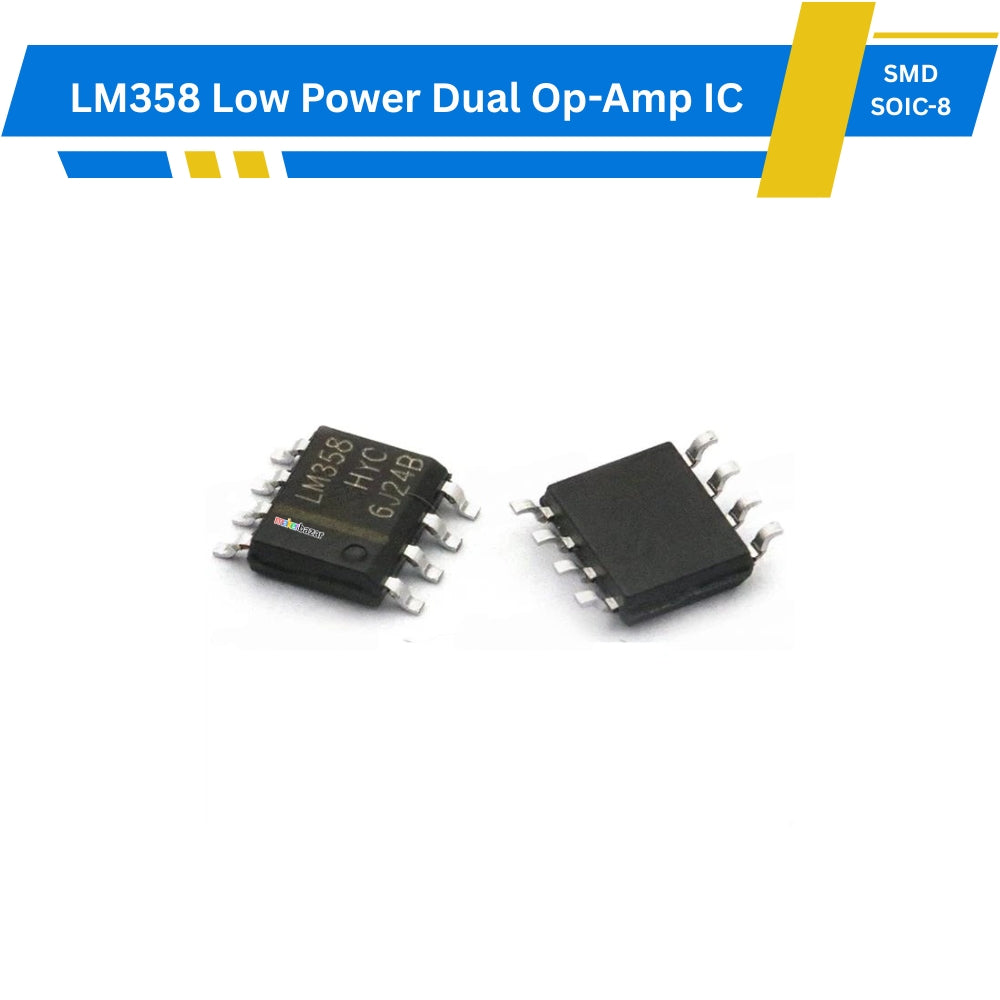

| LM358 | ~500 µA per amplifier | 3V–32V | Good low-power classic, single-supply capable | General purpose, sensor interfaces |

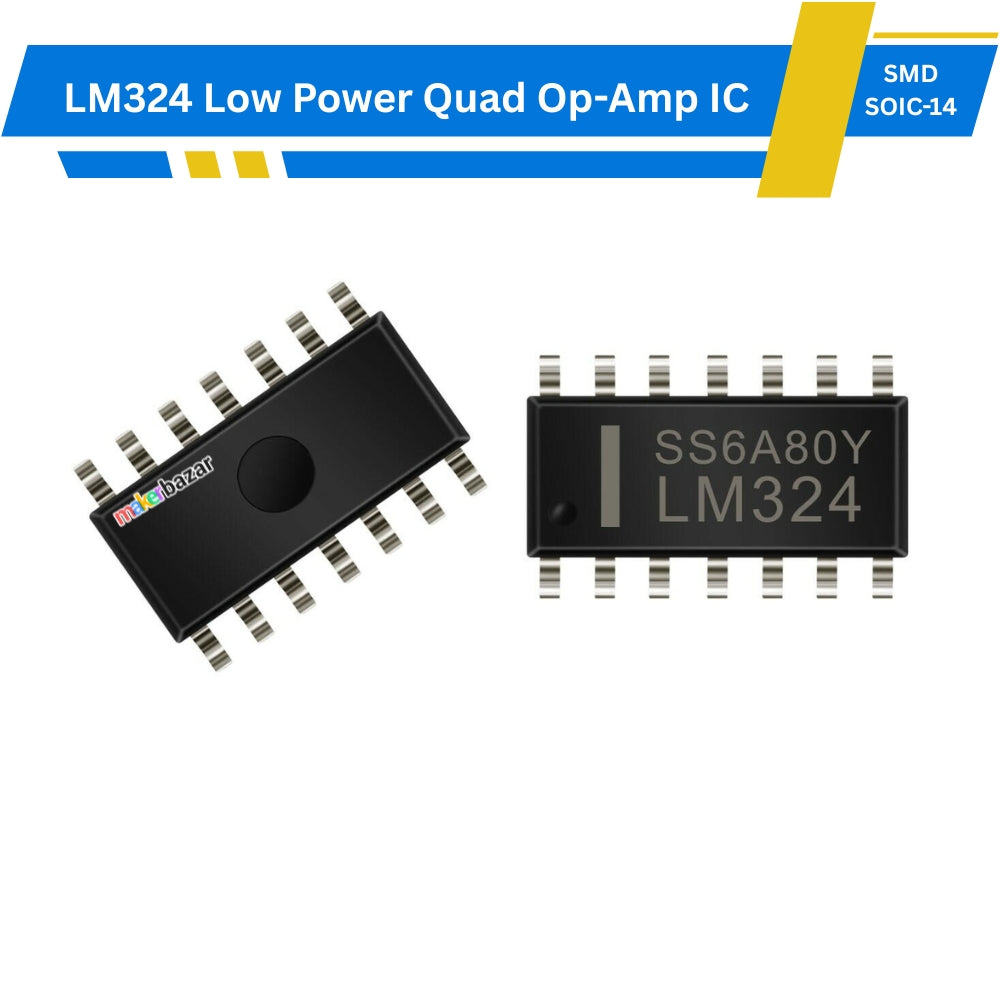

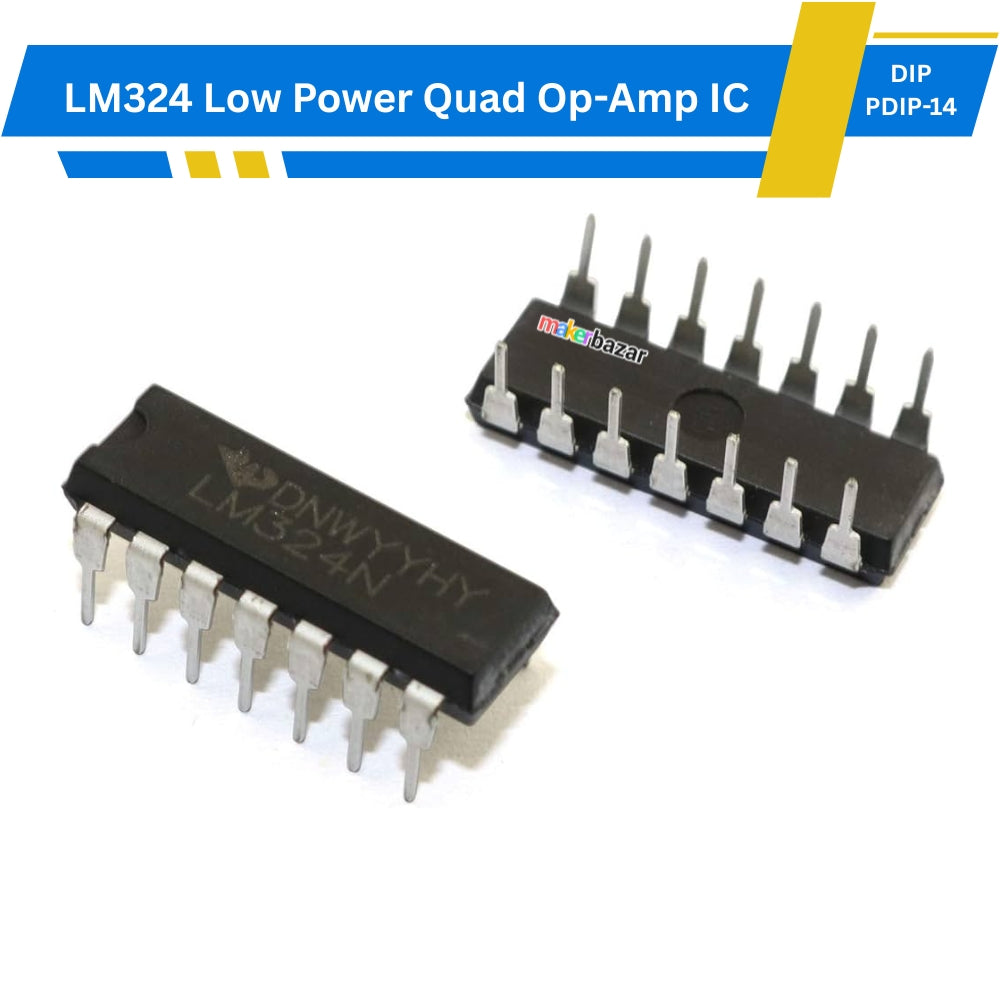

| LM324 | ~500 µA per amplifier | 3V–32V | Quad version of LM358 | Multi-sensor systems |
| TLV2372 | ~170 µA per amplifier | 2.5V–16V | Rail-to-rail output, low noise | Portable measurement systems |
| MCP6002 | ~100 µA per amplifier | 1.8V–6V | Rail-to-rail input/output, very low power | Battery-operated systems |
| MCP602 | ~1 mA per amplifier | 2.5V–5.5V | Higher speed (10 MHz), low voltage | Signal conditioning, ADC buffering |
| OPA2333 | ~17 µA per amplifier | 1.8V–5.5V | Ultra-low offset voltage, nano-power | Medical devices, precision battery systems |
| LPV521 | ~350 nA per amplifier | 1.6V–5.5V | Ultra-low power, tiny quiescent current | Wearable devices, IoT |
| TSV911 | ~60 µA per amplifier | 1.5V–5.5V | Rail-to-rail in/out, good for low-voltage designs | Low-power industrial systems |
