Description
JST VH Series Disconnectable Crimp Style Shrouded Header Straight Connectors

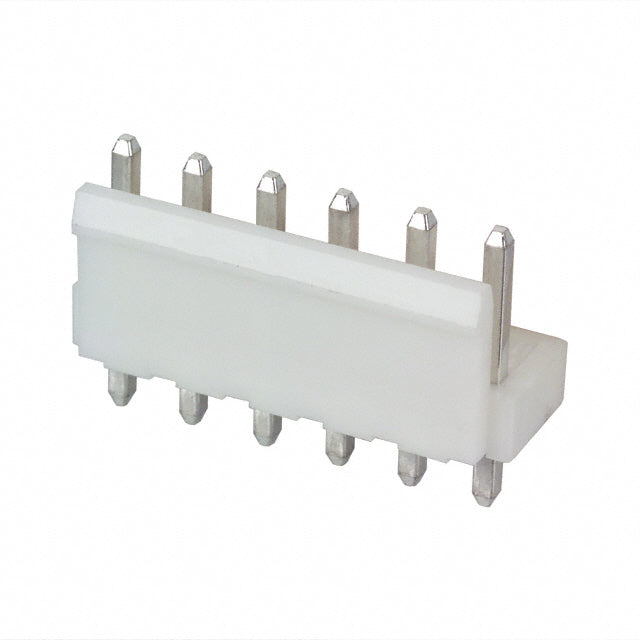

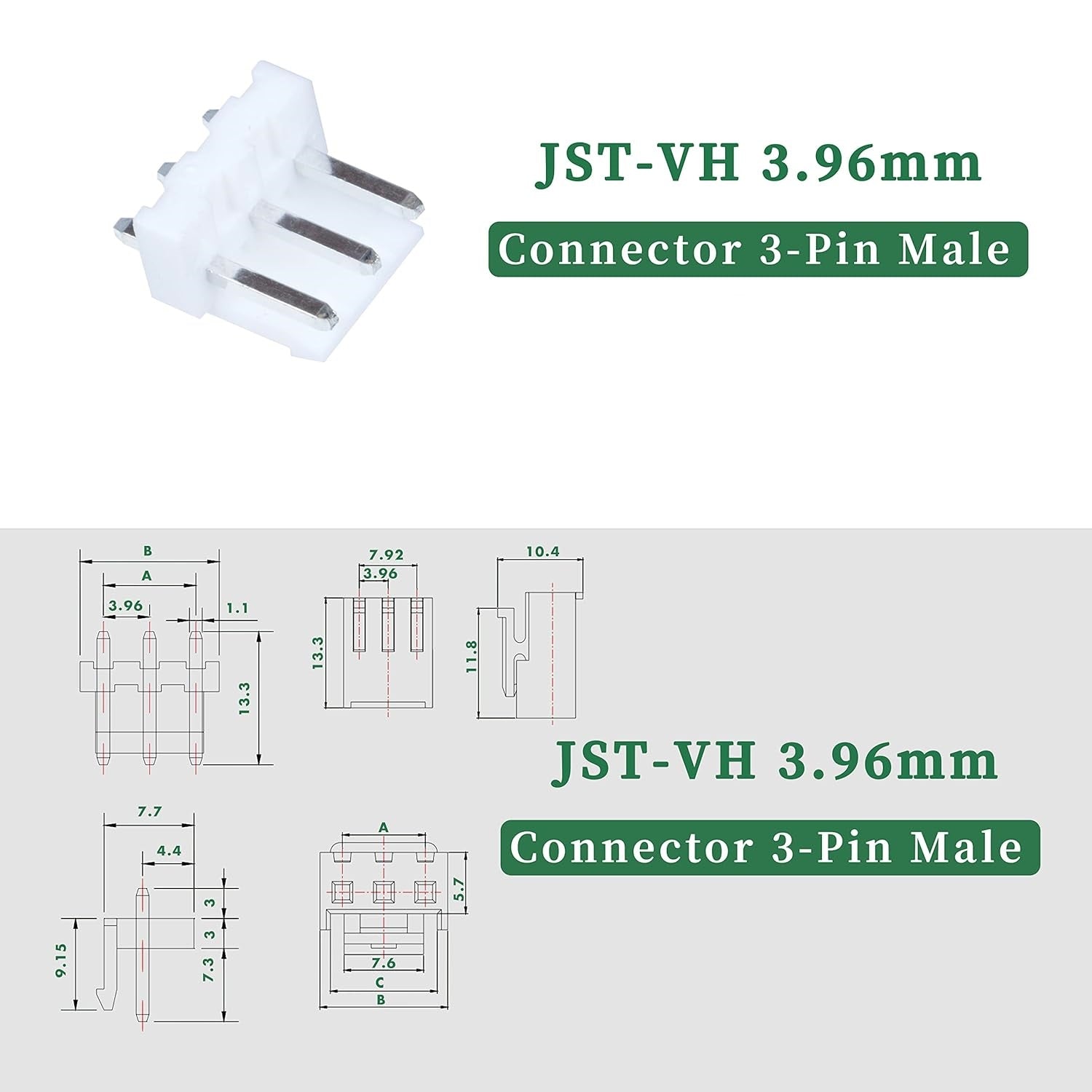

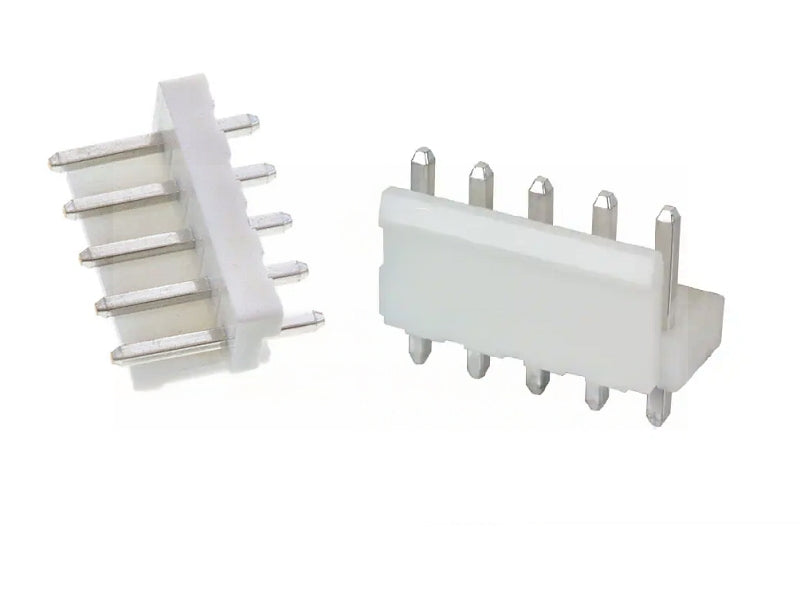

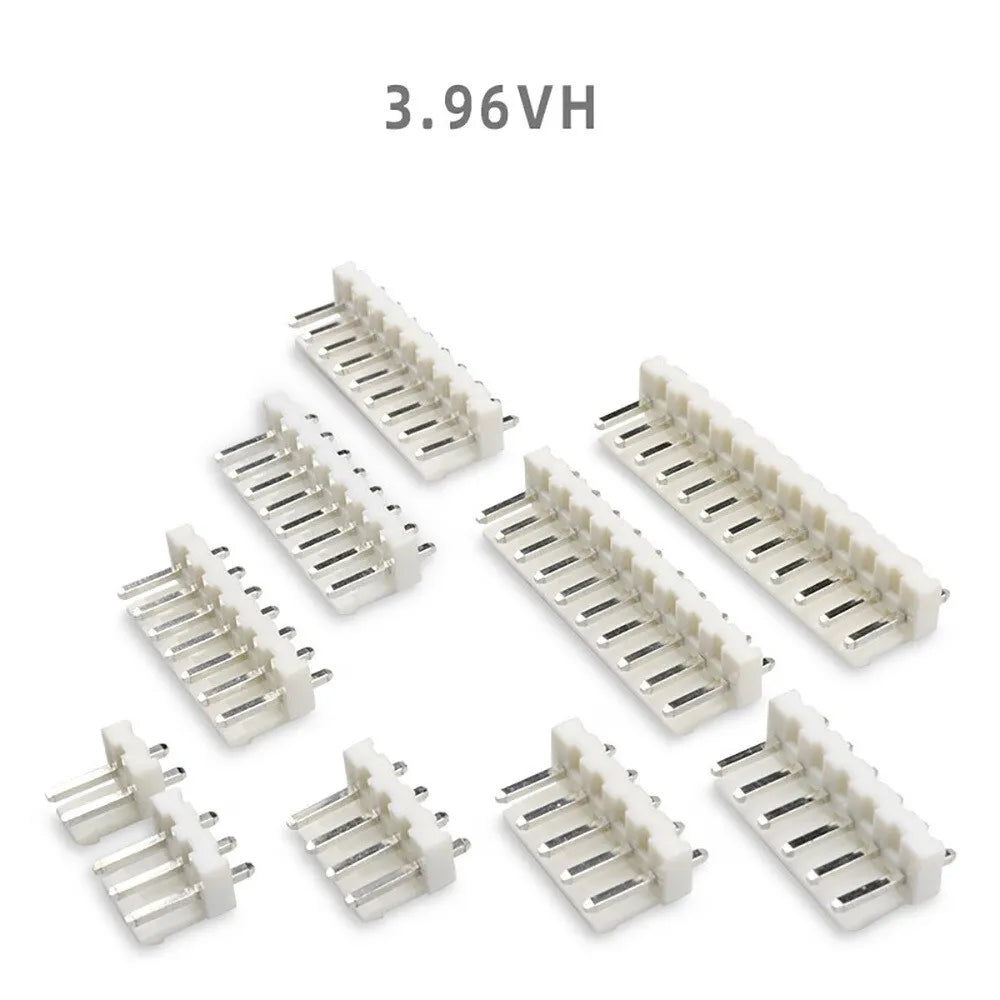

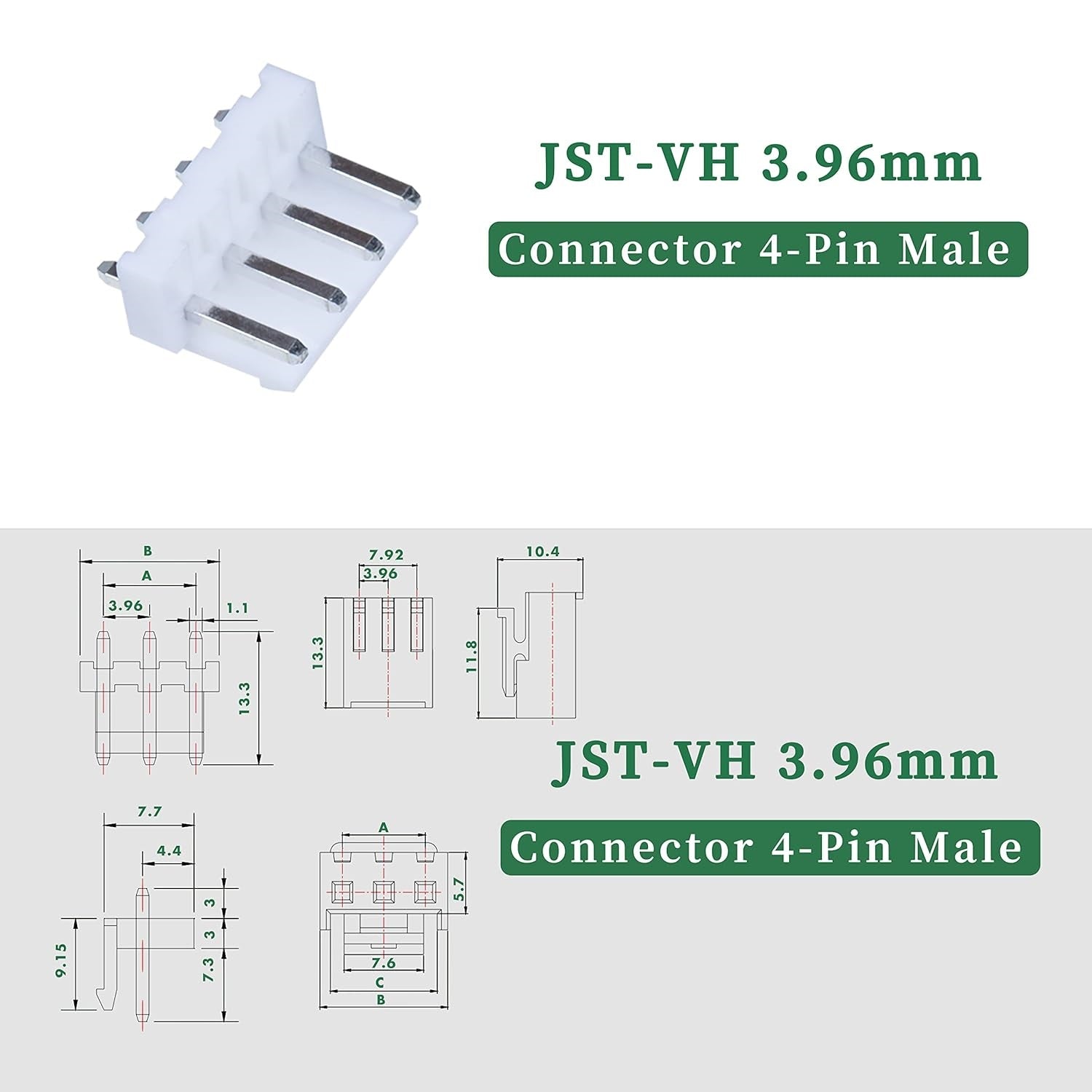

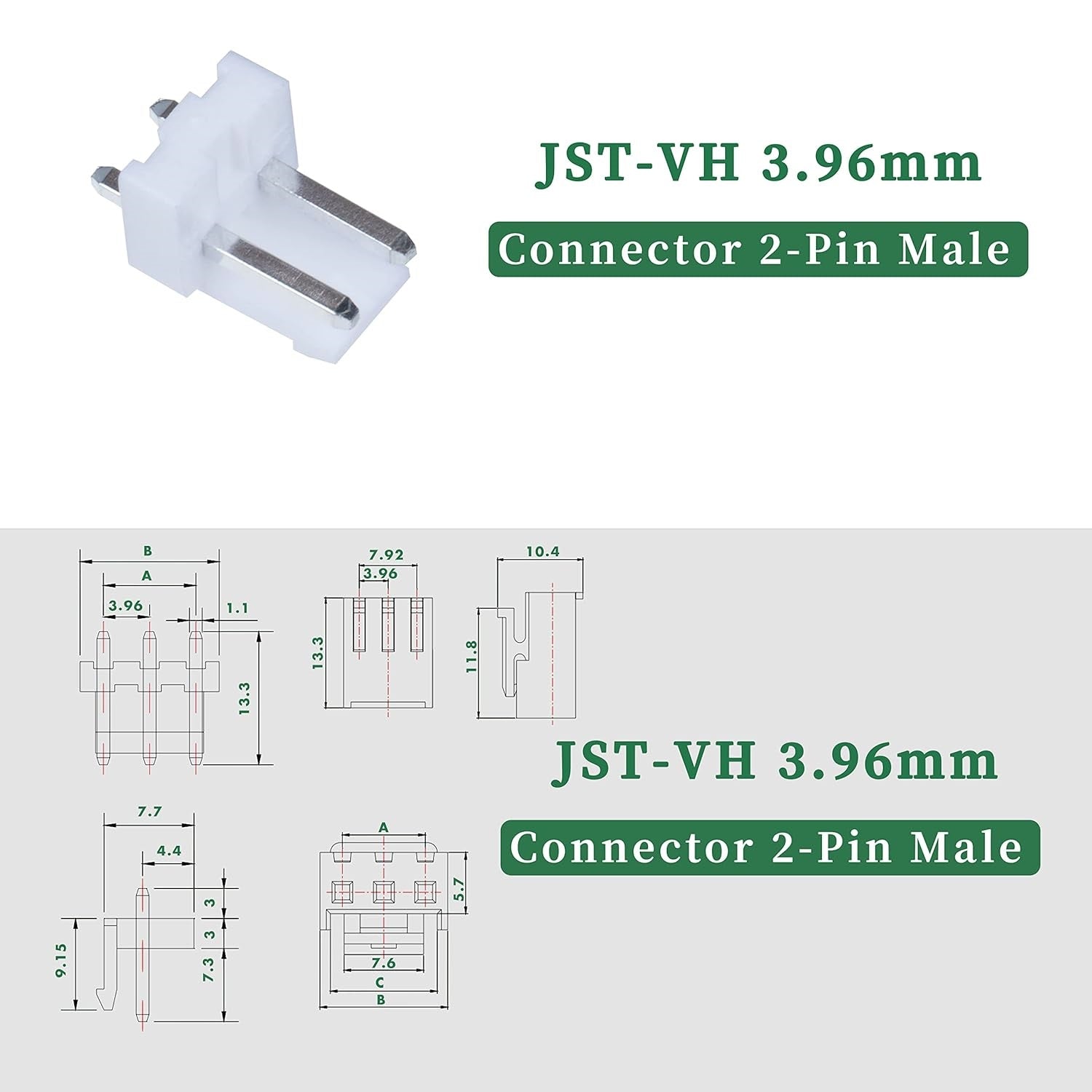

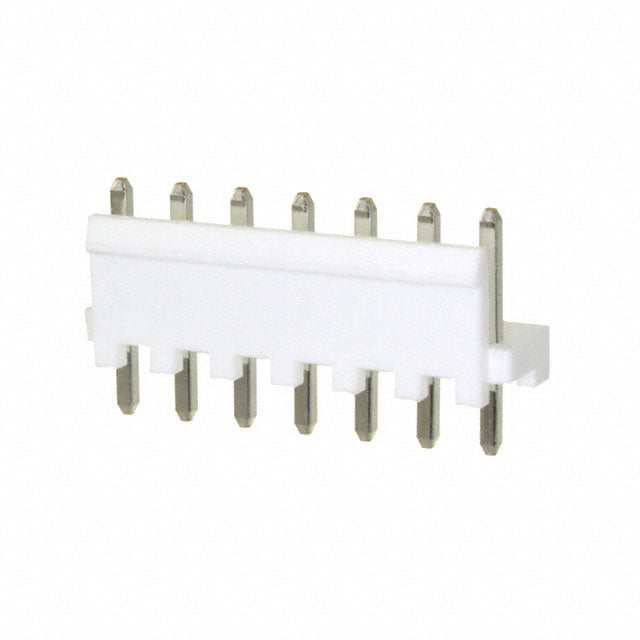

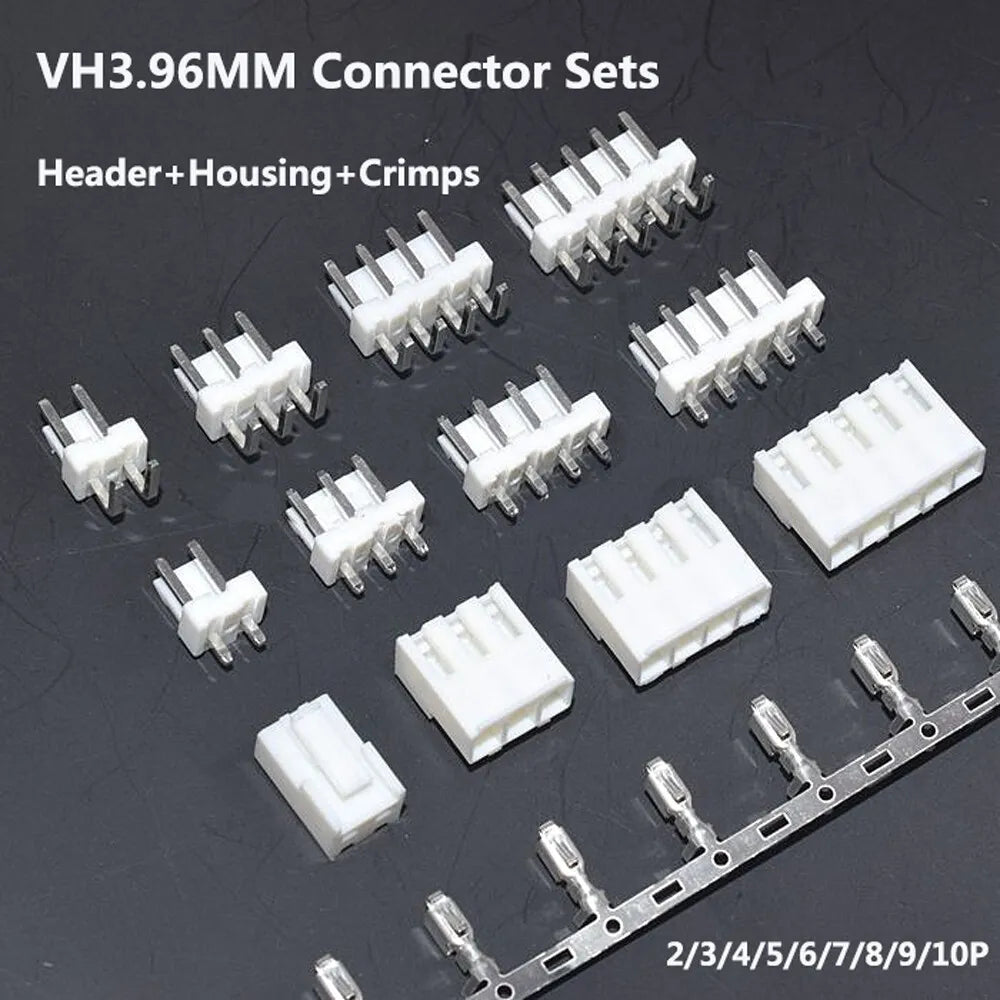

VH Male Center Lock Connector 3.96mm Pitch The VH series is 3.96mm pitch, single row Male for use with housing VH series crimp contacts. The contact retention lances on housing allow visual confirmation of contact lock-in for easy and secure insertion.
3.96mm Pitch JST-VH is an electrical connector that is used in rechargeable battery packs, radio-controlled servos, battery balancers, etc. Featured by Sharvi Electronics The connector is made from good-quality plastic and has nickel-plated terminals.
Features/Specs:
- Connector Type: JST VH
- Contact Material: Phosphor Bronze
- Contact Plating: Nickel
- Gender: Male
- Pitch: 3.96mm
- Rated Operating Voltage: 250V
- Current Handling Capacity: 10A
- Allowed Wire Size: 20 ~ 28 AWG
- Good quality plastic
- Nickel-plated terminals
- Operating Temperature Range: -25 ~ 85°C
- Color: White
