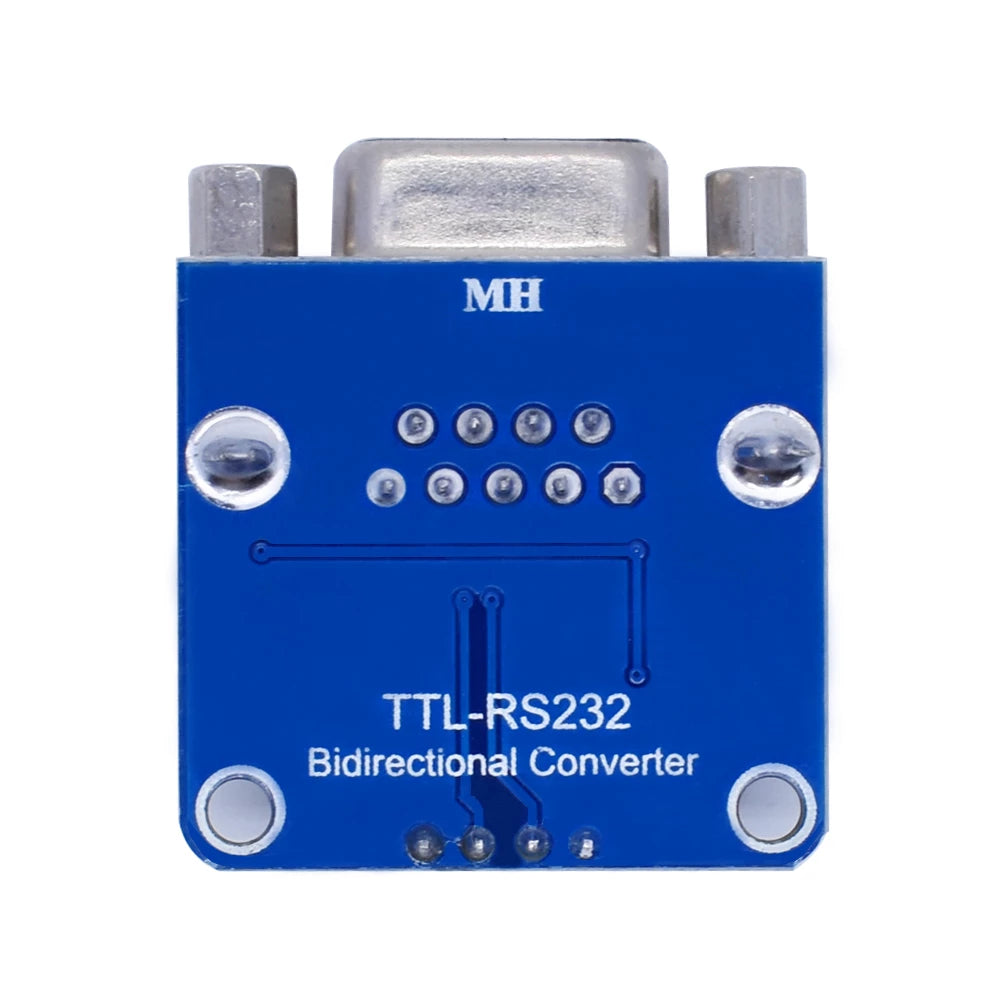

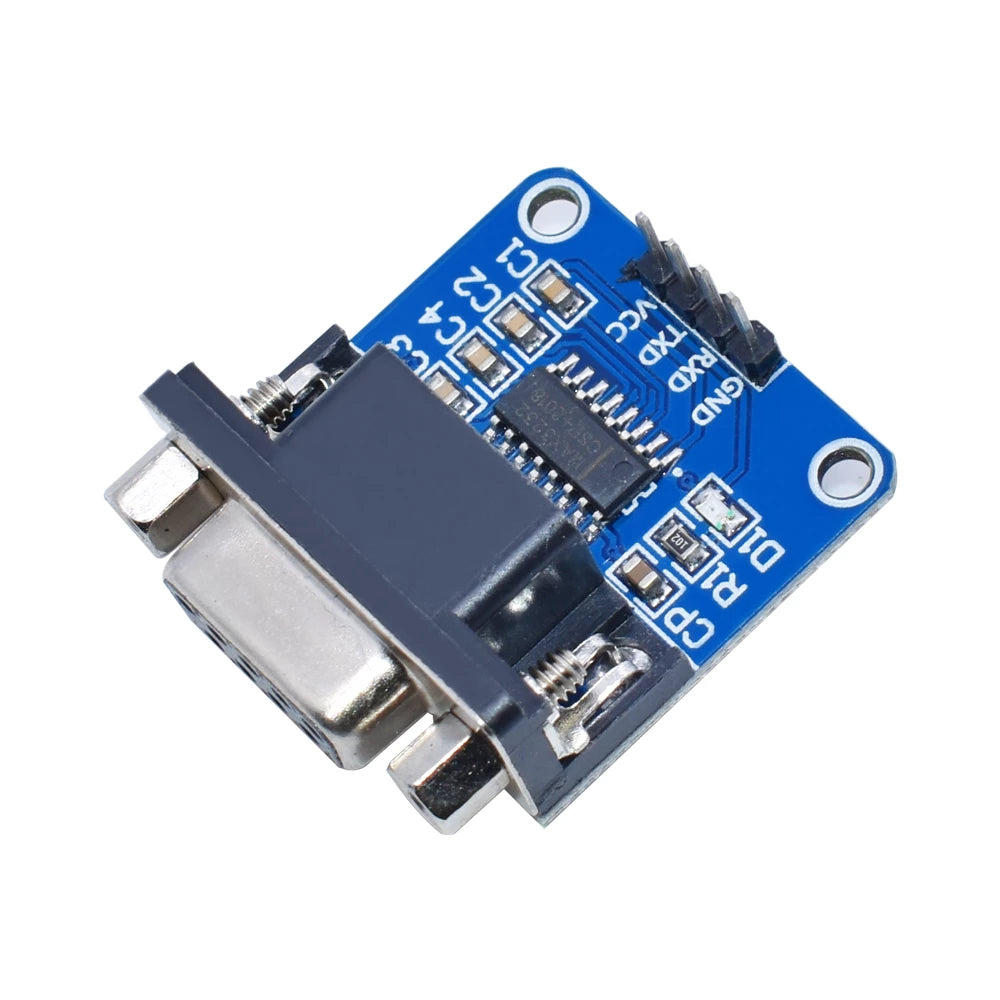

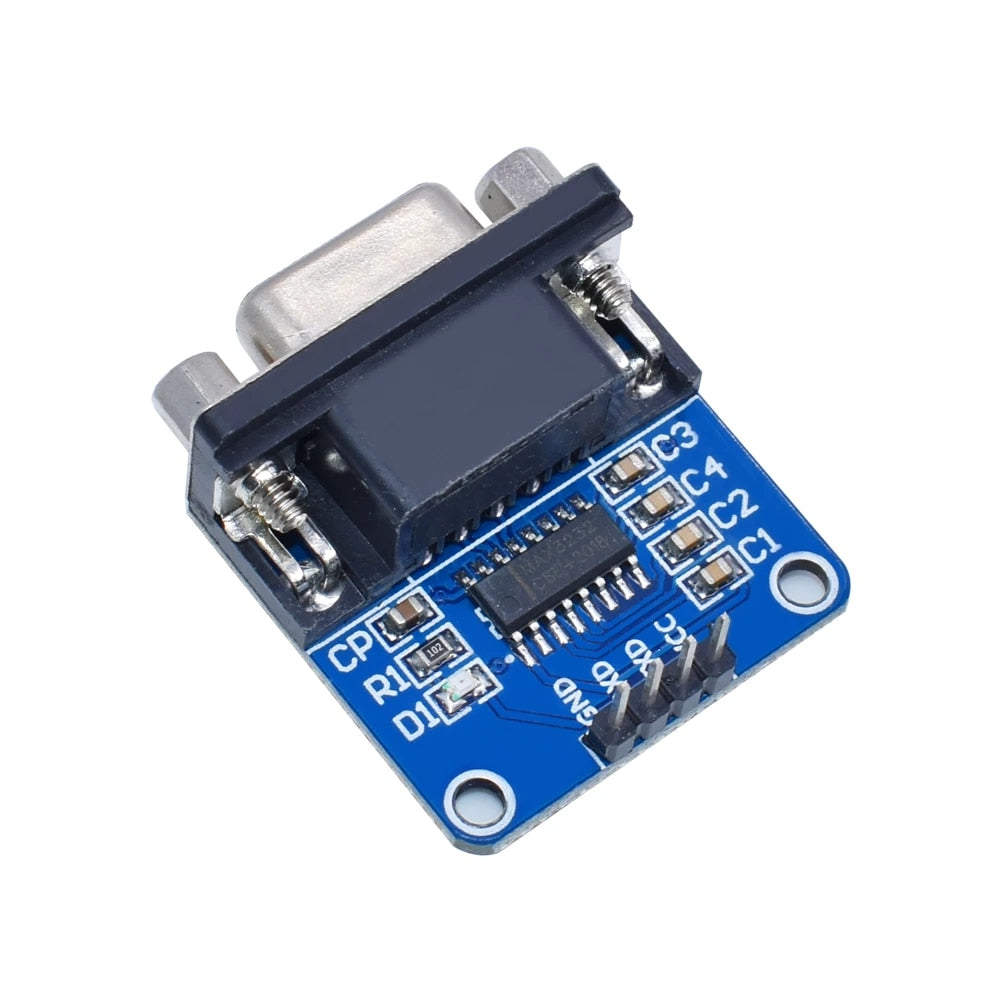

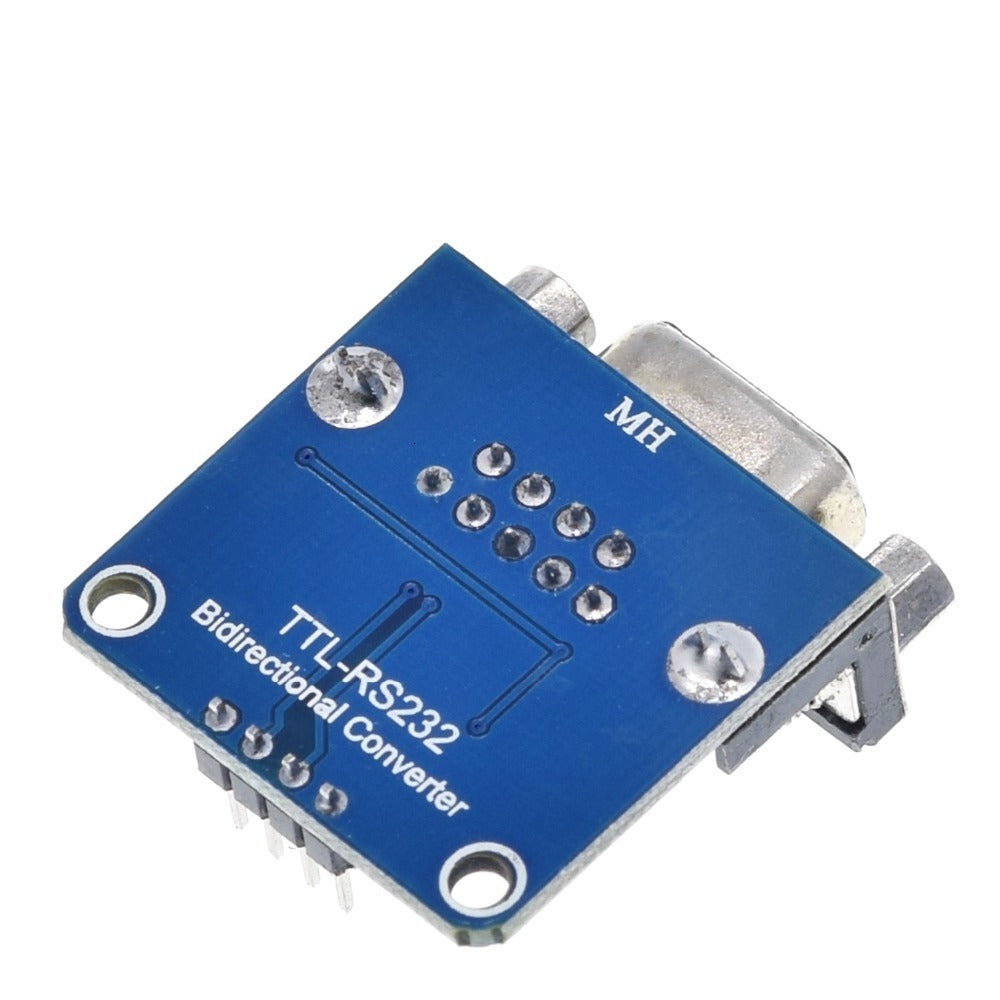

RS 232 to TTL Serial Interface Module
This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.
Vcc - 3.3v - 5.5V
Gnd - Gnd
Tx - Transmit Pin
Rx - Receive Pin
MAX3232 RS232 Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL + Female Serial TTL + serial modules / Brush board. This module can be used to the serial port of the microcontroller module expand DVD, router, hard drive and other equipment to upgrade.
Features and Applications:
- It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
- It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
- Pre-assembled compact size board

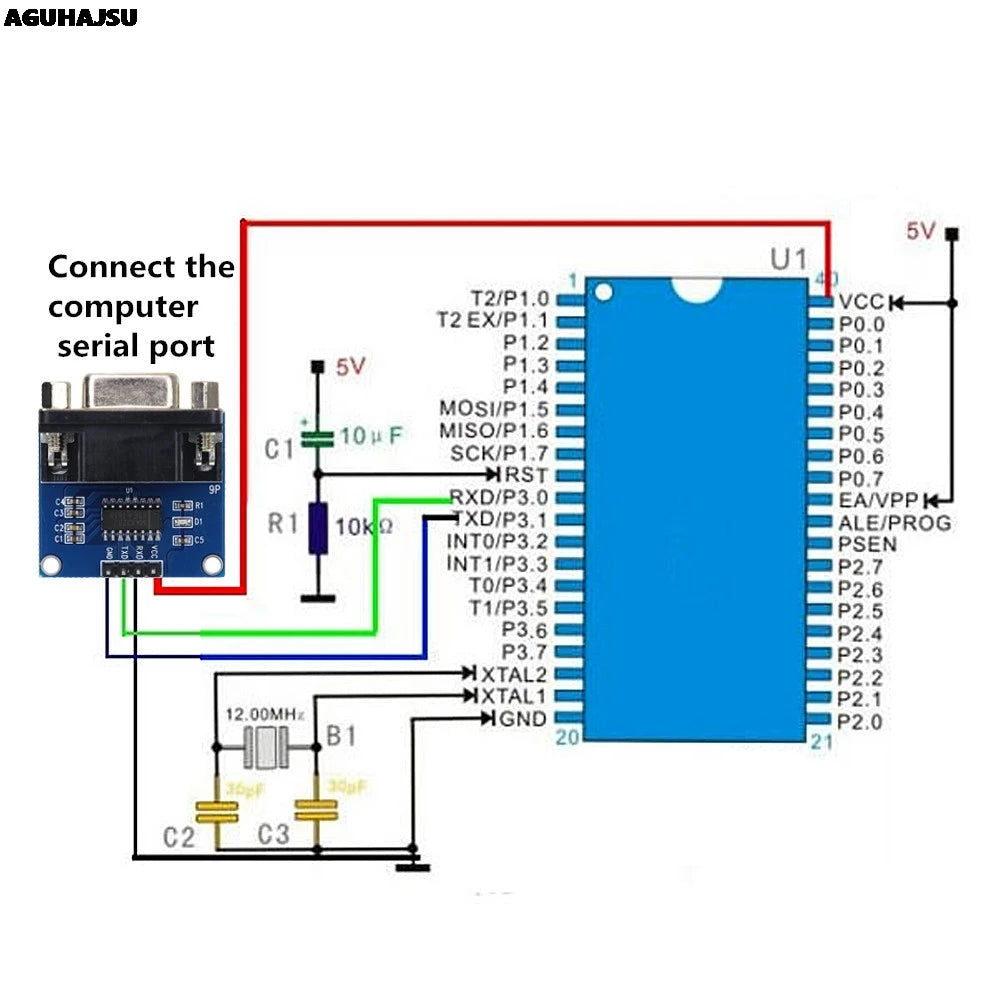

- Suitable for use with most microcontrollers
- Operates up to 250 kbit/s
Package Includes :
1 x MAX3232 RS232 to TTL Serial Interface Module
