Description

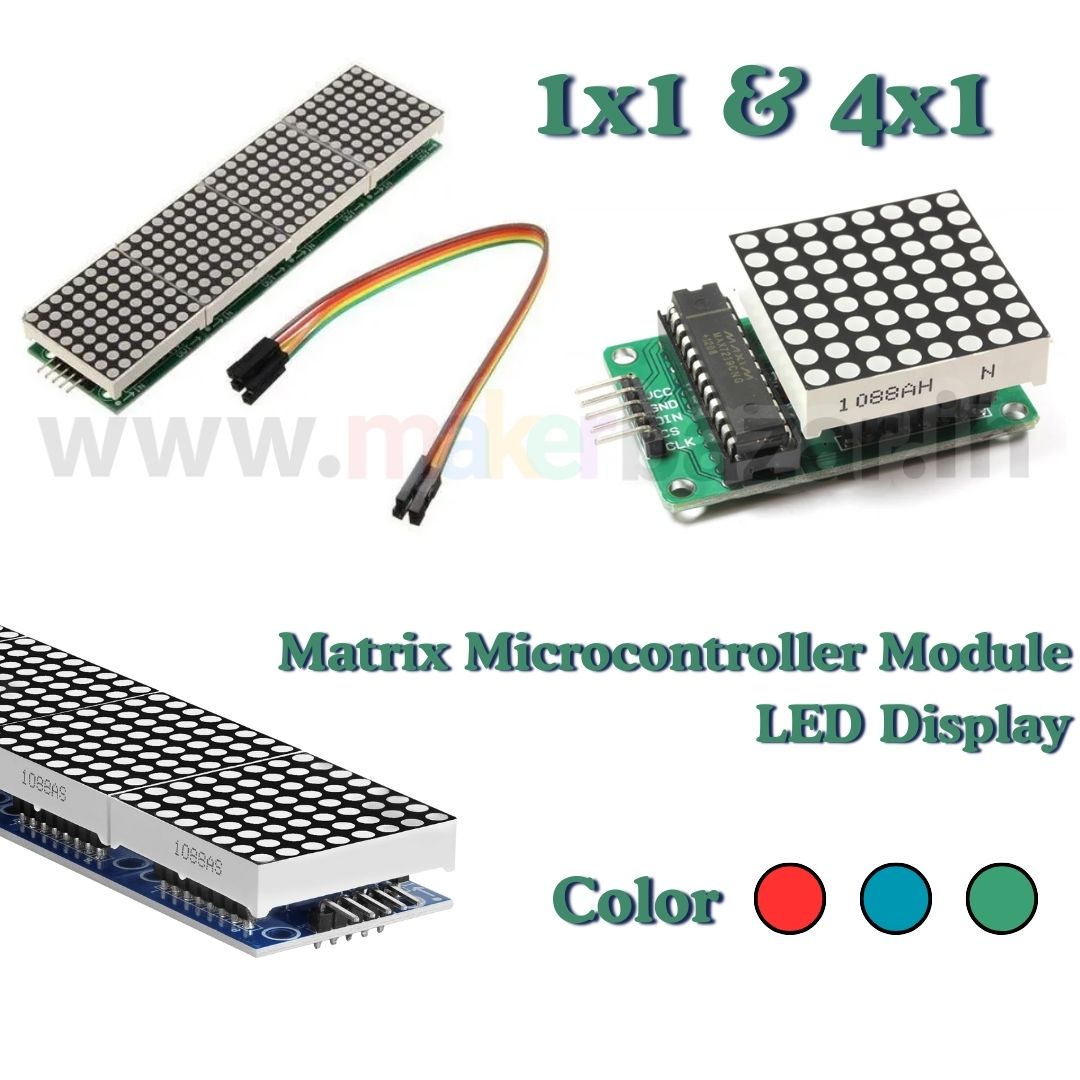

MAX7219 Dot Led Matrix Module MCU Control LED Display Module

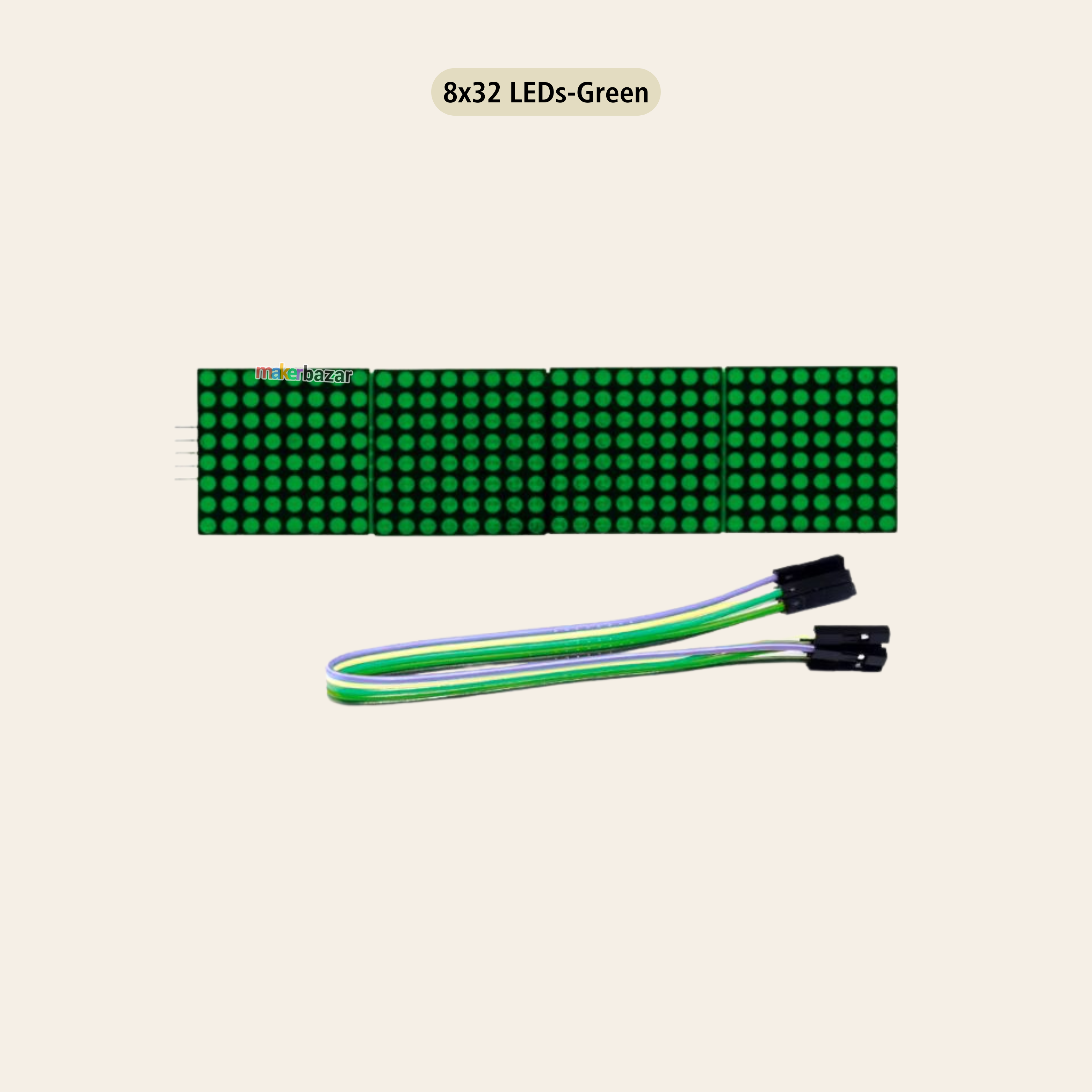

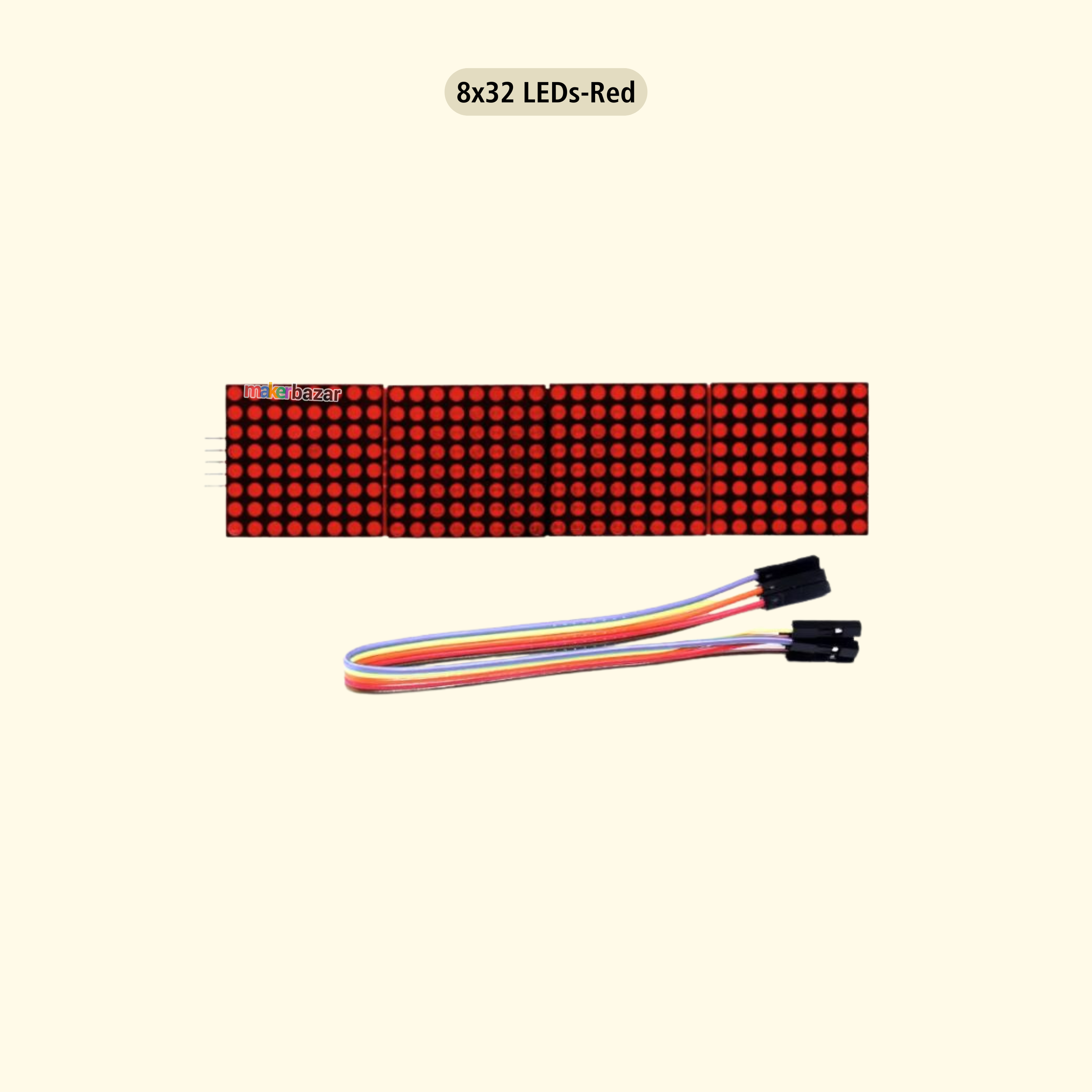

The MAX7219 8×32 Dot Matrix LED Display Module is a compact and efficient display solution designed for microcontroller based projects. It uses the MAX7219 driver IC, which enables easy control of LED dot matrix displays using only three I/O pins.
The module supports cascading, allowing multiple displays to be connected together to form longer scrolling text or larger display panels.
Each module includes both input and output interfaces, making it ideal for Arduino, 8051, AVR, PIC, and other microcontroller platforms.
Key Features
- MAX7219 LED driver IC
- Low power shutdown mode
- Analog and digital brightness control
- Only three I/O pins required for control
- Flicker free display output
- Supports cascading of multiple modules
- Input and output ports provided
- Easy integration with microcontrollers
Technical Specifications
| Parameter | Details |
|---|---|
| Driver IC | MAX7219 |
| Display Type | LED Dot Matrix |
| Matrix Size | 8 x 32 |
| Operating Voltage | 5V DC |
| Display Configuration | Common Cathode |
| Control Interface | DIN CLK CS |
| IO Pins Required | 3 |
| Cascading Support | Yes |

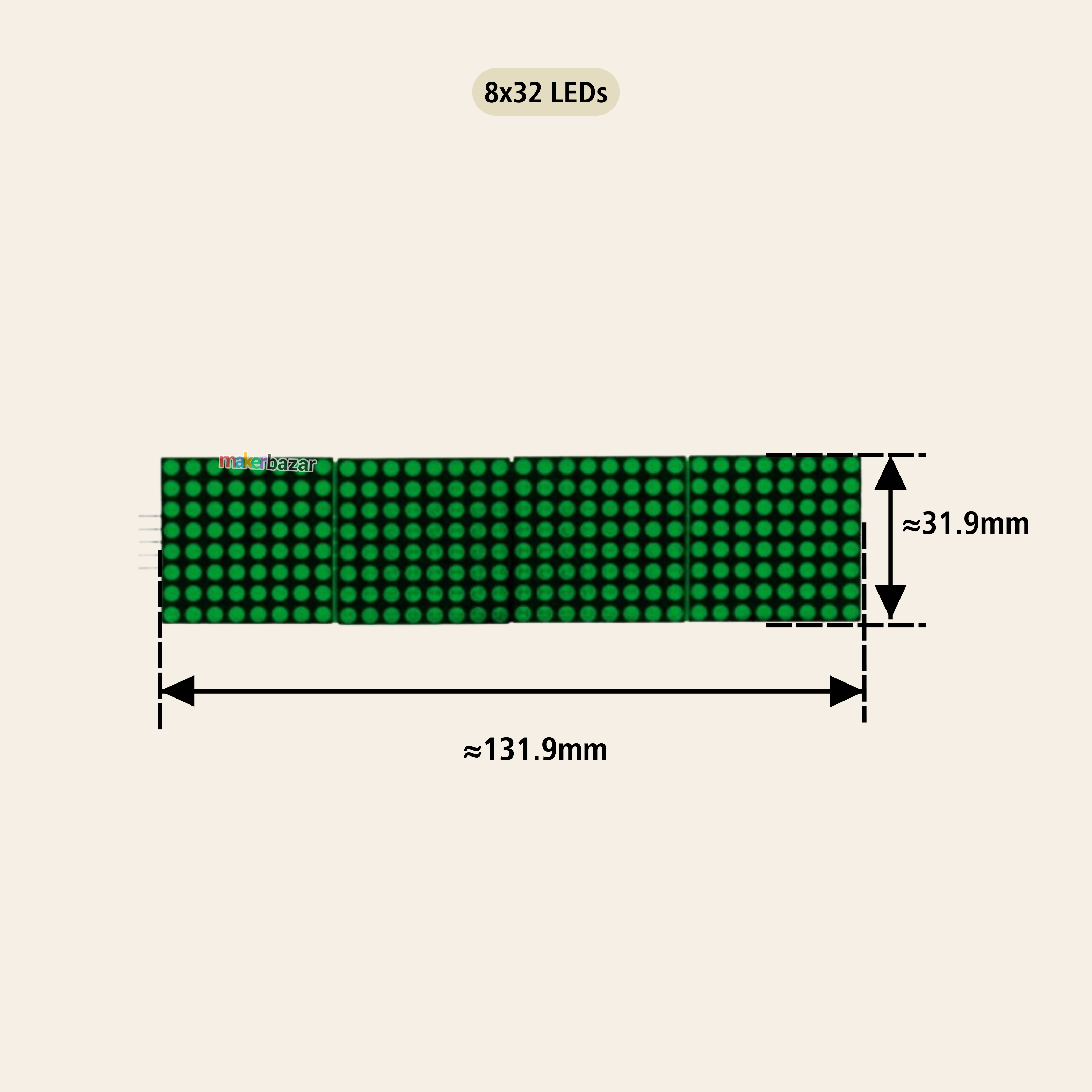

| Module Dimensions | 12.8 x 3.2 x 1.3 cm |
| Mounting Holes | 64 holes |
| Hole Diameter | 3 mm |
| Power Consumption | Low power shutdown mode 150 µA |
Applications
Scrolling text displays
Arduino and microcontroller projects
Digital clocks and counters
DIY LED display boards
Information panels
Educational electronics projects
Embedded system displays
Precautions
Do not reverse VCC and GND connections
Always operate at 5V DC only
Ensure proper pull-up resistors when using the 8051 P0 port
Avoid short circuits during wiring
Handle the module carefully to prevent LED damage
