Description

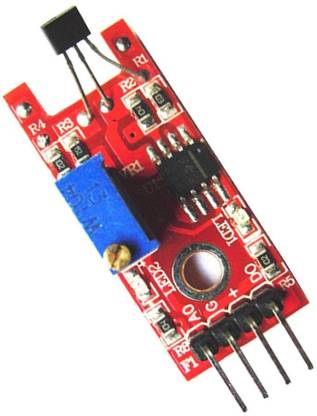

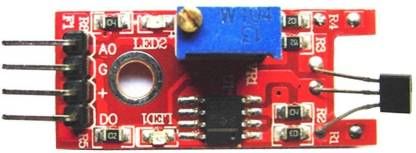

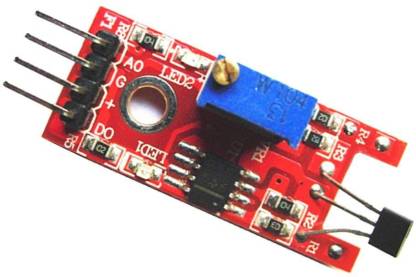

KY036 Metal Touch Sensor Module Human Touch Sensor For Arduino
The KY-036 Touch Sensor Module utilizes a floating lead on a Darlington transistor to detect a touch. There are 2 LEDs on board. A red LED lights when power is applied. A green or red LED lights when a touch is detected.
Features:
- Main chip: LM393
- Working voltage: for DC 5V
- Single-channel signal output
- Low-level output signal used for human body touch sensor alarm
- Adjustable sensitivity
- Pin Connector to board: 4 Pins
Specifications:
| Main chip |
LM393 |
| Working voltage(V) |
5 |
| PCB Color |
Red |
| Length(mm) |
43 |
| Width(mm) |
16 |
| Height(mm) |
15 |
| Weight(g) |
4 |
