Description

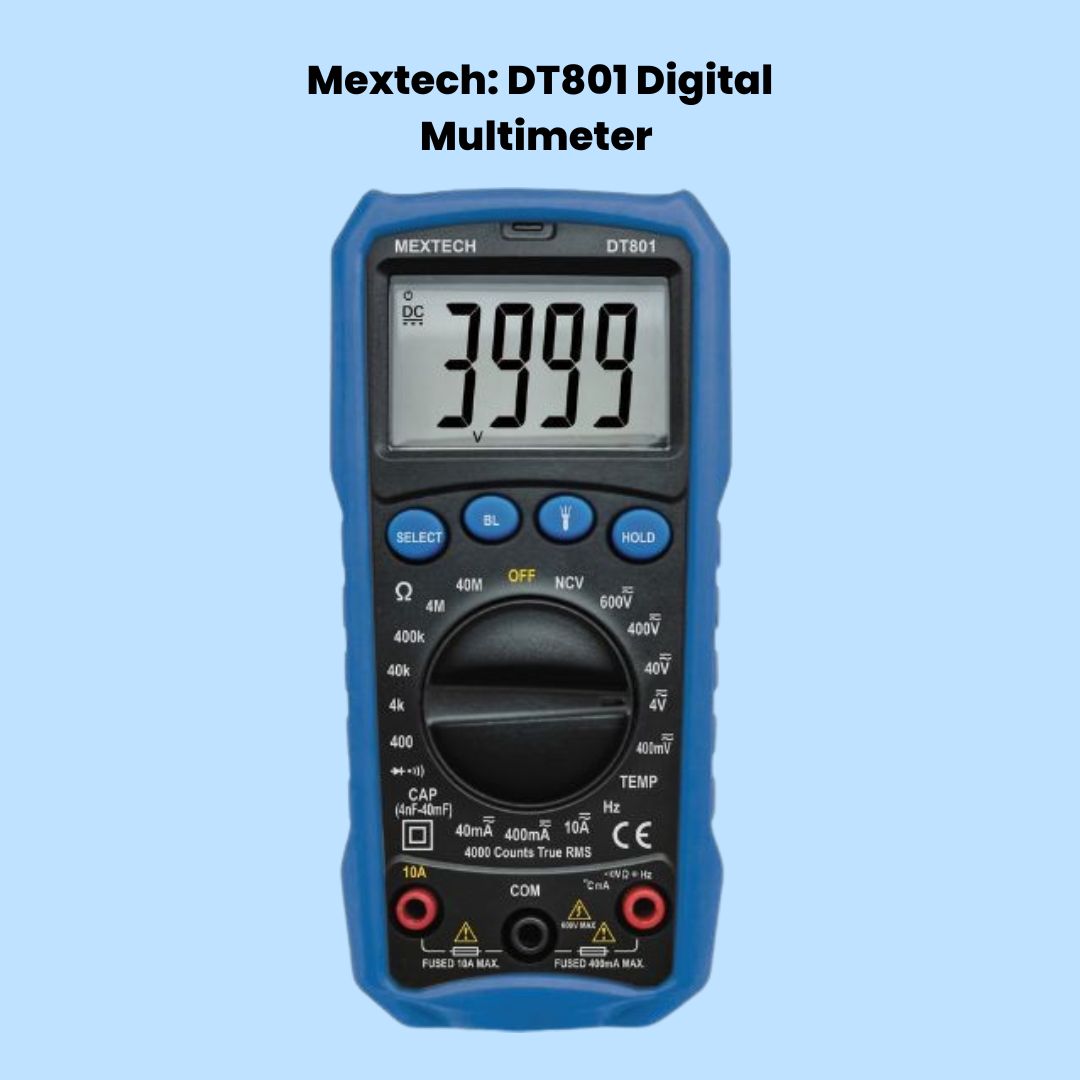

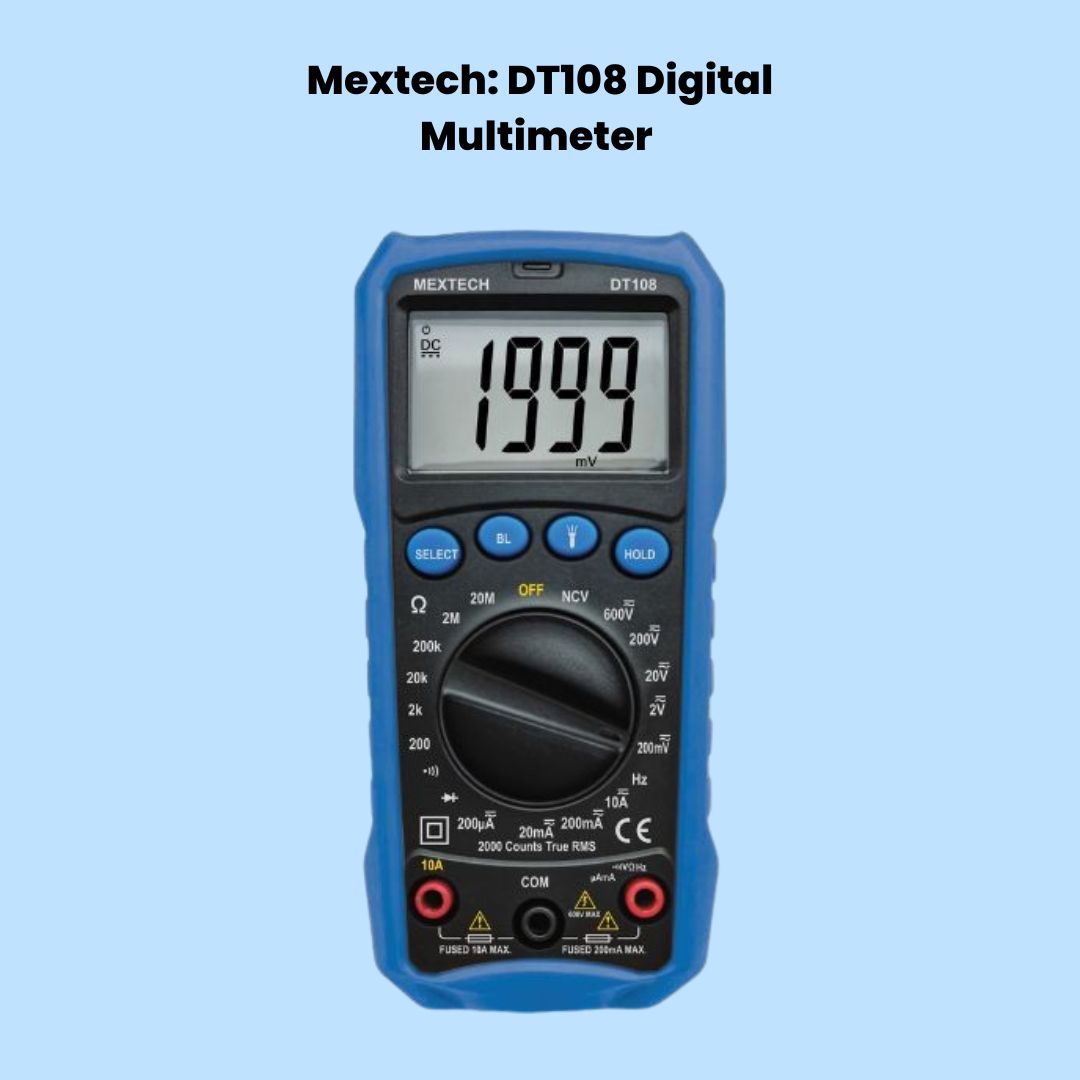

DT603 | DT801 | DT108 Multimeter measures AC/DC voltage, AC/DC Current, capacitance, frequency, resistance, and non-contact voltage (NCV)
The Mextech True RMS Digital Multimeter is a versatile and reliable tool designed for accurate measurement of electrical parameters. It features True RMS (Root Mean Square) technology, which ensures precise readings of both AC and DC signals, regardless of waveform distortion. This multimeter measures a range of electrical quantities including voltage, current, resistance, capacitance, and frequency. It also includes a non-contact voltage (NCV) function for safely detecting live wires without direct contact. With its robust design, clear display, and ease of use, the Mextech True RMS Digital Multimeter is ideal for both professional electricians and DIY enthusiasts.
| Feature | Model DT603 | Model DT801 | Model DT108 |
|---|---|---|---|
| Display | 3 ⅚ digits, 6000 count LCD | 3¾ digits, 4000 counts, backlight | 3½ digits, 2000 counts, backlight |
| Low Battery Indication | Yes | Yes | Yes |
| Testing Functions | Diode and continuity test | Diode and continuity test | Diode and continuity test |
| Additional Features | Data hold, backlight | Data hold, backlight, over range indication, overload protection | Data hold, backlight |
| Protection | Fuse protection | Fuse protection, overload protection | Fuse protection, overload protection |
| Auto Power Off (APO) | After 15 minutes of inactivity | After 15 minutes of inactivity | After 15 minutes of inactivity |
| Operating Conditions | 0°C to 40°C, 45% to 80% RH | 0°C to 40°C, 45%-80% RH | 0°C to 40°C, 45%-80% RH |
| Storage Conditions | -20°C to 60°C, 45% to 80% RH | -20°C to 60°C, 45%-80% RH | -20°C to 60°C, 45%-80% RH |
| Power Supply | 9V battery | 2 x AAA batteries | 2 x AAA batteries |
| Unit Size | 195 x 92 x 55 mm | 148 x 69 x 44 mm | 148 x 69 x 44 mm |
| Display Size | 61 x 35 mm | 47 x 30 mm | 47 x 30 mm |
| Weight | 380 grams (including battery) | 180 grams (excluding battery) | 180 grams (excluding battery) |
Specifications
| Specification | Model DT603 | Model DT801 | Model DT108 |
|---|---|---|---|
| AC Voltage | Ranges: 6V, 60V, 600V, 750V <br> Accuracy: ± 1.0% | Ranges: 400mV, 4V, 40V, 400V, 600V <br> Accuracy: ± 1.5% | Ranges: 200mV, 2V, 20V, 200V, 600V <br> Best Accuracy: ±1.5% |
| DC Voltage | Ranges: 600mV, 6V, 60V, 600V, 1000V <br> Accuracy: ± 0.5% | Ranges: 400mV, 4V, 40V, 400V, 600V <br> Accuracy: ± 0.5% | Ranges: 200mV, 2V, 20V, 200V, 600V <br> Best Accuracy: ±0.5% |
| AC Current | Ranges: 6mA, 60mA, 600mA, 10A <br> Accuracy: ± 1.5% (up to 600mA), ± 3.0% (in A range) | Ranges: 40mA, 400mA, 10A <br> Accuracy: ±3.0% | Ranges: 200µA, 20mA, 200mA, 10A <br> Best Accuracy: ±3.0% |
| DC Current | Ranges: 600µA, 6mA, 60mA, 600mA, 10A <br> Accuracy: ± 1.0% (up to 600mA), ± 2.0% (in A range) | Ranges: 40mA, 400mA, 10A <br> Accuracy: ±2.0% | Ranges: 200µA, 20mA, 200mA, 10A <br> Best Accuracy: ±2.0% |
| Resistance | Ranges: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ <br> Accuracy: ± 0.8% | Ranges: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ <br> Accuracy: ±1.5% | Ranges: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ <br> Best Accuracy: ±1.5% |
| Capacitance | Range: 100mF (Auto Range) <br> Accuracy: ± 3.0% | Range: 4nF to 40mF <br> Accuracy: ±3.0% | Range: 9.999mF <br> Best Accuracy: ±3.0% |
| Temperature | Range: -20°C to 1000°C <br> Accuracy: ± 1.5% | Range: -30°C to 1000°C <br> Accuracy: ±2.0% | - |
| Frequency | Range: 10Hz <br> Accuracy: ± 1.5% | Range: Up to 99.99 MHz <br> Accuracy: ±0.5% | Range: Up to 99.99 MHz <br> Best Accuracy: ±0.5% |
| Transistor (HFE) | Range: 0 to 1000 | - | - |
| Duty Cycle | Range: 1% to 99% | Range: 0.1% ~ 99.9% | Range: 1% ~ 99% |
| Non-Contact Voltage (NCV) | Range: 90 – 1000V AC | Yes | Yes |
| Square Wave Output | - | Yes | - |
