Description

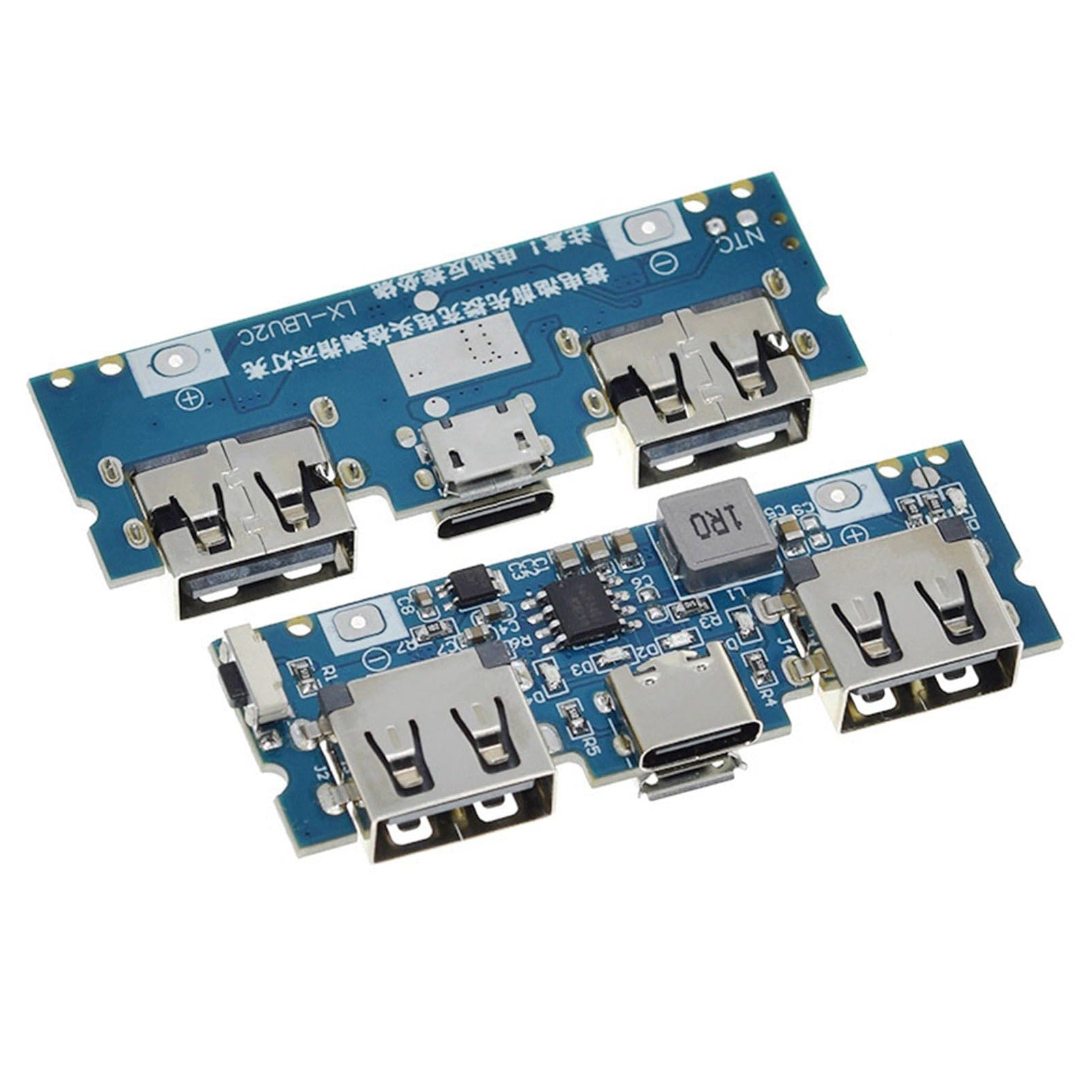

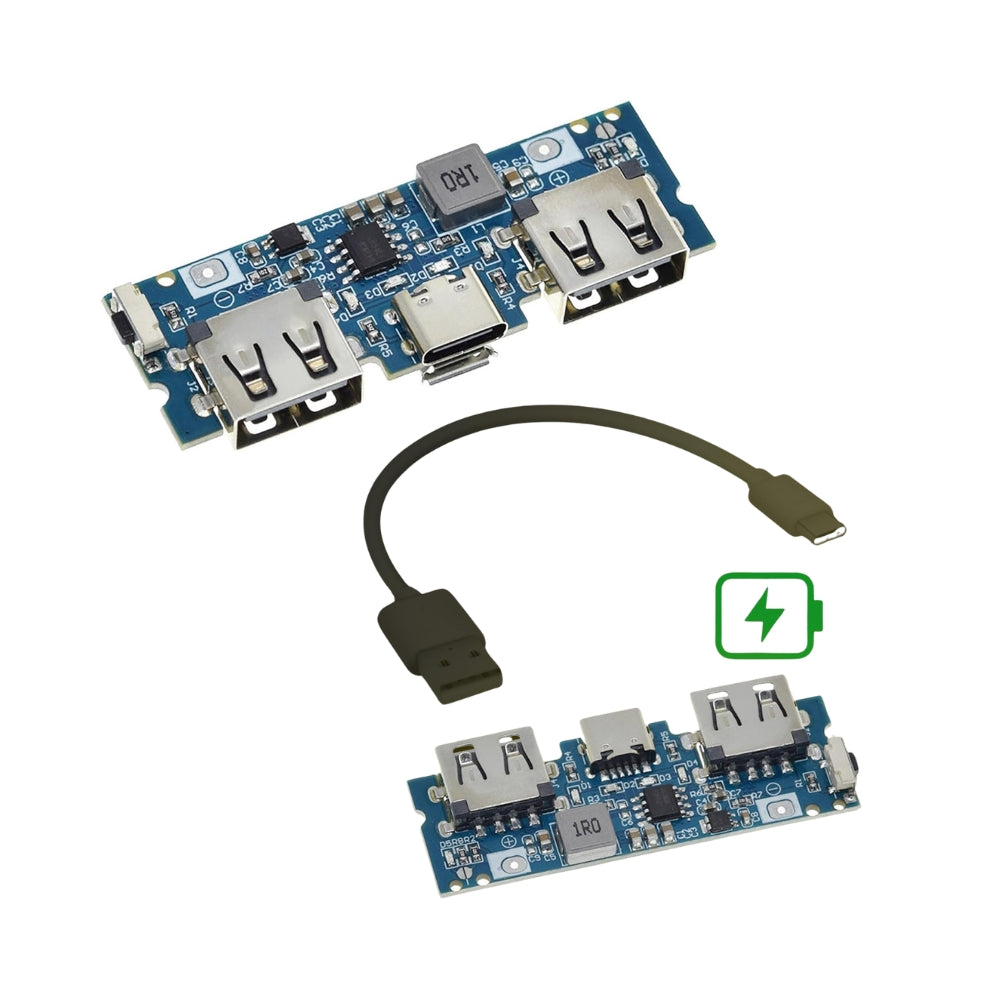

USB Micro/Type C 5V 2.4A Dual USB Power Bank Battery Charging Board
The LX-LBU2C is a dual-USB lithium battery charging module designed for 18650 Li-ion batteries. It supports both Micro USB and Type-C input interfaces and provides dual USB output with a maximum 2.4A current for fast and efficient charging. Featuring built-in battery management, overcharge protection, and intelligent load balancing, this module is ideal for DIY power banks, portable charging stations, and lithium battery applications.
Features:
- Dual Input Interfaces – Supports both Micro USB and Type-C connectors for convenient charging.
- High Output Current – Delivers up to 2.4A fast charging across dual USB ports.
- 18650 Battery Support – Designed for one or two 18650 lithium-ion cells (not included).
- Intelligent Charging Protection – Integrated protection against overcharge, over-discharge, short circuits, and overcurrent.
- Battery Level Indicator – LED indicators for real-time battery status monitoring.
- Boost Converter Function – Converts battery voltage to a stable 5V USB output.
- Compact & Lightweight Design – Small PCB size for easy integration into DIY projects.
Specifications:
- Model: LX-LBU2C
- Input Voltage: 5V (via Micro USB or Type-C)
- Battery Type: 1S (single-cell) or 2S (dual-cell) 18650 Li-ion
- Charge Current: 1A - 2A (adaptive)
- Output Voltage: 5V USB
- Output Current: Up to 2.4A (dual USB combined)
- Protection Features: Overcharge, Over-discharge, Short Circuit, Overcurrent Protection
- Battery Management: Automatic load balancing
- PCB Size: Approx. 60mm x 22mm
Applications:
- DIY Power Banks
- Portable Charging Stations
- Lithium Battery Backup Power
- Solar-Powered Energy Storage
- USB-Powered Electronics
This LX-LBU2C Dual-USB Charging Module is a versatile and efficient solution for creating DIY lithium battery-powered USB devices. With dual input options and intelligent safety features, it ensures stable and safe charging for your devices.
