Description

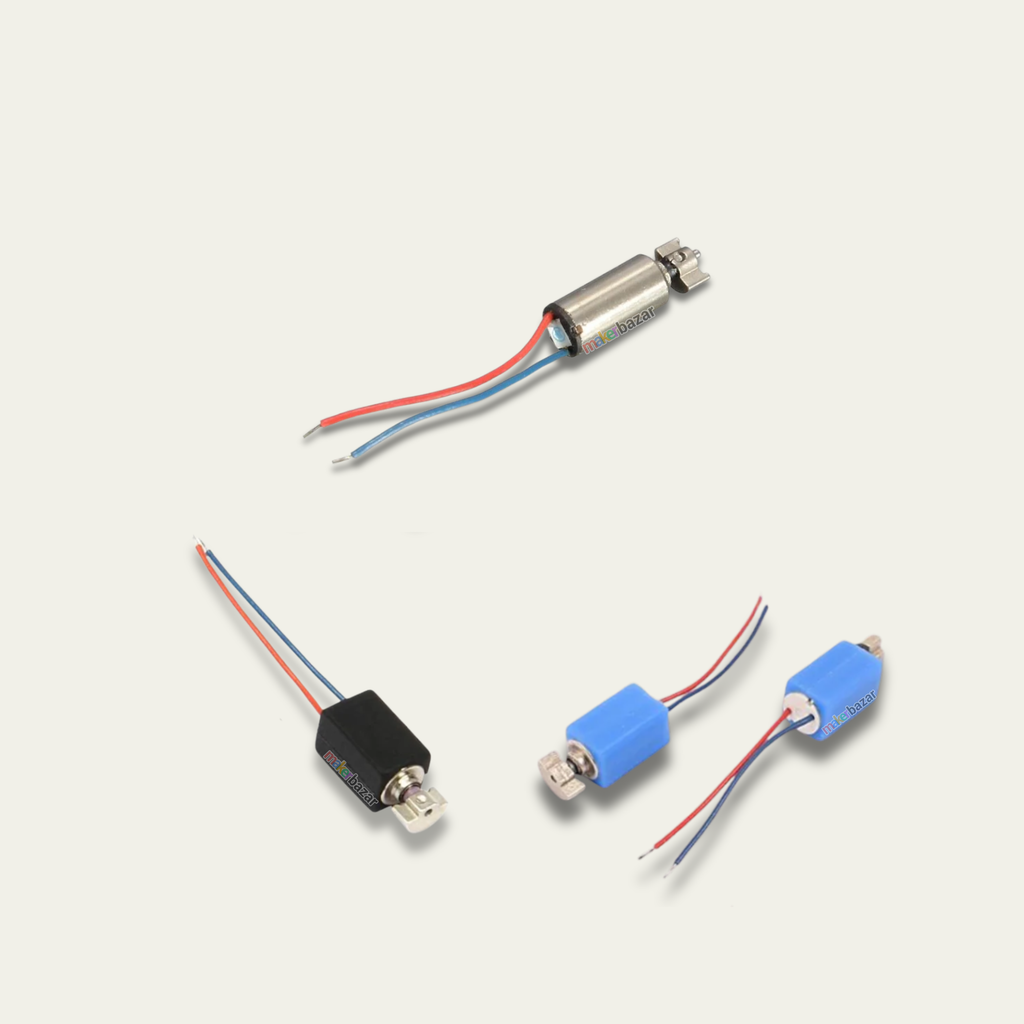

3V Mini Coreless High Speed Vibration Motor with Pre-Soldered Wire
The Mini Vibration Motor 3V Coreless High Speed with Wire is a compact and efficient vibration motor designed for small electronic devices and DIY projects. Built with a coreless motor design, it delivers fast response, low noise, and smooth vibration performance.

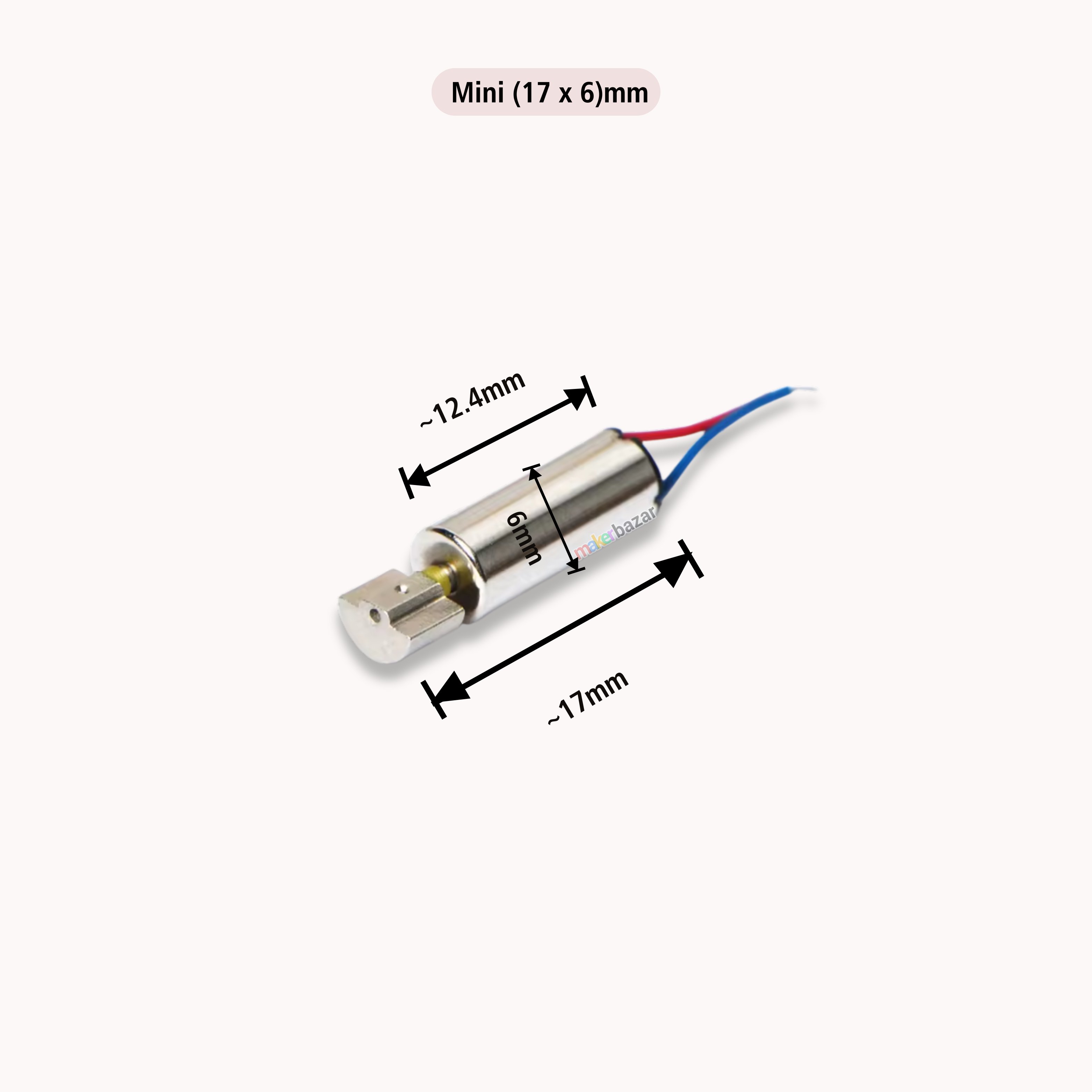

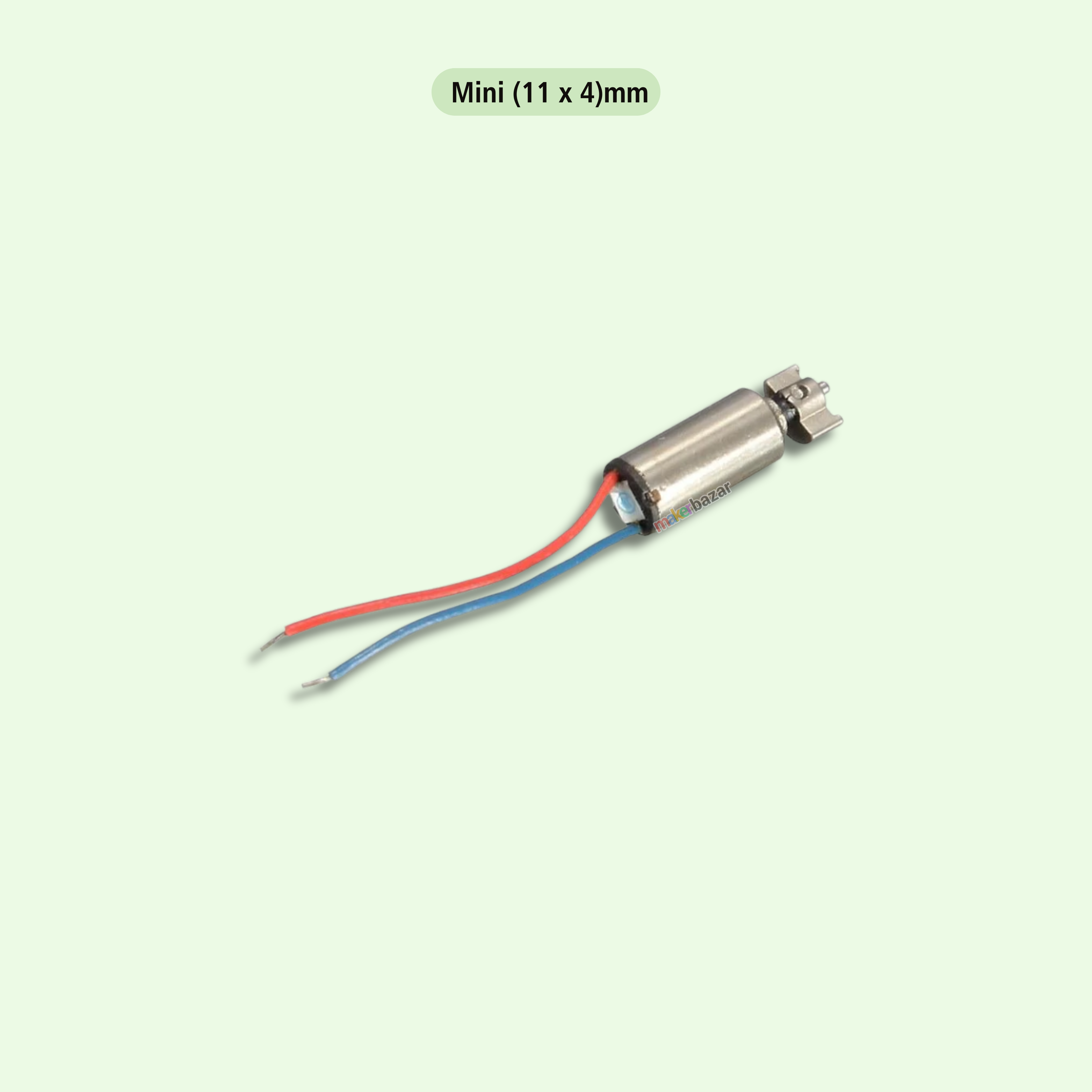

Available in two size variants (11×4 mm and 17×6 mm), this motor is ideal for space-constrained applications such as wearables, toys, alerts, robotics, and portable electronics. Pre-attached wires make installation quick and hassle-free, even for beginners.
Key Features
-
Operates on 3V DC power supply
-
Coreless motor design for high speed and efficiency
-
Compact and lightweight construction
-
Available in two mini sizes for flexible use
-
Pre-soldered wires for easy connection
-
Low noise and smooth vibration output
-
Ideal for battery-powered applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor Type | Coreless DC Vibration Motor |
| Operating Voltage | 3V DC |
| Design | Coreless, high-speed |
| Connection | Pre-attached wire leads |
| Weight | Ultra-lightweight |
| Mounting | Adhesive or holder mount (application dependent) |
Applications
-
Wearable electronics
-
Mobile phones and gadgets
-
Toys and hobby projects
-
Robotics and DIY electronics
-
Alert and notification systems
-
Portable medical or fitness devices
Precautions
-
Do not exceed the rated voltage
-
Avoid continuous operation for extended periods
-
Ensure proper mounting to reduce vibration loss
-
Keep away from moisture and dust
-
Disconnect power before installation
