Description
DIY Mini Vertical Axis Wind Turbine Generator Kit – Micro Wind Power Set Yellow
The DIY Mini Vertical Axis Wind Turbine Generator Kit is a compact, educational, and hands-on set designed for students, hobbyists, and renewable-energy enthusiasts. Featuring four durable vertical blades and a micro generator motor, this kit demonstrates real wind-energy conversion and can operate regardless of wind direction.
Unlike traditional horizontal turbines, this vertical axis wind turbine can start rotating with light wind, making it ideal for science projects, classroom demonstrations, and DIY experiments. With easy assembly and high efficiency for its size, this kit offers an excellent introduction to the principles of wind power generation.
Key Features:
- Vertical-axis design operates efficiently regardless of wind direction
- Low wind start-up and works with minimal airflow
- Ideal for school projects, STEM learning, and DIY experiments

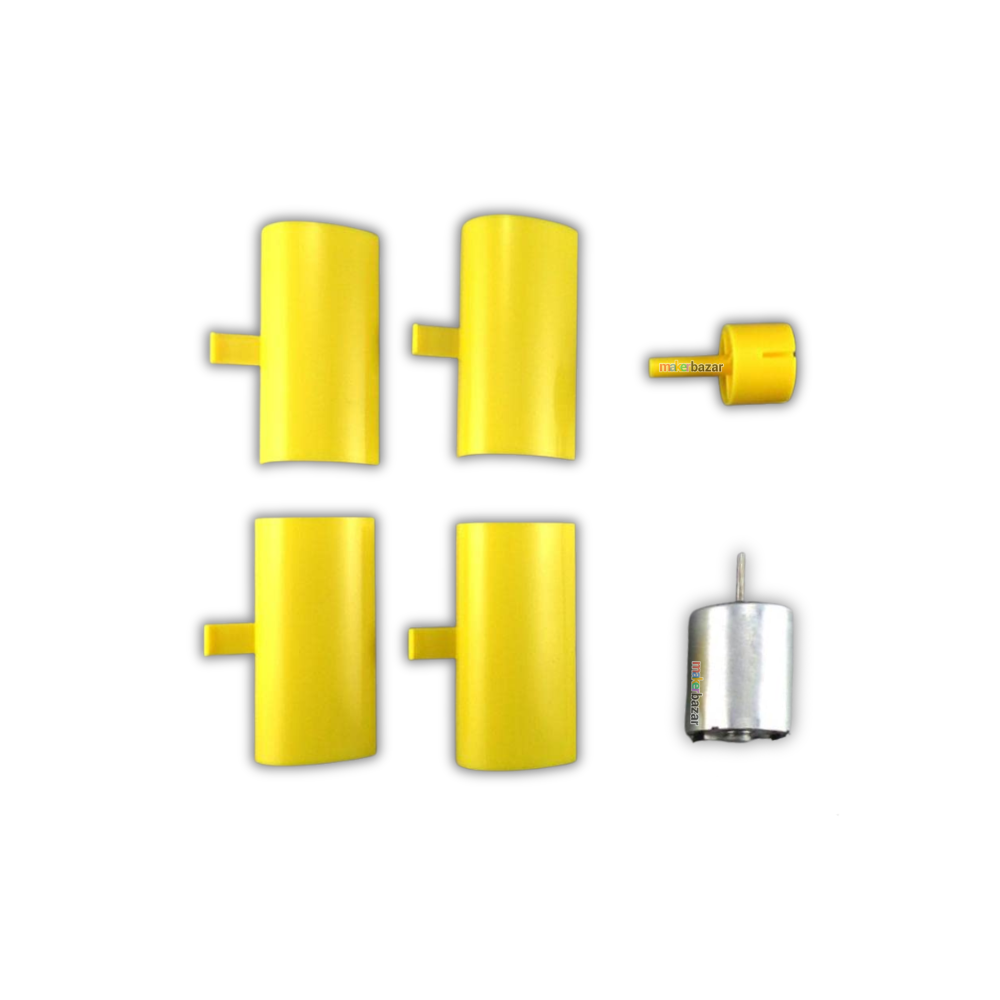

- Simple component structure for quick assembly
- Durable plastic blades with stable micro motor performance
- Demonstrates real voltage generation up to 5.5V and a maximum of 10V, tested under a high-speed Air blower.

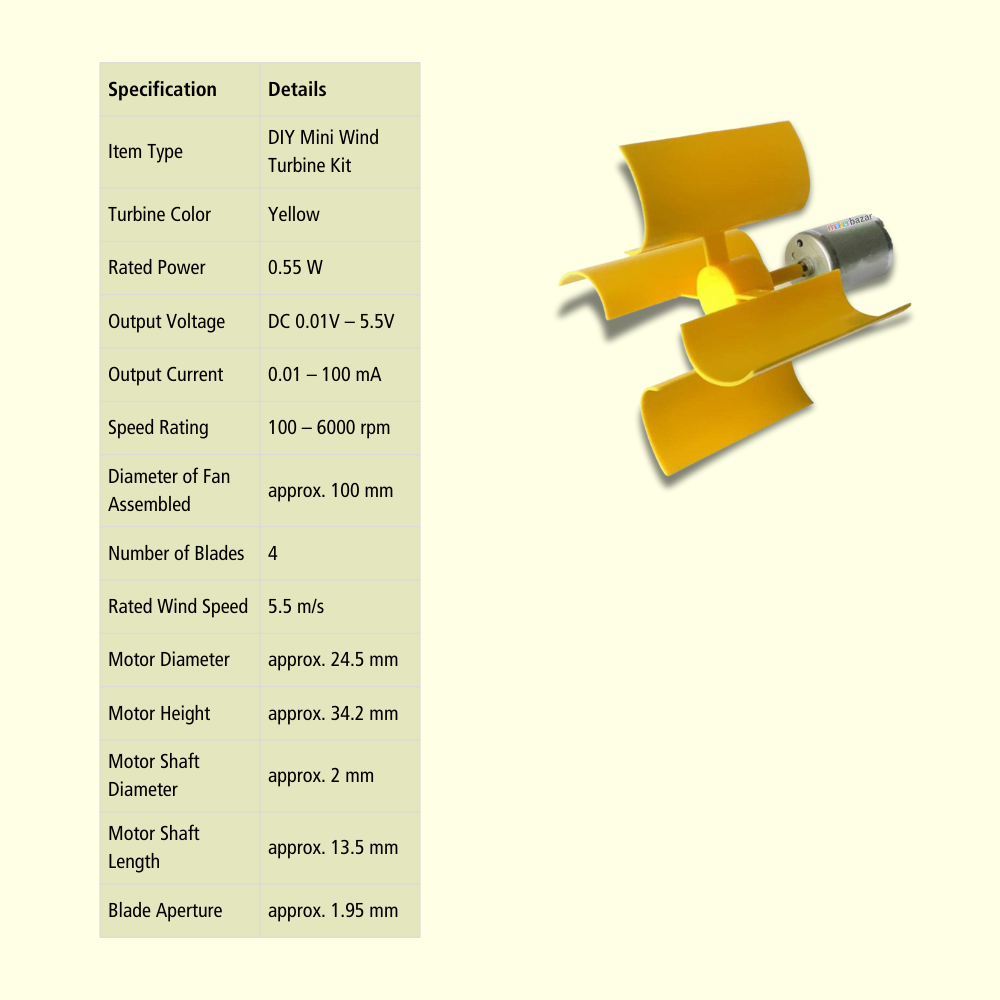

Technical Specifications:
| Specification | Details |
|---|---|
| Item Type | DIY Mini Wind Turbine Kit |
| Turbine Color | Yellow |
| Rated Power | 0.55 W |
| Output Voltage | DC 0.01V – 5.5V |
| Output Current | 0.01 – 100 mA |
| Speed Rating | 100 – 6000 rpm |
| Diameter of Fan Assembled | approx. 100 mm |
| Number of Blades | 4 |
| Rated Wind Speed | 5.5 m/s |
| Motor Diameter | approx. 24.5 mm |
| Motor Height | approx. 34.2 mm |
| Motor Shaft Diameter | approx. 2 mm |
| Motor Shaft Length | approx. 13.5 mm |
| Blade Aperture | approx. 1.95 mm |
| Weight | approx. 65 g |

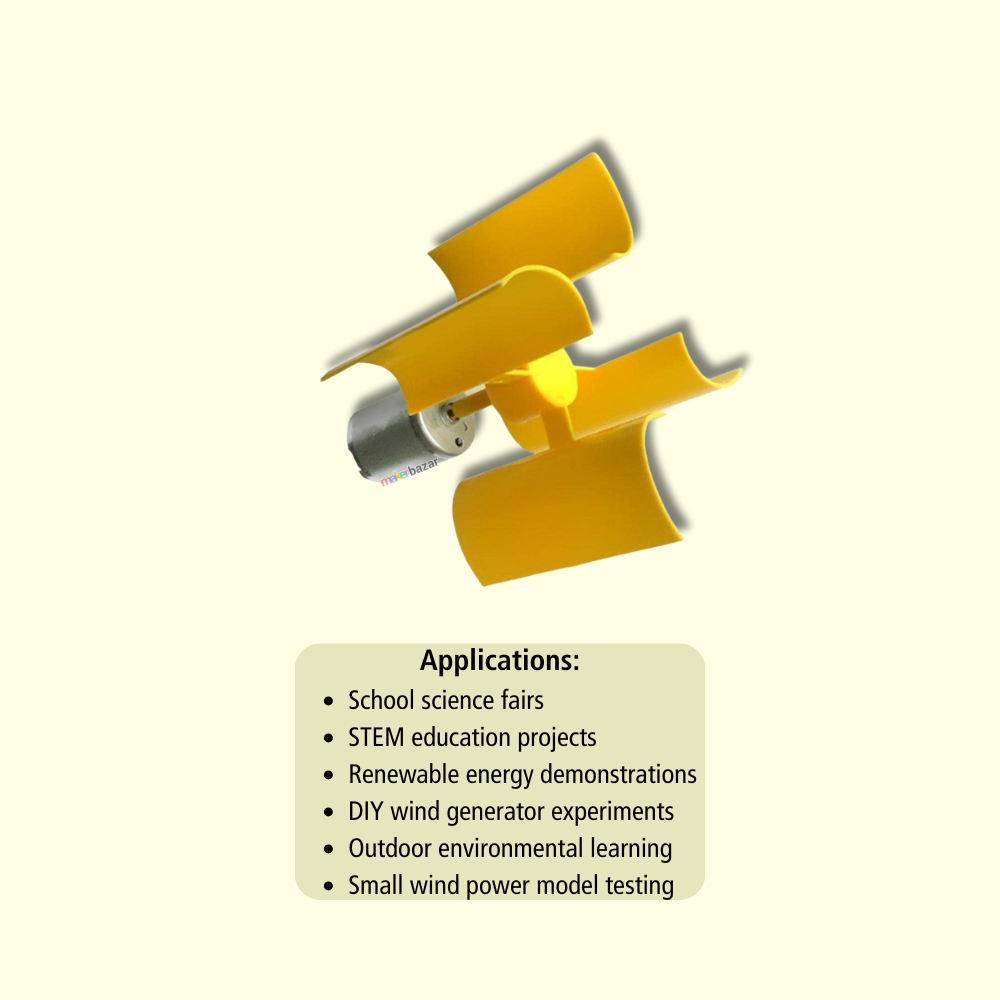

Applications:
- School and college science experiments
- Renewable energy demonstrations
- DIY engineering projects
- STEM learning and academic models
- Wind-energy concept teaching
- Mini power generation demos for LEDs
Precautions:
- Suitable for educational and demonstration use only
- Do not expose the motor to moisture
- Ensure blades are mounted correctly before use
- Avoid extremely high wind speeds
- Adult supervision recommended for young users
Note: Don't use this motor as a DC motor by powering voltage to its terminals; this action will permanently damage the motor.
