Description

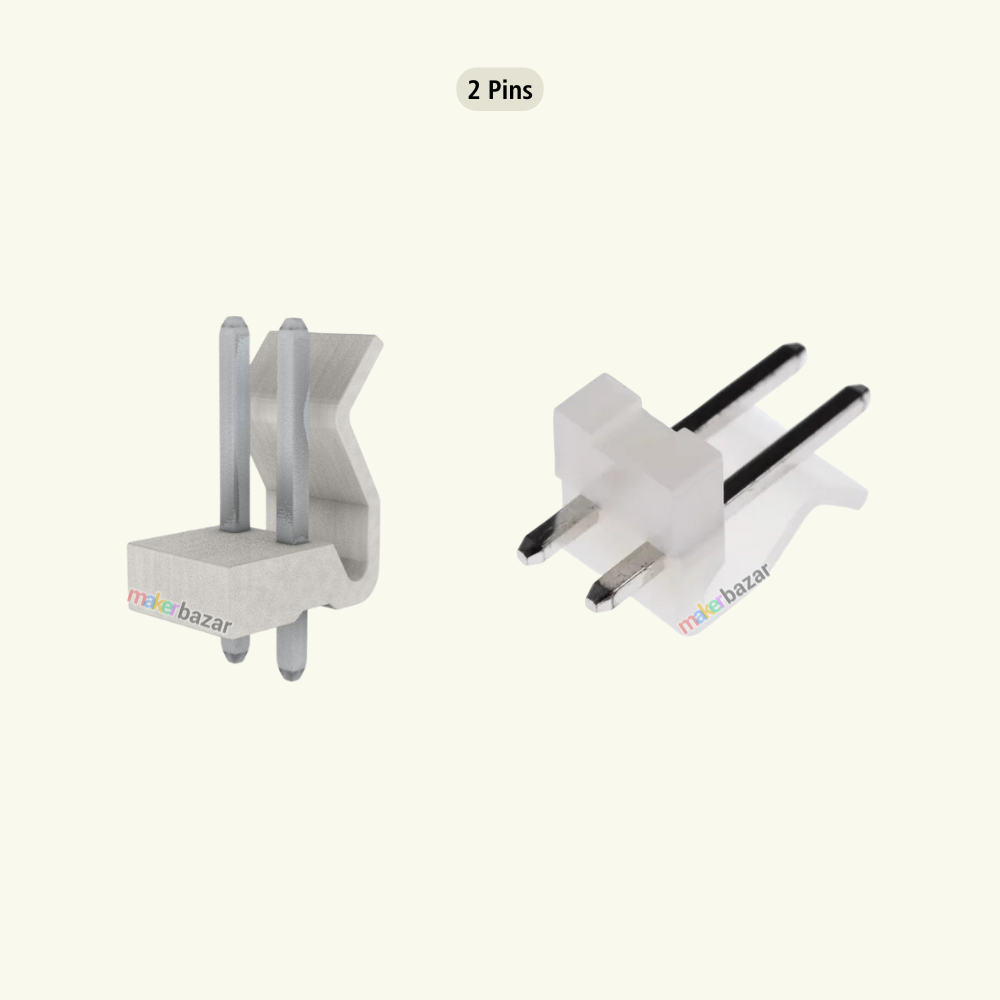

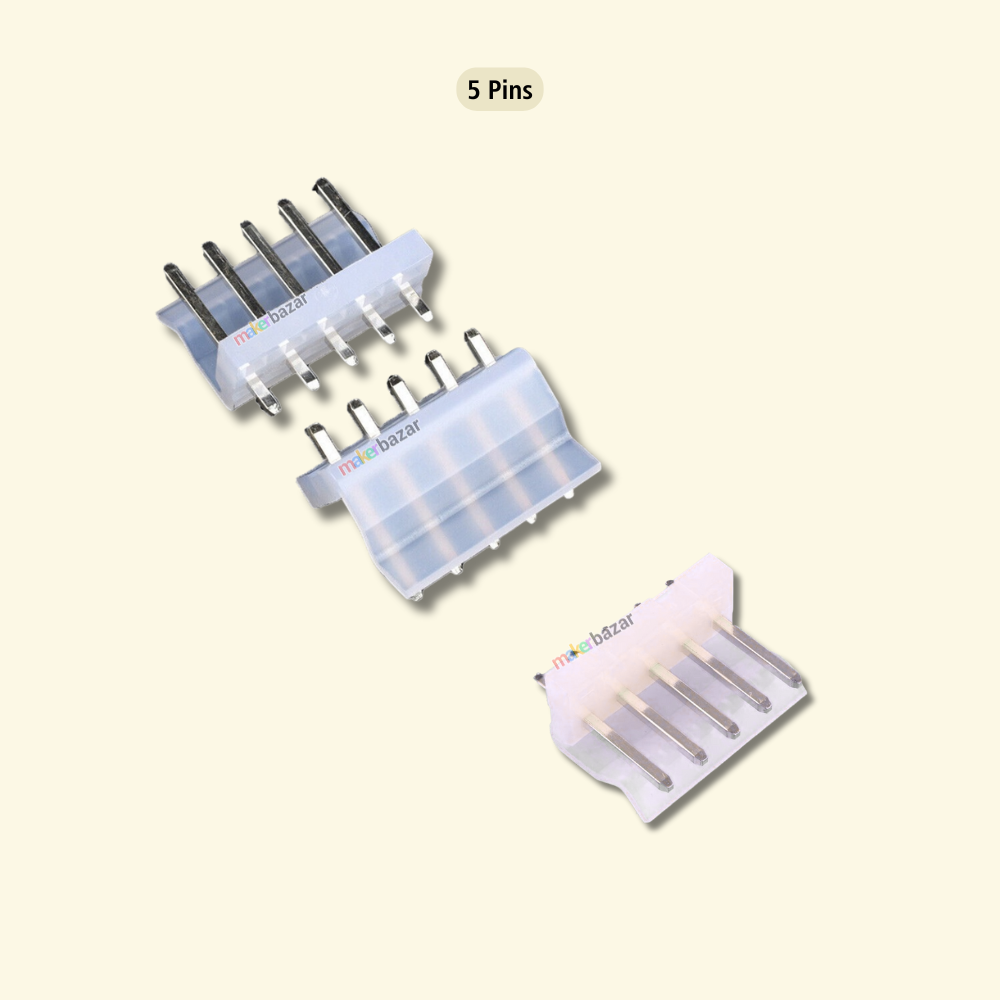

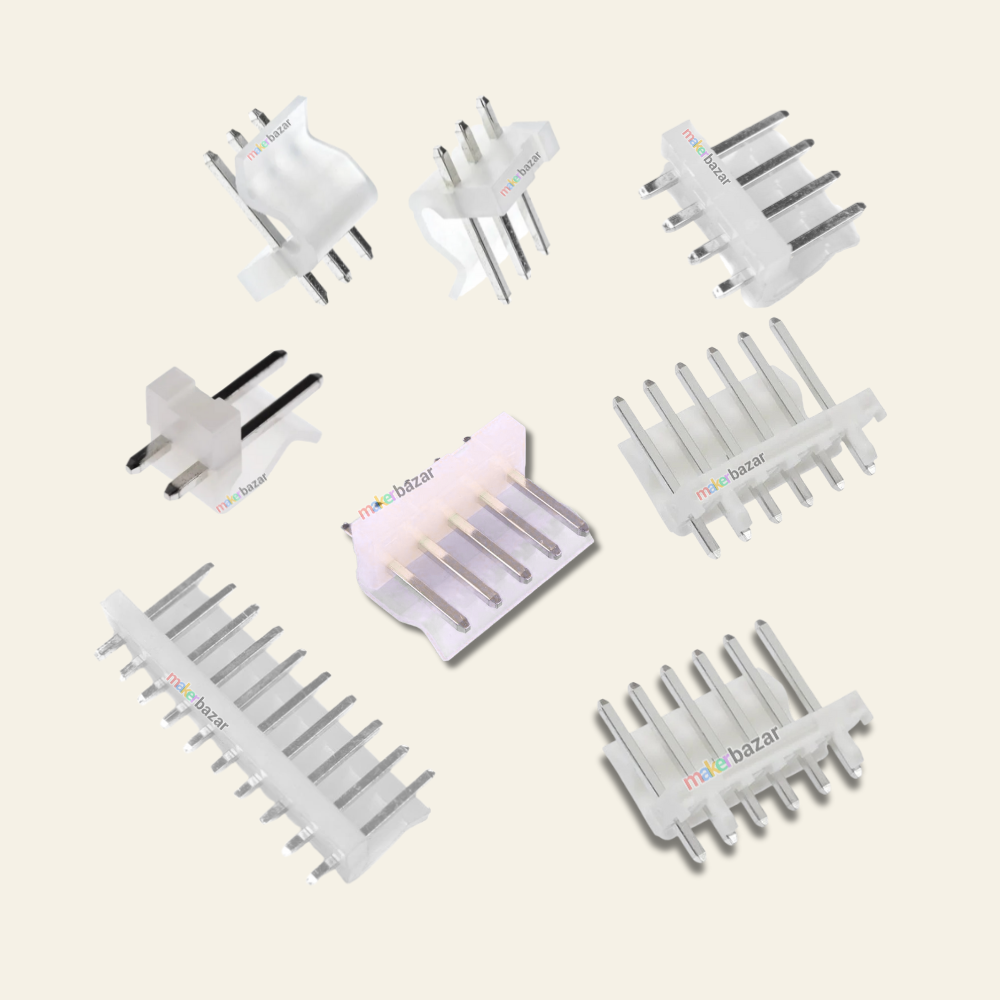

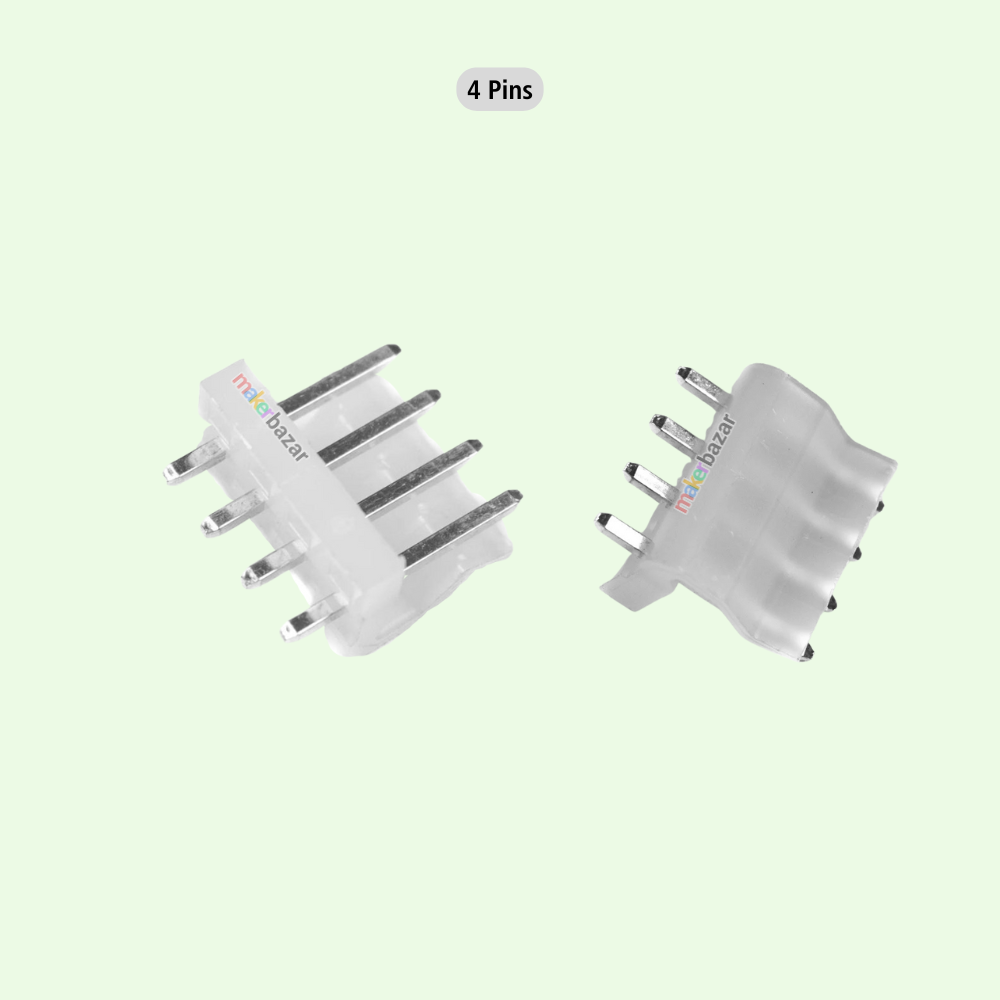

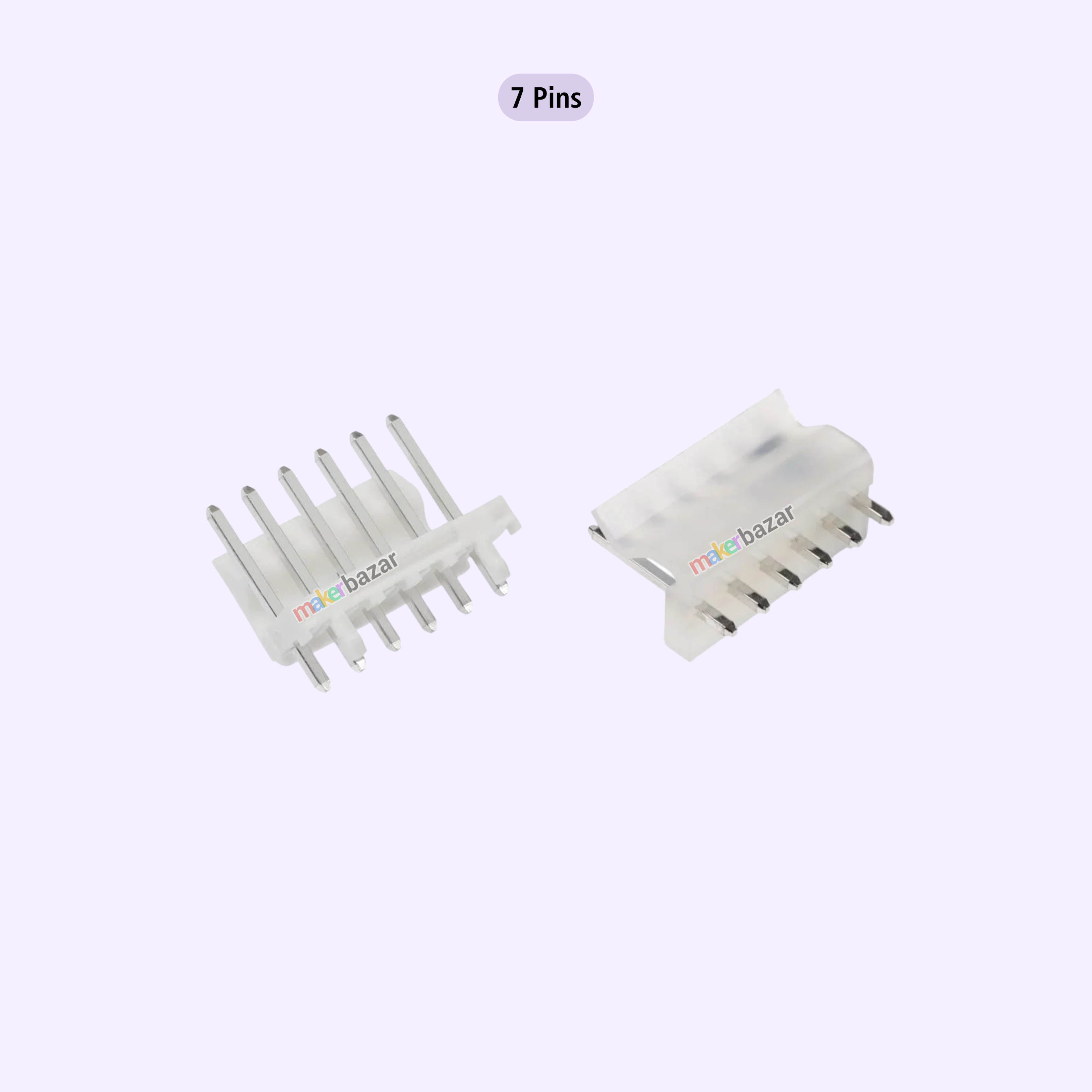

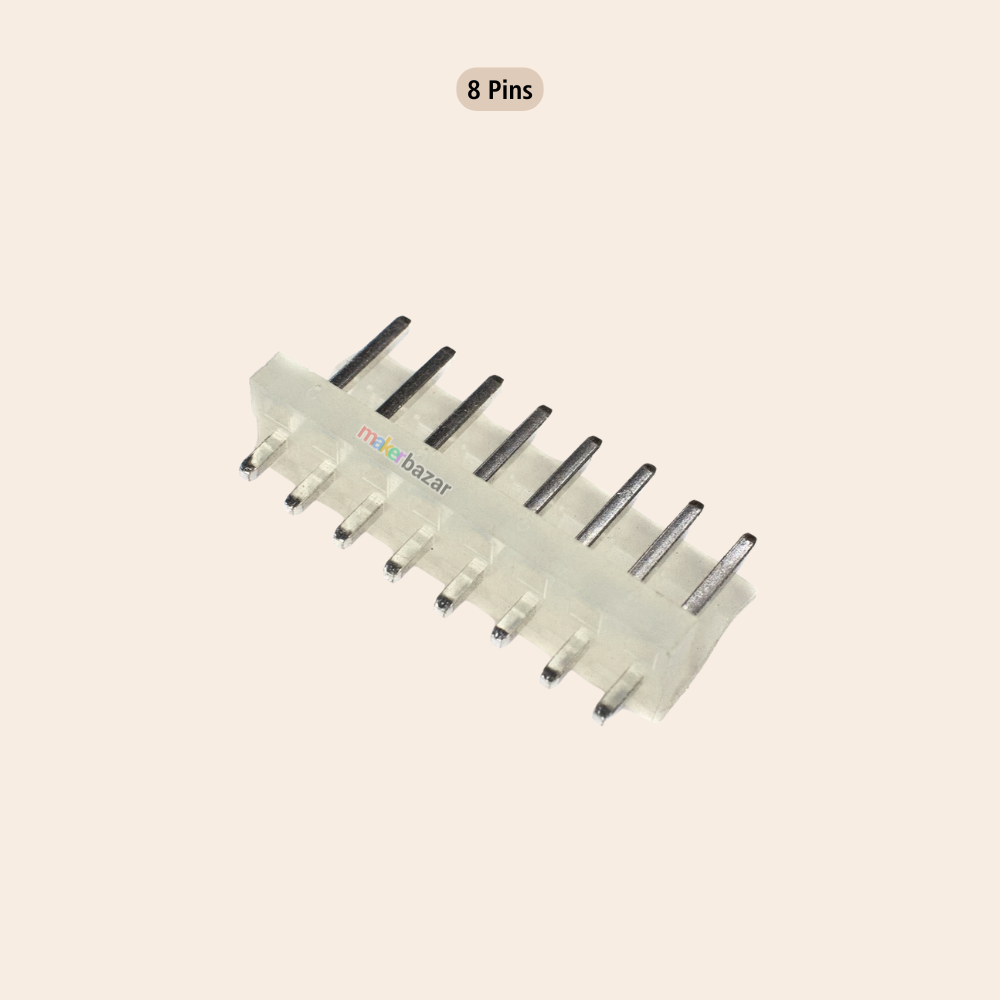

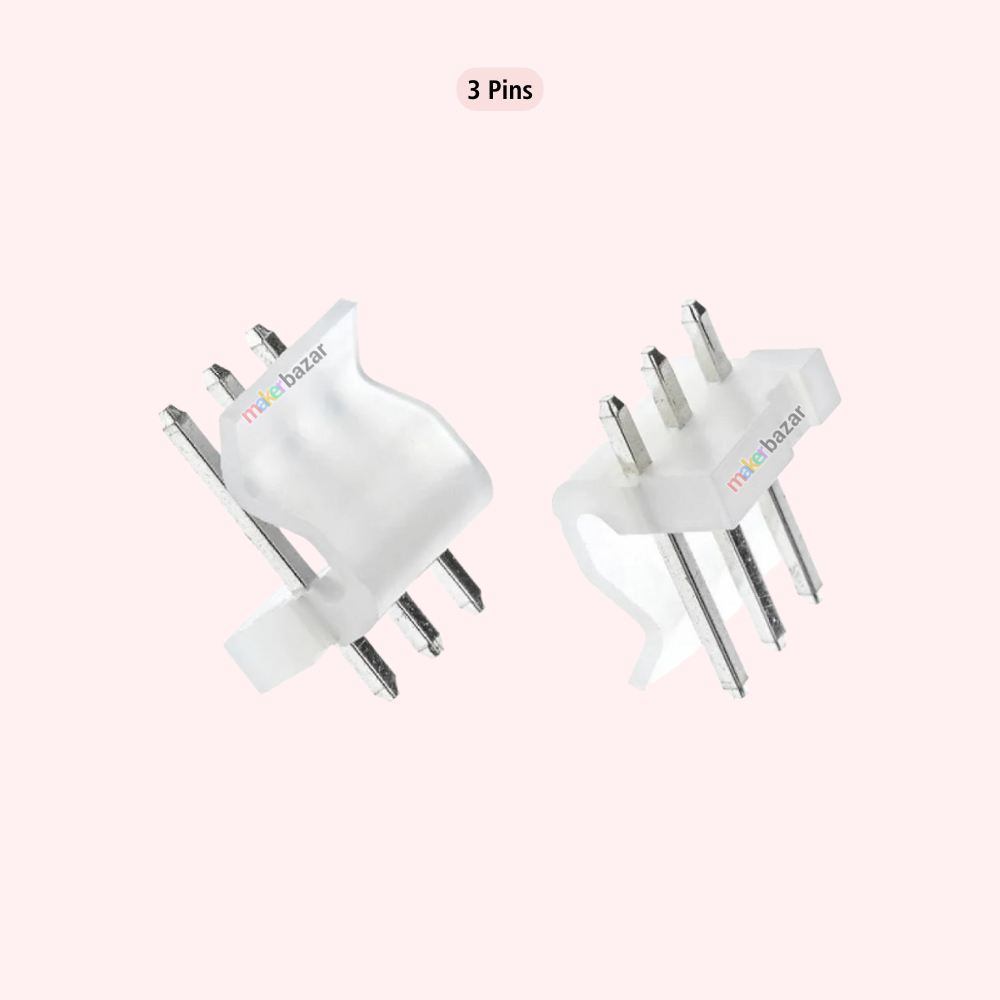

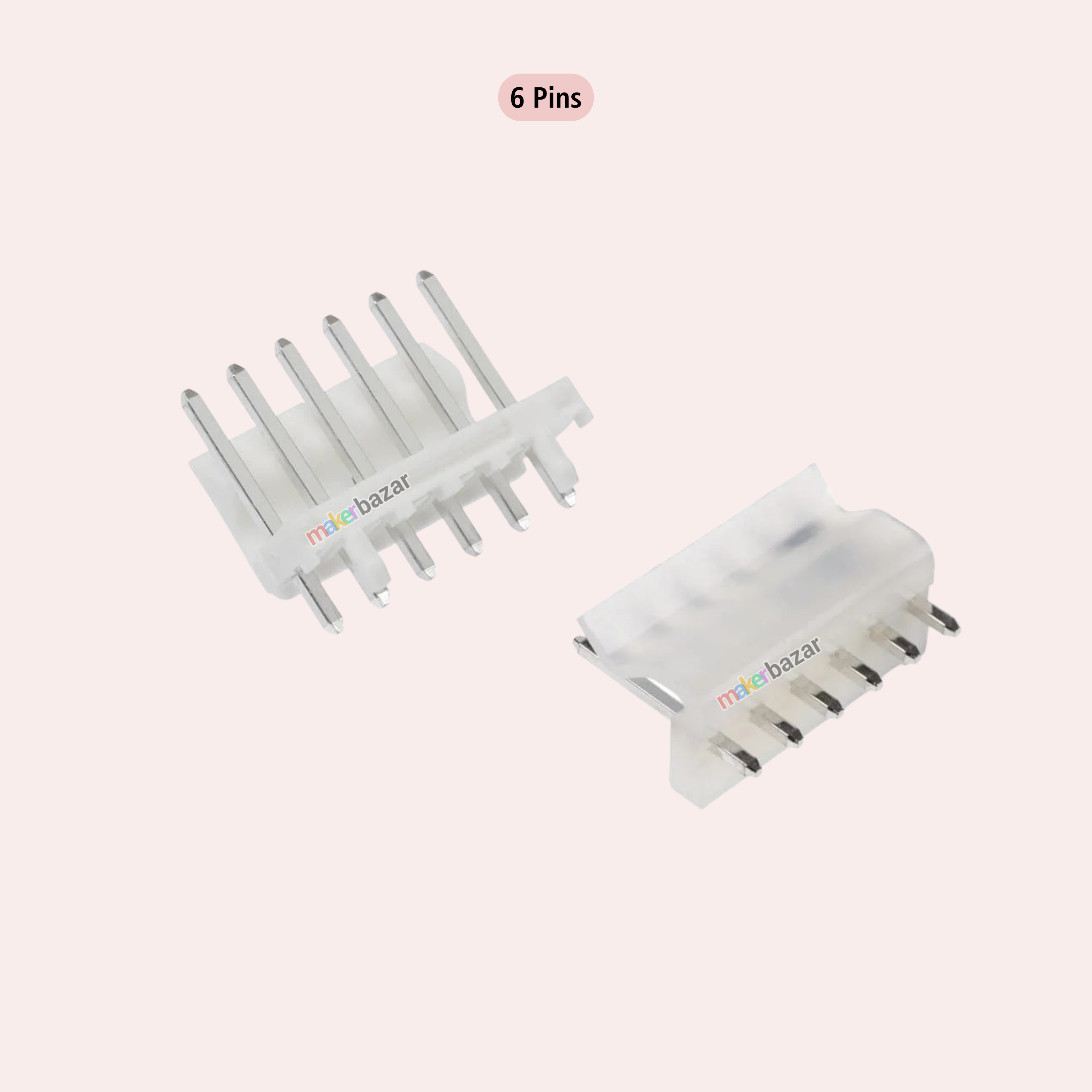

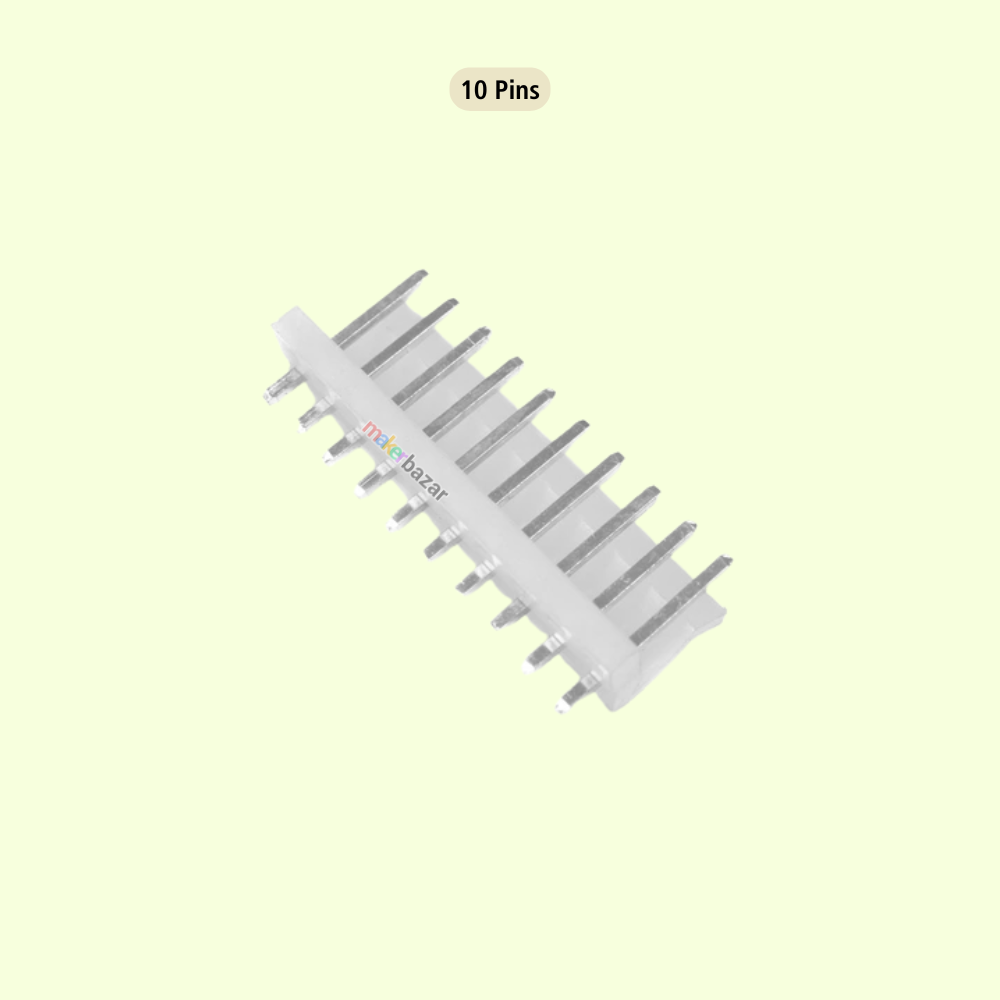

Molex KK396 3.96mm Pitch CPU Male/Female Straight Connector – Multiple Pin Options
The Molex KK396 CPU Male Straight Connector (3.96mm Pitch) is a high-reliability, single-row board connector designed for secure wire-to-board and board-to-board connections. Built using durable plastic housing with nickel-plated phosphor bronze contacts, this connector ensures excellent electrical conductivity, mechanical strength, and long service life.
Available in 2 Pin to 10 Pin variants, the KK396 connector is widely used in power supplies, CPU boards, industrial electronics, DIY electronics projects, and control circuits.
Key Features:
-
Standard 3.96mm pitch single-row male connector
-
Available in 2, 3, 4, 5, 6, and 7 pin variants
-
Phosphor bronze contacts for stable conductivity
-
Nickel-plated terminals for corrosion resistance
-
Visual contact lock-in for secure insertion
-
Supports high voltage and current applications
-
Durable white plastic housing
Technical Specifications:
| Specification | Details |
|---|---|
| Connector Type | JST CH / Molex KK396 Compatible |
| Gender | Male |
| Pitch | 3.96 mm |
| Contact Plating | Nickel |
| Maximum Voltage | 600 VAC |
| Current Rating | 7A |
| Wire Size Supported | 20–28 AWG |
| Operating Temperature | -25°C to +85°C |
| Housing Material | High-quality plastic |
| Color | White |
| Approx. Weight | ~2 g |
| Mounting Style | Straight / Top Entry |
Applications:
-
CPU and power supply connections
-
Industrial control boards
-
Arduino and DIY electronics projects
-
Wire-to-board and board-to-board connections
-
Embedded systems and automation circuits
-
Power distribution modules
Precautions:
-
Ensure correct pin alignment before insertion
-
Use compatible crimp terminals and housings
-
Do not exceed rated voltage or current
-
Avoid excessive mechanical force during installation
-
Store in a dry, dust-free environment
