Description

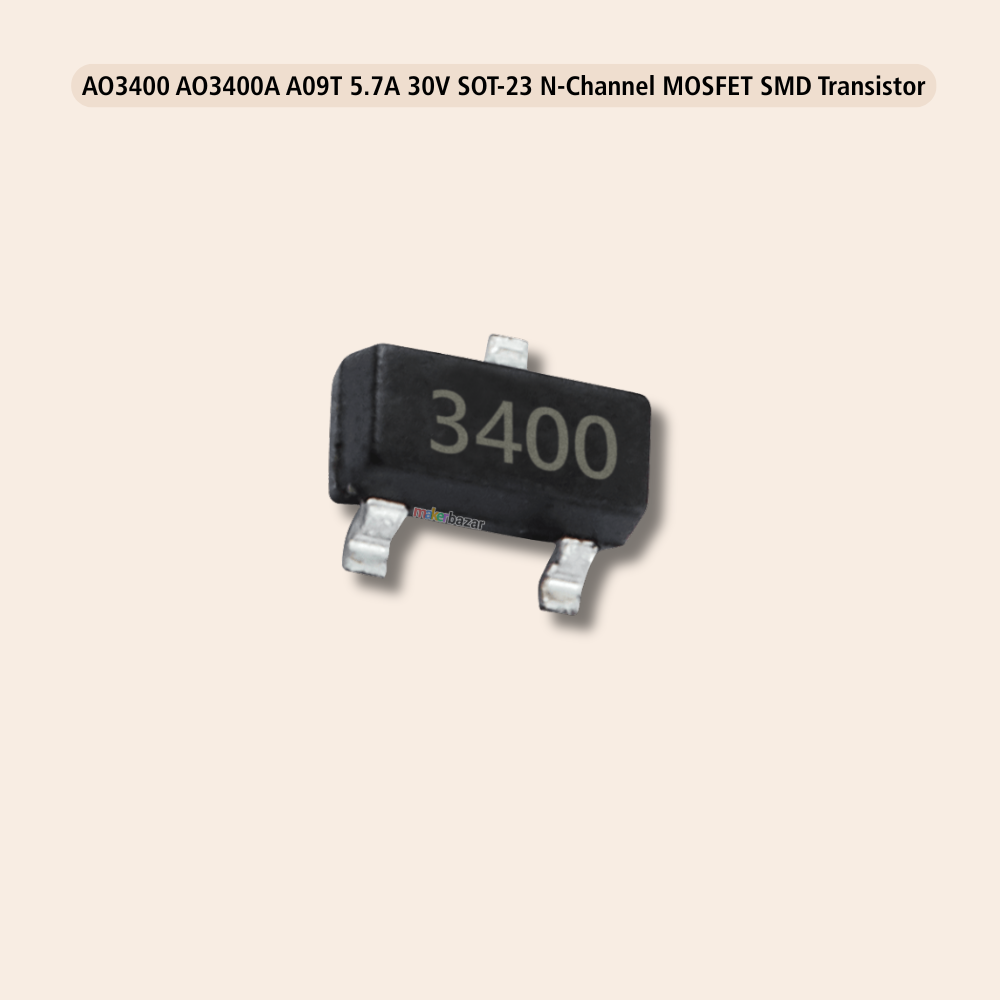

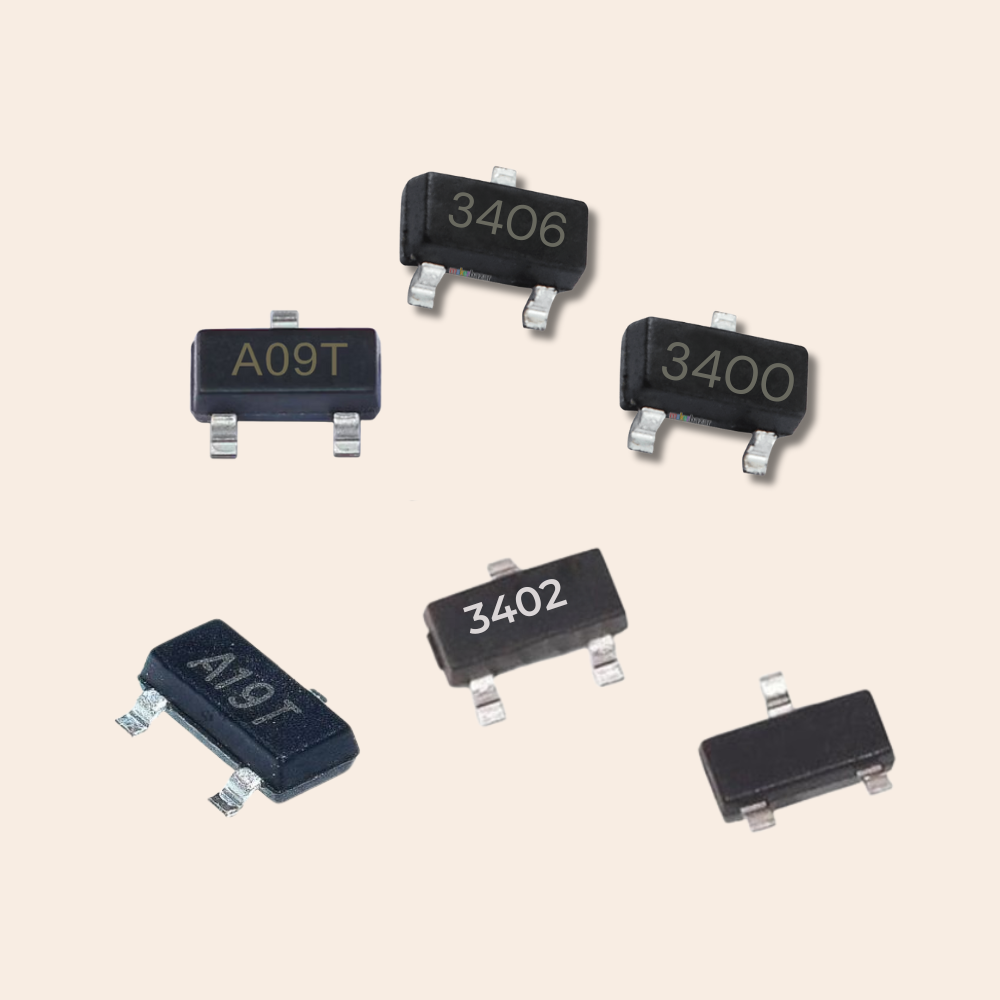

N-Channel MOSFET SOT-23 30V 5.2A
This N-Channel MOSFET from is a high-efficiency switching transistor designed for low-voltage, high-current applications. With a compact SOT-23 package and a low RDS(on) value of 27mΩ at 4.5V, this MOSFET offers excellent performance, reduced heat generation, and high reliability.
Suitable for battery-powered electronics, DC-DC converters, LED drivers, load switching, and various embedded systems, it provides exceptional efficiency with low gate charge and a wide operating temperature range.
Key Features
-
High Current Capability: Handles up to 5.2A continuous drain current
-
Low RDS(on): 27mΩ at VGS = 4.5V for efficient operation
-
30V Drain-Source Rating suitable for a wide range of designs
-
Compact SOT-23 package ideal for space-limited circuits
-
Logic-Level Gate Drive with 0.85V threshold
-
Low Gate Charge for fast and efficient switching
-
ROHS Compliant for modern electronic manufacturing
Technical Specifications
| Specification | Value |
|---|---|
| Package | SOT-23 |
| Channel Type | N-Channel |
| Drain-Source Voltage (VDS) | 30V |
| Continuous Drain Current (ID) | 5.2A |
| RDS(on) | 27mΩ @ 4.5V, 5A |
| Power Dissipation | 1W |
| Gate Threshold Voltage | 0.85V |
| Input Capacitance (Ciss) | 927pF @ 15V |
| Reverse Transfer Capacitance (Crss) | 61pF @ 15V |
| Gate Charge (Qg) | 11.7nC @ 4.5V |
| Operating Temperature | -55°C to +150°C |
| Type | N-Channel MOSFET |
| RoHS | Yes |
Applications
-
DC-DC power converters
-
Battery-operated devices
-
LED driving circuits
-
Motor control modules
-
Power management systems
-
Embedded electronics
-
Robotics and DIY projects
Precautions
-
Use proper ESD handling procedures
-
Do not exceed maximum voltage/current ratings
-
Provide heat dissipation when used near load limits
-
Ensure PCB matches SOT-23 footprint
-
Avoid short-circuit conditions during testing
