No Touch Stainless Steel Exit Push Button/Touch Free Door Release Sensor Button- Access Control

Save ₹ 201.00
SKU: 113907616
No reviews
Price:
₹ 1,049.00 ₹ 1,250.00
( ₹ 888.98 without 18% GST.)

Tax included Shipping calculated at checkout

For Bulk, Call us on +91 97175 83225

Description

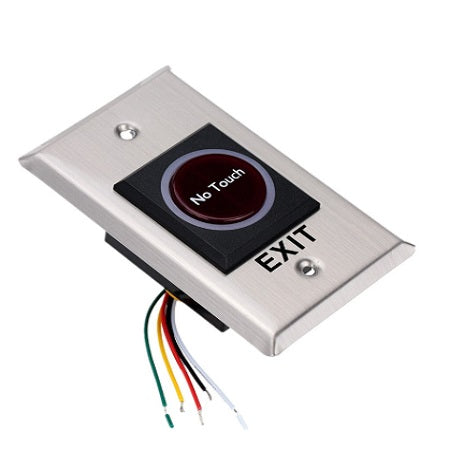

No Touch Switch Infrared Sensor Automatic Door Opener Access Control Systems Release Exit Button

  • Standard Structure: Stainless steel panel and button
  • Mechanical Life: > 500000 times
  • Output Contact: NO/NC/COM
  • Operating Temp: 20°C~+55°C(14-131F)
  • Maximum power rating: 1228V3A
  • Material: Stainless steel
  • Dimensions approx.: 113.2*68.2*29mm

Specification of this switch

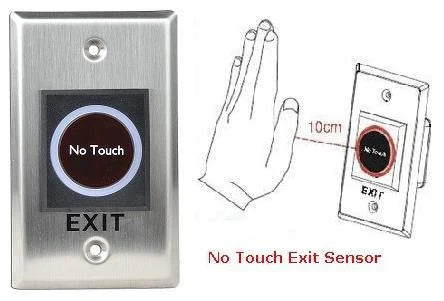

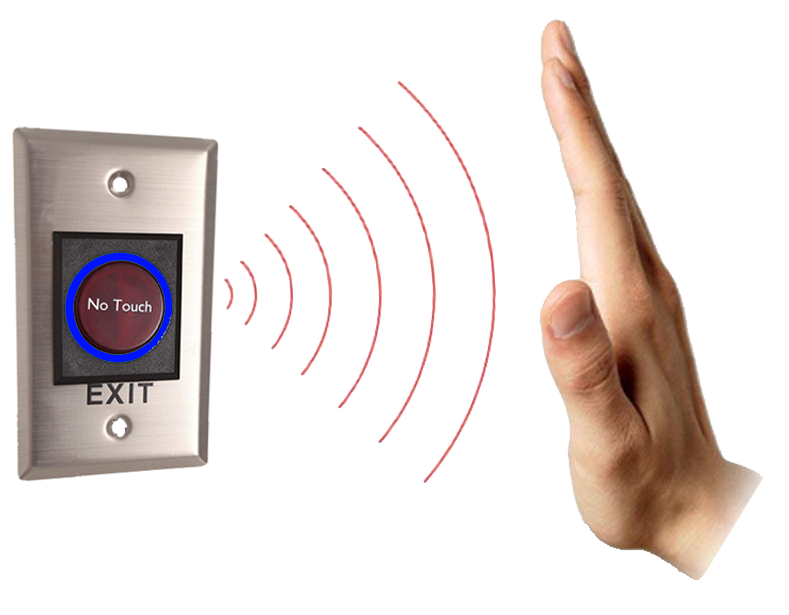

  • No touch / Touch free Exit Sensor (Diffused Detection)
  • Optical / Infrared Technology
  • 1P-55 Ingress Protection / SUS 304 Stainless steel Plate
  • User-friendly (Healthy protection)
  • Free from contagious diseases spread
  • Detection range: 0.1 ~ 10 cm
  • Application: Gate/Door/Exit/Automation control
  • High capacity of relay dry contact (3A/AC120V,DC30V)
  • Normally open/Normally close/Common relay output
  • Twin led indicators for sensor standby or approached
  • (1) Sensor Standby: BLUE LED ON
  • (2) Visitors whom approached to the sensor in 10 cm : RED LED ON
