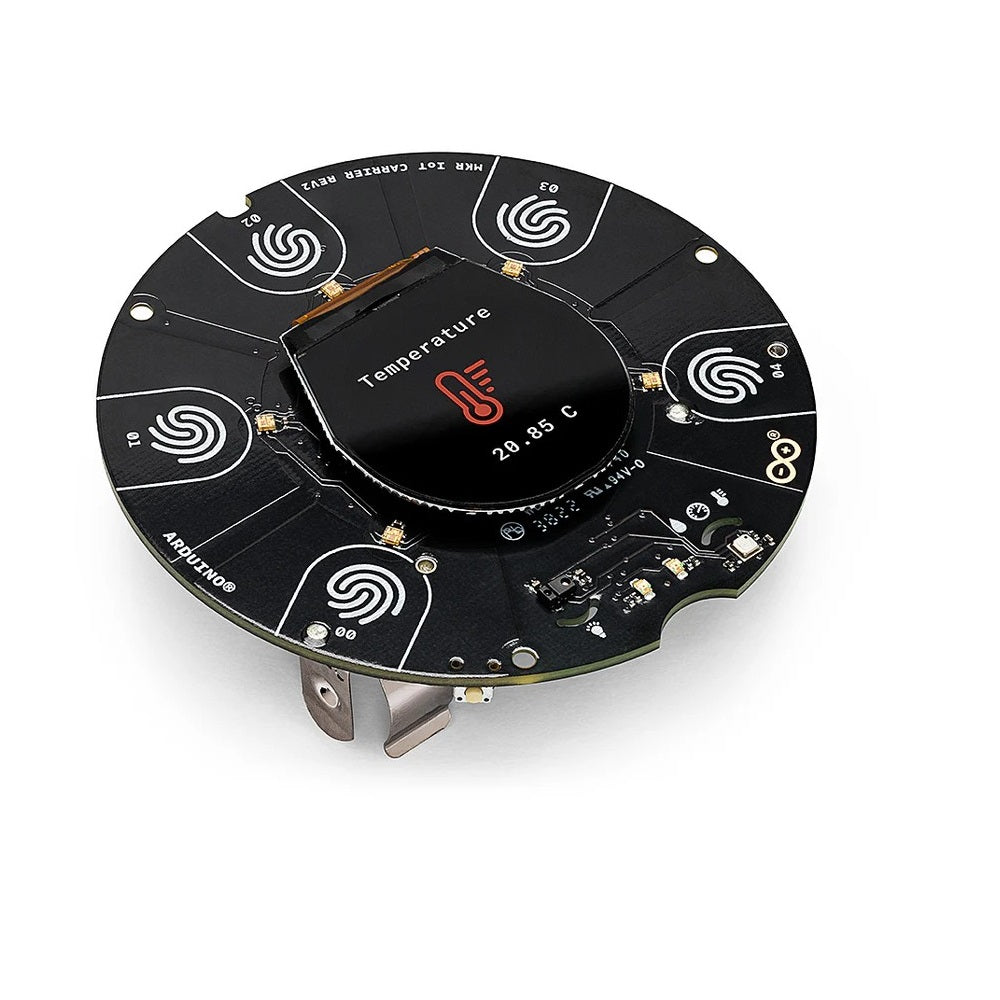

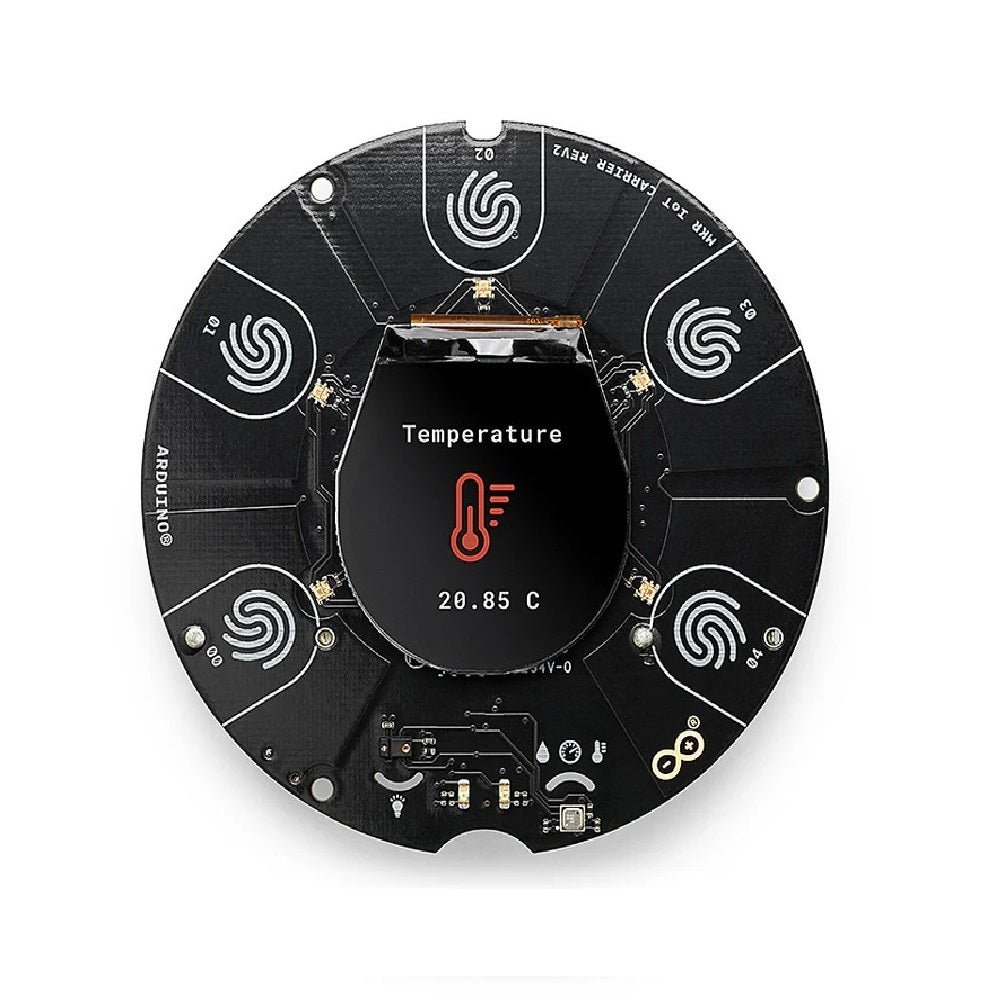

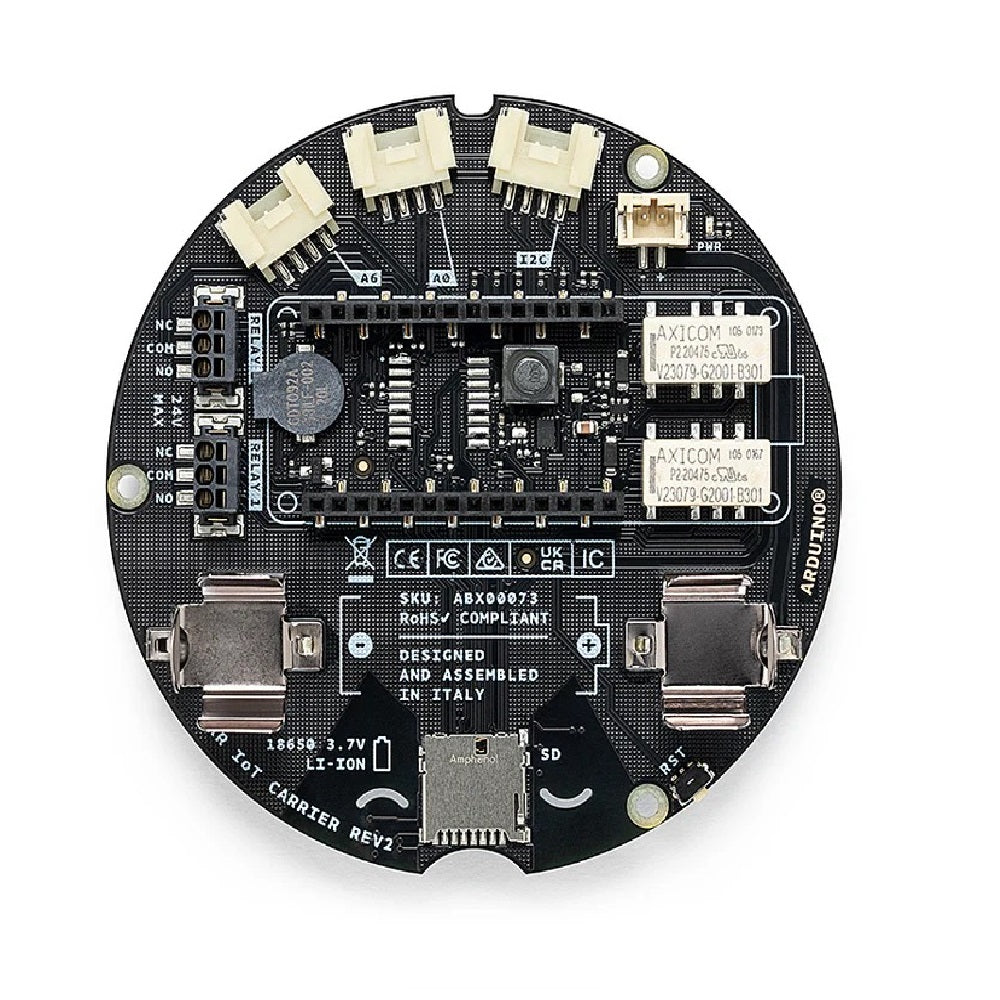

Arduino MKR IoT Carrier Rev2 – All-in-One IoT Solution for MKR Boards
The Arduino MKR IoT Carrier Rev2 is an all-in-one expansion board designed to turn any MKR board into a powerful IoT device without needing extra components. It includes built-in sensors, a color display, capacitive touch buttons, RGB LEDs, relays, and Grove connectors, making it perfect for environment monitoring, automation, and user interface projects. Easily connect to the Arduino IoT Cloud and control or monitor your devices remotely.
Specifications:
-
Compatible Boards: All Arduino MKR family boards
-
Sensors Included:
-
BME688: Temperature, humidity, barometric pressure, air quality (VOC)
-
LSM6DSOX: 6-axis IMU (accelerometer + gyroscope)
-
APDS-9960: Light, proximity, gesture, and color sensing
-
-
Actuators:
-
2x 24V Relays (V23079)
-
5x RGB LEDs
-
Buzzer
-
5x Capacitive Touch Buttons (Qtouch Pad)
-
-
Display: 1.3” Round OLED Color Display (KD013QVFMD002-01)
-
Connectivity Options:
-
2x Grove (Analog - A0/A6)
-
1x Grove (I2C)
-
-
Storage: Micro SD card slot (card not included)
-
Power: Battery holder for 18650 Li-Ion rechargeable battery (battery not included)
