Description

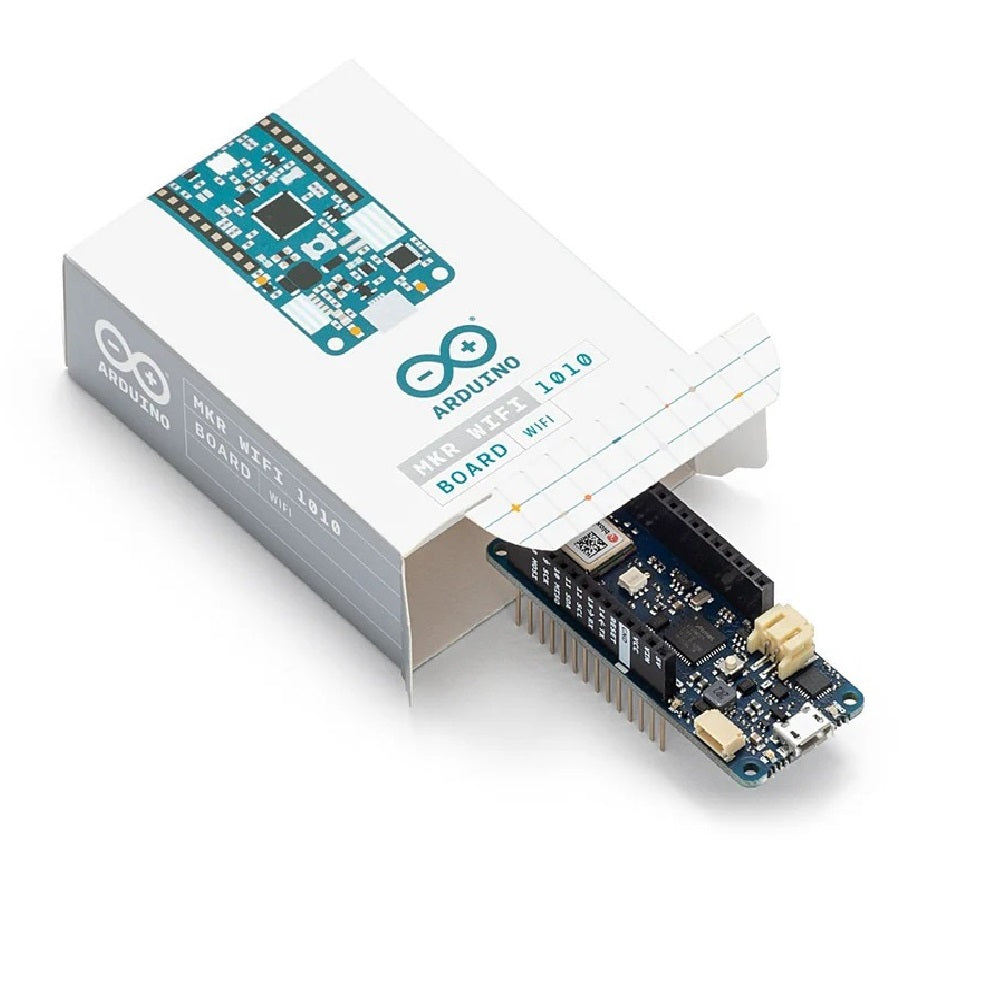

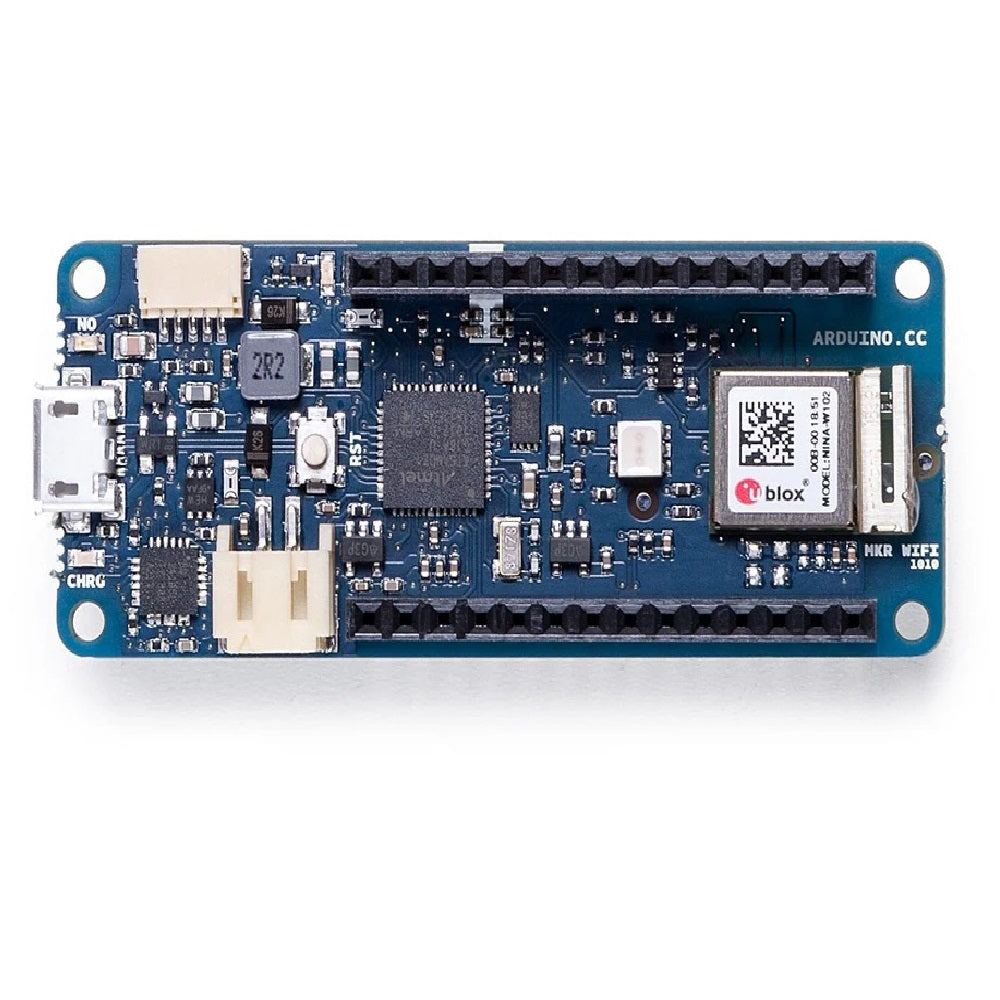

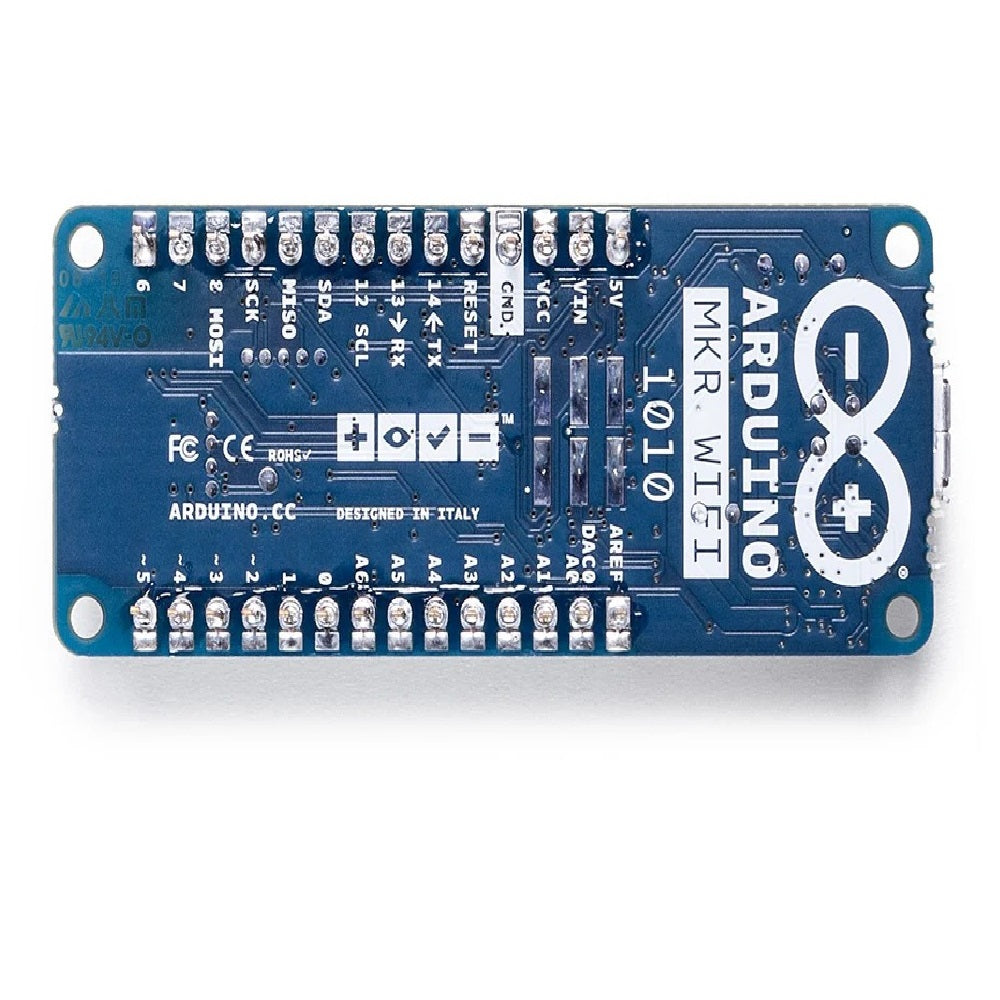

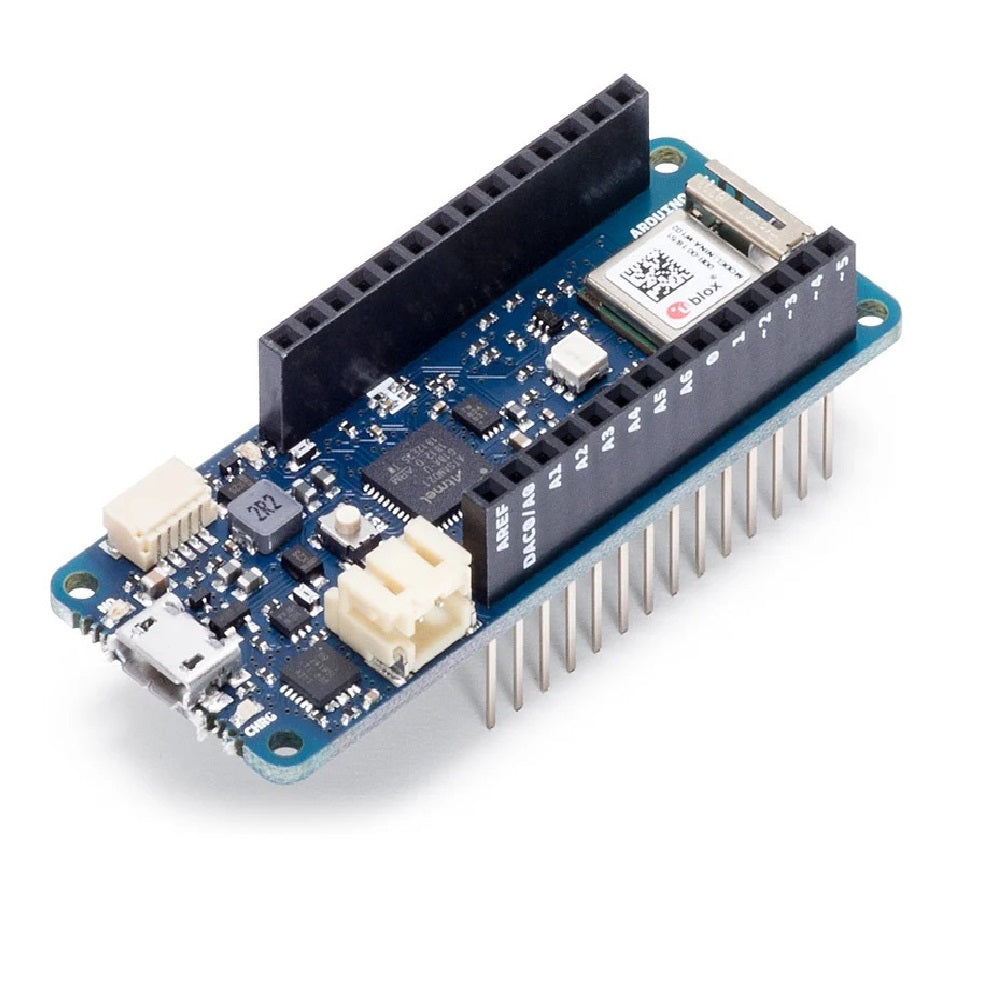

Arduino MKR WiFi 1010 – Compact IoT Board with WiFi, Bluetooth & Battery Charging
The Arduino MKR WiFi 1010 is an ideal entry-level board for IoT and pico-network projects, featuring a powerful SAMD21 Cortex-M0 32-bit processor and the u-blox NINA-W10 module for WiFi and Bluetooth® connectivity. It includes a secure Microchip ECC508 crypto chip for safe communication and an onboard battery charger, allowing seamless switching between USB and Li-Po battery power. Compatible with Arduino IoT Cloud and major cloud services like AWS, Azure, and Firebase, this board simplifies connected device development. The MKR WiFi 1010 also supports advanced features like dual processor hacking for WiFi and Bluetooth simultaneous use.

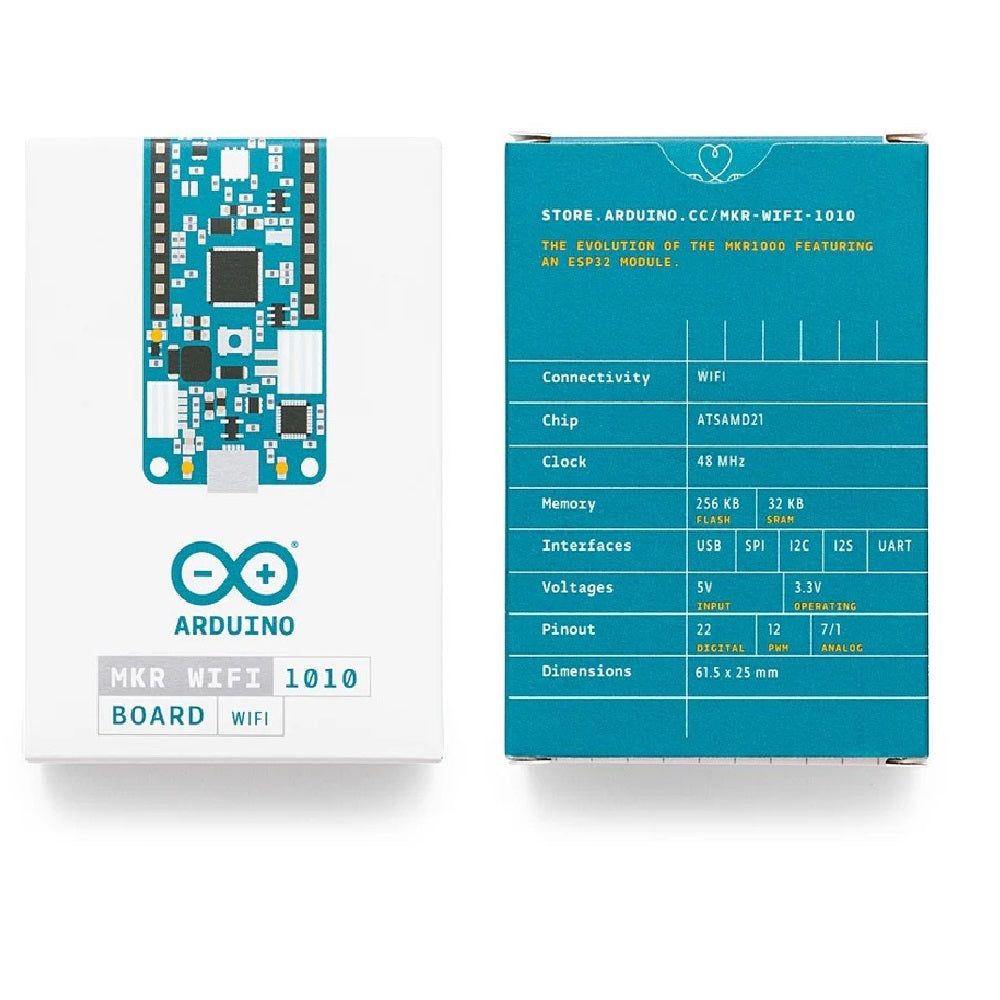

Specifications:
-
Microcontroller: SAMD21 Cortex-M0 32-bit ARM MCU
-
Radio Module: u-blox NINA-W10 (WiFi 2.4 GHz + Bluetooth)
-
Secure Element: Microchip ECC508 crypto chip
-
Operating Voltage: 3.3V
-
Input Voltage: USB 5V or Li-Po battery
-
Battery Charger: Integrated Li-Po charging circuit
-
Clock Speed: 48 MHz
-
Flash Memory: 256 KB
-
SRAM: 32 KB
-
Digital I/O Pins: 22
-
PWM Pins: 12
-
UART: 1
-
SPI: Yes
-
I2C: Yes
-
Dimensions: 61.5 mm x 25 mm
