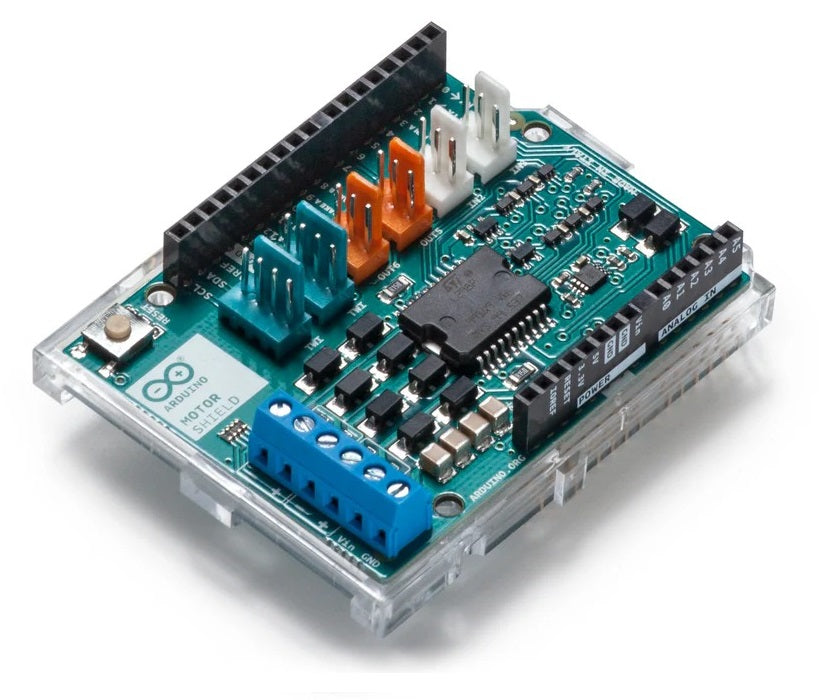

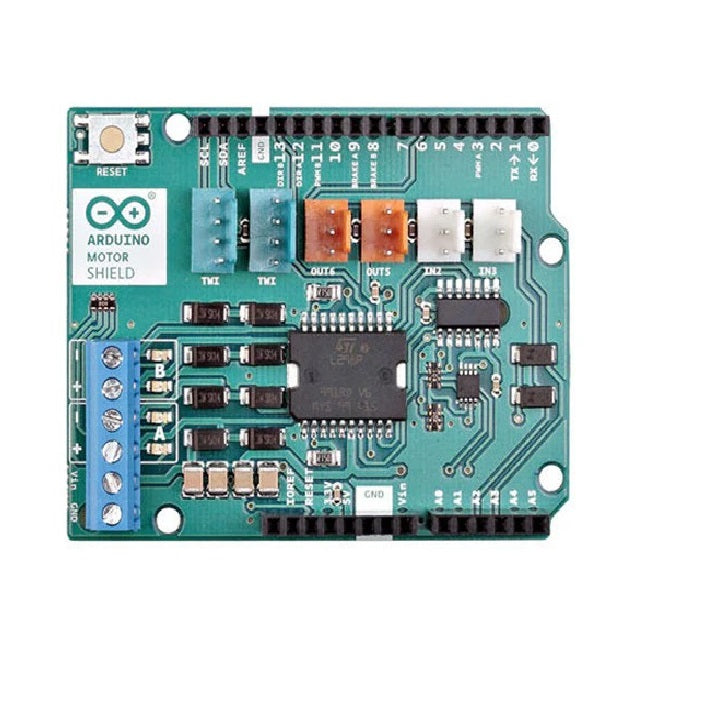

Arduino Motor Shield Rev3 – Dual DC Motor Driver for Arduino Projects
The Arduino Motor Shield Rev3 is a powerful add-on board designed to control two DC motors or one stepper motor using your Arduino. Based on the L298P dual full-bridge driver, it allows independent motor control with speed, direction, and current sensing features. It's perfect for robotics, automation, and mechanical projects, and is fully compatible with TinkerKit modules for plug-and-play prototyping.
Specifications:
-
Motor Driver: L298P (Dual H-Bridge)
-
Motor Control: 2 DC motors or 1 stepper motor
-
Operating Voltage: 5V–12V
-
Max Current: 2A per channel (4A total with external power)
-
Current Sensing: 1.65V/A
-
Functions: Free running stop, brake function
-
Compatibility: TinkerKit & Arduino UNO form factor
