Description
Owon VDS1022I USB oscilloscope
Owon VDS1022I 25MHz 2-channel USB oscilloscope is a oscilloscope for use with a computer. The VDS oscilloscopes are powered by USB and have a small size, making it easy to take them with you. The VDS oscilloscopes are very economical. The VDS Series have a shielded USB connection, reducing interference and protecting the computer against over-voltage. The multi port on the scope can be used for external triggering, trigger out or Pass / Fail output.
Ultra-thin body design, easy portability

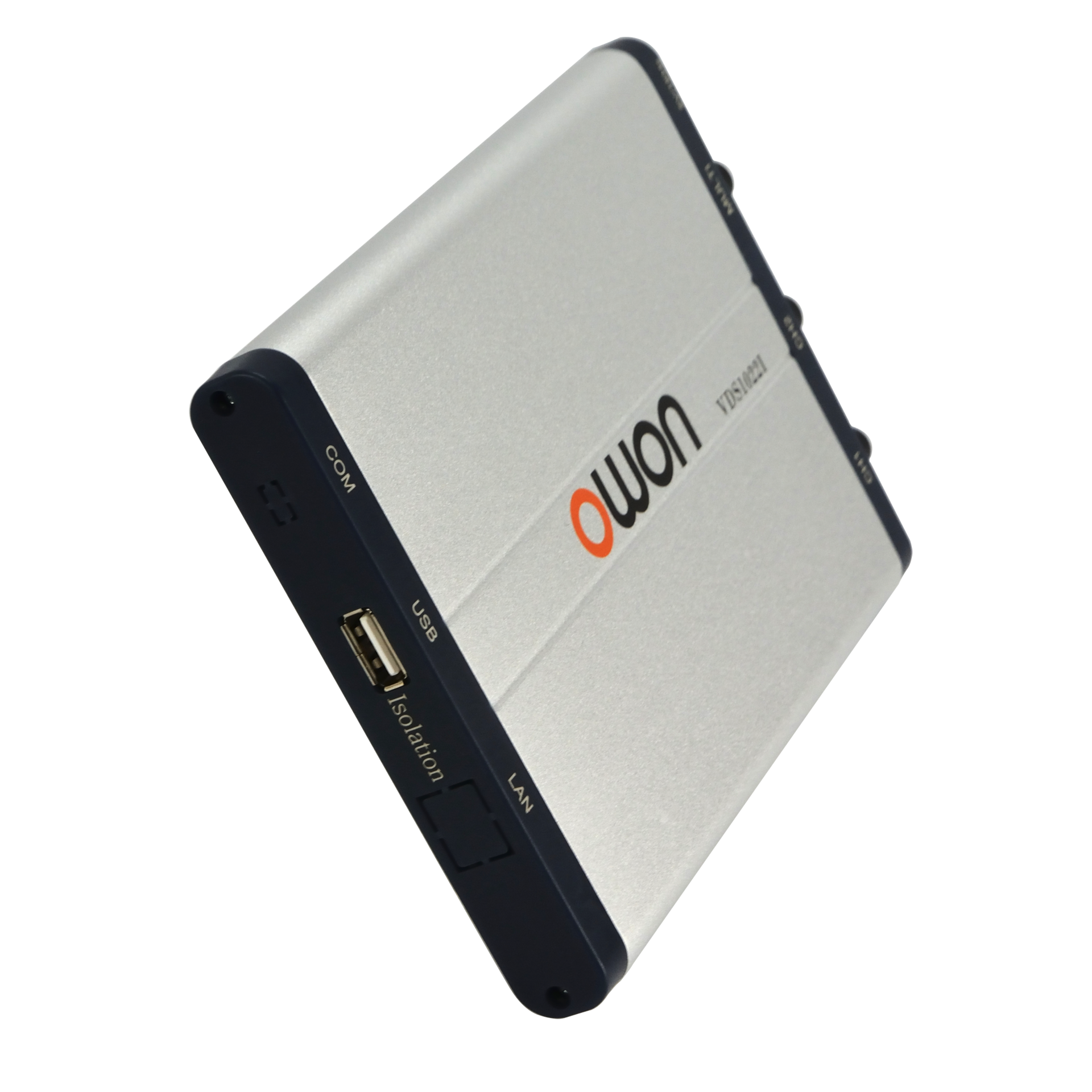

1. RS232 port (optional)
2. USB port : power supplying via USB bus, communicating with PC
3. LAN port (optional) : remote control

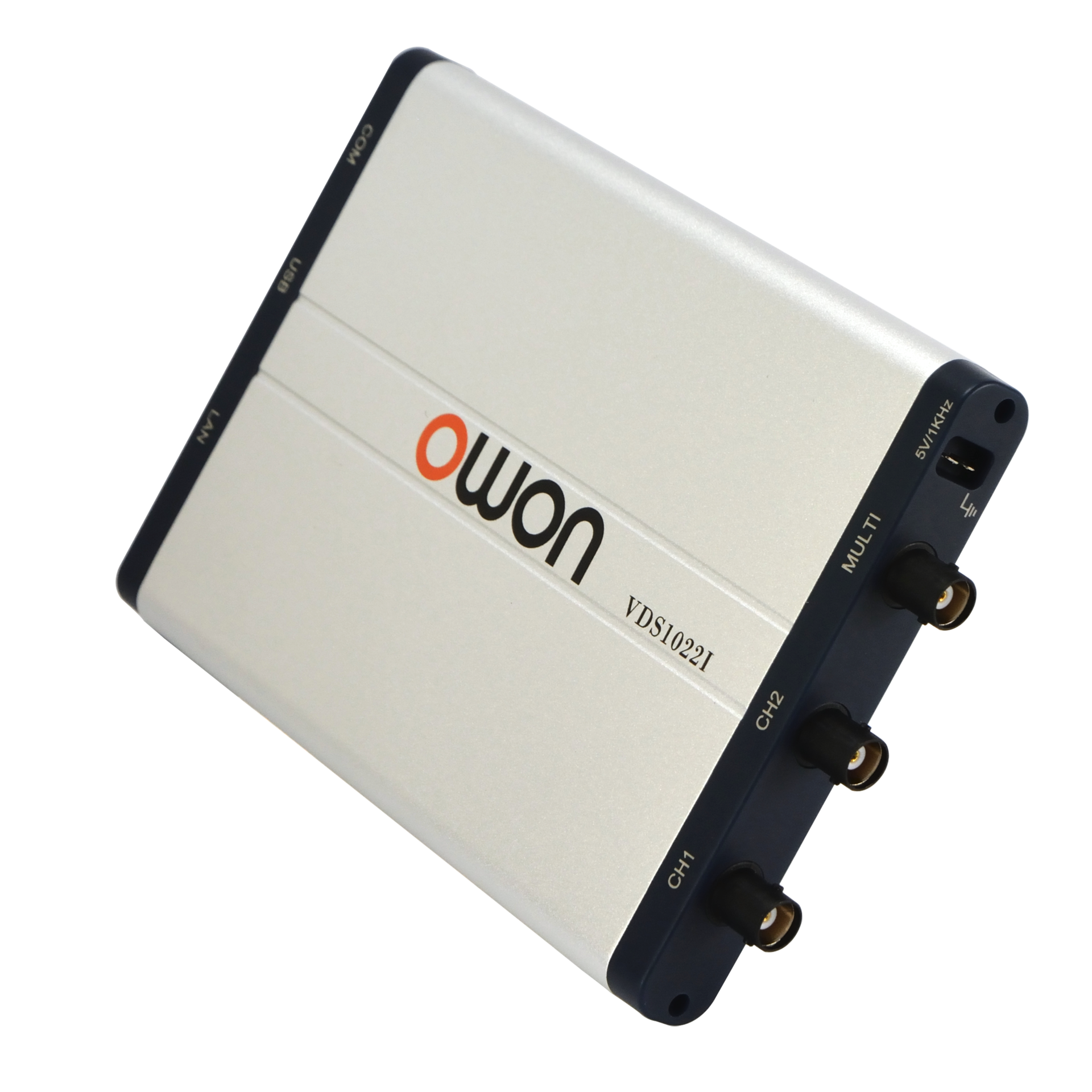

4. Channel 1 signal input
5. Channel 2 signal input
6 .EXT trigger input, trigger output, or Pass/Fail output
7. probe compensation : measurement signal (3.3V/1KHz) output
Note : When communicating with PC via LAN, the oscilloscope should be powered by adapter.
OWON VDS1022I Specifications:
-
25MHz bandwidth, and max 1GS/s real-time sample rate
-
10M record length
-
Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen
-
Multi-trigger option : edge, video, slope, pulse, and alternate
-
USB isolation - less signal inference, more PC protection
-
USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
| Model | VDS1022I |
|---|---|
| Bandwidth | 25MHZ |
| Channel | 2+1 (multi) |
| Sample Rate | 100MSa/s |
| Horizontal Scale (s/div) | 5ns/div～100s/div, step by 1～2～5 |
| Record Length | 5K |
| Max Input Voltage | 400V (PK - PK) |
| (DC+AC, PK - PK) | 40V (PK - PK) (DC+AC, PK - PK) |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Model | VDS1022I |
| Vertical Sensitivity | 5mV/div～5V/div |
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate |
| Trigger Mode | Auto, Normal, and Single |
| Acquisition Mode | Sample, Peak Detect, and Average |
| Waveform Math | ＋, －, ×, ÷, invert, FFT |
| Communication Interface | USB 2.0 (isolation) |
| Multi-function | |
| Interface | Signal Type |
| Level Standard | TTL |
| Power Supply | 5.0V/1A |
| Power Consumption | ≤2.5W |
