Description

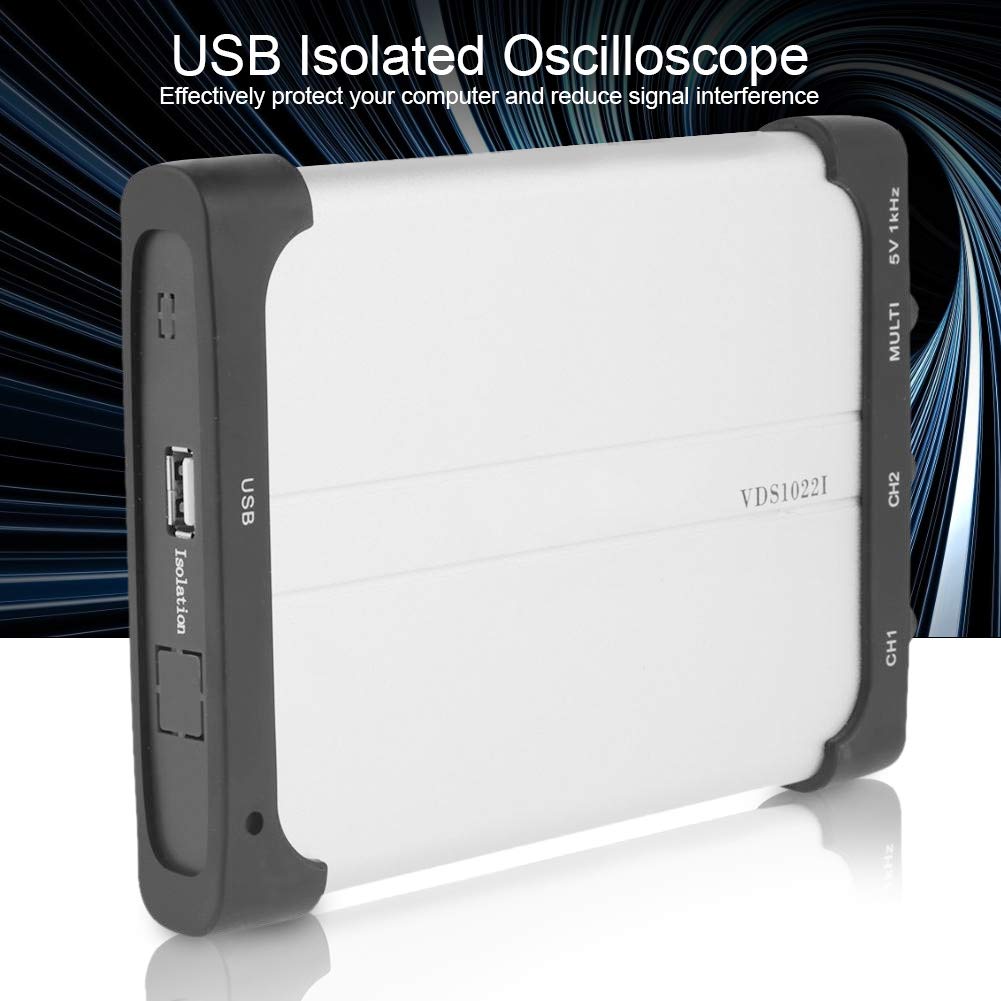

OWON 25 MHz PC Oscilloscope VDS 1022
- Bandwidth 25MHz
- - Channel: 2+1(multi)
- - Sample Rate: 100MS/s
- - Rise Time ≤14ns
- - Record Length 5K
- - Input Coupling DC AC GND
- - Input Impedance 1MΩ±2%，in parallel with10pF±5pF
- - Channels Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
- - Max Input Voltage 400V (PK - PK) (DC+AC, PK - PK) 40V (PK - PK) (DC+AC, PK - PK)
- DC Gain Accuracy ±3%
- - Probe Attenuation Factor 1X, 10X, 100X, 1000X
- - LF Respond (AC, -3dB) ≥10Hz (at input, AC coupling, -3dB)
- - Sampling Rate / Relay Time Accuracy 150ps
- - Interpolation sin(x) / x
- - Interval (△T) Accuracy (full bandwidth): Single:+- (1 interval time+100ppm × reading+ 0.6ns)
- - Average >16: ±(1 interval time + 100ppm × reading + 0.4ns)
- - Vertical Resolution (A/D) 8 bits resolution (2 channels simultaneously)
- - Vertical Sensitivity 5mV/div
- - Trigger Type Edge, Pulse, Video, Slope, Alternate
- - Trigger Mode Auto, Normal, Single
- - Trigger Level ±5 divisions from screen center
- - Acquisition Mode Sample, Peak Detect, and Average
- - Phase Difference ±3 degrees
- - Communication Interface USB 2.0, LAN (optional)
- - Power Supply 5.0V/1A
- - Power Consumption ≤1.5W
- - Dimensions (W × H × D): 170 × 120 × 18 (mm)
- - Weight (without package): About 0.26 kg
