PIC Development Board with Relay, Buzzer, Motor Driver & 7-Segment Display
The PIC Development Board is a powerful prototyping and learning platform designed for students, hobbyists, and embedded system developers. Compatible with PIC16F/18F microcontrollers, it features onboard relay, buzzer, motor driver, LEDs, switches, and dual 7-segment displays, making it ideal for quick prototyping and project testing.
Perfect for STEM education, embedded programming, robotics, and DIY projects, this board allows you to design, test, and implement real-world applications easily.

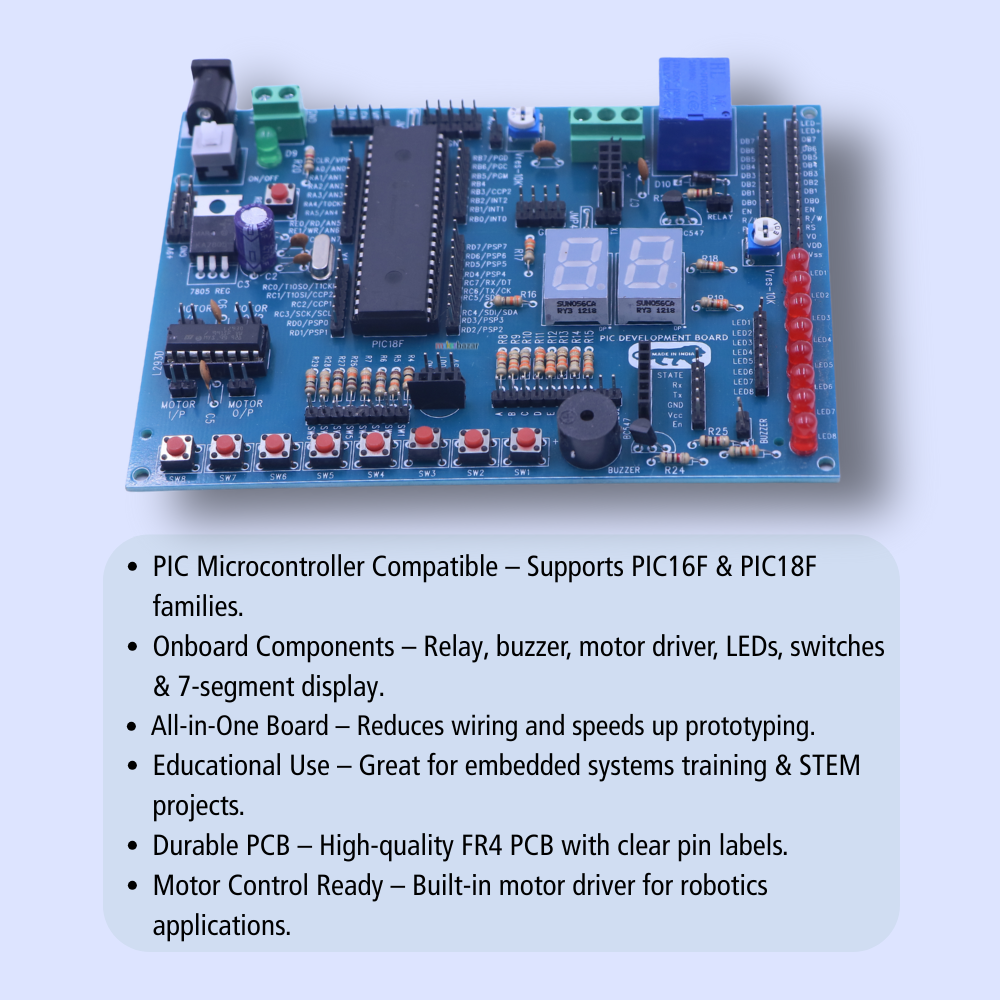

Key Features
-
🔌 PIC Microcontroller Compatible – Supports PIC16F & PIC18F families.
-
⚡ Onboard Components – Relay, buzzer, motor driver, LEDs, switches & 7-segment display.
-
🧩 All-in-One Board – Reduces wiring and speeds up prototyping.
-
🎓 Educational Use – Great for embedded systems training & STEM projects.
-
🛡️ Durable PCB – High-quality FR4 PCB with clear pin labels.
-
🤖 Motor Control Ready – Built-in motor driver for robotics applications.
Technical Specifications
-
Board Type: PIC Microcontroller Development Board
-
Compatible With: PIC16F / PIC18F Microcontrollers
-

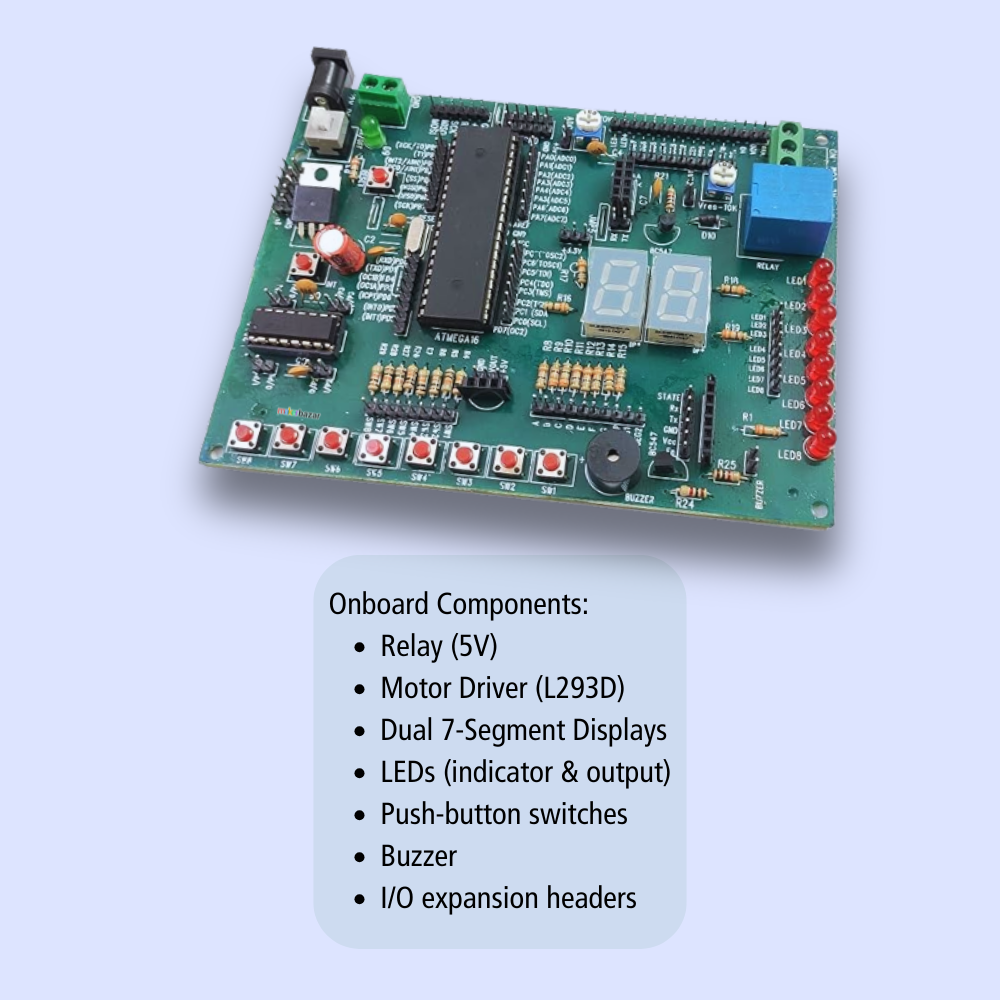

Onboard Components:
-
Relay (5V)
-
Motor Driver (L293D)
-
Dual 7-Segment Displays
-
LEDs (indicator & output)
-
Push-button switches
-
Buzzer
-
I/O expansion headers
-
-
Power Supply: Supports external +12V / regulated +5V
-
Material: High-quality FR4 PCB with soldered components
-
Applications: Embedded systems, robotics, motor control, DIY electronics, STEM learning
