Description
RGB Controller via iOS/Android for WS2811 WS2812B WS2815 WS2813 WS2801 SK6812 WS2815 SK9822 A102 LED Strip Pixel Module Panel Light
This Musical LED controller allows you to control the LED strips as per musical notes. Plenty of colorful modes are available to suit your needs. Can be set and controlled via Wifi App connecting to the controller over a Wifi access point which makes it convenient to control LEDs from a long distance.
Voltage range from DC 5V to 12V and includes reverse connection protection of the power supply.
- 118 kinds of non-music effects.
- 71 color palette supported, this helps in playing 118 x 71 (8,378) unique non-music color patterns.
- 20 kinds of LED strip music effects.
- Matrix support is available.
- 3 Matrix effects are supported.
- Setting pixel number supports up to 960 pixels.
- Audio input through built-in MIC. It captured the sound of the outside world.
- Adjustable. The speed, brightness, number of pixels, color order, and sensitivity are adjustable.
- Auto Mode Supported - all supported non-music effects would be played sequentially after 10 secs (color palette won't be affected).
- Music mode and non-music mode can be arbitrarily changed. It can play lighting effects appropriately.
- User setting saving.
Instructions:
- Make sure you have connected to an Access point (WSPIXEL_) on your phone.

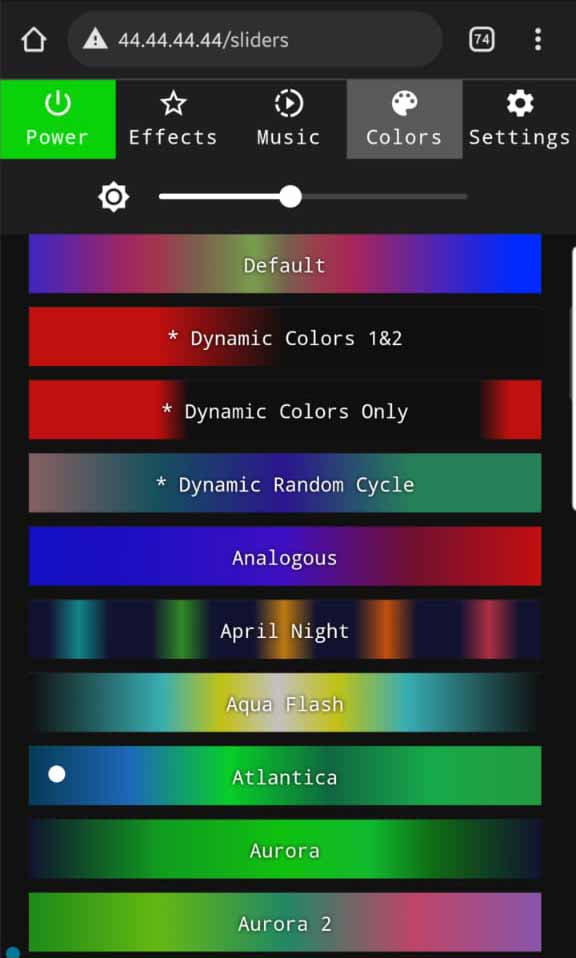

- Open the browser and connect to the controller using 12345678 as the password. once connected you will see the app on the browser to control effects.
- Select RGB order and IC type under the setting tab.
- Adjust the pixel number according to the connected strip.
Note: Use 5v Led if the power supply to your RGB controller is 5v | Use 12v Led if the power supply to your RGB controller is 12v | Use 24v Led if the power supply to your RGB controller is 24v
