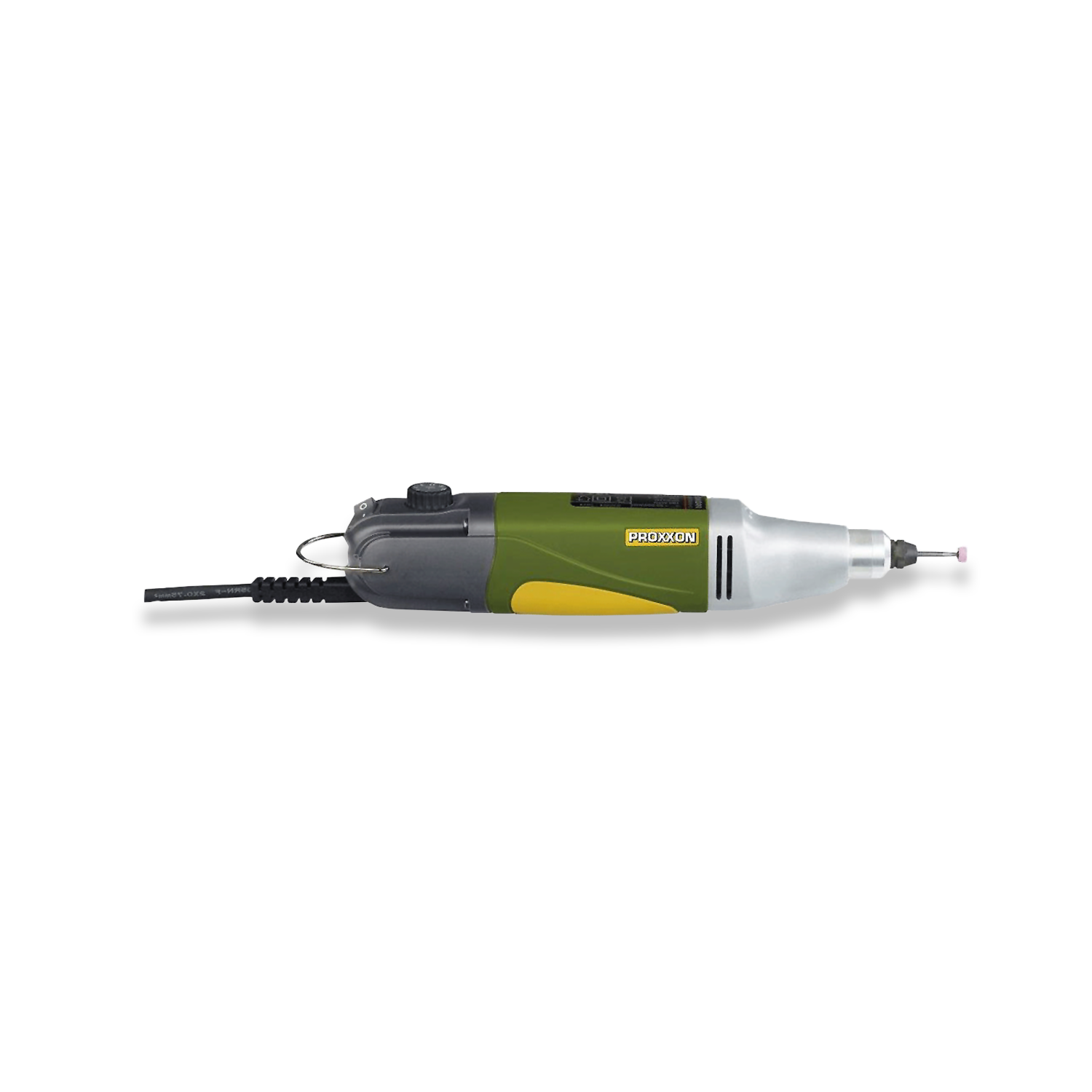

Proxxon 100W Precision Rotary Grinder Drill with 34 Assorted Bits & Cutters
The Proxxon 28481 Professional Rotary Tool IBS/E is a premium 100W precision rotary tool engineered for continuous professional use in drilling, milling, grinding, polishing, engraving, cutting, carving, cleaning, deburring, and finishing applications. Manufactured in Europe, it features a balanced DC motor, die-cast aluminium gear head, and a precision ground steel spindle supported by double ball bearings for exceptionally smooth operation and maximum concentric accuracy.
The IBS/E includes 34 industrial-quality bits and cutters, along with six precision steel collets (1.0–3.2mm), making it an ideal choice for model makers, jewelers, electronics engineers, woodworkers, hobbyists, precision mechanics, and craftsmen. The lightweight yet robust glass-fibre reinforced polyamide housing ensures comfortable handling during extended operation.
Key Features
- Professional-grade 100W precision rotary tool
- Variable speed control from 5,000 to 22,000 RPM
- High concentric accuracy (maximum runout 0.03 mm)
- Quiet, balanced DC motor with full-wave electronic speed control
- Precision ground steel spindle with double ball bearings
- Die-cast aluminium gear head for improved rigidity and heat dissipation
- Six hardened steel MICROMOT collets (1.0–3.2 mm)

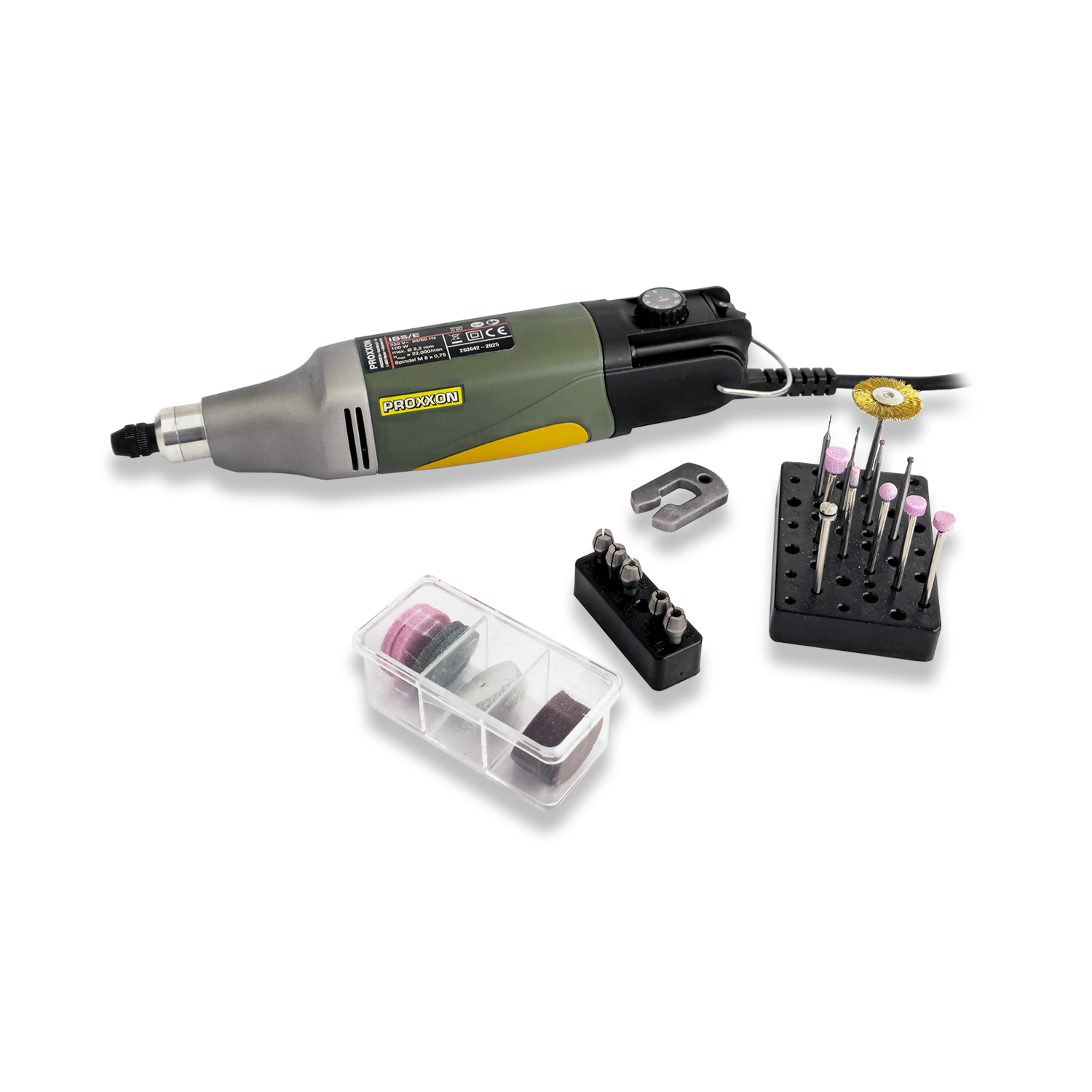

- Includes 34 industrial-quality bits and cutters
- 20 mm MICROMOT collar compatible with Proxxon drill stands and accessories
- Glass-fibre reinforced polyamide housing
- Lock button for quick accessory changes
- Compact, lightweight ergonomic design

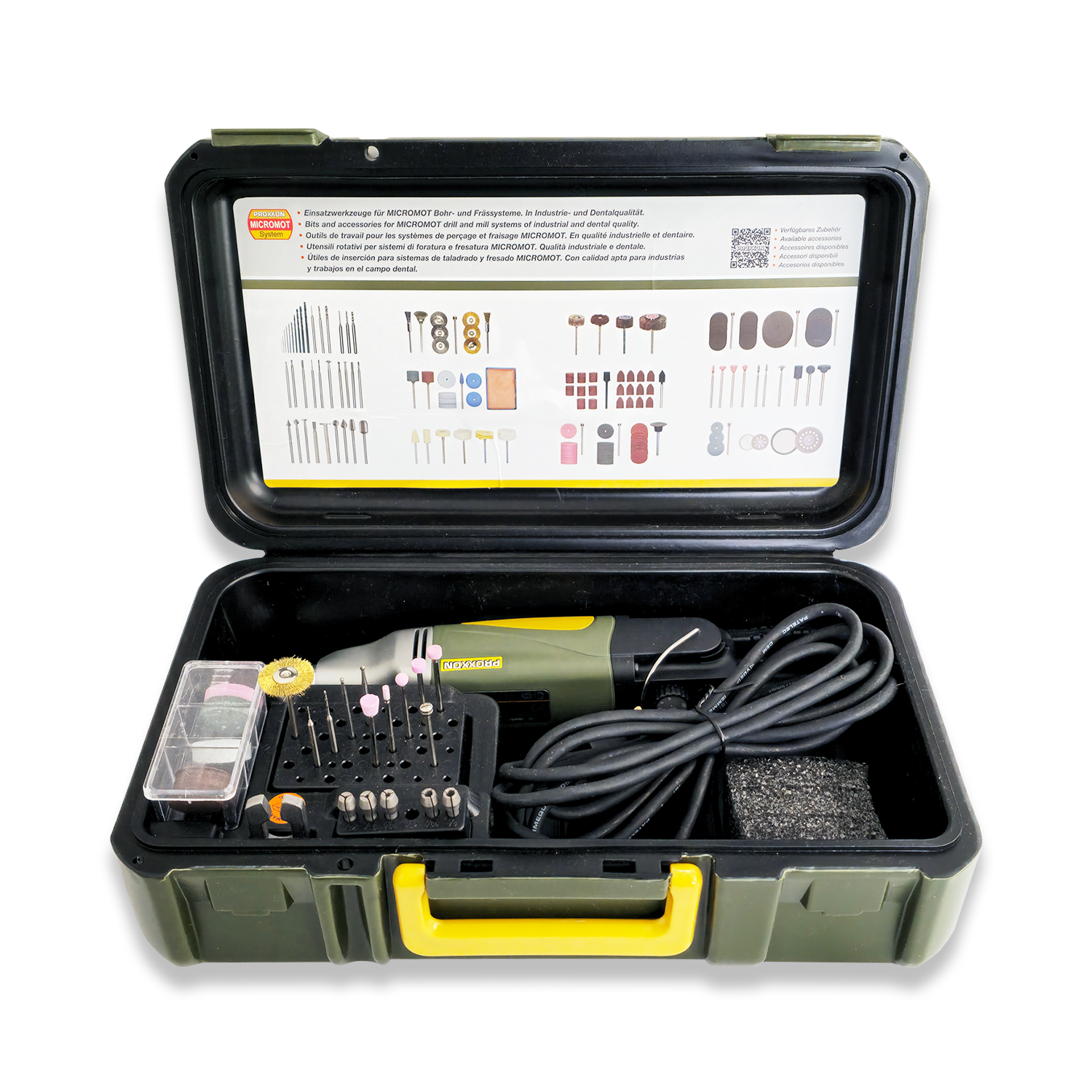

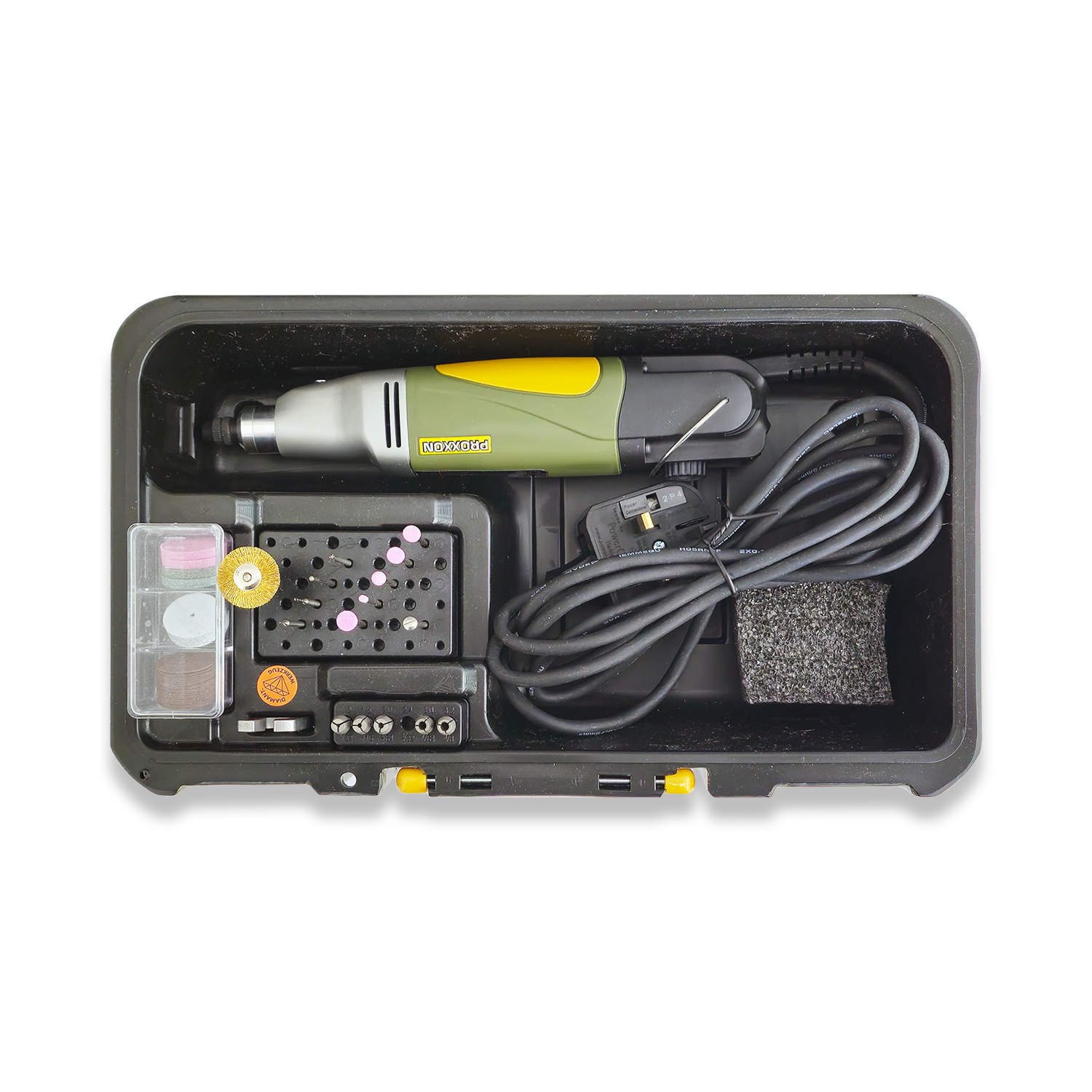

- Supplied in a durable plastic storage case
Technical Specifications
| Specification | Details |
|---|---|
| Model | IBS/E |
| Part Number | 28481 |
| Brand | Proxxon |
| Power Input | 100 W |
| Supply Voltage | 220–240V AC, 50/60Hz |
| Speed Range | 5,000–22,000 RPM |
| Speed Control | Electronic Variable Speed |
| Maximum Runout | 0.03 mm |
| Tool Holding System | Precision Steel Collets |
| Collet Sizes | 1.0, 1.5, 2.0, 2.4, 3.0 & 3.2 mm |
| Collar Diameter | 20 mm |
| Length | 230 mm |
| Weight | Approx. 500 g |
| Housing Material | Glass Fibre Reinforced Polyamide |
| Gear Head | Die-Cast Aluminium |
| Insulation Class | Class II |
