HW687 Mini Style PWM DC Motor Speed Regulator 3V 6V 12V 24V 35V 5Amp - Precise Speed Control for Your DC Motor

The Mini Style PWM DC Motor Speed Regulator 3V 6V 12V 24V 35V 5amp is a must-have tool for controlling the speed of your DC motor with precision. This regulator uses Pulse-Width-Modulation (PWM) technology to adjust your motor's speed and customize it to your specific needs.

However, it's essential to keep in mind some precautions. The DC motor governor is only designed to work with DC input, and connecting it to AC power (such as 220V AC found in homes) may result in damage or burnout.

Moreover, ensure that the DC power supply's positive and negative terminals are not reversed, as this may cause damage to the governor. If the motor is moving in the wrong direction, you can adjust the line order to change its direction.

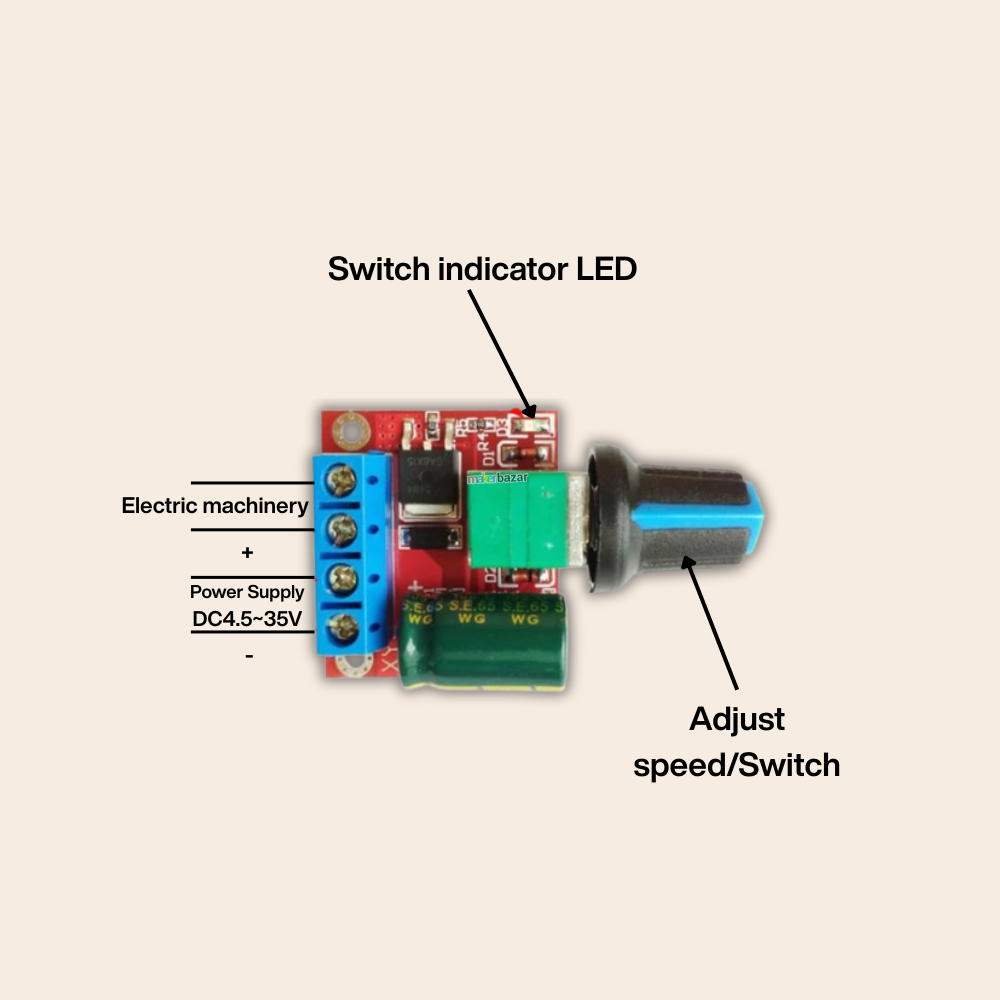

The potentiometer knob allows you to adjust the governor output duty cycle, resulting in changes in your motor's speed. Whether you require precise speed control for a DIY project or industrial use, this mini-style motor speed regulator is an ideal solution that offers optimal control and performance.

---

Features:

1. Mini DC 4.5-35V 5A PWM Motor Speed Controller.
2. Wide voltage DC motor speed controller.
3. Operating voltage: DC4.5V-35V
4. Output current: 0-5A
5. Output power: 90W (max)
6. PWM duty cycle: 1% -100%.

---

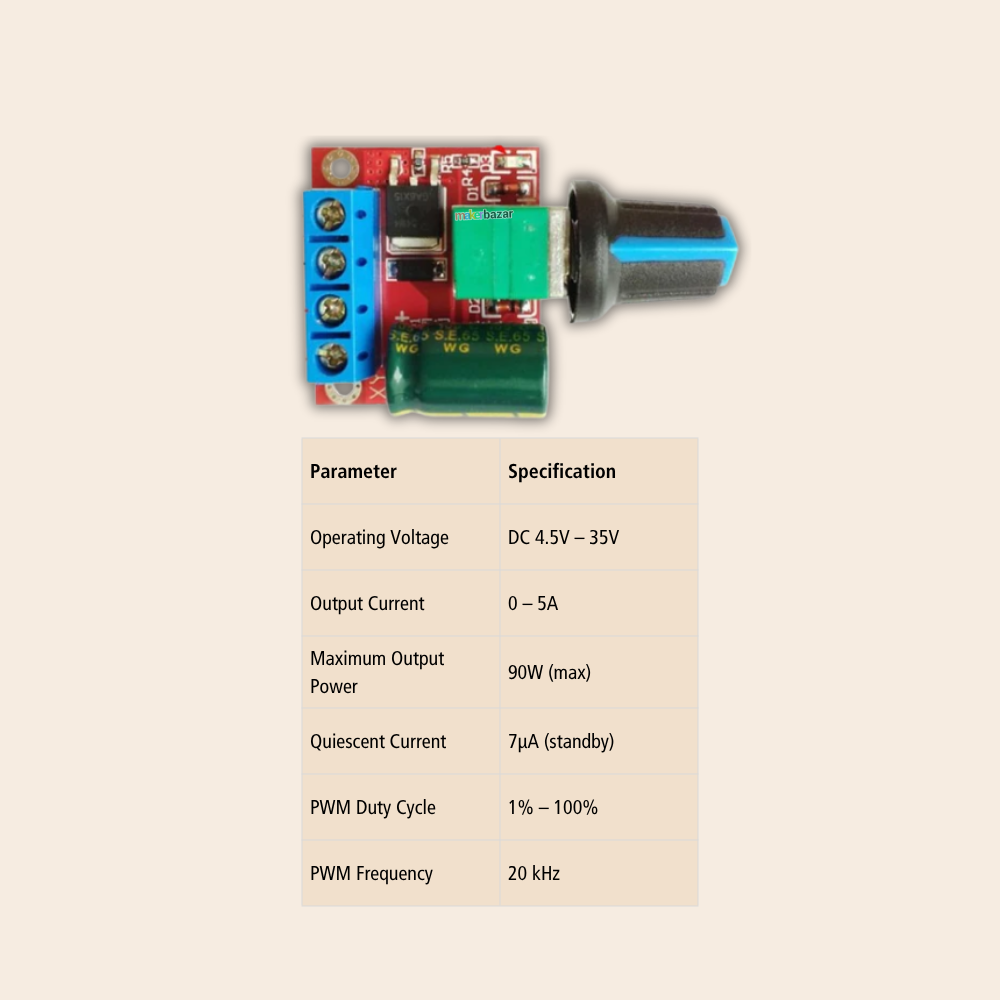

Specifications:

Operating voltage	DC 4.5V-35V
Output current	0-5A
Output power	90W (max)
Quiescent current	7uA (standby)
PWM duty cycle	1% -100%
PWM frequency	20khz

---

Package Includes :

1 x PWM DC Motor Speed Regulator 3V 6V 12V 24V 35V -5Amp
