Description

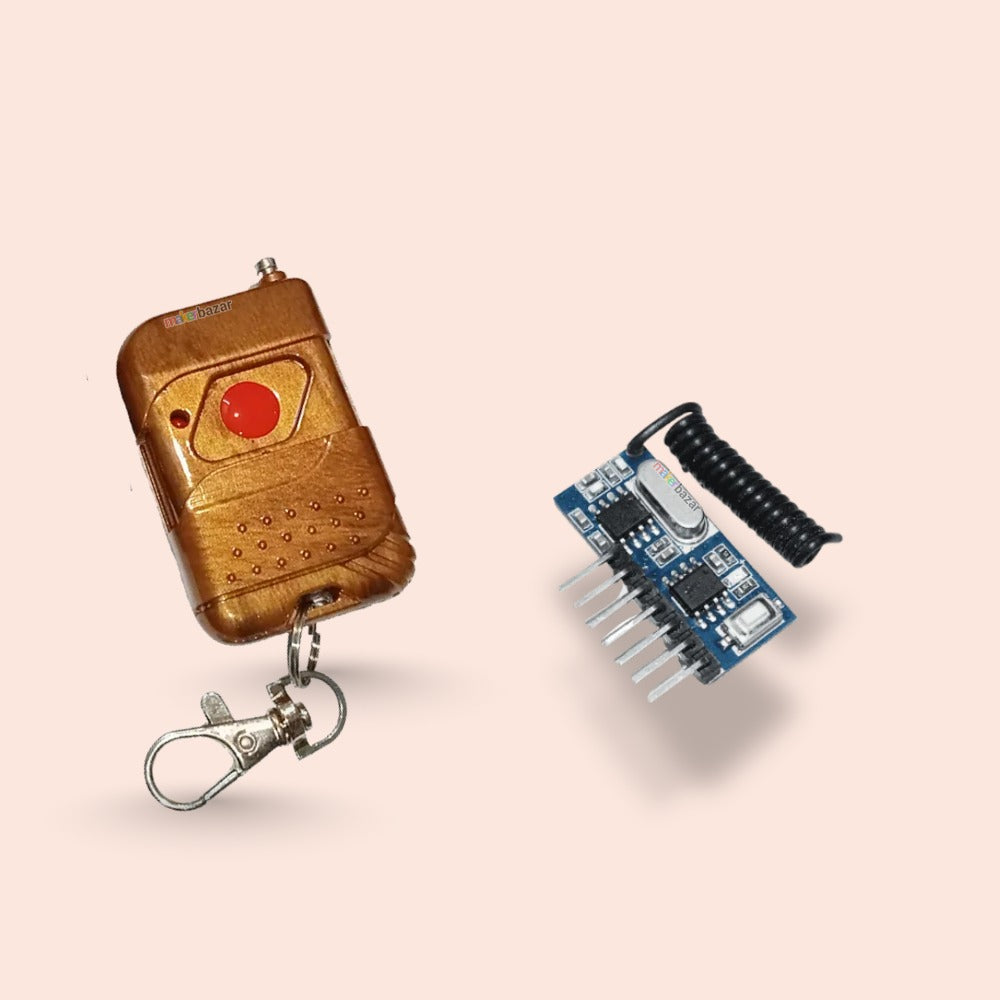

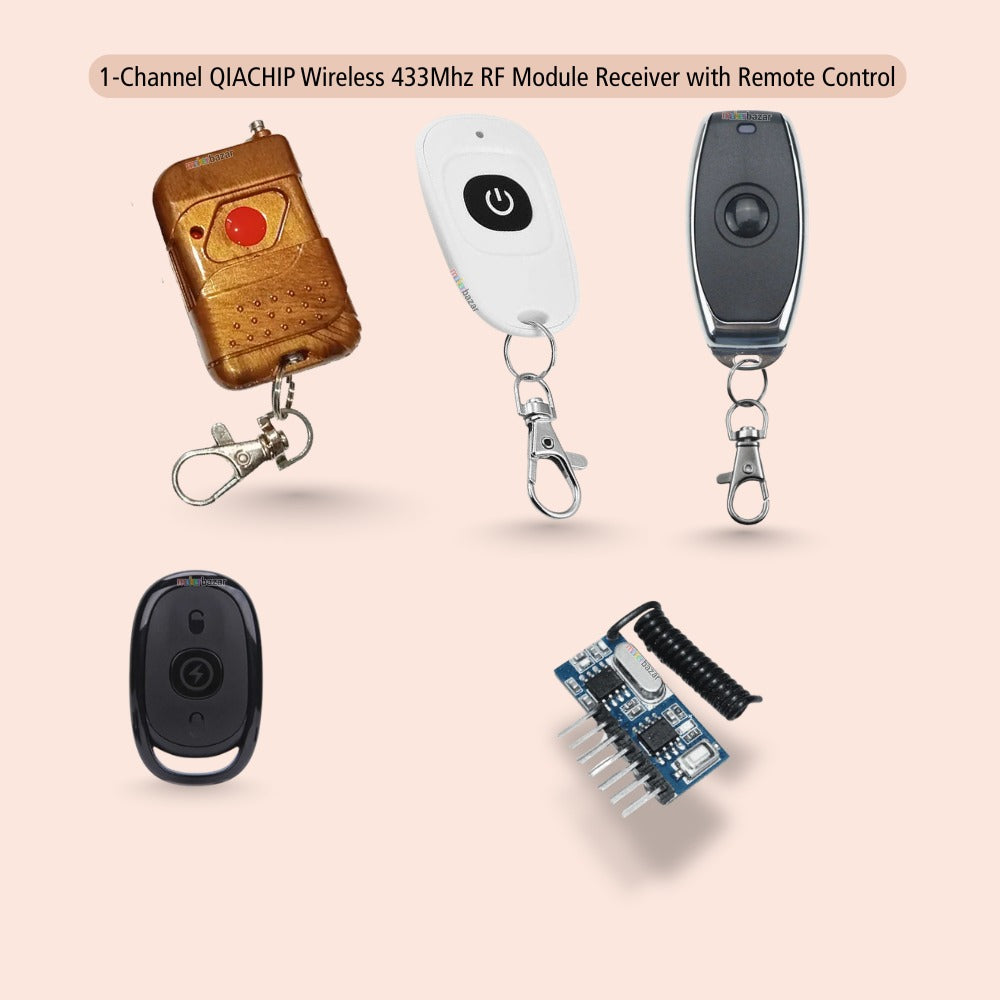

QIACHIP 1-Channel 433MHz Wireless RF Receiver and Remote Control Switch Module
The QIACHIP 1-Channel 433MHz RF Wireless Receiver Module is a reliable remote control switch system designed for wireless signal transmission and device control. It operates using RF (Radio Frequency) 433MHz technology, allowing long-range wireless communication between the transmitter (remote) and receiver.
This module can control various appliances or devices such as lights, motors, fans, doors, and other electronic systems. It features learning code technology, enabling users to pair multiple remotes or receivers easily. The system supports momentary, toggle, and latching modes, providing flexibility for different control scenarios.
Perfect for automation projects, smart DIY systems, and remote-controlled circuits.
Key Features
-
433MHz RF wireless technology for stable and long-distance communication
-
1-Channel relay output for switching AC or DC loads
-
Compact and easy to integrate into automation systems
-
Supports multiple control modes: toggle, momentary, and latching
-
Learning function allows easy pairing with remotes
-
Low power consumption and reliable performance
-
Compatible with various QIACHIP remotes
-
Plug-and-play setup, ideal for beginners and DIYers
Technical Specifications
| Specification | Details |
|---|---|
| Brand | QIACHIP |
| Frequency | 433MHz |
| Channels | 1 Channel |
| Working Voltage | DC 12V (some versions support 5V–24V range) |
| Operating Current | < 10mA (standby) |
| Max Load | 10A @ 250V AC / 10A @ 30V DC |
| Control Distance | Up to 100m (open space) |
| Coding Type | Learning Code (EV1527/PT2262 compatible) |
| Control Modes | Momentary, Toggle, Latching |
| Output Type | Relay Output (NO/NC/COM) |
| Remote Battery | 12V 23A Battery (included in most packages) |
| Module Size | Approx. 35mm × 32mm × 18mm |
| Operating Temperature | -20°C to 70°C |
Applications
-
Home automation and wireless light control
-
Garage door and gate opening systems
-
Remote-controlled fans, pumps, or motors
-
Smart DIY projects and Arduino-based RF control
-
Wireless relay control for appliances
-
Access control systems and alarms
