Description
433Mhz transmitter Encoding module EV1527 2262 Coding 4 channel Wireless Remote Superheterodyne RF control

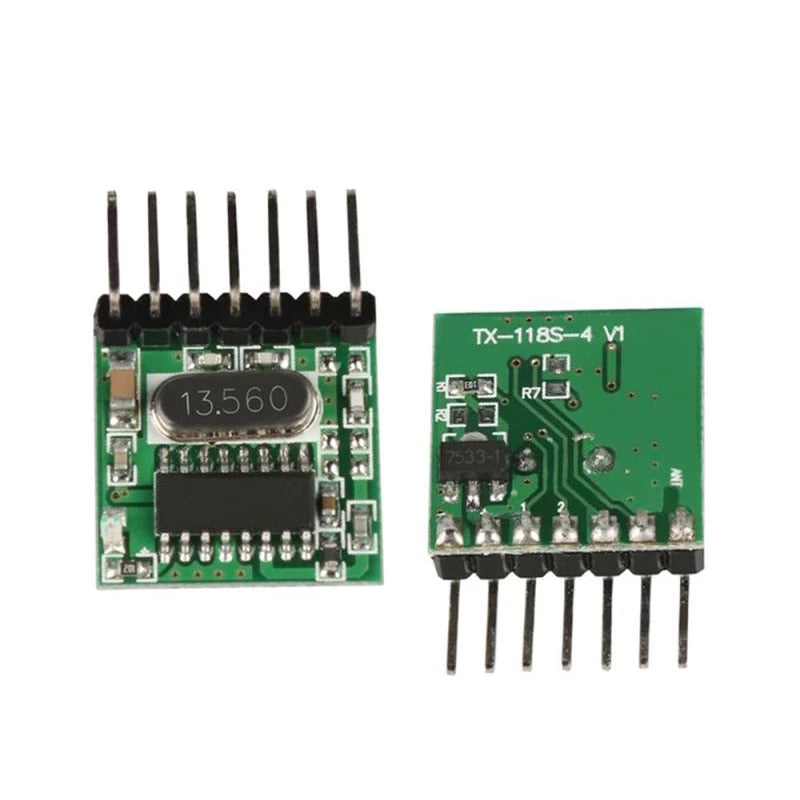

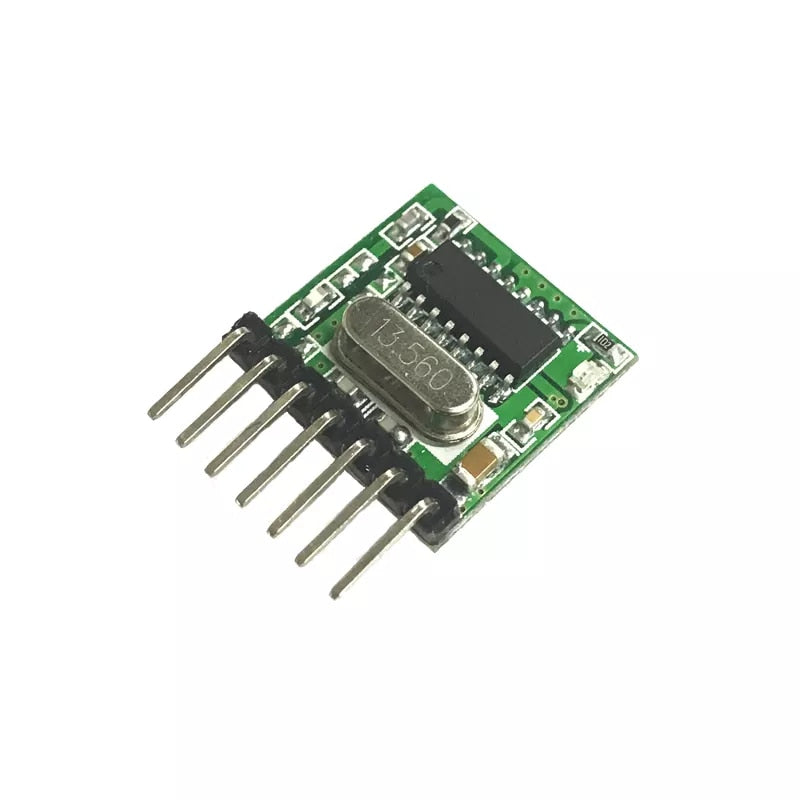

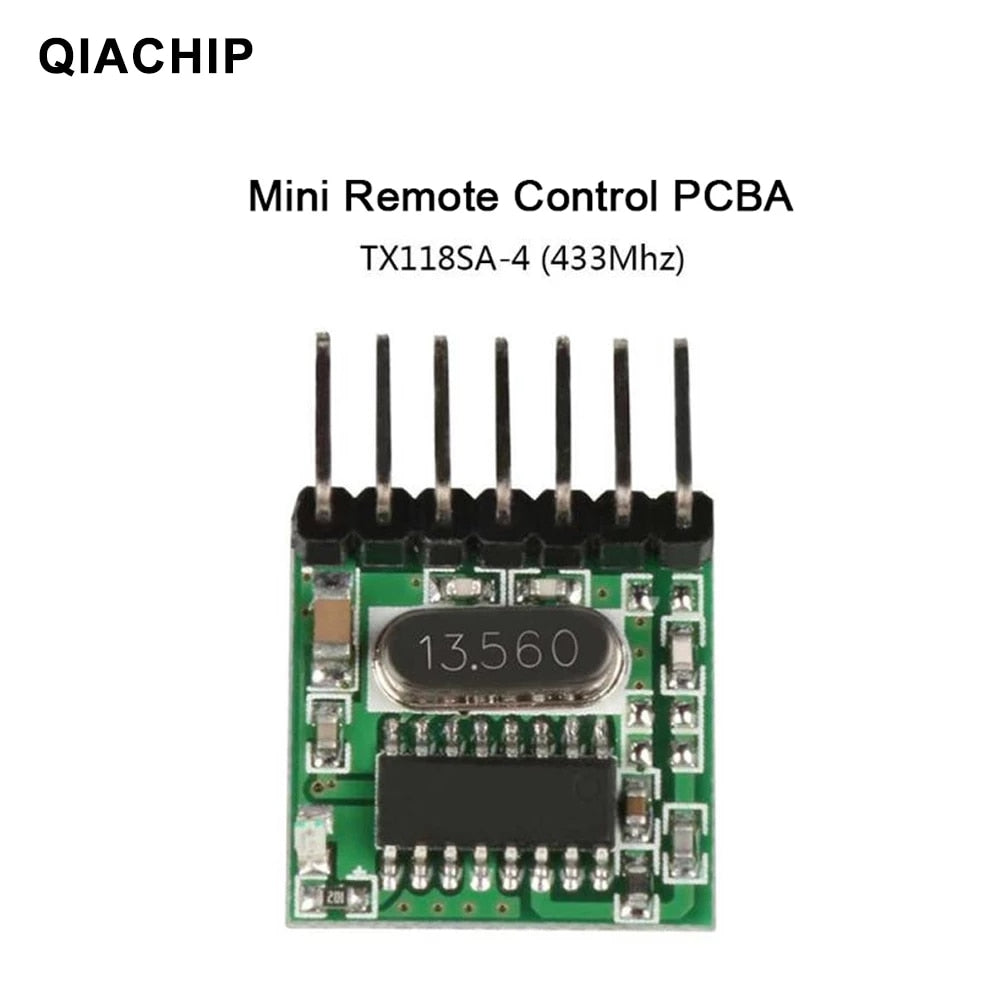

Model: TX118SA-4
- Transmitting power: 11dbm
- Distance: 30-100m
- Emission current: 10MA
- Rate of fire: maximum 10KB / S
- Transmit deviation: +/- 7. 5KHZ / narrow-band emission
- Modulation: ASK
- Operating Voltage: DC 3V-24v
- Encoding : EV1527 1527 Learning code
- Each module has a unique ID address code.
- All modules K1-K4 four key code is the same.
Pin Description:
- - : Negative power supply
- +: Positive power supply, DC 3-24V
- Pin Description:
- - : Negative power supply
- +: Positive power supply, DC 3-24V
- K1: 1 short to Negative start transmitting data, Similar the A button on the remote control.
- K2: 2 short to Negative start transmitting data, Similar the B button on the remote control.
- K3: 3 short to Negative start transmitting data, Similar the C button on the remote control.
- K4: 4 short to Negative start transmitting data, Similar the D button on the remote control.
- ANT: transmitting antenna
